      Hypex NC400 1x400W Ncore versterkermodule

      € 289,21€ 349,95 10+ Op voorraad

      Buy now, pay later

      • Gratis verzonden (NL & BE)
      • Nu besteld, dinsdag bezorgd
      • In-house technische support
      • 45 dagen zorgeloos retourneren
      Zakelijke offerteaanvraag
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

      The NC400 amplifier module is an extremely high-quality class D power amplifier module based on NCore technology from Hypex.



      Highlights

      • Unprecedentedly low distortion over frequency and power range
      • Unprecedentedly low output impedance
      • Very low noise
      • Neutral and transparent reproduction



      Product details

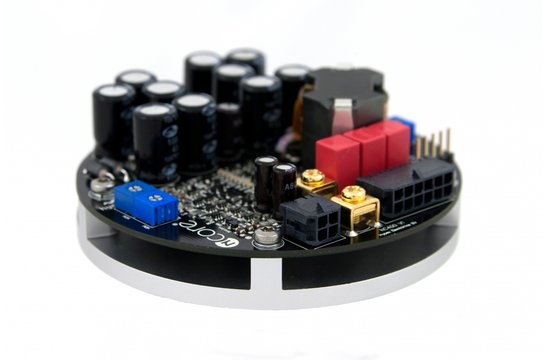

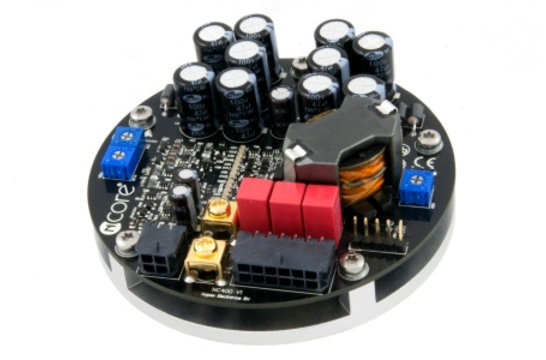

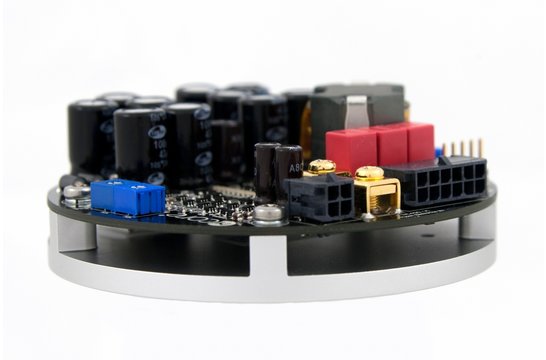

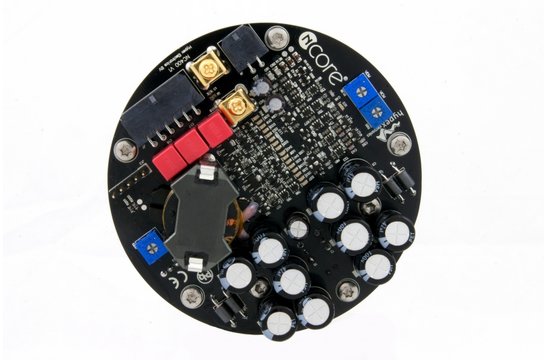

      Hypex NC400 1x400W NCore Amplifier Module



      The NC400 module's audio performance sets new standards, regardless of operating class or circuit technology. Thanks to the Ncore technology it does not only offer a way for audiophile music reproduction to continue in an ever more energy conscious world, its measured and sonic performance actually raises the bar for audio amplifiers of any description.



      Building on the strong heritage of UcD, Ncore takes the things UcD does well and does them ten times better. Literally. Distortion (THD and IMD) over the full audio and power range is negligible, typically below 0.0007%. Distortion at listening levels (1W) is unmeasurable. This amp adds neither dirt nor fairy dust. The NC400 module is perfect for high-end active loudspeakers or high-end stand-alone power amplifiers.



      Features

      • Transparent, fully discrete input circuitry
      • HxR style regulators on board
      • Differential input with high common-mode impeadance
      • Overcurrent protection
      • Supply overvoltage/undervoltage protection on all rails



      What’s In The Box?

      • NC400 amplifier module
      • Mounting set NC400
      • Cable set NC400
      • Manual



      This NC400 amplifier module only needs the proper signal and power supply connections to start with their efficient, ultra-clean power delivery. We recommend the SMPS600N400 as a power supply for the NC400 amplifier module. With the SMPS1200A400 onto 2x NC400 Connection kit it is possible to easily connect two NC400 amplifier modules to one SMPS1200A400 power supply.



      This product is also available as a kit, check out NC400 Monoblock Kit

      Toon meer

      Specificaties

      Artikelnummer
      NC400
      Nominaal vermogen

      400 watts at 4 ohms
      200 watts at 8 ohms
      580 watts at 2 ohms

      Minimale belasting
      2 ohms
      Efficiëntie
      93 %
      Signaal-ruisverhouding (SNR)
      125 dB
      Vervorming
      0.0007 % THD+N at 20-20,000 Hz, 4 ohms, 200 watts
      Frequentierespons
      0 - 50,000 Hz
      Versterkingsfactor
      25.8 dB
      Ingangsgevoeligheid
      2.05 V
      Ingangsimpedantie

      104k ohms (differential mode)
      1.5M ohms (common mode)

      Amplifier Classification
      Class D
      Versterkertopologie
      Ncore®
      Uitgangskanalen
      1
      Ingangsconnector
      4 pin PCB connector
      Uitgangsconnector
      Screw terminals
      DSP-functionaliteit
      -
      Bluetooth
      -
      EQ-correctie
      -
      Voedingsvereisten
      35 - 75 VDC (symmetric supply +/-)
      Voedingsconnector
      12 pin PCB connector
      Stroomlimiet
      22 A
      Onder-/overspanningsbeveiliging
      Afmetingen (L x B x H)
      ø 88 mm x 32 mm
      Afstand tussen bevestigingsgaten
      -
      Diameter bevestigingsgaten
      -

      Toon meer

      Reviews

      5 from 5Based on 3 reviews
      Schrijf een review
      5 van 5
      If you love music, you must listen to this amplifier. You won't hear a thing though because all you'll hear is beautiful music as you've never heard it reproduced. The difference is simply astonishing. Don't just take my word, try it for yourself.
      Door Peter B. on 23 September 2020
      5 van 5
      Good product for the price. The build was straightforward, but more assembly pictures are needed. It's too early to remark on sound quality,but so far satisfied. Overall happy with the product.
      Door Michael B. on 20 Juni 2020
