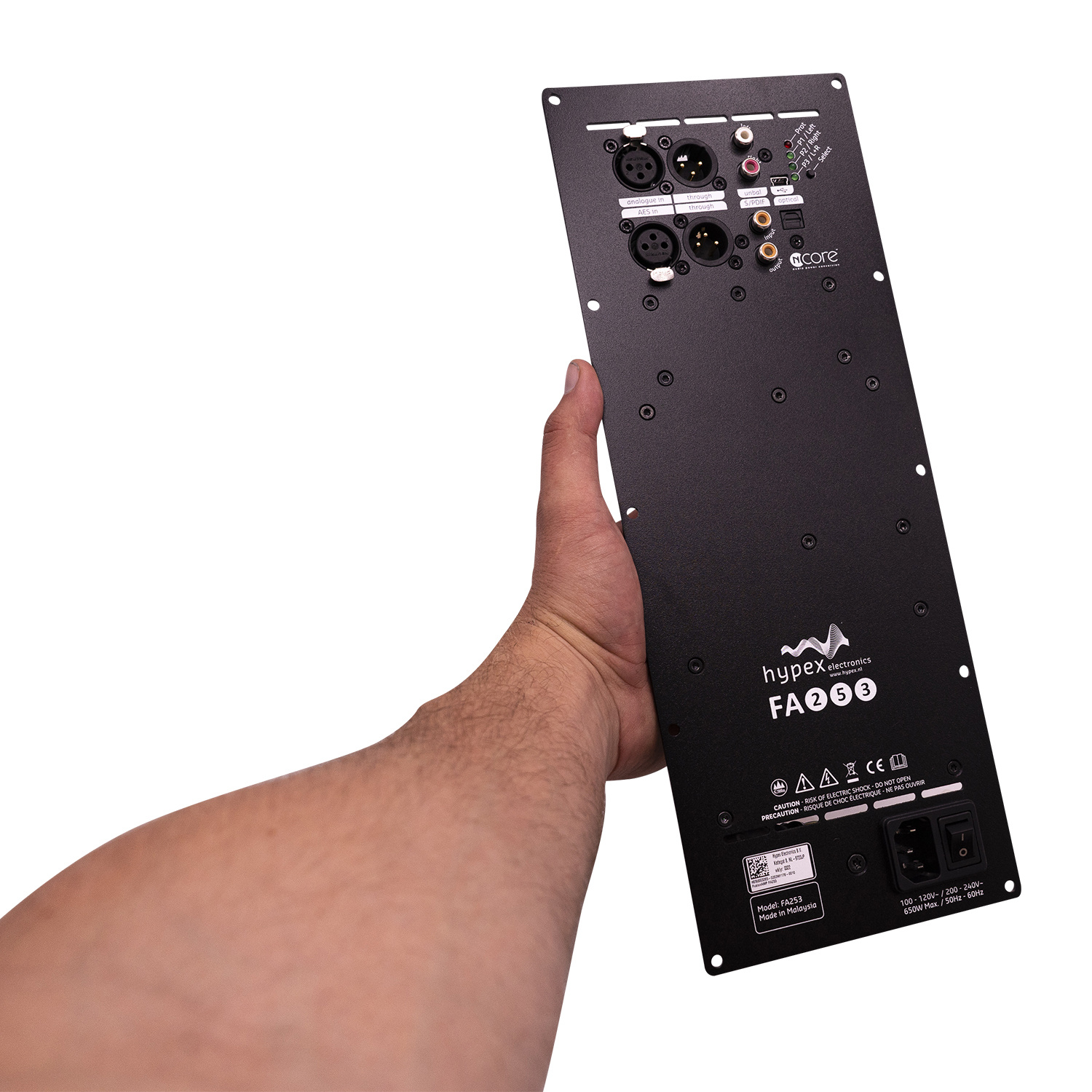

      Hypex FA253 FusionAmp Plate Amplifier

      € 537,15€ 649,95 9 In stock: delivery time 1-4 business days
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      The FA253 2x250 +100 Watt FusionAmp is a DSP controlled three channel plate amplifier. It can be the basis of a powerful active two- or three-way speaker.



      Highlights

      • Ncore based amplifier technology
      • DSP controlled
      • All-in-one Hypex Solution
      • Neutral and transparent reproduction



      Product details

      Hypex FA253 2x250 +100 Watt FusionAmp

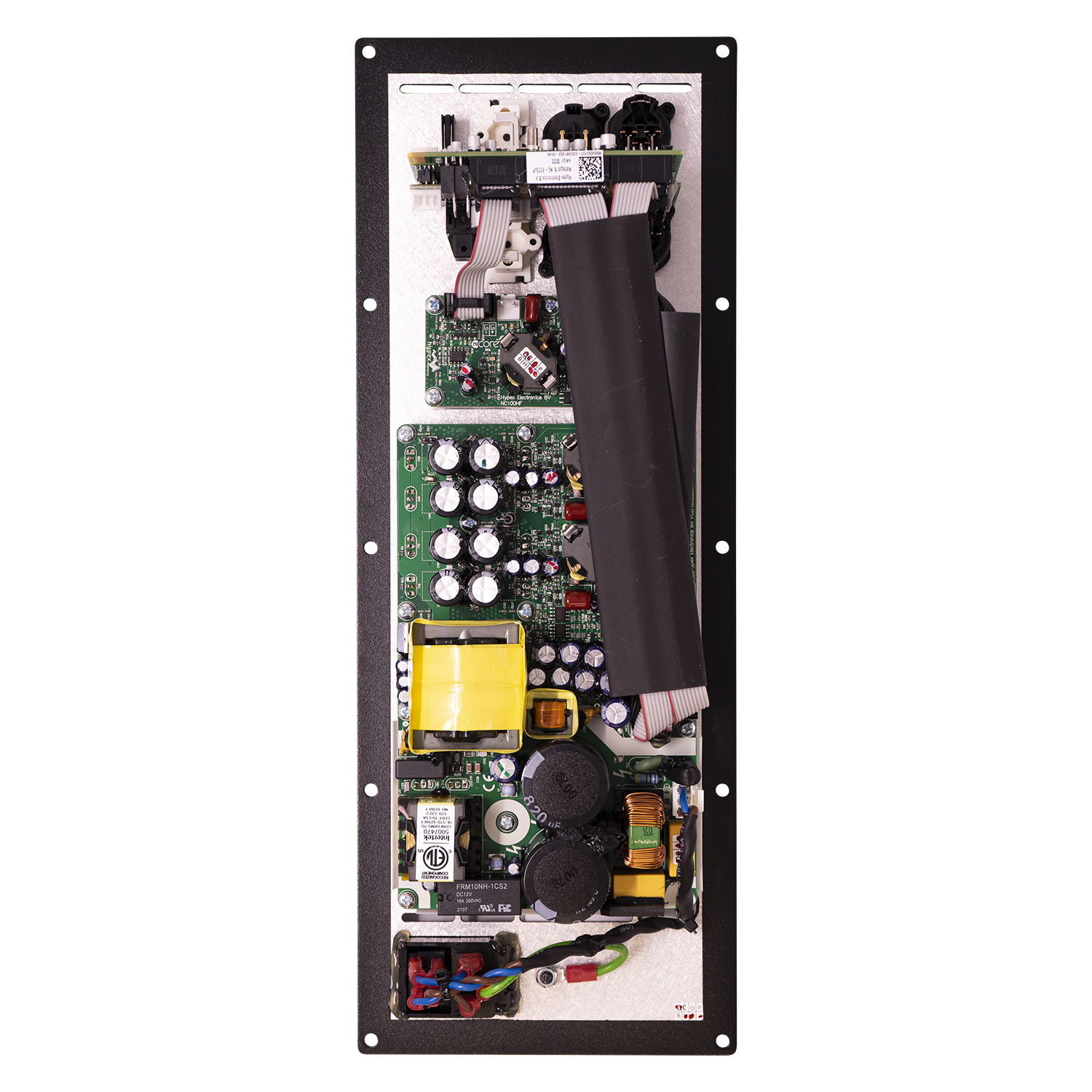

      Due the combination of SMPS, DSP and Ncore based amplifiers packed in this plate amplifier, FusionAmp is one of the best amplification solutions available for active speaker designs. The integrated DSP provides great audio processing functionality. Thanks to the Ncore technology distortion (THD and IMD) over the full audio and power range is negligible. Distortion at listening levels (1W) is unmeasurable.



      The FA253 has two 250 watt Ncore amplifiers which can also be bridged to form one powerful 500 watt amplifier. The third channel is 100 watt Ncore tweeter channel. A variety of input options ensure compatibility with most source equipment. Hypex provides their HFD (Hypex Filter Design) software to design and configure filters for the FusionAmp. You can easily add functionality to the FusionAmp with the Fusion Remote Kit for remote controllability. Due to thermal regulation these FusionAmp's are not airtight.



      To protect your valuable drivers, the DSP does not contain a filter out of the box. A filter needs to be configured and uploaded using Hypex Filter design (HFD) software before the FusionAmp will produce an output signal. You can download the HFD software here.



      Features

      • 15 biquads per amplifier
      • Three selectable presets for filters
      • Source selection
      • Signal detect
      • Auto shutdown
      • BTL capable
      • Clip protect
      • Thermal protect
      • Filter protection

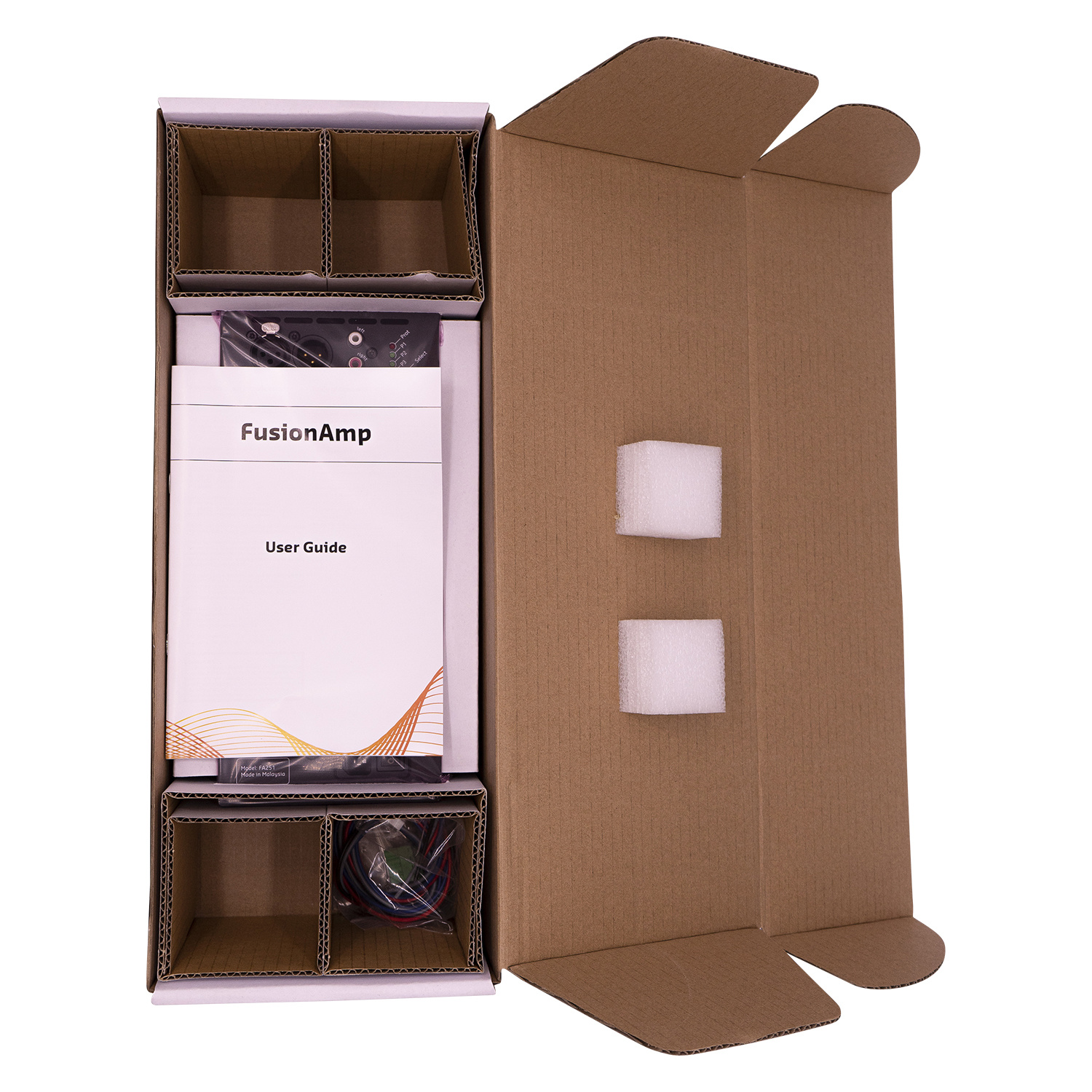

      What’s in the box?

      • FA253 FusioAmp
      • A printed copy of the user guide
      • Speaker connection cables
      • EU (or UK) C13 Power cable



      Curious about designing an active speaker with DSP using Hypex Fusion amplifiers? – Check out our blog post with a “step by step” guide!

      Specifications

      Article number
      FA253
      Rated power output

      2 x 250 + 1 x 100 watts at 4 ohms
      2 x 200 + 1 x 100 watts at 8 ohms
      2 x 180 watts at 2 ohms + 1 x 100 at 4 ohms

      Rated power output bridged

      1 x 400 at 4 ohms
      1 x 500 at 8 ohms

      Minimum load
      2 ohms (4 ohms for tweeter channel)
      Signal-to-noise ratio (SNR)
      121 dB
      Distortion
      0.0015 % THD+N (10-20,000 Hz at 0.5 x rated power output)
      Distortion bridged
      -
      Amplifier classification
      Class D
      Circuit topology
      Ncore®
      Efficiency
      92 % at full power
      Frequency response
      10 - 50,000 Hz
      Input impedance

      54k ohms (unbalanced RCA)
      44k ohms (balanced XLR DM)
      2.2m ohms (balanced XLR CM)

      Input sensitivity
      1.66 Vrms for rated power output
      Auto turn-on sensitivity
      -
      DSP
      DAC
      Maximum sampling rate

      192 kHz
      96 kHz (optical)

      Speaker output channels
      3
      Analog in/out
      1/1
      S/PDIF in/out
      2/1
      AES/EBU in/out
      1/1
      Coaxial in/out
      1/1
      RCA in/out
      1/ -
      XLR in/out
      2/2
      Jack in/out
      - / -
      USB connection
      configure port only
      Network connection
      -
      Bluetooth
      -
      Subwoofer pre-out
      -
      Auto on/off
      Remote control
      Sold separately
      App control
      -
      Equalizer (EQ) adjustment
      Equalizer (EQ) profiles
      Phase control
      Crossover frequency adjustment
      Presets
      Control software
      Hypex Filter Design
      Windows/Mac compatible
      / -
      Power requirements
      200-240 VAC ±10%
      Power inlet connector
      IEC C14
      Standby power consumption
      -
      Current limit
      17.5 A
      Under/over voltage protection
      Dimensions (H x W x D)
      360 x 135 x 55 mm
      Cutout dimensions
      336 x 111 mm

      Show more
