        FA123 FusionAmp Plate Amplifier

        FA123 FusionAmp Plate Amplifier

        €499,95

        Hypex FA123 FusionAmp Plate Amplifier

        5 reviews
        5 from 5
        5 reviews
        5 stars
        80%
        4 stars
        20%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Hypex
        € 413,18€ 499,95 10+ In stock

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • Five-year warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        The FA123 2x125 + 100 Watt FusionAmp is a DSP controlled three channel plate amplifier. It can be the basis of a powerful active two- or three-way speaker.



        Highlights

        • Ncore based amplifier technology
        • DSP controlled
        • All-in-one Hypex Solution
        • Neutral and transparent reproduction



        Product details

        Hypex FA123 2x125 + 100 Watt FusionAmp

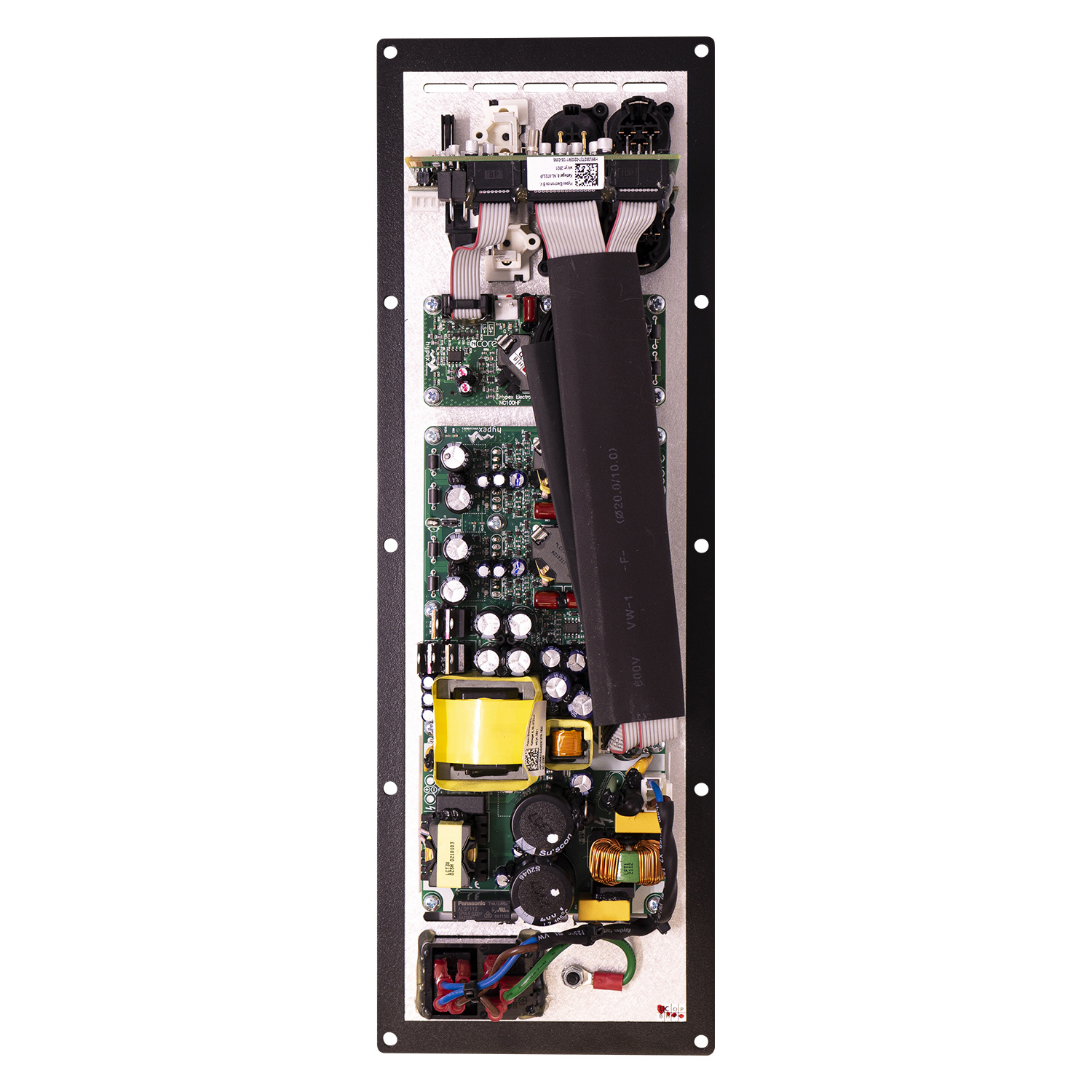

        Due the combination of SMPS, DSP and Ncore based amplifiers packed in this plate amplifier, FusionAmp is one of the best amplification solutions available for active speaker designs. The integrated DSP provides great audio processing functionality. Thanks to the Ncore technology distortion (THD and IMD) over the full audio and power range is negligible. Distortion at listening levels (1W) is unmeasurable.



        The FA123 has two 125 watt Ncore amplifiers which can also be bridged to form one powerful 250 watt amplifier. The third channel is 100 watt Ncore tweeter channel. A variety of input options ensure compatibility with most source equipment. Hypex provides their HFD (Hypex Filter Design) software to design and configure filters for the FusionAmp. You can easily add functionality to the FusionAmp with the Fusion Remote Kit for remote controllability. Due to thermal regulation these FusionAmp's are not airtight.



        To protect your valuable drivers, the DSP does not contain a filter out of the box. A filter needs to be configured and uploaded using Hypex Filter design (HFD) software before the FusionAmp will produce an output signal. You can download the HFD software at Hypex.



        Features

        • 15 biquads per amplifier
        • Three selectable presets for filters
        • Source selection
        • Signal detect
        • Auto shutdown
        • BTL capable
        • Clip protect
        • Thermal protect
        • Filter protection

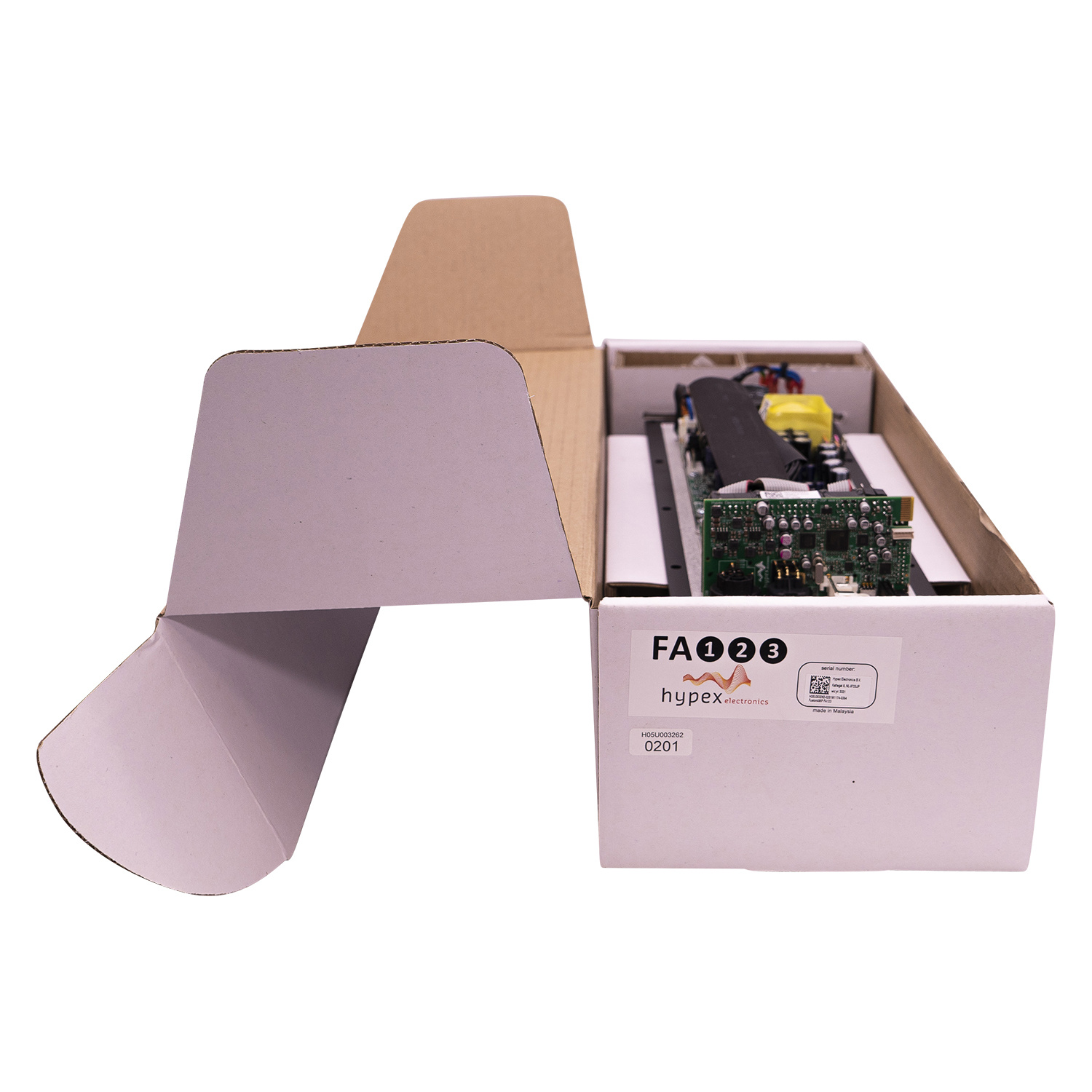

        What’s in the box?

        • FA123 FusioAmp
        • A printed copy of the user guide
        • Speaker connection cables
        • EU (or UK) C13 Power cable



        Curious about designing an active speaker with DSP using Hypex Fusion amplifiers? – Check out our blog post with a “step by step” guide!

        Show more

        Specifications

        Article number
        FA123
        Rated power output

        2 x 125 watts + 1 x 100 watts at 4 ohms
        2 x 75 watts + 1 x 100 watts at 8 ohms
        2 x 115 watts at 2 ohms + 1 x 100 watts at 4 ohms

        Rated power output bridged

        1 x 200 watts at 4 ohms
        1 x 250 watts at 8 ohms

        Minimum load
        2 ohms (4 ohms for tweeter channel)
        Signal-to-noise ratio (SNR)
        118 dB
        Distortion
        0.0015 % THD+N (10-20,000 Hz at 0.5 x rated power output)
        Distortion bridged
        -
        Amplifier classification
        Class D
        Circuit topology
        Ncore®
        Efficiency
        92 % at full power
        Frequency response
        10 - 50,000 Hz
        Input impedance

        54k ohms (unbalanced RCA)
        44k ohms (balanced XLR DM)
        2.2m ohms (balanced XLR CM)

        Input sensitivity
        1.17 Vrms for rated power output
        Auto turn-on sensitivity
        -
        DSP
        DAC
        Maximum sampling rate

        192 kHz
        96 kHz (optical)

        Speaker output channels
        3
        Analog in/out
        1/1
        S/PDIF in/out
        2/1
        AES/EBU in/out
        1/1
        Coaxial in/out
        1/1
        RCA in/out
        1/ -
        XLR in/out
        2/2
        Jack in/out
        - / -
        USB connection
        configure port only
        Network connection
        -
        Bluetooth
        -
        Subwoofer pre-out
        -
        Auto on/off
        Remote control
        (sold separately)
        App control
        -
        Equalizer (EQ) adjustment
        Equalizer (EQ) profiles
        Phase control
        Crossover frequency adjustment
        Presets
        Control software
        Hypex Filter Design
        Windows/Mac compatible
        / -
        Power requirements
        200-240 VAC ±10%
        Power inlet connector
        IEC C14
        Standby power consumption
        -
        Current limit
        12.5 A
        Under/over voltage protection
        Dimensions (H x W x D)
        360 x 120 x 55 mm
        Cutout dimensions
        336 x 96 mm

        Show more

        5 of 5
        Sehr einfache Installation. Keinerlei Rauschen oder Brummen. Umfangreiche Software, die etwas Übung verlangt, um optimale Ergebnisse zu erhalten. Beschreibung und tatsächliche Funktion weichen etwas ab. Nicht alle Funktionen sind im Manual beschrieben. Keine deutsche Beschreibung. Für mich kein Problem, aber eigentlich nicht zulässig.
        By Andreas on 30 March 2023
        4 of 5
        -
        By Charbonnier on 28 January 2023
