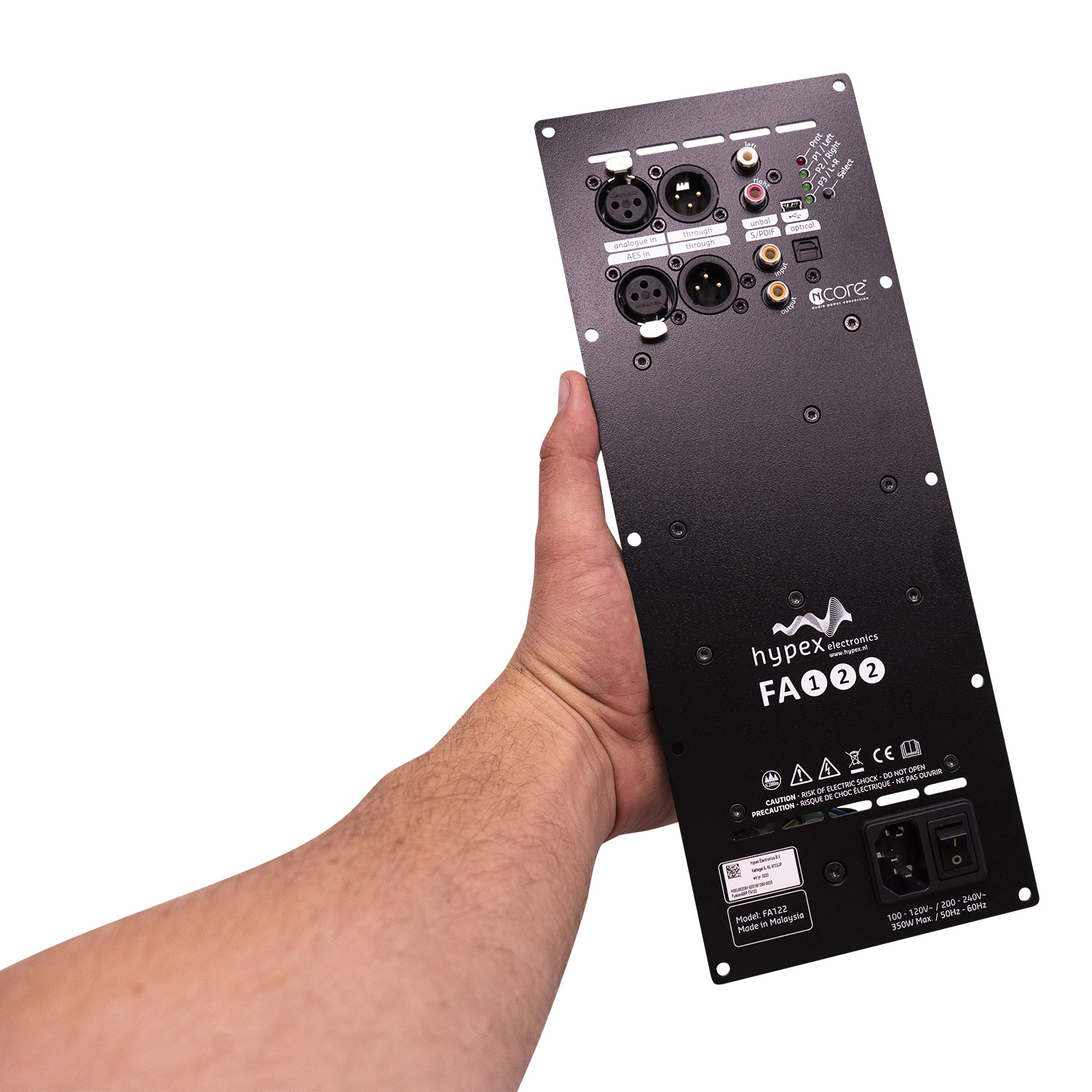

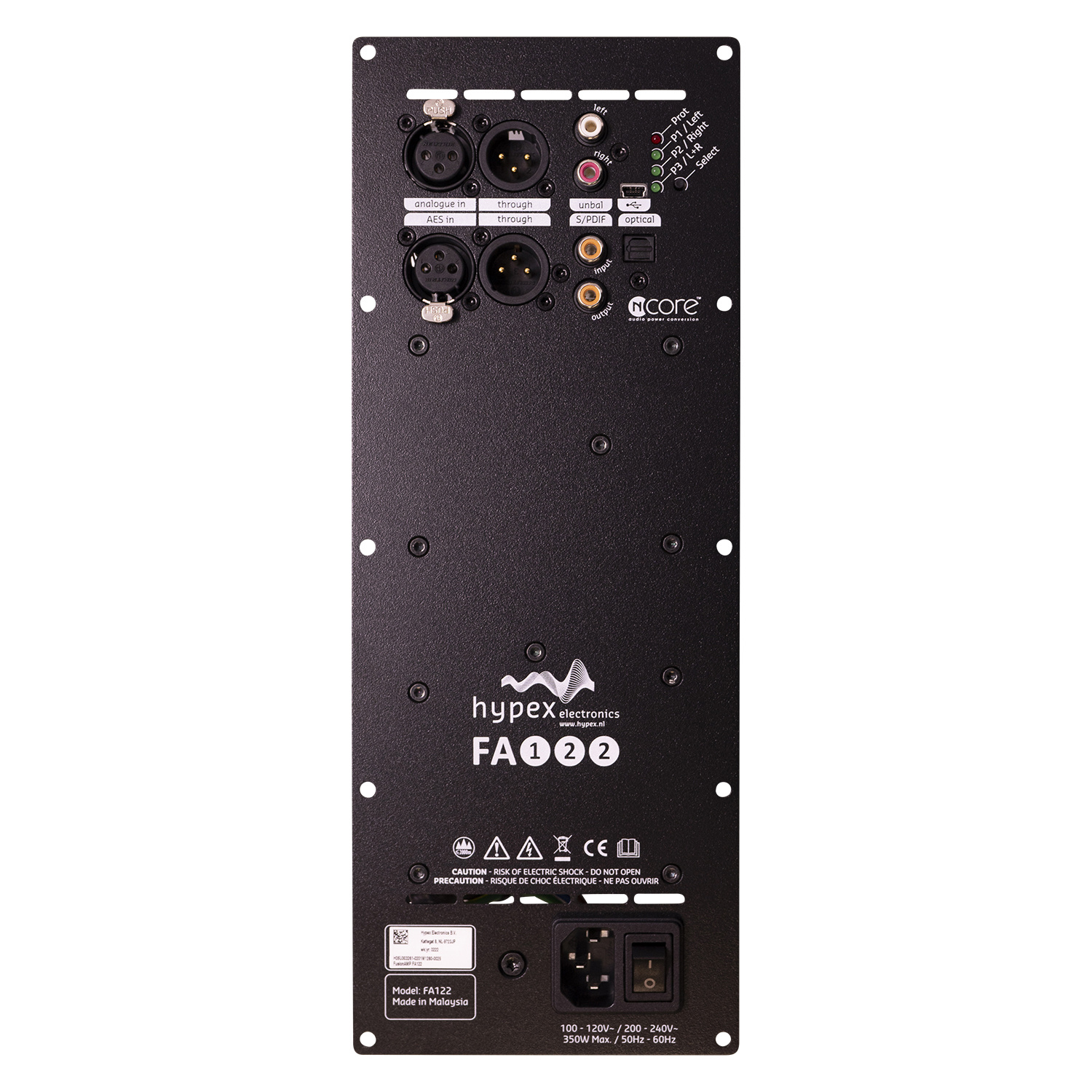

      Hypex FA122 FusionAmp Plate Amplifier

      € 355,33€ 429,95 10+ In stock: delivery time 1-4 business days
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      The FA122 2x125 Watt FusionAmp is a DSP controlled two channel plate amplifier. It can be the basis of a two-way active speaker or an active subwoofer.



      Highlights

      • Ncore based amplifier technology
      • DSP controlled
      • All-in-one Hypex Solution
      • Neutral and transparent reproduction
      • Wide range of analog and digital inputs



      Product details

      Hypex FA122 2x125 Watt FusionAmp

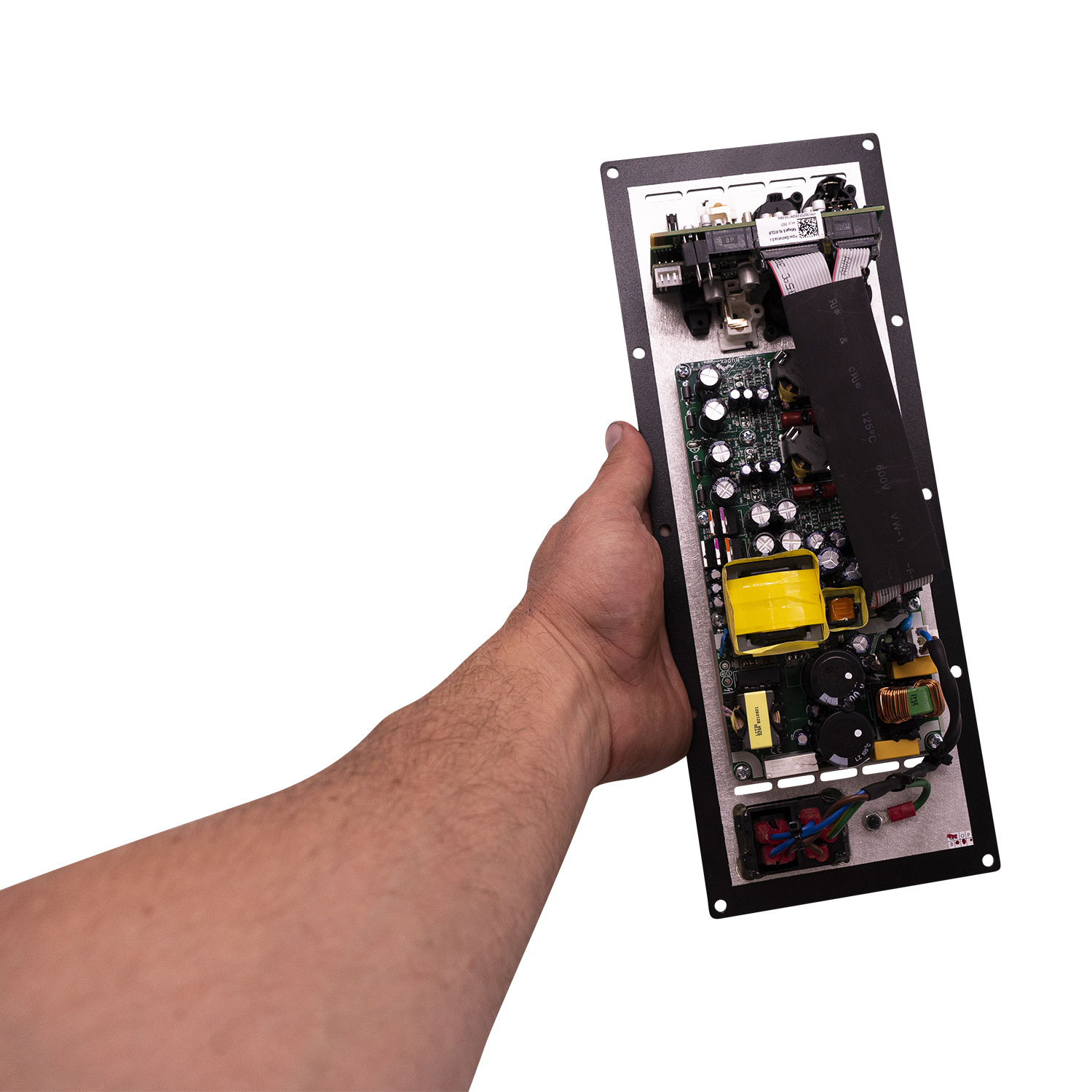

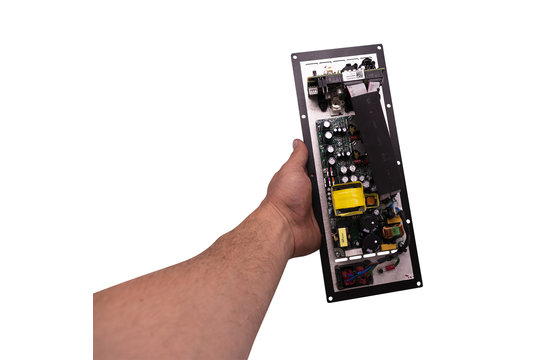

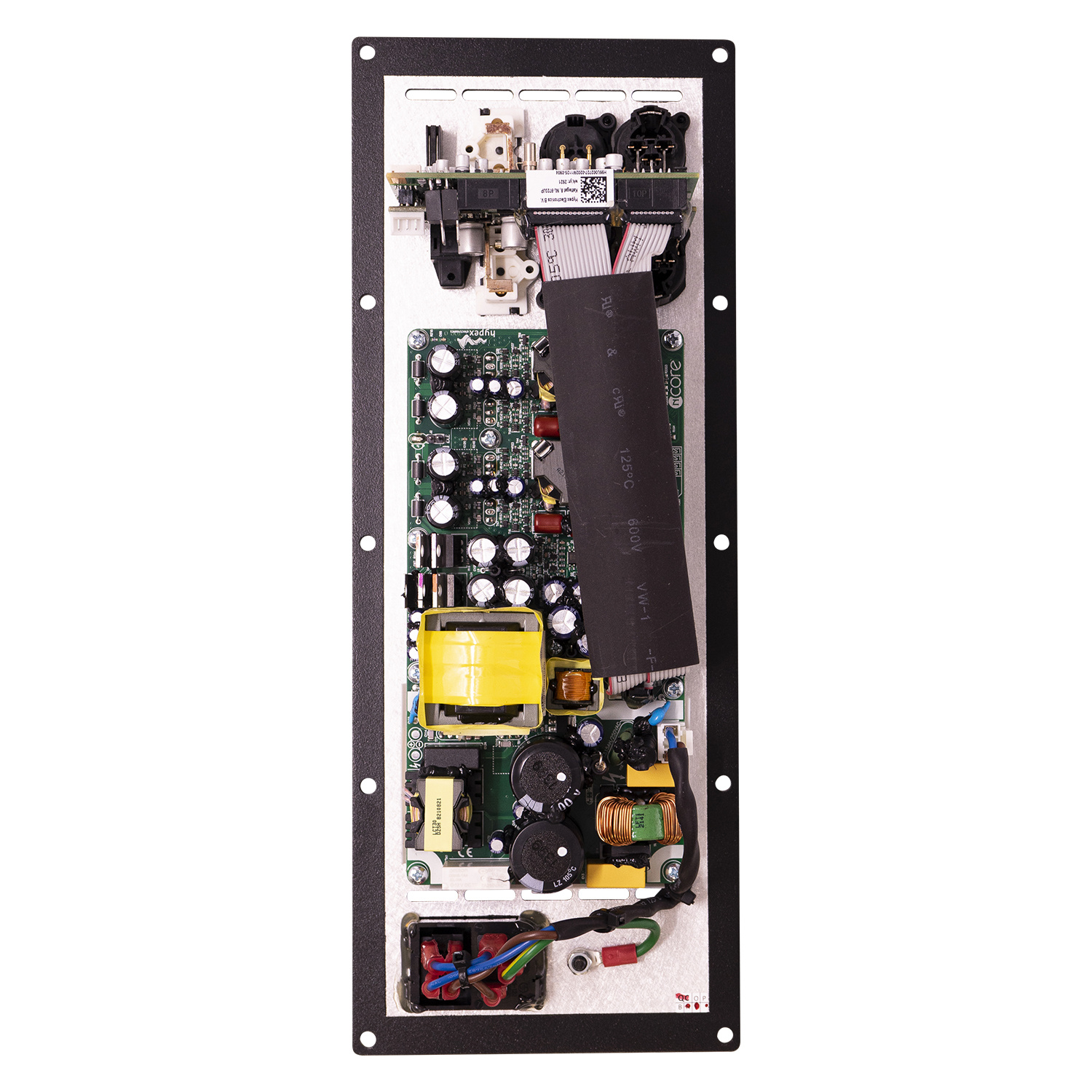

      Due to the combination of SMPS, DSP and Ncore based amplifiers packed in this plate amplifier, FusionAmp is one of the best amplification solutions available for active speaker designs. The integrated DSP provides great audio processing functionality. Thanks to the Ncore technology distortion (THD and IMD) over the full audio and power range is negligible. Distortion at listening levels (1W) is unmeasurable.



      The FA122 has two 125 watt Ncore amplifiers which can also be bridged to form one powerful 250 watt amplifier. A variety of input options ensure compatibility with most source equipment. Hypex provides their HFD (Hypex Filter Design) software to design and configure filters for the FusionAmp. You can easily add functionality to the FusionAmp with the Fusion Remote Kit for remote controllability. Due to thermal regulation, these FusionAmp's are not airtight.



      To protect your valuable drivers, the DSP does not contain a filter out of the box. A filter needs to be configured and uploaded using Hypex Filter design (HFD) software before the FusionAmp will produce an output signal. You can download the HFD software here.



      Features

      • 15 biquads per amplifier
      • Three selectable presets for filters
      • Source selection
      • Signal detect
      • Auto shutdown
      • BTL capable
      • Clip protect
      • Thermal protect
      • Filter protection

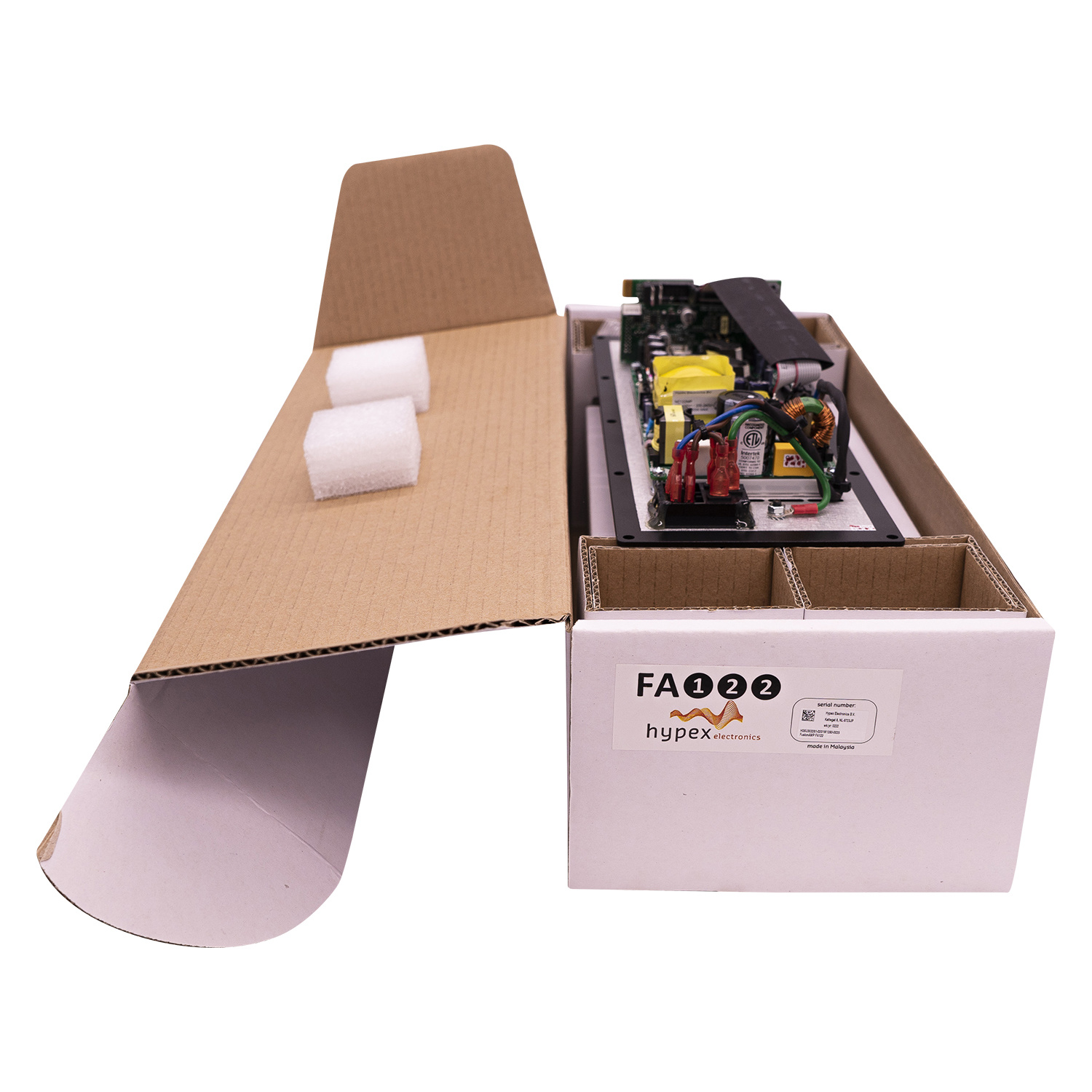

      What’s in the box?

      • FA122 FusioAmp
      • A printed copy of the user guide
      • Speaker connection cables
      • EU (or UK) C13 Power cable

      Specifications

      Article number
      FA122
      Rated power output

      2 x 125 watts at 4 ohms
      2 x 75 watts at 8 ohms
      2 x 115 watts at 2 ohms

      Rated power output bridged

      1 x 200 watts at 4 ohms
      1 x 250 watts at 8 ohms

      Minimum load
      2 ohms
      Signal-to-noise ratio (SNR)
      118 dB
      Distortion
      0.0015 % THD+N (10-20,000 Hz at 0.5 x rated power output)
      Distortion bridged
      -
      Amplifier classification
      Class D
      Circuit topology
      Ncore®
      Efficiency
      92 % at full power
      Frequency response
      10 - 50,000 Hz
      Input impedance

      54k ohms (unbalanced RCA)
      44k ohms (balanced XLR DM)
      2.2m ohms (balanced XLR CM)

      Input sensitivity
      1.17 Vrms for rated power output
      Auto turn-on sensitivity
      -
      DSP
      DAC
      Maximum sampling rate

      192 kHz
      96 kHz (optical)

      Speaker output channels
      2
      Analog in/out
      1/1
      S/PDIF in/out
      2/1
      AES/EBU in/out
      1/1
      Coaxial in/out
      1/1
      RCA in/out
      1/ -
      XLR in/out
      2/2
      Jack in/out
      - / -
      USB connection
      configure port only
      Network connection
      -
      Bluetooth
      -
      Subwoofer pre-out
      -
      Auto on/off
      Remote control
      (sold separately)
      App control
      -
      Equalizer (EQ) adjustment
      Equalizer (EQ) profiles
      Phase control
      Crossover frequency adjustment
      Presets
      Control software
      Hypex Filter Design
      Windows/Mac compatible
      / -
      Power requirements
      200-240 VAC ±10%
      Power inlet connector
      IEC C14
      Standby power consumption
      -
      Current limit
      12.5 A
      Under/over voltage protection
      Dimensions (H x W x D)
      315 x 120 x 55 mm
      Cutout dimensions
      291 x 96 mm

      Show more

      Reviews

      5 from 5Based on 2 reviews
      Review this product
      4 of 5
      Waanzinnige sound voor het kleine formaat. Ervaar de versterker als kraakhelder en zeer gebruiksvriendelijk. Auto source detectie en auto wake functies werken bijzonder goed, geen plopjes of kraakjes bij opstarten en overschakelen. De filtersoftware is even wennen maar overzichtelijk, al is de user interface niet altijd even vriendelijk. Ik mis persoonlijk een netwerk, of rs232 poort voor het bedienen van de versterker, jammer dat hier ook geen module voor beschikbaar is. Verder, absoluut waar voor zijn geld, de 2e ligt al in het winkelmandje!
      By Richard Osseweijer on 31 December 2020
      5 of 5
      Klasse versterker. Veelzijdig en makkelijk te programmeren. Nu heb ik nog maar een versterker nodig om de verschillende luidsprekers actief aan te sturen. Daarnaast gebruik ik de versterker als test omgeving bij het ontwikkelen van luidsprekers met bijbehorend filter.
      By Gerard L. on 8 August 2019
