      Hypex FA502 FusionAmp Plate Amplifier

      € 578,47€ 699,95 10 In stock

      Buy now, pay later

      • 24h express shipping available
      • Ordered now, shipped today
      • In-house technical support
      • 45 days worry-free returns
      Request quotation
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      The FA502 2x500 Watt FusionAmp is a DSP controlled two channel plate amplifier. It can be the basis of a two-way active speaker or an active subwoofer.



      • Ncore based amplifier technology
      • DSP controlled
      • All-in-one Hypex Solution
      • Neutral and transparent reproduction
      • Wide range of analog and digital inputs


      Product details

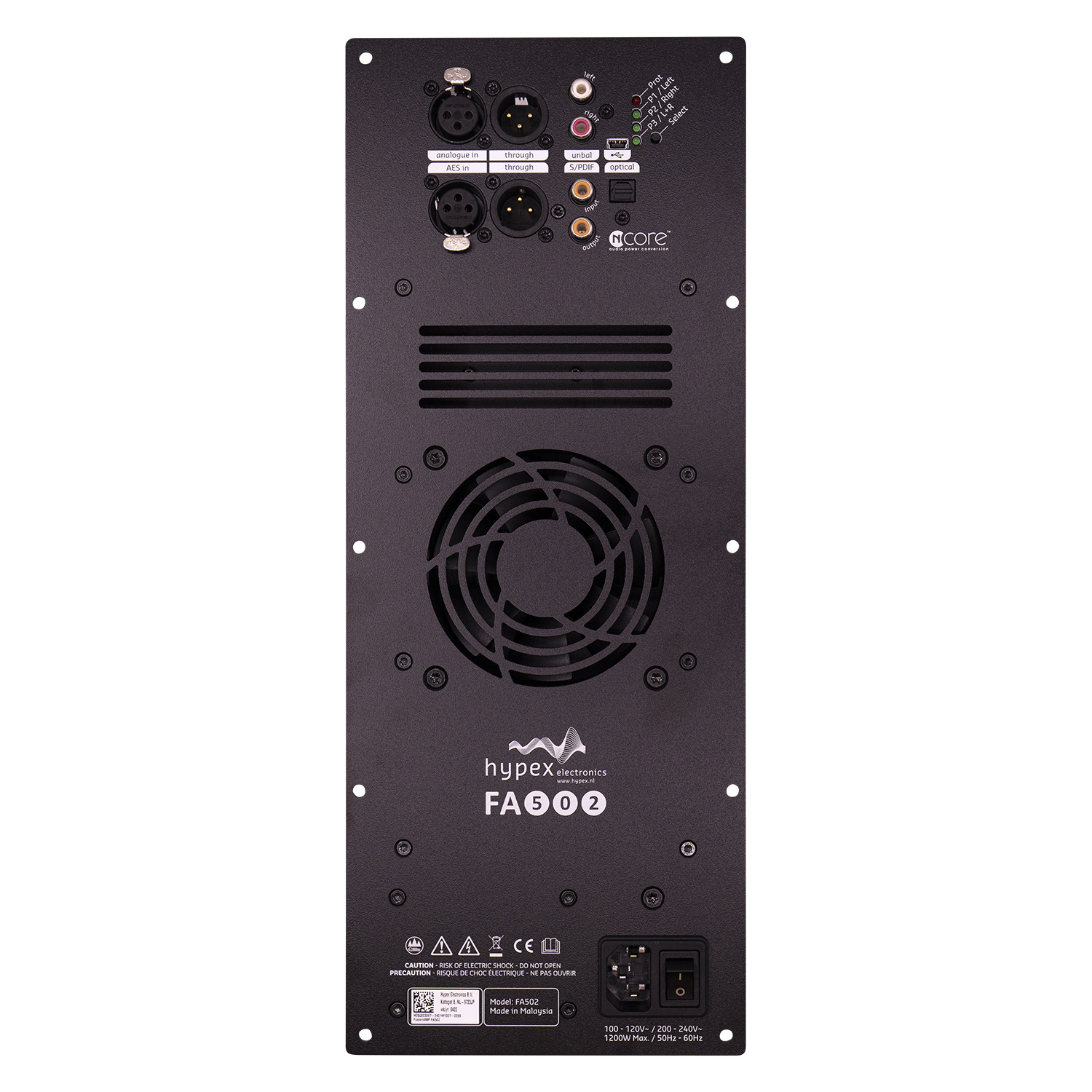

      Hypex FA502 2x500 Watt FusionAmp

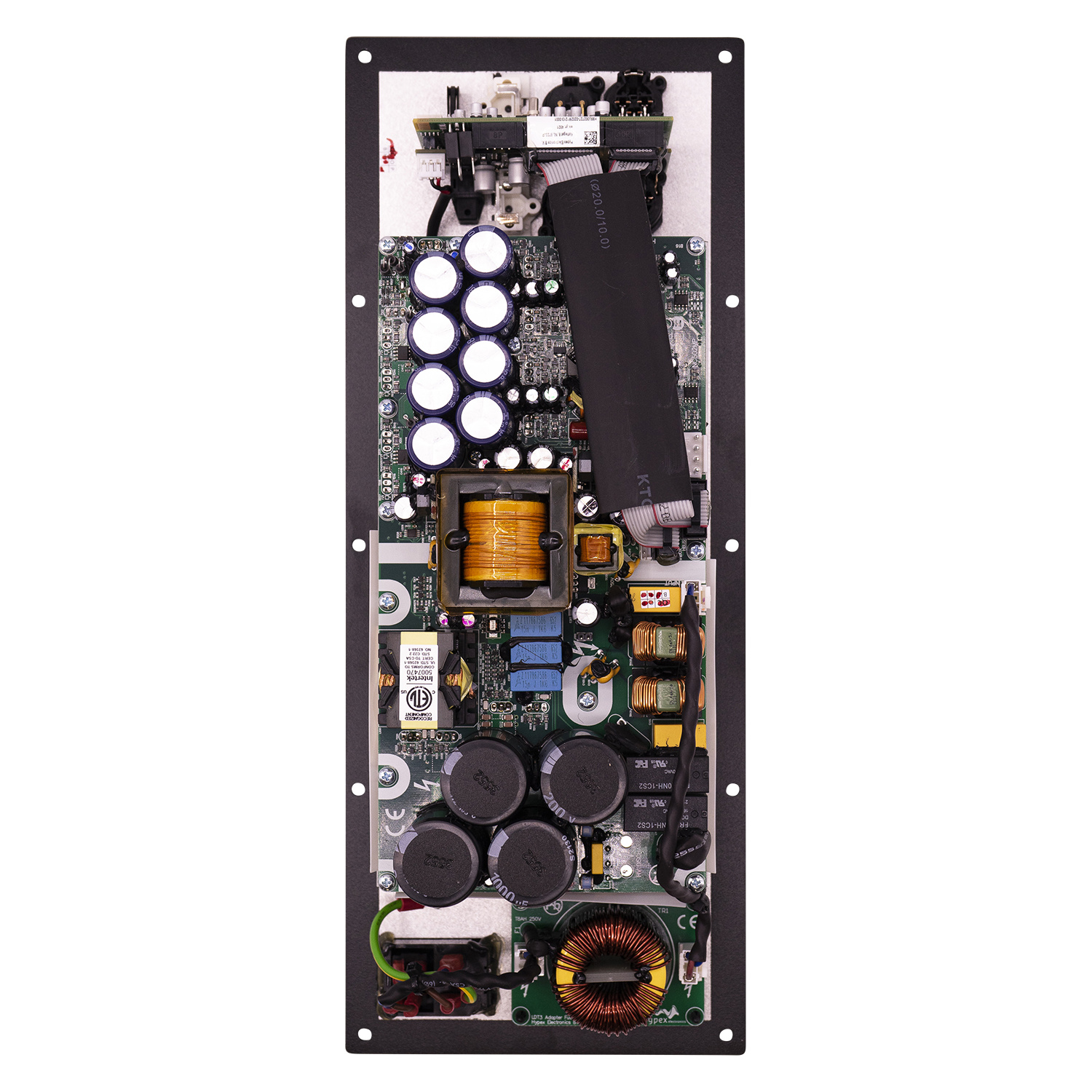

      Due to the combination of SMPS, DSP and Ncore based amplifiers packed in this plate amplifier, FusionAmp is one of the best amplification solutions available for active speaker designs. The integrated DSP provides great audio processing functionality. Thanks to the Ncore technology distortion (THD and IMD) over the full audio and power range is negligible. Distortion at listening levels (1W) is unmeasurable.


      The FA502 has two 500 watt Ncore amplifiers which can also be bridged to form one powerful 1000 watt amplifier. A variety of input options ensure compatibility with most source equipment. Hypex provides their HFD (Hypex Filter Design) software to design and configure filters for the FusionAmp. You can easily add functionality to the FusionAmp with the Fusion Remote Kit for remote controllability. Due to thermal regulation these FusionAmp's are not airtight.


      To protect your valuable drivers, the DSP does not contain a filter out of the box. A filter needs to be configured and uploaded using Hypex Filter design (HFD) software before the FusionAmp will produce an output signal. You can download the HFD software here.



      • 15 biquads per amplifier
      • Three selectable presets for filters
      • Source selection
      • Signal detect
      • Auto shutdown
      • BTL capable
      • Clip protect
      • Thermal protect
      • Filter protection

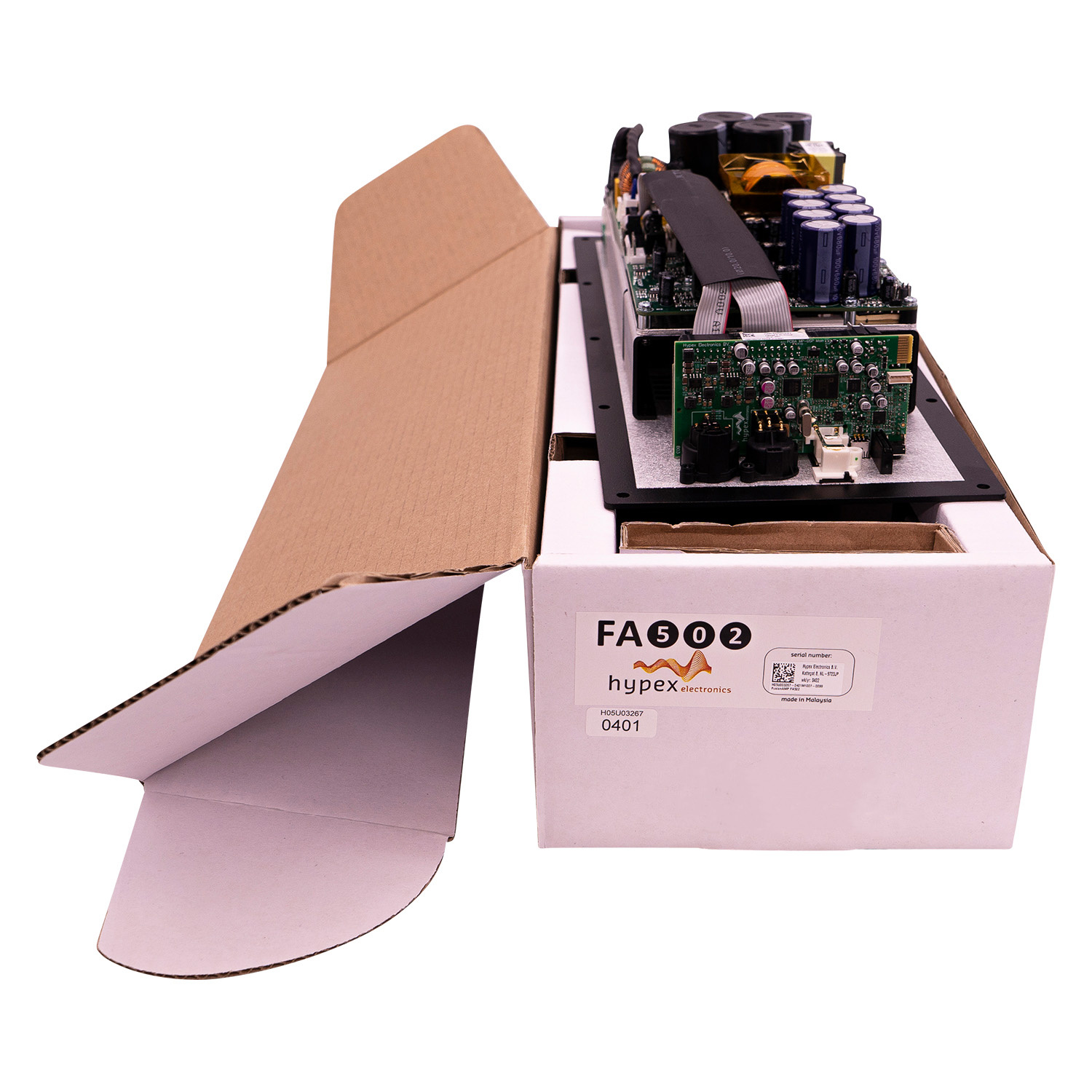

      What’s in the box?

      • FA502 FusioAmp
      • A printed copy of the user guide
      • Speaker connection cables
      • EU (or UK) C13 Power cable

      Show more


      Article number
      Rated power output

      2 x 500 watts at 4 ohms
      2 x 350 watts at 8 ohms
      2 x 450 watts at 2 ohms

      Rated power output bridged

      1 x 1000 watts at 4 ohms
      1 x 1200 watts at 8 ohms

      Minimum load
      2 ohms
      Signal-to-noise ratio (SNR)
      124 dB
      0.0018 % THD+N (10-20,000 Hz at 0.5 x rated power output)
      Distortion bridged
      Amplifier classification
      Class D
      Circuit topology
      92 % at full power
      Frequency response
      10 - 50,000 Hz
      Input impedance

      54k ohms (unbalanced RCA)
      44k ohms (balanced XLR DM)
      2.2m ohms (balanced XLR CM)

      Input sensitivity
      2.35 Vrms for rated power output
      Auto turn-on sensitivity
      Maximum sampling rate

      192 kHz
      96 kHz (optical)

      Speaker output channels
      Analog in/out
      S/PDIF in/out
      AES/EBU in/out
      Coaxial in/out
      RCA in/out
      1/ -
      XLR in/out
      Jack in/out
      - / -
      USB connection
      configure port only
      Network connection
      Subwoofer pre-out
      Auto on/off
      Remote control
      (sold separately)
      App control
      Equalizer (EQ) adjustment
      Equalizer (EQ) profiles
      Phase control
      Crossover frequency adjustment
      Control software
      Hypex Filter Design
      Windows/Mac compatible
      / -
      Power requirements
      200-240 VAC ±10%
      Power inlet connector
      IEC C14
      Standby power consumption
      Current limit
      27 A
      Under/over voltage protection
      Dimensions (H x W x D)
      380 x 150 x 90 mm
      Cutout dimensions
      356 x 126

      Show more
