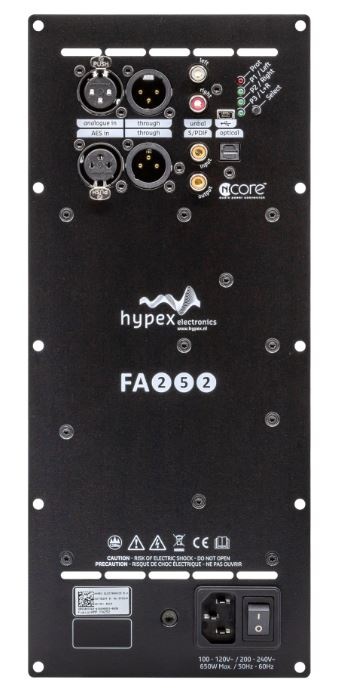

        FA252 FusionAmp Plate Amplifier

        FA252 FusionAmp Plate Amplifier


        Hypex FA252 FusionAmp Plate Amplifier

        2 reviews
        5 from 5
        2 reviews
        5 stars
        4 stars
        3 stars
        2 stars
        1 star
        View all reviews
        Brand: Hypex
        € 471,03€ 569,95 10+ In stock

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • Five-year warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        The FA252 2x250 Watt FusionAmp is a DSP controlled two channel plate amplifier. It can be the basis of a two-way active speaker or an active subwoofer.



        • Ncore based amplifier technology
        • DSP controlled
        • All-in-one Hypex Solution
        • Neutral and transparent reproduction
        • Wide range of analog and digital inputs


        Product details

        Hypex FA252 2x250 Watt FusionAmp


        Due to the combination of SMPS, DSP and Ncore based amplifiers packed in this plate amplifier, FusionAmp is one of the best amplification solutions available for active speaker designs. The integrated DSP provides great audio processing functionality. Thanks to the Ncore technology distortion (THD and IMD) over the full audio and power range is negligible. Distortion at listening levels (1W) is unmeasurable.


        The FA252 has two 250 watt Ncore amplifiers which can also be bridged to form one powerful 500 watt amplifier. A variety of input options ensure compatibility with most source equipment. Hypex provides their HFD (Hypex Filter Design) software to design and configure filters for the FusionAmp. You can easily add functionality to the FusionAmp with the Fusion Remote Kit for remote controllability. Due to thermal regulation these FusionAmp's are not airtight.


        To protect your valuable drivers, the DSP does not contain a filter out of the box. A filter needs to be configured and uploaded using Hypex Filter design (HFD) software before the FusionAmp will produce an output signal. You can download the HFD software at Hypex.



        • 15 biquads per amplifier
        • Three selectable presets for filters
        • Source selection
        • Signal detect
        • Auto shutdown
        • BTL capable
        • Clip protect
        • Thermal protect
        • Filter protection


        What’s in the box?

        • FA252 FusioAmp
        • A printed copy of the user guide
        • Speaker connection cables
        • EU (or UK) C13 Power cable

        Show more


        Article number
        Rated power output

        2 x 250 watts at 4 ohms
        2 x 200 watts at 8 ohms
        2 x 180 watts at 2 ohms

        Rated power output bridged

        1 x 400 watts at 4 ohms
        1 x 500 watts at 8 ohms

        Minimum load
        2 ohms
        Signal-to-noise ratio (SNR)
        121 dB
        0.0015 % THD+N (10-20,000 Hz at 0.5 x rated power output)
        Distortion bridged
        Amplifier classification
        Class D
        Circuit topology
        92 % at full power
        Frequency response
        10 - 50,000 Hz
        Input impedance

        54k ohms (unbalanced RCA)
        44k ohms (balanced XLR DM)
        2.2m ohms (balanced XLR CM)

        Input sensitivity
        1.66 Vrms for rated power output
        Auto turn-on sensitivity
        Maximum sampling rate

        192 kHz
        96 kHz (optical)

        Speaker output channels
        Analog in/out
        S/PDIF in/out
        AES/EBU in/out
        Coaxial in/out
        RCA in/out
        1/ -
        XLR in/out
        Jack in/out
        - / -
        USB connection
        configure port only
        Network connection
        Subwoofer pre-out
        Auto on/off
        Remote control
        (sold separately)
        App control
        Equalizer (EQ) adjustment
        Equalizer (EQ) profiles
        Phase control
        Crossover frequency adjustment
        Control software
        Hypex Filter Design
        Windows/Mac compatible
        / -
        Power requirements
        200-240 VAC ±10%
        Power inlet connector
        IEC C14
        Standby power consumption
        Current limit
        17.5 A
        Under/over voltage protection
        Dimensions (H x W x D)
        315 x 135 x 55 mm
        Cutout dimensions
        291 x 111 mm

        Show more
