      Hypex UcD2k 1x2000W Universal Class D Amplifier Module

      € 330,54€ 399,95 1 In stock: delivery time 1-4 business days
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

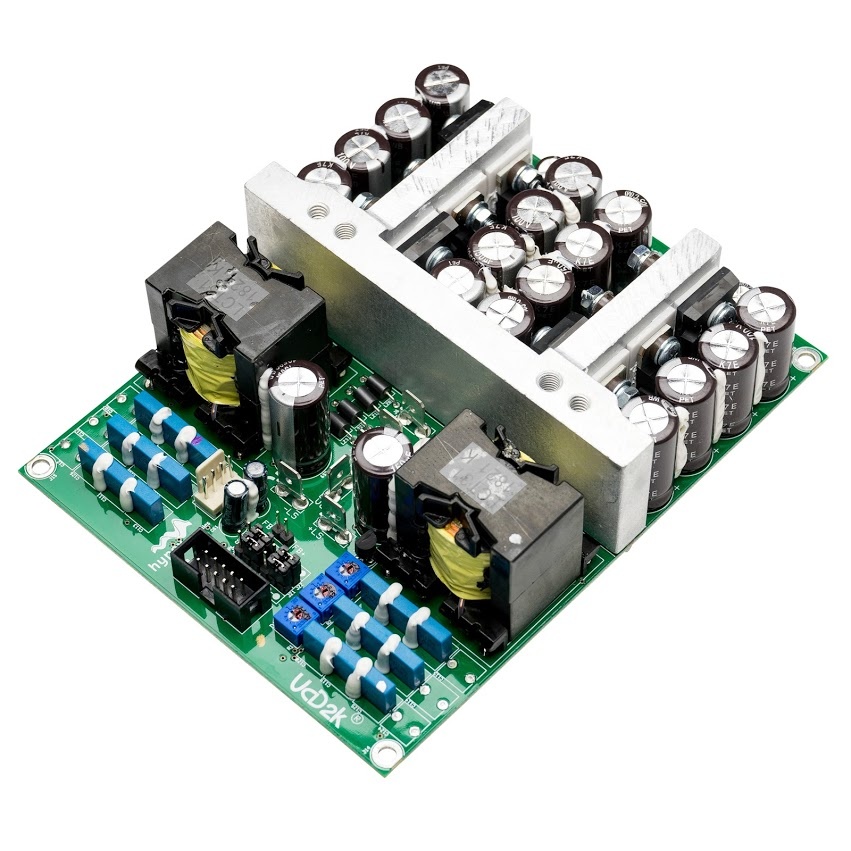

      The UcD2k amplifier module is an entry level high-end class D amplifier from Hypex. The UcD2k is known for its high performance, reliability and ease of use. The UcD2k comes with the required UcD Signal Cable.



      Highlights

      • Flat, fully load-independent frequency
      • Low output impedance
      • Very low, frequency-independent THD
      • Very low noise



      Product details

      Hypex UcD2k 1x2000W Universal Class D Amplifier Module



      The UcD2k amplifier is intended for a wide range of audio applications, ranging from Public Address systems to ultrahigh-fidelity replay systems for studio and home use. Hypex distinguishes their amplifiers from other class D designs due a unique circuit topology. This results in flat frequency response irrespective of load impedance, nearly frequency-independent distortion behavior and very low radiated and conducted EMI.



      The Hypex UcD modules have established themselves as the new standard, both in terms of measured and subjective performance and therefore very suitable as amplifier in professional audio as well in consumer purposes.



      Features

      • Runs on unregulated +/- rails
      • Pop-free start and stop control
      • Differential audio input
      • On-board clipping detection
      • DC-fault detection
      • Overcurrent and overvoltage protection



      What’s In The Box

      • UcD2k amplifier module
      • Mounting set UcD
      • UcD Signal Cable
      • Manual



      The UcD amplifier module only needs the proper power supply to start with their efficient, ultra-clean power delivery. We recommend the SMPS3kA700 as power supply for the UcD2k amplifier module.

      Specifications

      Article number
      UcD2k
      Rated power output

      2500 watts at 4 ohms
      1600 watts at 8 ohms
      2000 watts at 2 ohms

      Minimum load
      1 ohm
      Efficiency
      92 %
      Signal-to-noise ratio (SNR)
      -
      Distortion
      0.02 % (20-20,000 Hz @ 0.5 x Rated power output)
      Frequency response
      10 - 50,000 Hz
      Gain
      34 dB
      Input sensitivity
      2.25 Vrms for rated power output
      Input impedance
      100k ohms
      Amplifier Classification
      Class D
      Circuit Topology
      UcD®
      Speaker output channels
      1
      Input connection type

      4 pin PCB connector
      10 pin PCB connector (through from power supply)

      Speaker output connection type
      Crimp/solder connection tabs
      DSP function
      -
      Bluetooth
      -
      EQ Adjustment
      -
      Power Requirements

      50 - 98 VDC (symmetric supply +/-)
      13 - 15 VDC (driver supply voltage)

      Power inlet connector
      Crimp/solder connection tabs
      Current limit
      50 A
      Under/over voltage protection
      Dimensions (L x W x H)
      141 x 108 x 38 mm
      Mounting hole spacing
      -
      Mounting hole diameter
      -

      Show more

      Reviews

      5 from 5Based on 2 reviews
      Review this product
      5 of 5
      Beetje late review na aankoop UcD2K met ka 700 voeding, Zeer tevreden gebruik in studio voor aansturen grote Sub met JBL 2242 H via X filter Elysia. Verrassend goed naast onze Mark Levinson ref,van 15x de kostprijs. Als Mastering werken we met ATC 50 pro,werkt goed met de Hypex,tevreden studio!
      By Madou on 30 July 2021
      5 of 5
      Es wurde keine Beschreibung gegeben.
      By Franco C. on 17 January 2021
