        Hypex Nilai500DIY 1-channel Nilai® Mono amplifier kit

        0 reviews
        0 from 5
        0 reviews
        5 stars
        4 stars
        3 stars
        2 stars
        1 star
        View all reviews
        Brand: Hypex
        € 826,41€ 999,95 Out of stock10+ expected on 04-08-2023

        Buy now, pay later

        • We ship to
        • Same day shipping
        • Five-year warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Build your own high-end class D monoblock amplifier based on the Nilai technology from Hypex.



        • Nilai® Class D technology inside
        • Impressive performance despite load
        • Neutral and transparent reproduction
        • Flat, fully load-independent frequency response
        • Plenty of power combined with high efficiency
        • Compact design
        • Carefully high-grade components
        • Balanced XLR input, goldplated binding posts output
        • 12V Trigger
        • Easy to assemble offers a ready-to-go DIY-experience
        • 5 year / 20.000h warranty


        Product details

        Hypex Nilai500DIY 1CH Nilai® 1x500W Mono Amplifier


        The Nilai® technology  is the latest amplifier technologie from Hypex and the long-awaited successor to the acclaimed NC400 Ncore amplifier. This new class D technology boosts all previous achieved performances to a next level. The Nilai500 stands among the top of our amplifier module technology.

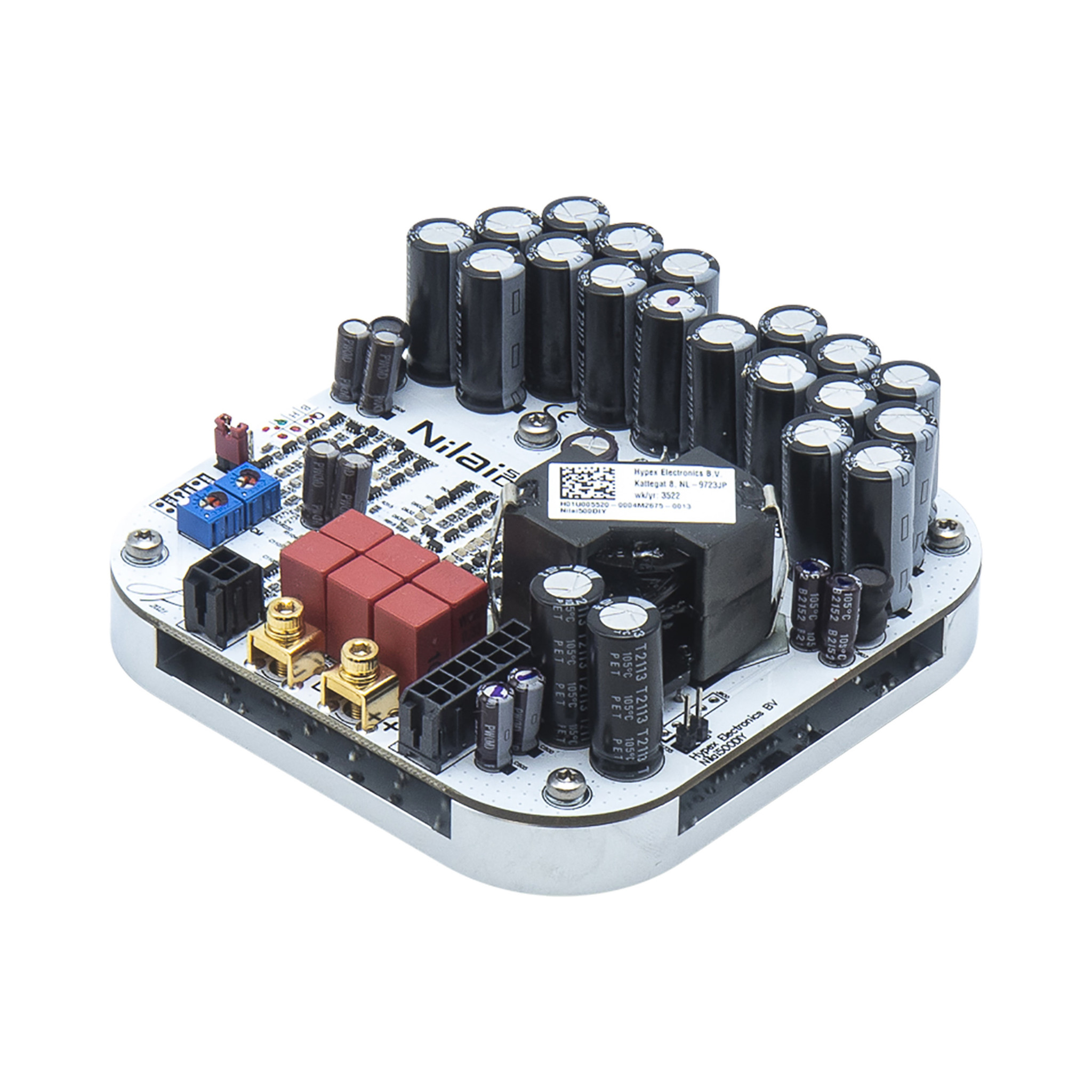

        Besides impeccable performance, this kit features everything you need to build your own Nilai monoblock amplifier. The main parts are the Nilai500 amplifier module, PS500 power supply and the DIY Monoblock case. The amplifier module and power supply combination enable the latest and best performance available from the Nilai technology.


        This amplifier can deliver all its power from as low as 2 ohm impedance combined with ultra low distortion, very low idle loss, and very noise levels. Chief distinguishing features are flat frequency response irrespective of load impedance, nearly frequency independent distortion behaviour. This results in performances such as the max output power of 500Wrms at 4 ohm, a Signal-to-Noise Ratio (SNR) of 134dB and astonishing distorting level of 0.00015%.

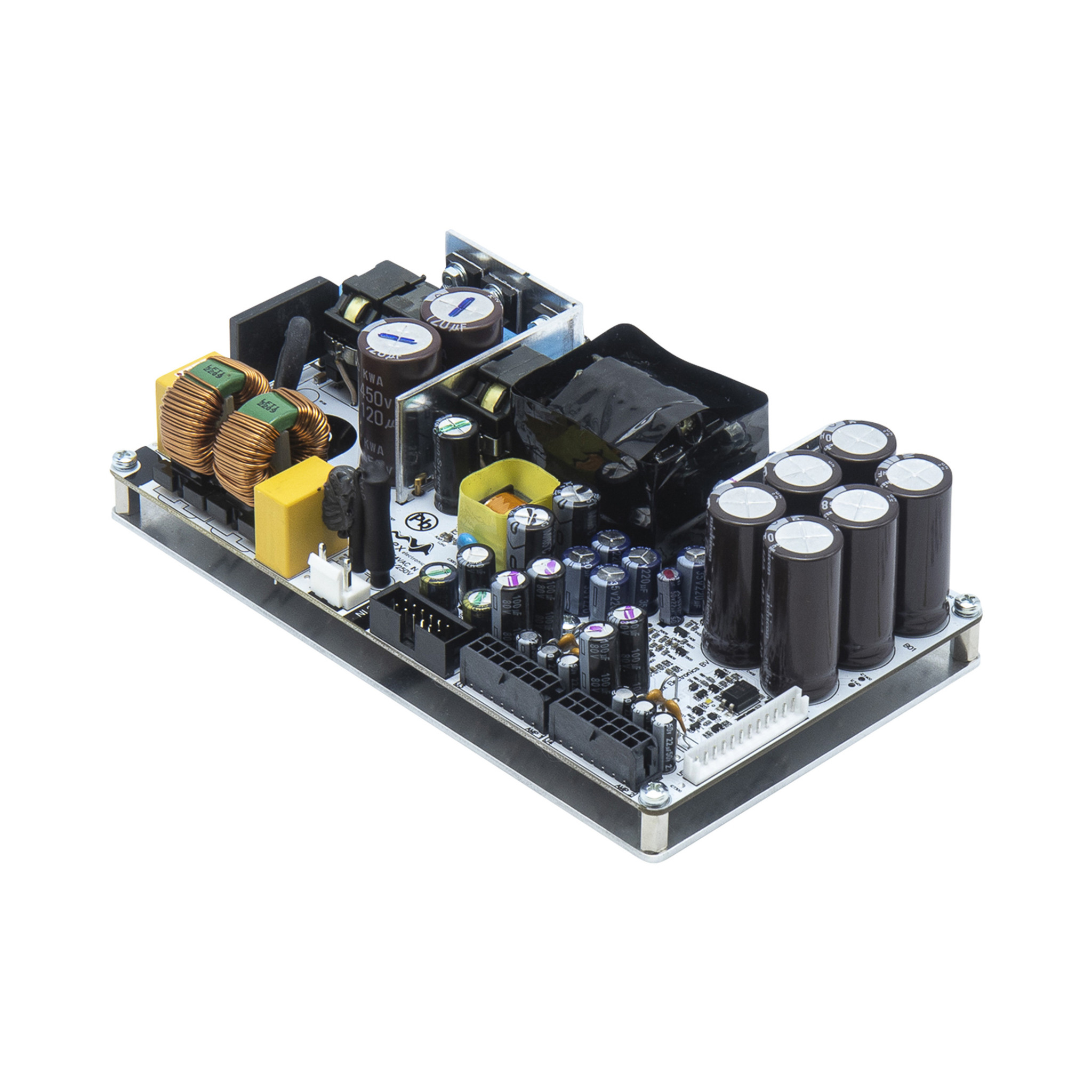

        An amplifier is only as good as the power supply it contains. In this Nilai500 DIY mono amplifier, the power supply providing the power for the amplifier is a compact, high power, highly efficient PFC power supply, including standby power supply. Including these properties and carefully selected high-grade power supply components makes this technology ideal for powering the Nilai500 amplifier module.

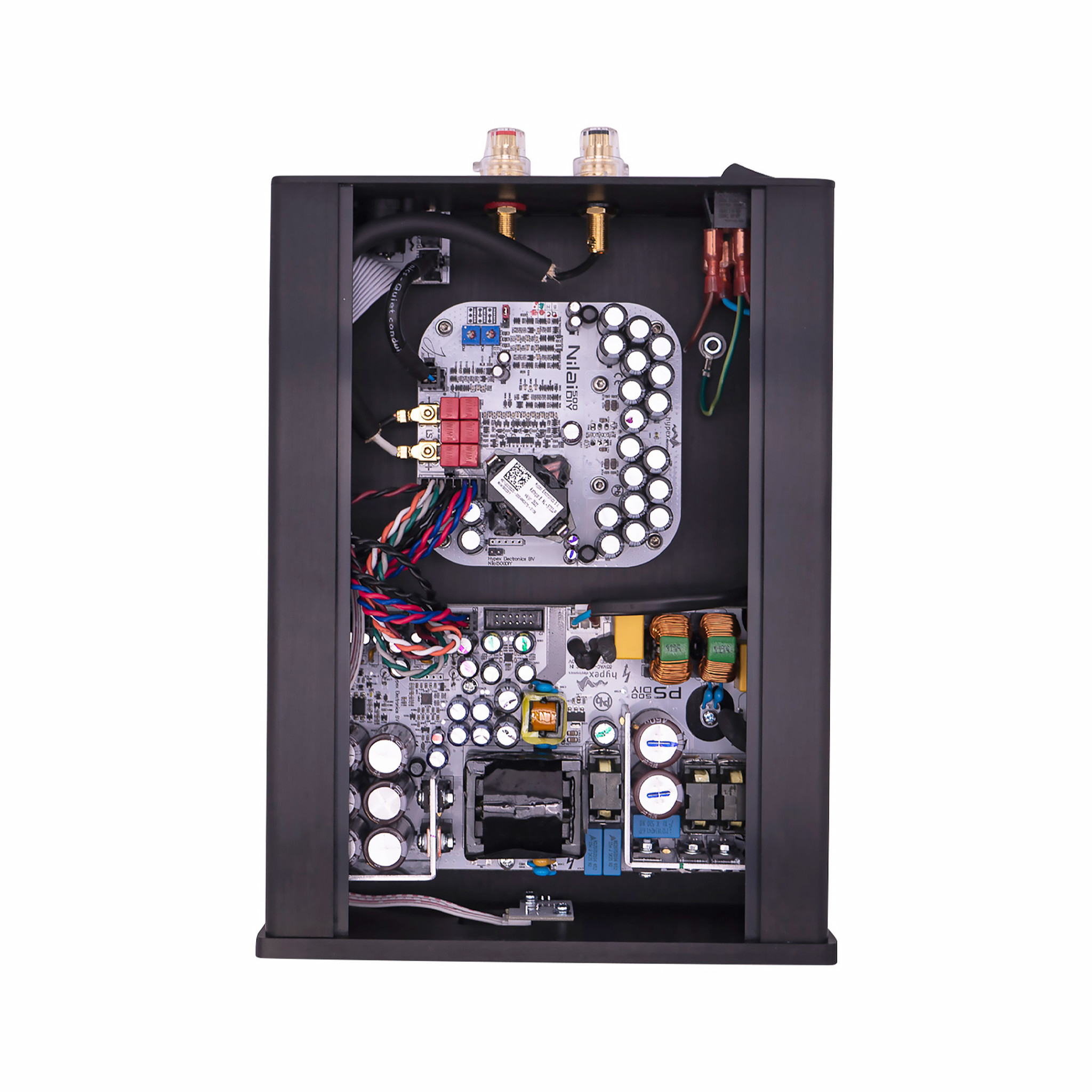

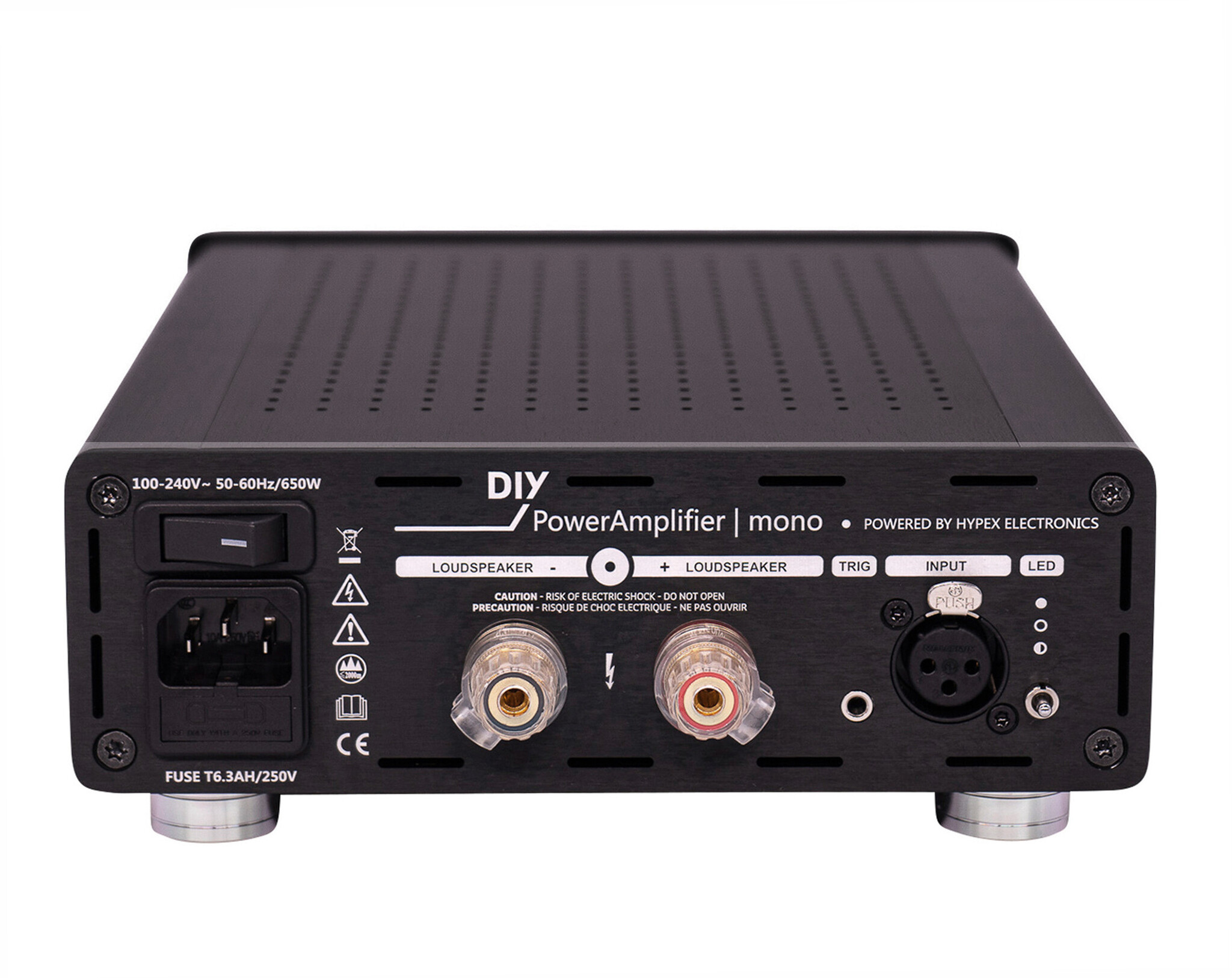

        The aluminum enclosure houses the Hypex Nilai500 amplifier module and power supply, the best thermal material for audio devices. The in- and output connections are provided through high-quality gold plated binding posts and XLR-chassis from Neutrik. The power supply can operate from both 110 and 230 VAC mains voltage due to it's universal mains input.


        Along with the main parts, everything else you need to build a powerful high-quality monoblock amplifier is included. Including an easy to follow instruction manual which gives you the ability to realize a high end power amplifier at a fraction of the costs. Assembly only requires proper positioning, around 30 bolts to be tightened and some connectors to be clicked. Anybody comfortable with a screwdriver can build one of the best amplifiers available within just 30-60 minutes.


        Whats In The Box

        • DIY mono case "matte black"
        • Complete internal cable harness
        • PS500DIY power supply
        • Nilai500DIY amplifier module
        • Inputboard and frontboard
        • All needed mounting materials
        • TX-10 and TX-20 Torx key
        • 1.5mm and 2.5mm Allen key
        • IEC C13 power cable (UK/EU/US) including fuse
        • Assembly instruction manual




        Q: I have a stereo system. Do I need two of these?

        A: A monoblock is an amplifier that only has one channel. A stereo setup requires two channels; you would need two monoblock amplifiers for a stereo setup. Compared to a stereo amplifier, this might seem cumbersome. However, a monoblock features a complete power supply for one channel. This allows for the best performance.


        Q: Is there a stereo kit available?

        A: Yes! If a mono amplifier is not sufficient, you can go for a stereo kit with the same Nilai technique from Hypex. The Nilai500DIY 2CH Stereo Kit is available and contains 2x Nilai500DIY amplifier modules with a total output of 2 x 300W at 2 ohm.

        Show more


        Article number
        Nilai Mono Kit
        Rated power output (RMS)

        1 x 500 watts at 2 ohms

        1 x 525 watts at 4 ohms

        1 x 260 watts at 8 ohms

        Minimum load
        2 ohms
        Signal-to-noise ratio (SNR)
        0.0005% THD+N (20 Hz - 20 kHz, 4 ohms, 100W)
        Frequency response
        0 - 70kHz
        Circuit Topology
        Hypex Nilai®
        Amplifier classification
        Class D
        Speaker output channels
        XLR in/out
        Banana plug compatible
        Auto turn-on
        12V trigger
        Power requirements
        110/240 VAC, 50Hz/60Hz
        Power inlet connector
        IEC C13
        Dimensions (D x W x H)
        300 x 205 x 80 mm
        Case material
        Matte Black Aluminum

        Show more
