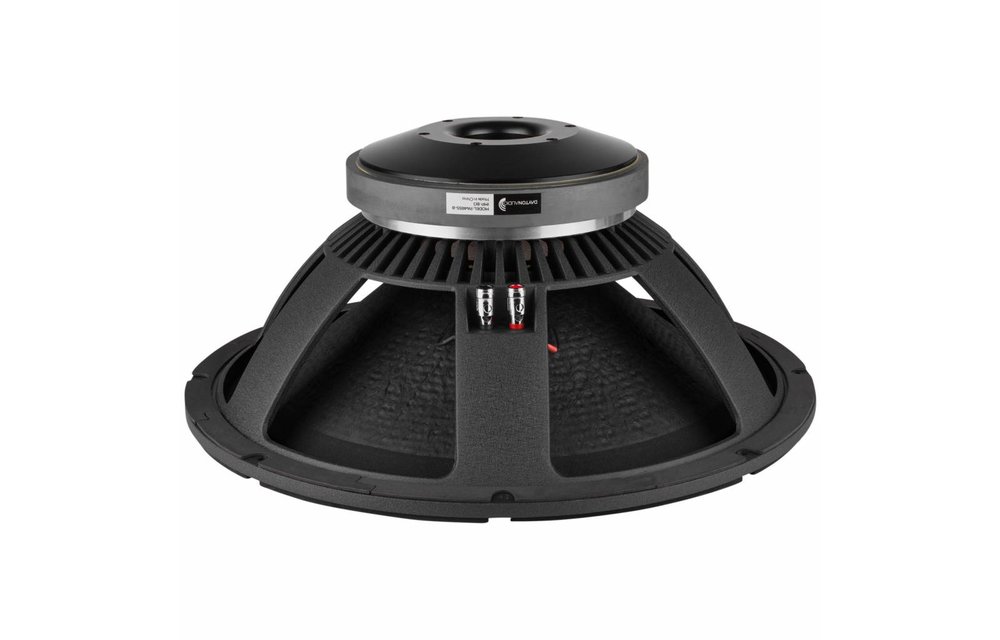

    Dayton Audio PA465S-8 18" Pro Subwoofer 4" VC 8 Ohm

    € 247,89€ 299,95 1 Auf Lager: Lieferzeit 1-3 Werktage
    Bulk discount Genießen Sie diese tollen Rabattangebote
    • -5% Bestellung 4 für nur €284,95 pro stück
    • Versicherter Versand mit Sendungsverfolgung
    • Kostenloser Versand ab 149€ (DE, A)
    • Versand am selben Tag
    • Hausinterner technischer Support
    Haben Sie eine Frage zu diesem Produkt?

    Haben Sie eine Frage zu diesem Produkt?

    Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

    Produktbeschreibung

    Dayton Audio PA Series subwoofers are designed and built to the same standards as popular Italian made pro audio drivers, for solid, reliable bass performance at a fraction of the price. They feature 4" quad-layer voice coils using an inside-outside winding technique, and dual spiders for extra stability.



    Highlights

    • 11 mm of Klippel-verified Xmax
    • Inside/outside 4" diameter voice coils for maximum motor efficiency
    • Ultra-rigid Kevlar-paper cones that resist deformation
    • Extensive motor venting for elevated power handling and cool operation
    • Copper shorting ring and pole cap minimize distortion up to the limits of excursion
    • Rugged cast-frame construction with premium materials



    Product details

    Dayton Audio PA465S-8 18" Pro Subwoofer 4" VC 8 Ohm



    With over two decades of high-performance loudspeaker development experience behind them, Dayton Audio PA series subwoofers deliver powerful, dependable bass performance with all of the features and quality of pricey Italian-made pro subwoofers, but at a price that's a whole lot easier on your budget.



    Klippel Optimized Motor Structure

    The Dayton Audio PA Series subwoofers feature optimized motor structures that provide over 11 mm of Klippel-verified Xmax (10 mm coil overhang) with excellent symmetry and linearity, preventing distortion where it often begins -- in the motor itself. Cleaner bass means higher impact, and better musical detail. The enormous high-grade ceramic magnet is economical yet highly efficient and stable, providing parameters that are a drop-in replacement for most existing pro audio subwoofer enclosures, but a significant upgrade in performance to most OEM drivers. The motor structure also features a copper shorting ring and copper pole cap to reduce flux modulation and inductance distortion, for massively powerful and clean sound at all output levels.



    Advanced Cooling and Ventilation

    The key to reliable, high-output bass is to get the heat away from the voice coil windings. The PA Series subwoofers feature 4" voice coils that use inside-outside windings, improving heat transfer and reducing power compression. The coils are also wound on fiberglass formers, which are much more resistant to heat-related deformation. Finally, the high-strength motor structures employ extensive venting, below the spider, through the pole piece, and into the gap itself.



    Rugged, Reliable Construction

    The heavy-duty cones used on the PA Series subwoofers contain a blend of Kevlar and paper fibers, for strength, rigidity, and durability, and the ribbed cone structure provides the necessary stiffness to withstand punishing bass transients. The cone and voice coil assembly is supported by a rugged long-throw suspension featuring dual spiders and a treated and deep-corrugated triple-roll surround, for clean and low-distortion excursion. The cone is coated to withstand incidental exposure to liquid, and the dust cap is anchored by a heavy bead of epoxy for dependable cone integrity. It's all held together by the finest adhesives and a tough cast-aluminum frame that's ready to take some road abuse.



    When you're looking for a dependable, heavy-duty subwoofer driver to power your system's low end, choose the PA Series pro subwoofers from Dayton Audio! The 18" model is optimized for maximum deep bass extension in reflex-loaded enclosures. 15" model also available.



    Eigenschaften

    Artikelnummer:
    PA465S-8
    Tieftöner-Serie
    Pro Audio Series
    Tieftönertyp
    Subwoofer
    Nenndurchmesser
    18"
    Belastbarkeit (QMW)
    1,000 watts
    Belastbarkeit (max)
    2,000 watts
    Impedanz (Z)
    8 ohms
    Empfindlichkeit
    93.9 dB @ 2.83V/1m
    Frequenzgang
    25 - 1,000 Hz
    Schwingspulendurchmesser
    100 mm
    Gleichstromwiderstand (Re)
    5.4 ohms
    Schwingspuleninduktion (Le)
    4.98 mH
    Resonanzfrequenz (Fs)
    32.3 Hz
    Mechanische Güte (Qms)
    6.92
    Elektrische Güte (Qes)
    0.62
    Gesamtgüte (Qts)
    0.57
    Bewegliche Masse (Mms)
    271g
    Nachgiebigkeit der Aufhängung (Cms)
    0.09 mm/N
    Membranfläche (Sd)
    1,225 cm²
    Verschiebevolumen (Vd)
    1,225 cm³
    Kraftfaktor (BL)
    21.9 Tm
    Äquivalentvolumen (Vas)
    193 liters
    Maximale Auslenkung (Xmax)
    10 mm
    Cone / Diaphragm Material
    Paper / Kevlar Cone
    Sicke-Material
    Cloth
    Schwingspulendrahtmaterial
    Copper
    Schwingspulenformmaterial
    Fiberglass
    Korb- / Rahmenmaterial
    Cast Aluminum
    Magnetmaterial
    Ferrite
    Außendurchmesser
    470 mm
    Gesamttiefe
    202 mm
    Ausschnittdurchmesser
    424 mm
    # Befestigungsbohrungen
    8
    Geschlossenes Volumen
    2.64 ft.³
    Geschlossenes F3
    62 Hz
    Bassreflex Volumen
    6.38 ft.³
    Bassreflex F3
    35 Hz

    Mehr anzeigen
