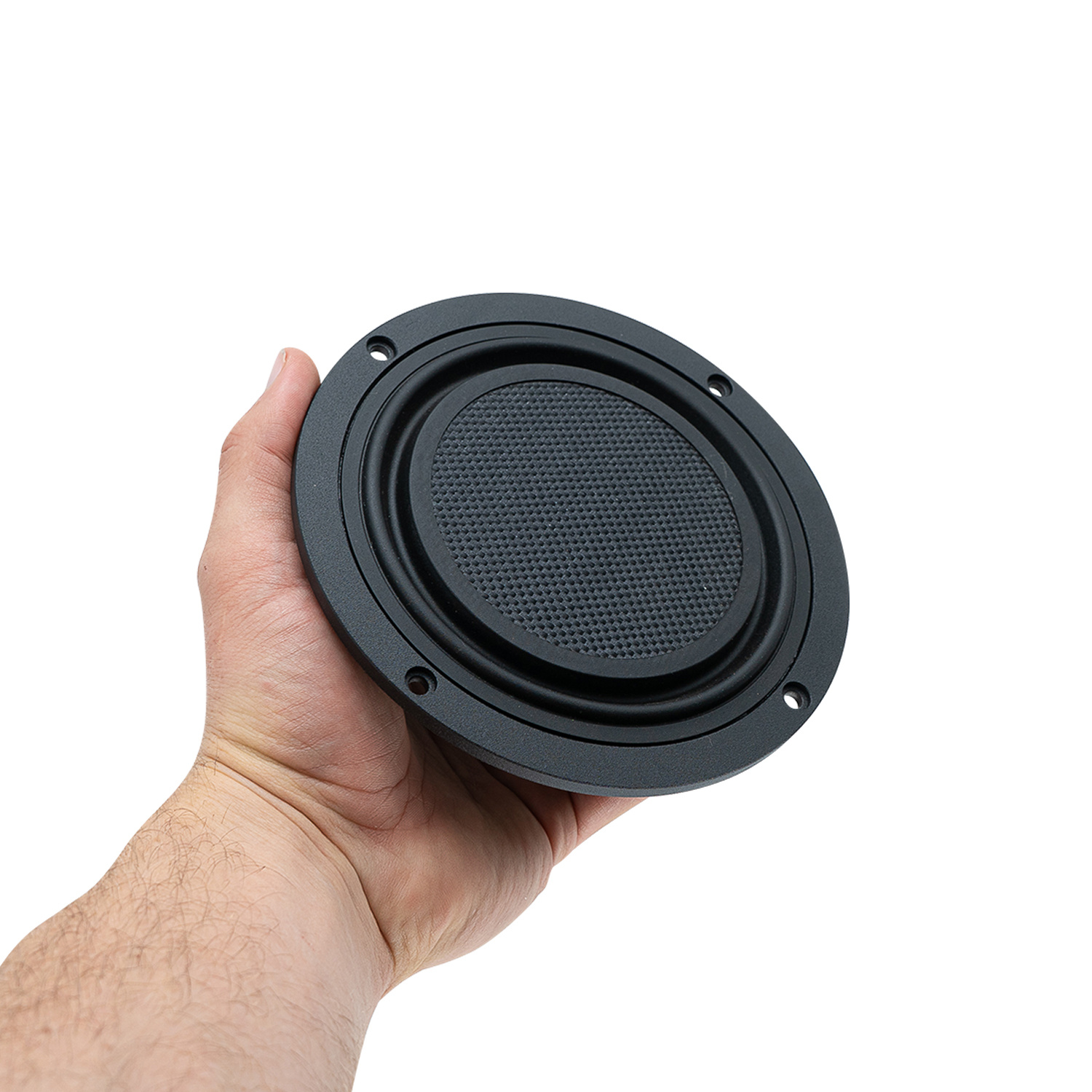

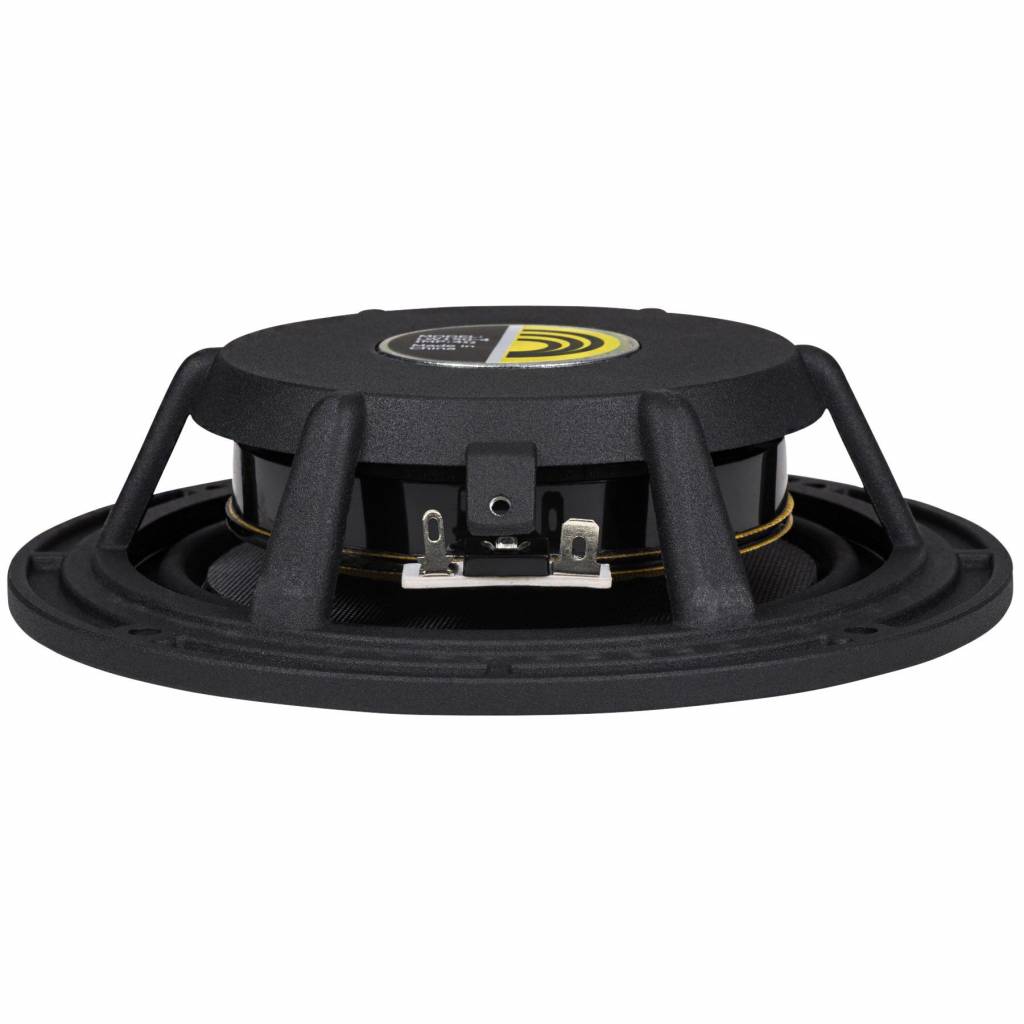

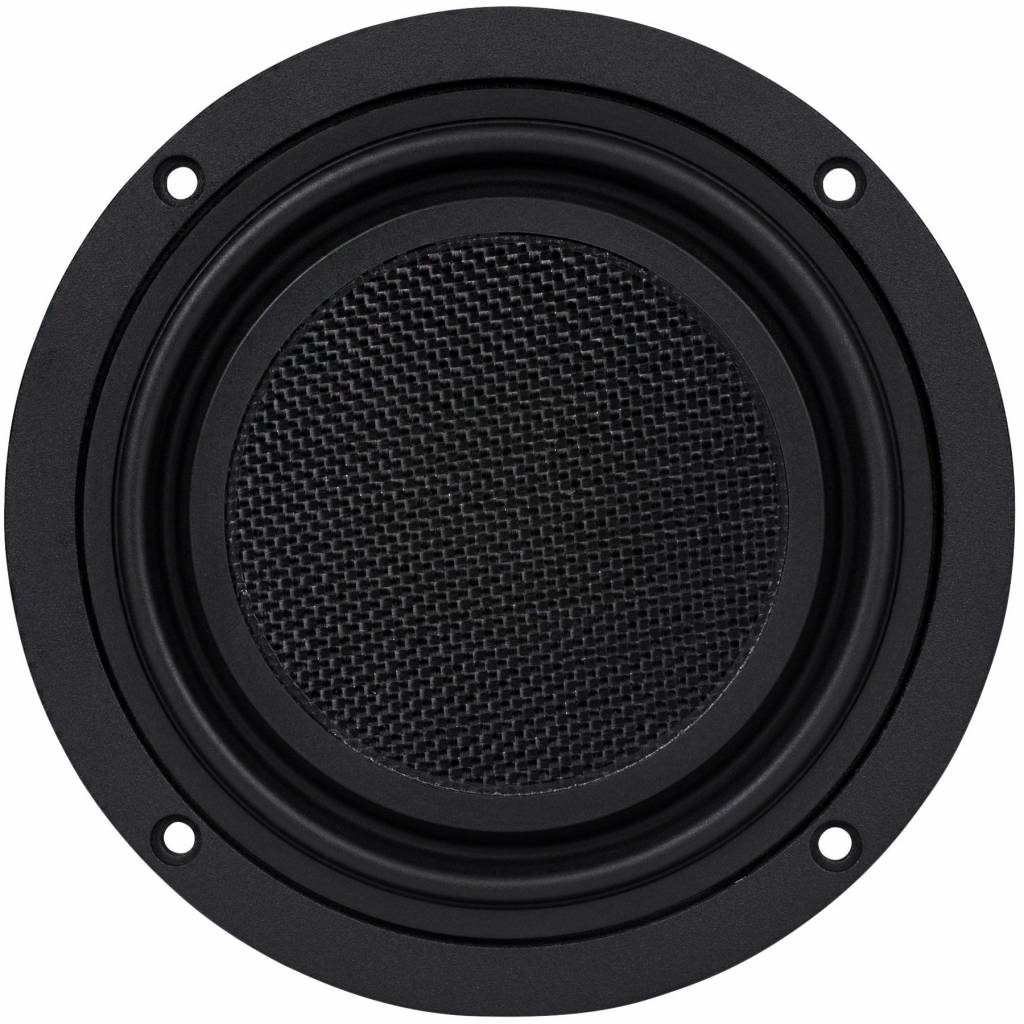

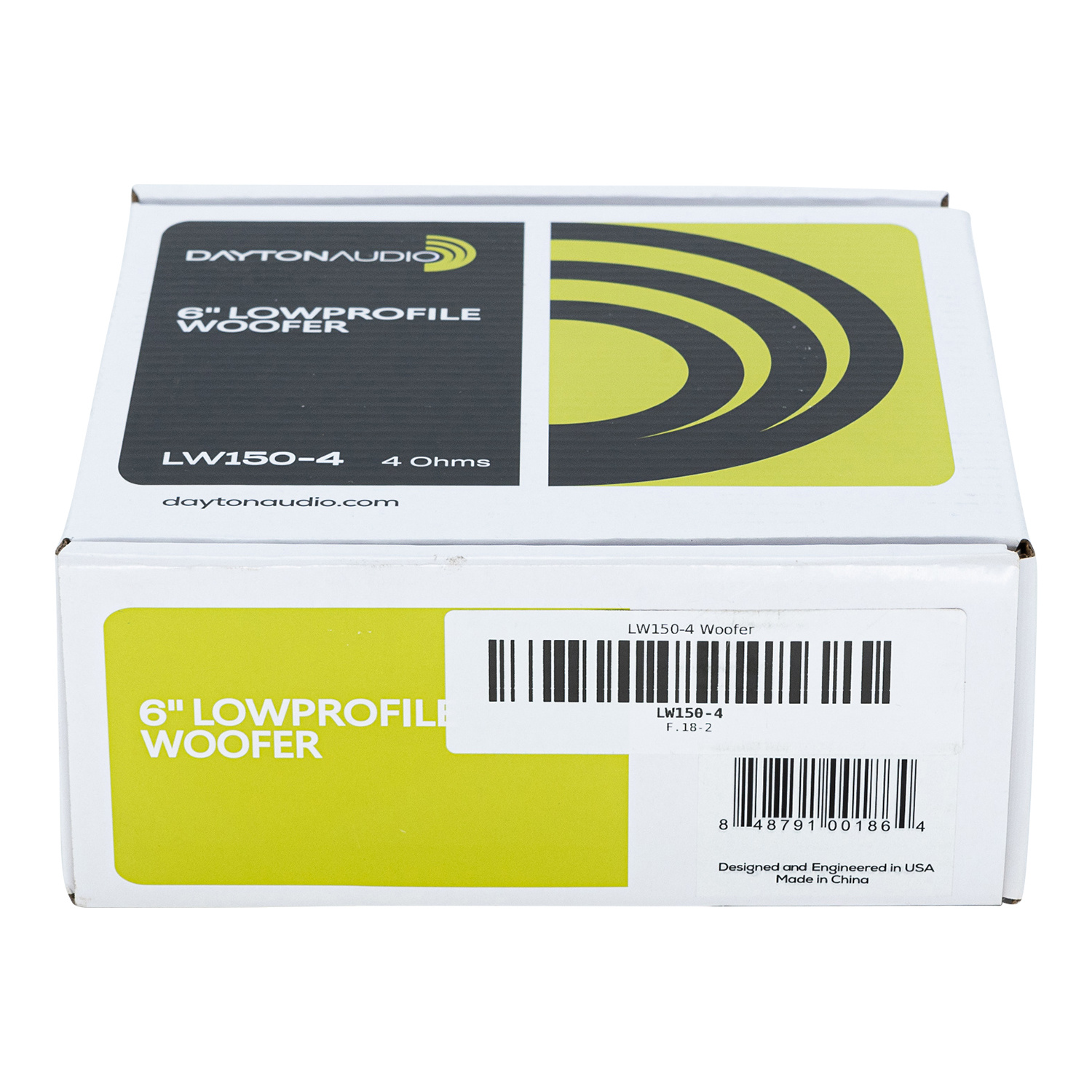

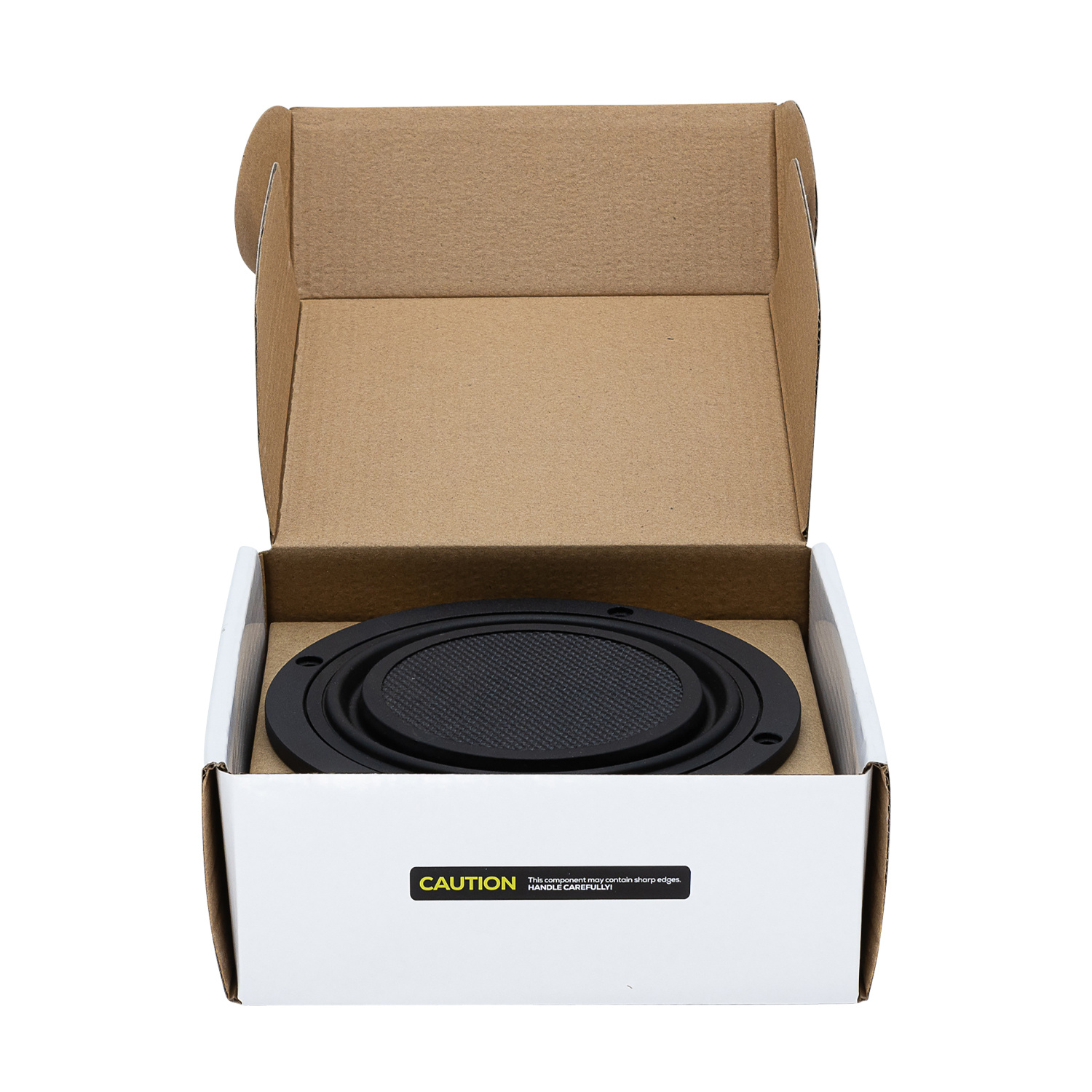

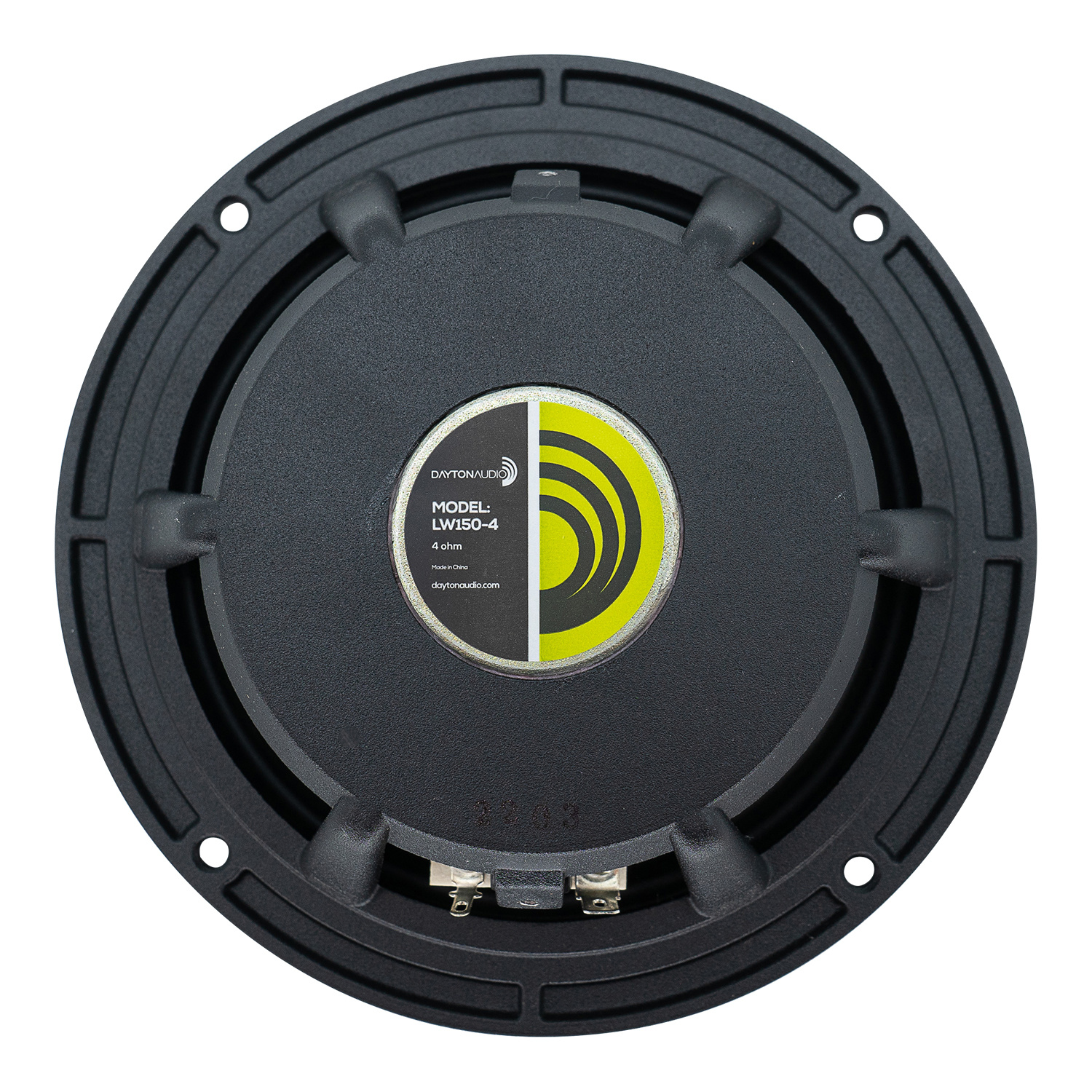

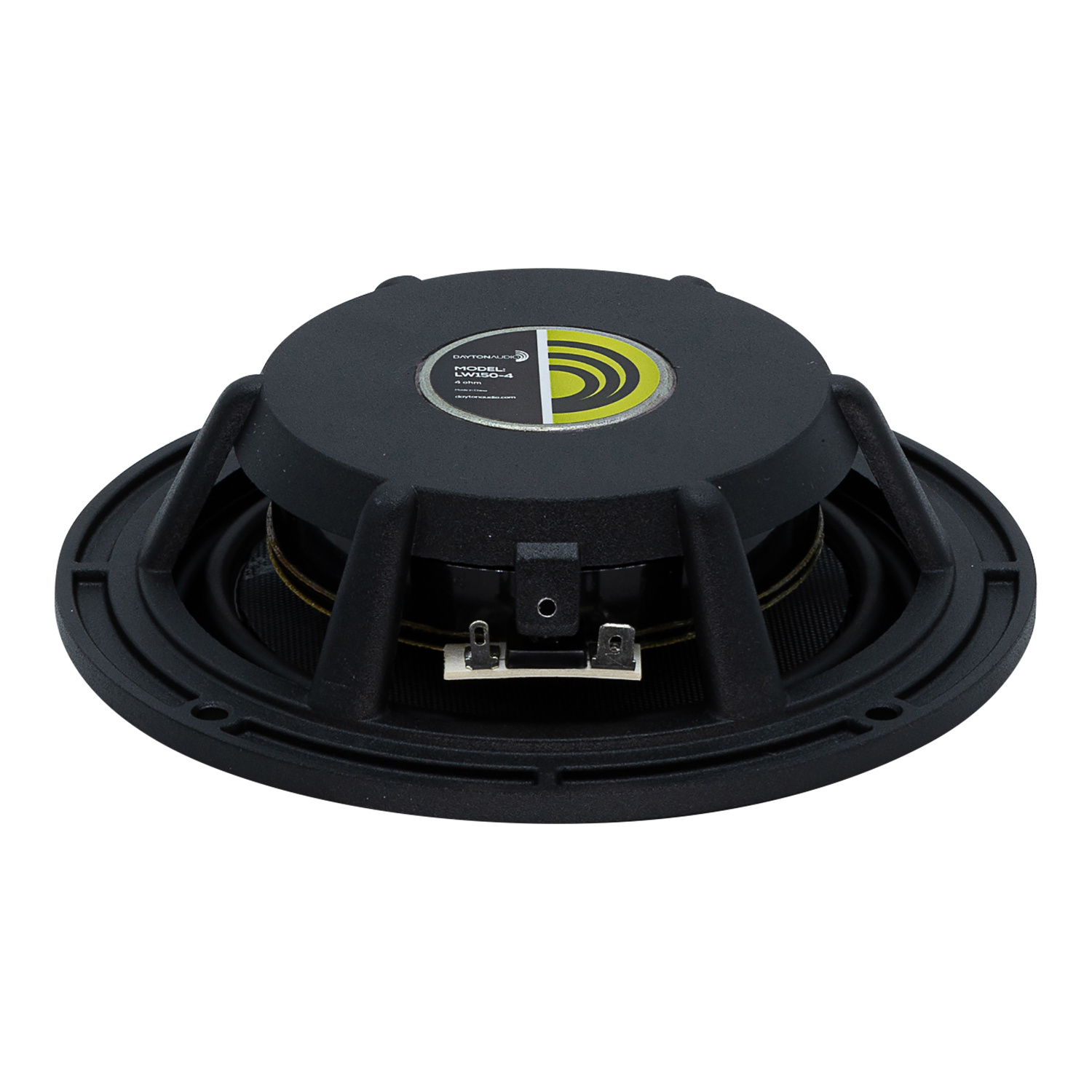

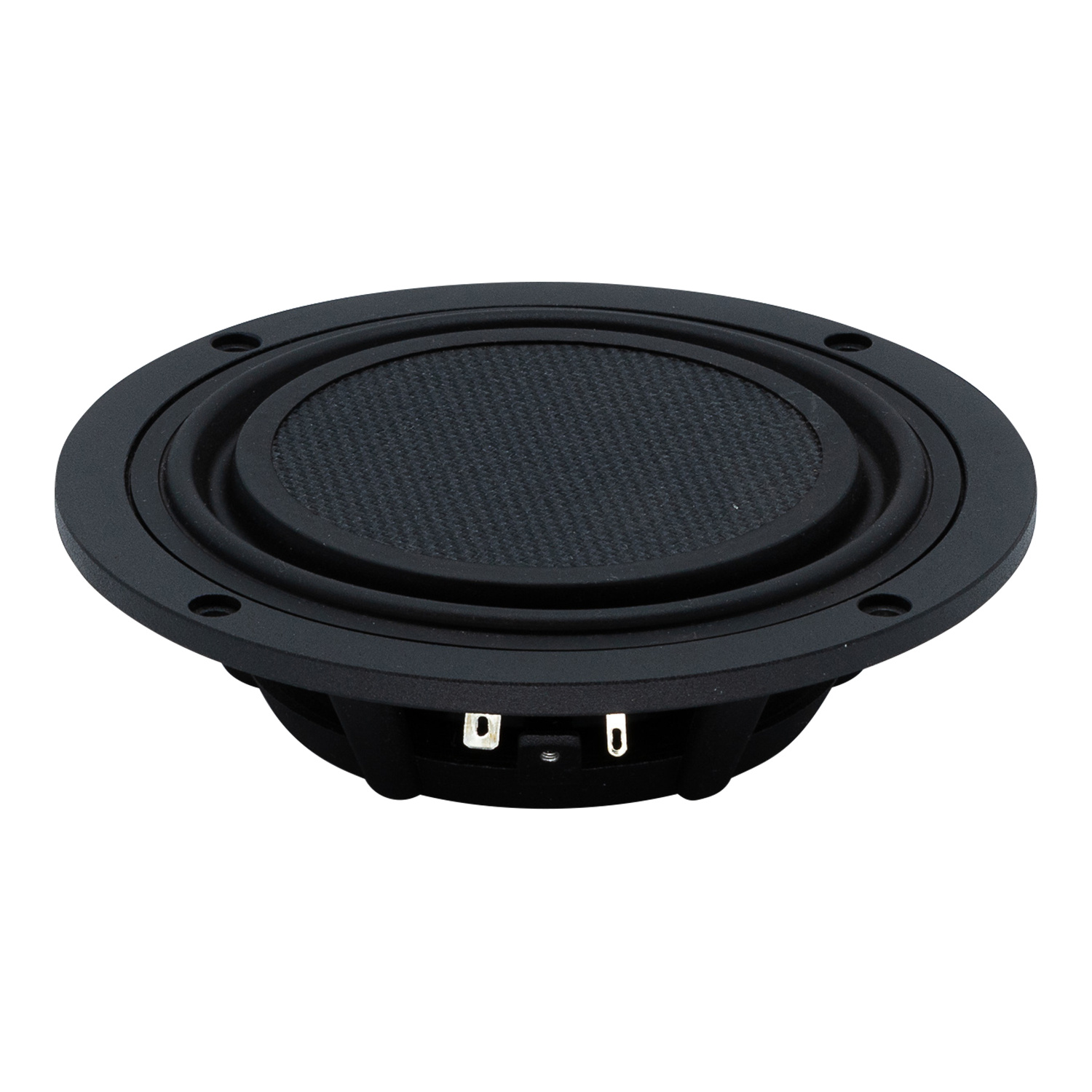

Dayton Audio LW150-4 6" Low Profile Woofer 4 Ohms

4 reviews

Brand: Dayton Audio

Show all Woofer

Compare

6" | 4 Ω

€ 43,35€ 52,45 10+ In stock: delivery time 1-4 business days

24h express shipping available
Same day shipping
In-house techniscal support
45 days worry-free returns

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

The Dayton Audio LW150-4 6" woofer's unique venting allows zero-clearance installation in ultra-low profile applications. Solid bass output can be produced from spaces never thought possible.

Highlights

Very low profile woofer fits in tight spots
Flat woven glass-fiber/honeycomb aluminum composite cone
Dual sandwiched spiders and S-shaped surround enhance linear travel capability
Large 1-1/4" 4-layer voice coil and optimized T-pole gap geometry
Peripheral holes in spider landing enable zero-clearance venting in shallow enclosures
Great for on-wall, in-wall, or car audio applications

Product details

Dayton Audio LW150-4 6" Low Profile Woofer 4 Ohms

The unique and versatile Dayton Audio LW150-4 6" woofer was designed for space limited, minimum depth applications. Its low-profile frame and unique venting permit the back of the woofer to be placed directly against cabinet walls or even embedded (countersunk) into the cabinet, resulting in an enclosure less than 1-1/2" deep. Great match for today's ultra-thin TVs or use as a down firing subwoofer in a low powered system, low-frequency down-firing driver in a center channel/monitor stand, or bookshelf stand.

Specifications

Article number: LW150-4
Woofer Series: Low Profile Series
Woofer Type: Subwoofer
Nominal Diameter: 6"
Power Handling (RMS): 40 watts
Power Handling (max): 80 watts
Impedance (Z): 4 ohms
Sensitivity: 86.1 dB @ 2.83V/1m
Frequency Response: 60 - 1,800 Hz
Voice Coil Diameter: 31.8 mm
DC Resistance (Re): 3.6 ohms
Voice Coil Inductance (Le): 0.86 mH @ 1 kHz
Resonant Frequency (Fs): 62.6 Hz
Mechanical Q (Qms): 6.01
Electromagnetic Q (Qes): 0.72
Total Q (Qts): 0.64
Diaphragm Mass Inc. Airload (Mms): 21.9g
Mechanical Compliance of Suspension (Cms): 0.3 mm/N
Surface Area of Cone (Sd): 91.6 cm²
Volume of Displacement (Vd): 36.6 cm³
BL Product (BL): 6.52 Tm
Compliance Equivalent Volume (Vas): 3.49 liters
Maximum Linear Excursion (Xmax): 4 mm
Overall Outside Diameter: 6"
Overall Depth: 1-3/8"
Baffle Cutout Diameter: 5-1/8"
Sealed Volume: 0.24 ft.³
Sealed F3: 77 Hz
Vented Volume: 0.33 ft.³
Vented F3: 40 Hz

Data sheet

Reviews

4 reviews

4 from 5Based on 4 reviews

Review this product

5 of 5

This project called for a 60mm high vented enclosure with f3 below 60Hz. What other woofer could do that? Quality is good, same as the other Dayton drivers purchased so far.

By Gary S. on 5 February 2019

3 of 5

Perfect formfactor. Still not sure about the bass performance

By Ole Steen L. on 4 August 2018
