      Dayton Audio MA1240a Multi-Zone 12 Channel Amplifier

      € 537,15€ 649,95 >10 In stock: delivery time 1-4 business days
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Dayton Audio's MA1240a is a versatile, twelve channel class AB amplifier. The amplifier is specifically engineered for multi-zone applications, but the flexible in- /output interface make this amplifier fit for many more applications. Ranging from amplifying the different drivers of an active speaker system to delivering up to twelve channel amplification for home cinema applications.



      Highlights

      • Excellent Class-AB design for high sound quality and stable performance
      • Bus inputs along independent inputs for each channel
      • Bridgeable outputs allow extra power when needed
      • Each channel has independent gain controls
      • A pair of temperature controlled low noise cooling fans.
      • Low standby power consumption



      Product details

      Dayton Audio MA1240a Multi-Zone 12 Channel Amplifier

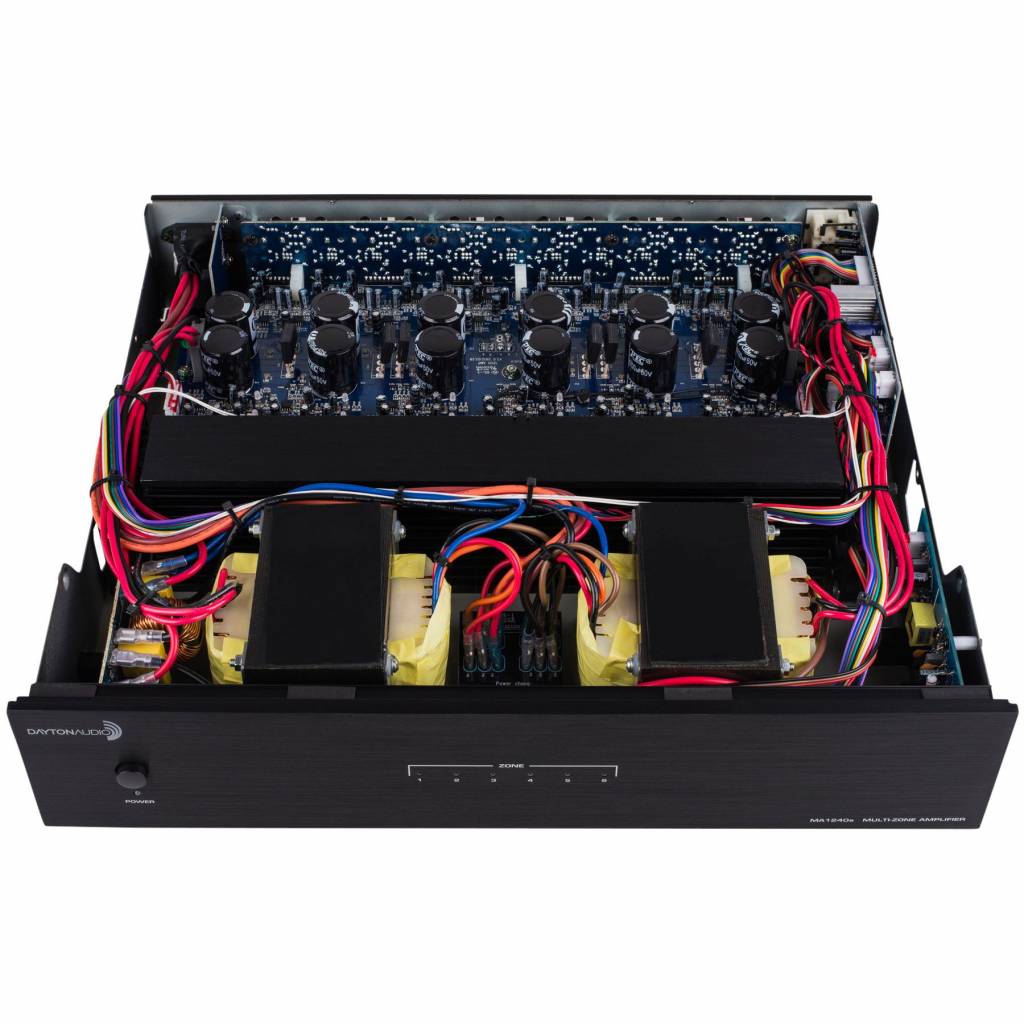

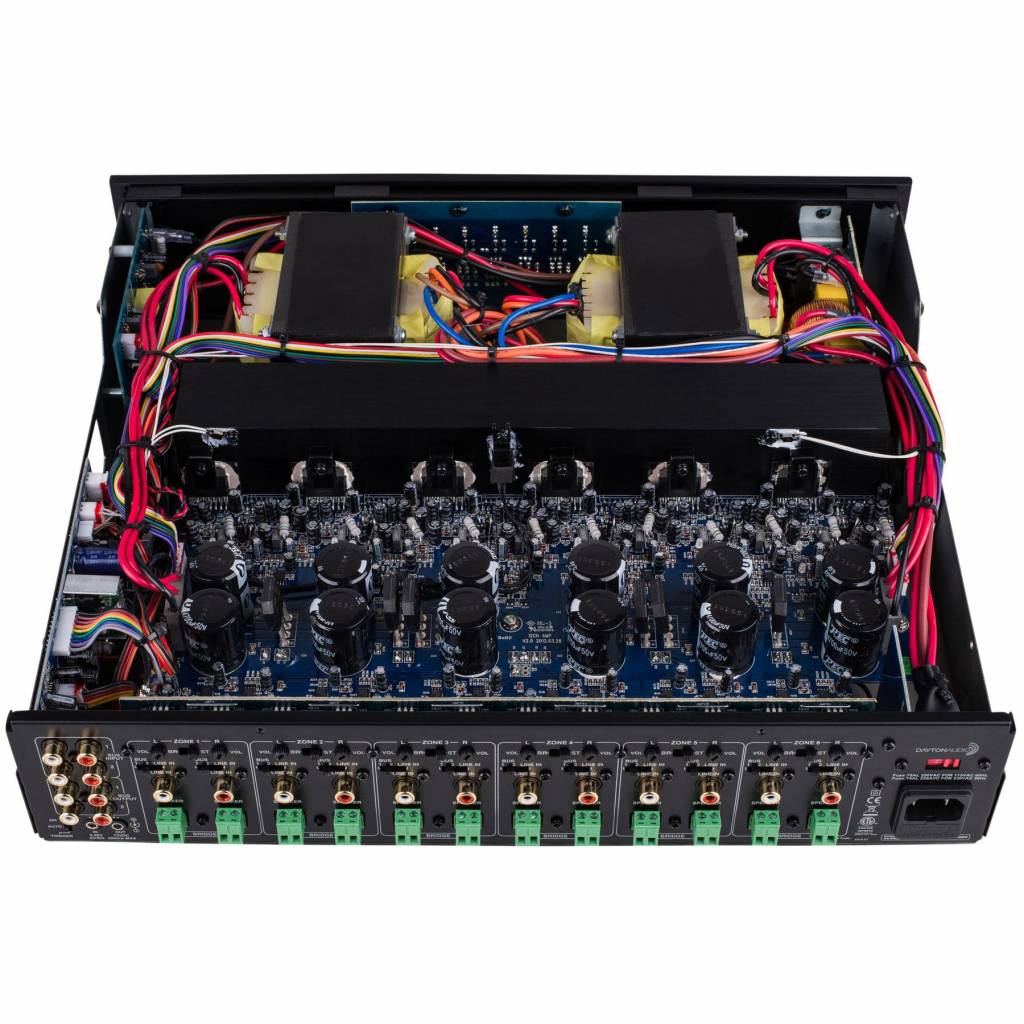

      The MA1240a is a renown multi-zone amplifier from our home audio amplifier category. It shares it’s appearance and functionality with the slightly more potent Dayton Audio MA1260, but the MA1240a relies on class-AB technology that provide lower distortion performance. The linear power supply, with two massive transformers and the Class-AB technology deliver stable performance along the excellent sound quality.

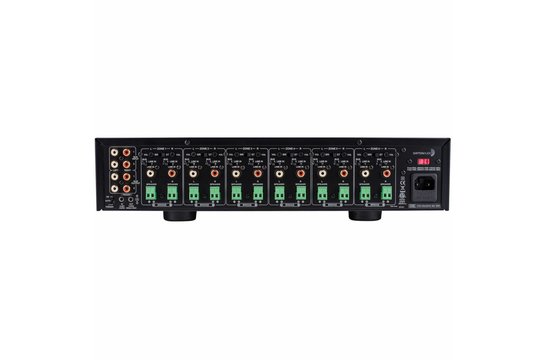

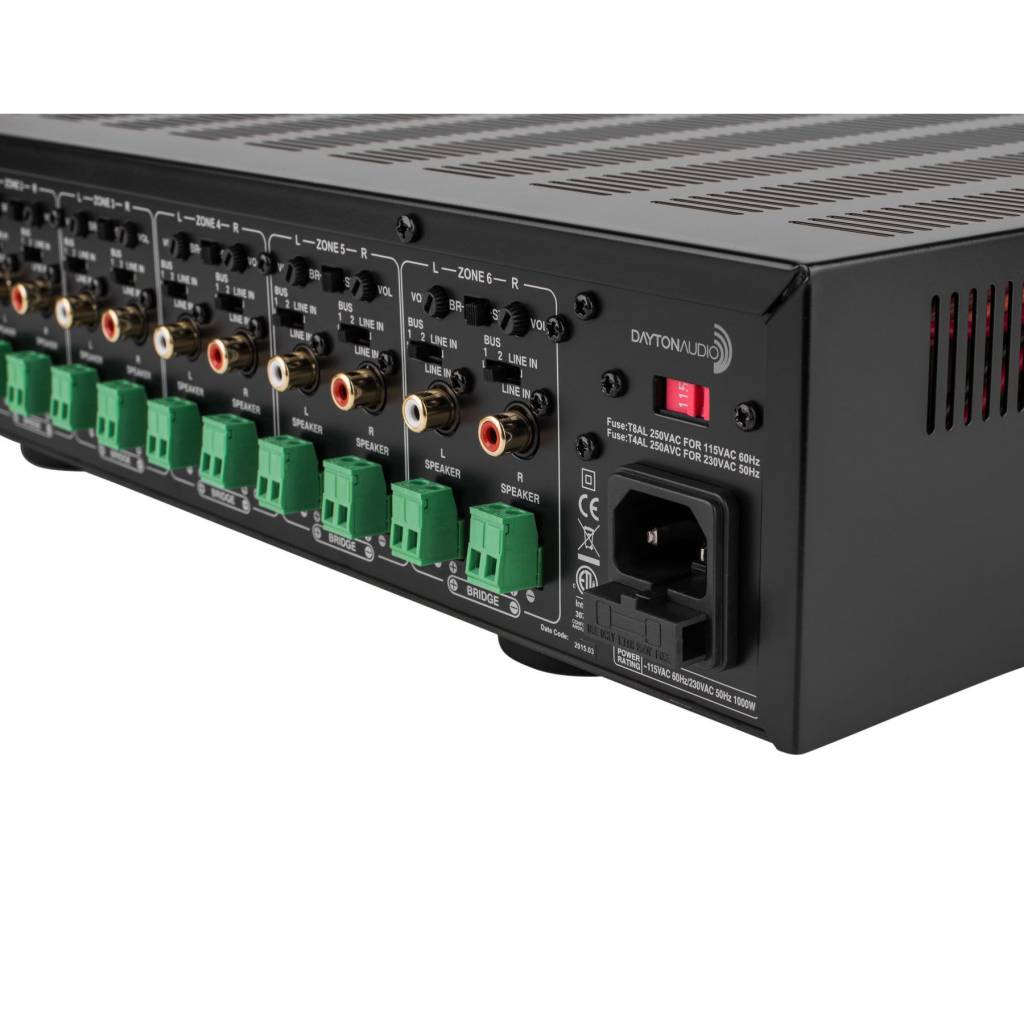

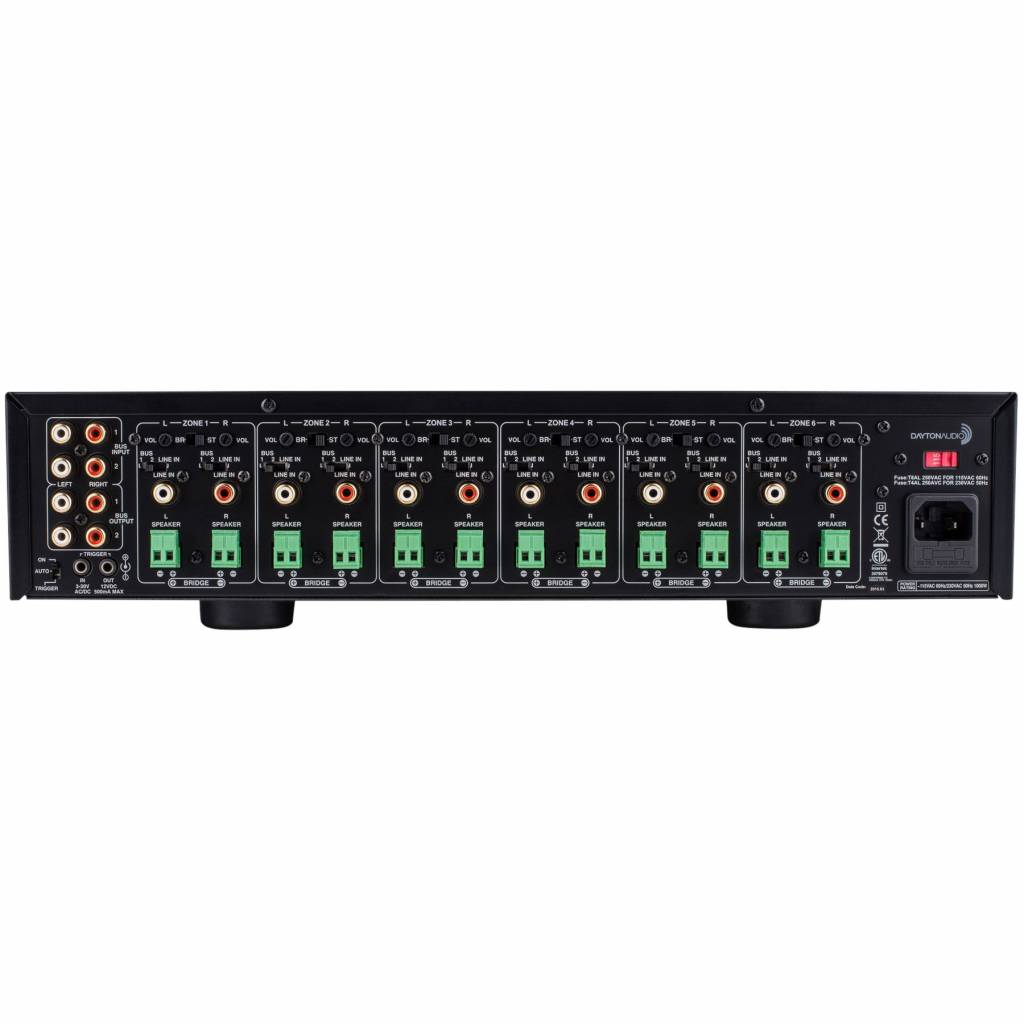

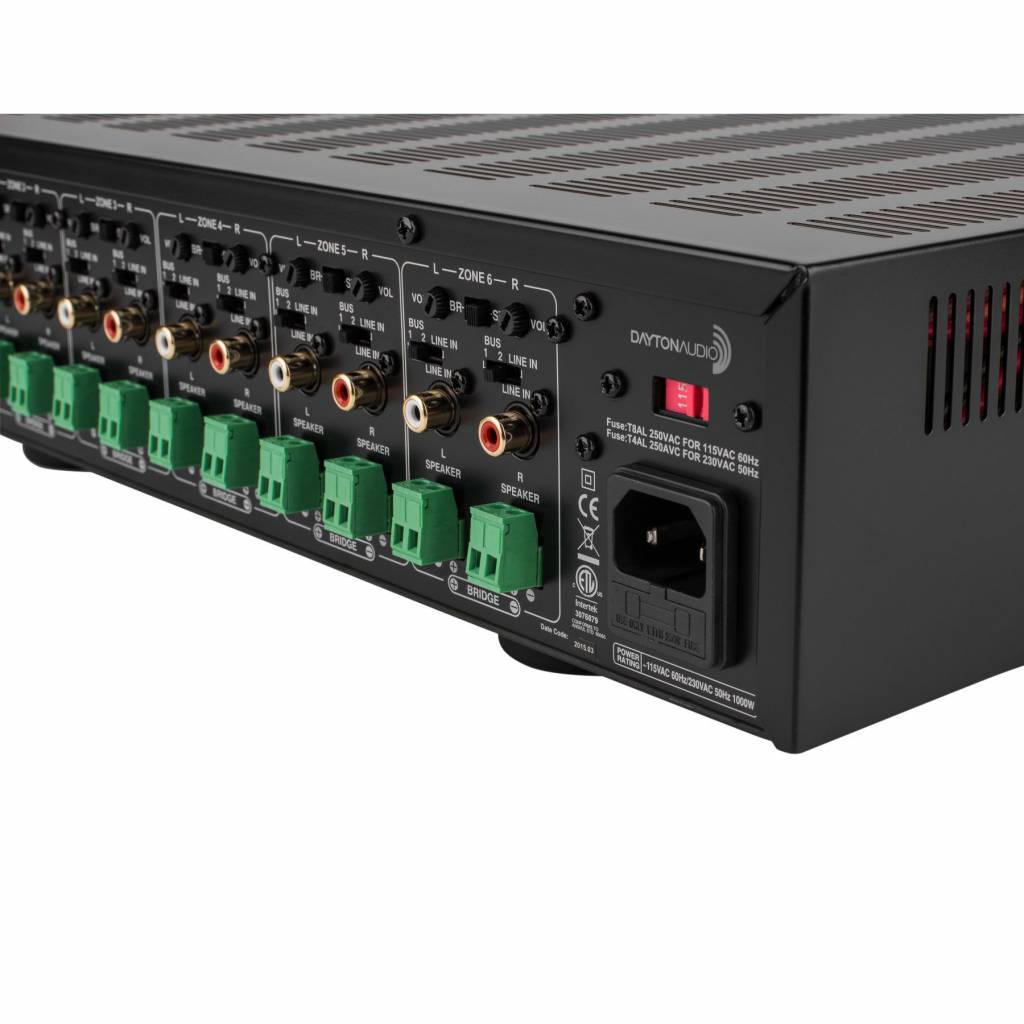

      The in- and output interface creates extended flexibility when it comes to source and speaker connections. Each zone uses two channels that can be switched for individual operation or for bridged operation, if more power is required. Each channel has access to three inputs; an individual input and two bus inputs. The bus inputs can provide a single signal to all channels at once. If you wish to connect multiple devices the trigger input, trigger output and two bus outputs come in handy!



      The enclosure comes with feet for free standing applications and (removable) ears for 19” audio rack applications.





      FAQ



      Q: Can I use this amp with an audio streamer like Sonos connect, Apple Airport or Chromecast?

      A: The MA1240a accepts line-level sources on the individual and bus inputs. You can even use multiple or different streamers for different zones. If you are interested in building your own (multi-zone) streamer, take a look at the products from Arylic.



      Q: Which input should I use for bridge operation?

      A: In bridge mode the amplifier will only use the left input.

      Specifications

      Article number
      MA1240a
      Rated power output (RMS)
      12 x 40 watts at 8 ohms
      Bridged power output (RMS)
      6 x 80 watts at 8 ohms (8 ohms minimum)
      Minimum load
      4 - 8 ohms
      Signal-to-noise ratio (SNR)
      105 dB
      Distortion
      0.005% 20 Hz - 20,000 Hz at 30 watts (8 ohms)
      Distortion bridged
      0.010% THD 20 Hz-20,000 Hz at 80 watts (8 ohms)
      Efficiency
      63%
      Frequency response
      5 Hz to 72,000 Hz
      Input impedance
      18k ohms
      Input sensitivity
      380 mV
      Auto turn-on sensitivity
      13.7 mV
      DSP
      -
      DAC
      -
      Maximum sampling rate
      -
      Circuit Topology
      -
      Amplifier classification
      AB
      Speaker output channels
      12
      Subwoofer output channel
      -
      Analog in/out
      -
      Optical S/PDIF in/out
      -
      Coaxial in/out
      -
      RCA in/out
      8/2
      AUX in/out
      -
      Bus in/out
      2/2
      XLR in/out
      -
      USB
      -
      Memory card slot
      -
      Network connection
      -
      Headphone jack
      -
      Subwoofer pre-out
      -
      Bluetooth
      -
      NFC
      -
      Wi-Fi
      -
      Banana plug compatible
      -
      Remote control
      -
      App control
      -
      Auto turn-on
      Accepted file formats
      -
      Equalizer (EQ) adjustment
      -
      Equalizer (EQ) profiles
      -
      Multi zone/room
      Crossover frequency adjustment
      -
      Bridge mode
      Power requirements
      115/230 VAC, 60 Hz/50 Hz

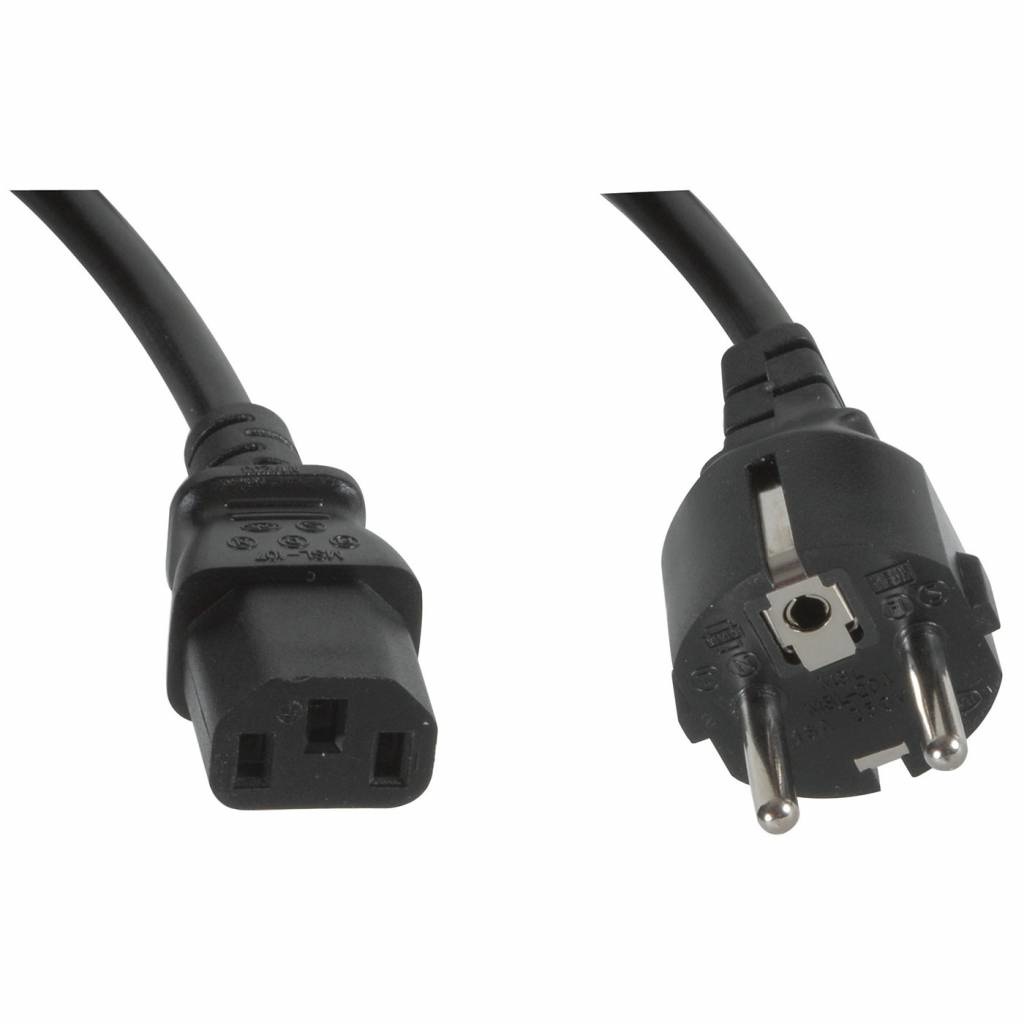

      Power inlet connector
      IEC14
      Power consumption
      -
      Stand-by power consumption
      -
      Dimensions (D x W x H)
      362 x 424 x 102 mm
      Case material
      Steel and brushed aluminum

      Show more

      Reviews

      5 from 5Based on 3 reviews
      Review this product
      5 of 5
      Perfect
      By Øystein S. on 22 January 2020
      5 of 5
      Product seems to be well manufactured and well working (but it's early to say!) Hope it will work for a lot of years (its precedent similar product - other brand - worked for more than 10 years!). Class AB amps are good amps, low noise - great sound!
      By Vimage S. on 9 April 2019
