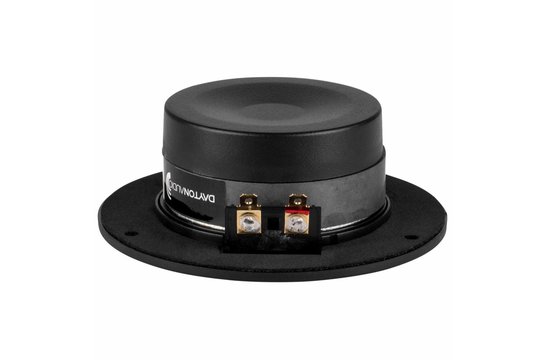

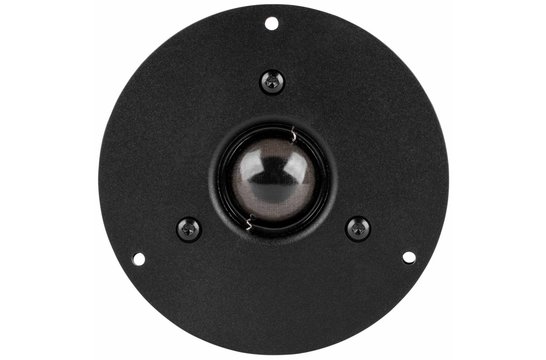

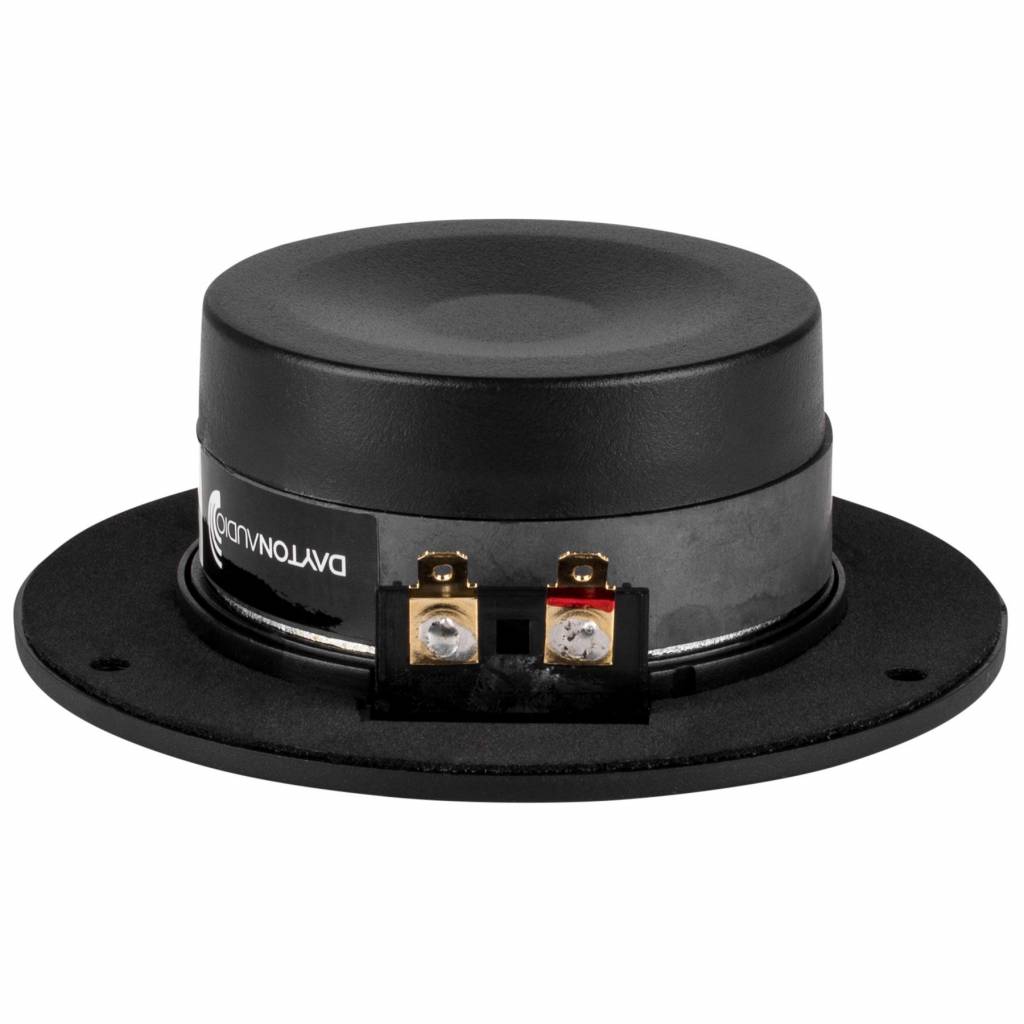

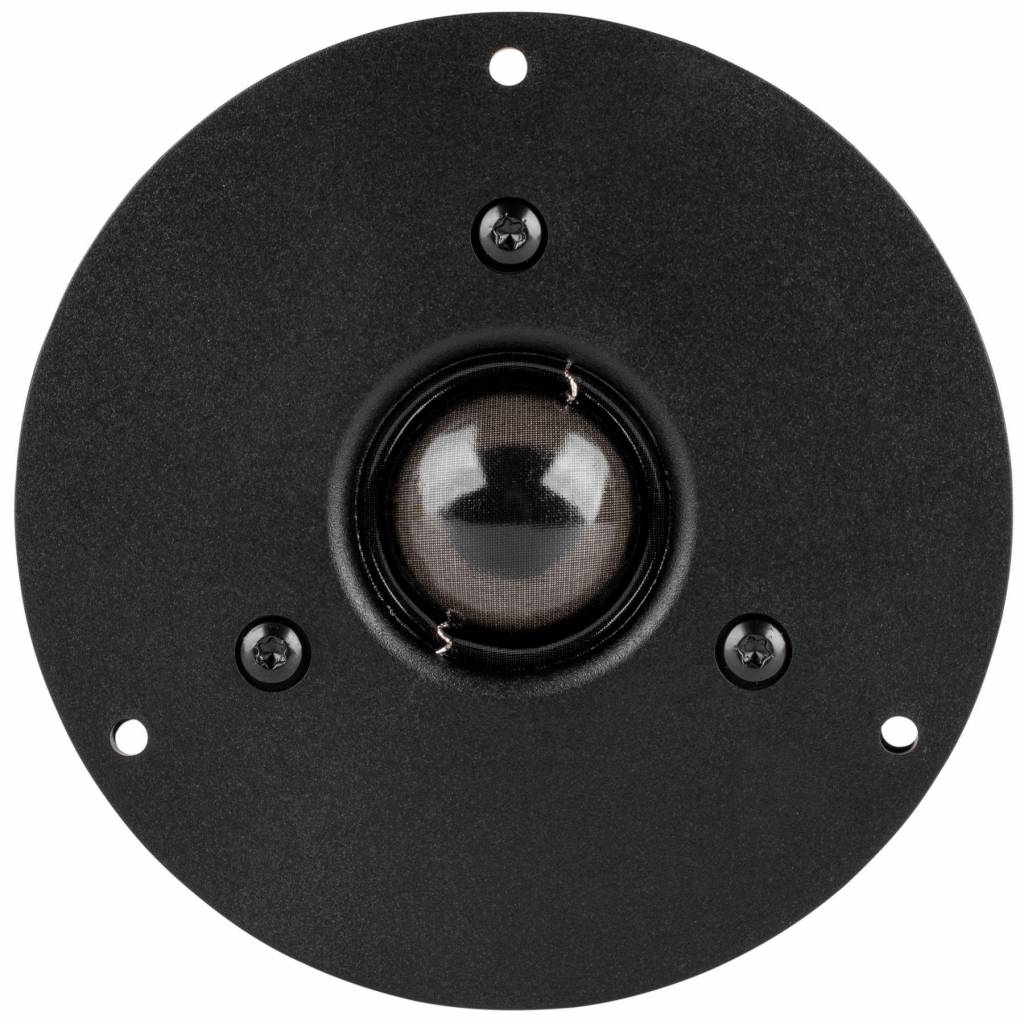

Dayton Audio DC28F-8 1-1/8'' Silk Dome Tweeter

7 reviews

Brand: Dayton Audio

Show all Tweeters

Compare

1⅛" | 8 Ω

€ 24,75€ 29,95 >10 In stock: delivery time 1-4 business days

24h express shipping available
Low international shipping rates
Same day shipping
In-house technical support

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

The Dayton Audio DC28F-8 1-1/8" silk dome tweeter's nearly unbeatable cost-to-performance ratio makes it a favorite, best-selling product. The "Silkie" is found in many, many successful loudspeaker projects!

Highlights

Smooth, extended response
Treated silk dome
Damped rear chamber lowers resonance
Ferrofluid cooled voice coil
Sounds like tweeters costing far more!
Great replacement for the Dayton Audio DC28FS-8 1-1/8" Silk Dome Shielded Tweeter

Product details

Dayton Audio DC28F-8 1-1/8" Silk Dome Tweeter

The famous "Silkie" – Dayton Audio's DC28F-8 1-1/8" Silk Dome Tweeter! Superior European design and performance at a fraction of the cost of similar audiophile high frequency transducers! Clinically tested and compared to Morel with amazingly similar results! Recommended for crossover points as low as 1,800 Hz!

Specifications

Article number: DC28F-8
Tweeter Type: Soft Dome
Tweeter Series: Classic Series
Cone / Dome Diameter: 25 mm | 1"
Power Handling (RMS): 50 Watts
Impedance (Z): 8 Ω
Sensitivity: 89 dB 1W/1m
Frequency Response: 1,300 to 20,000 Hz
Resonant Frequency (Fs): 637.2 Hz
DC Resistance (Re): 5.5 ohms
Voice Coil Inductance (Le): 0.09 mH
Mechanical Q (Qms): 0.82
Electromagnetic Q (Qes): 0.90
Total Q (Qts): 0.43
Overall Outside Diameter: 4.33"
Cutout Diameter: 2,92''
Depth: 1.53

Data sheet

Reviews

7 reviews

5 from 5Based on 7 reviews

Review this product

5 of 5

Goede tweeters! Echter na testen voldeden ze niet. Het scheidingsfilter werkte tegen.

By Hans on 6 April 2022

4 of 5

Detailed and crispy sound without being unpleasant. Paired them with a 5inch bass and it suits it very well because of the low-ish sensitivity.

By Marcel on 11 March 2022

5 of 5

Very quick delivery.Very good sound.

+Very good value.

-About 3 mm larger than a t27 so a bit of adjustment to the cabinet recess.

By Martin on 16 February 2022

5 of 5

very good

By Pavel H. on 4 March 2021

5 of 5

Decent tweeter for the price and clarity! Shipped to the UK with no problem!

By Prab on 4 January 2021

5 of 5

spotgoedkoop. zeer goed geluid. 6 ohm dc. aanrader voor alle gebruikte marktplaats luidsprekers met ferrofluid tweeters. speaker 10 jaar oud ? vervang voor deze. ik heb ze gemonteerd in castle harlech serie 2. zonder verdere modificatie aan het filter. 8 ohm nominaal, 6 ohm dc en 89 a 90 db per wat. perfect match. ferrofluid in de originele tweeters wat stroop geworden . ipv te knoeien met ferrofluid deze gemonteerd. aanrader !!

By alex b. on 7 December 2018

5 of 5

good tweeter, very clear, very good at 1600hz . i have altec . model3 serie 2. its a very little hole at 1550hz in my speakers but no lissen realy in the musik.

By fred g. on 1 June 2018
