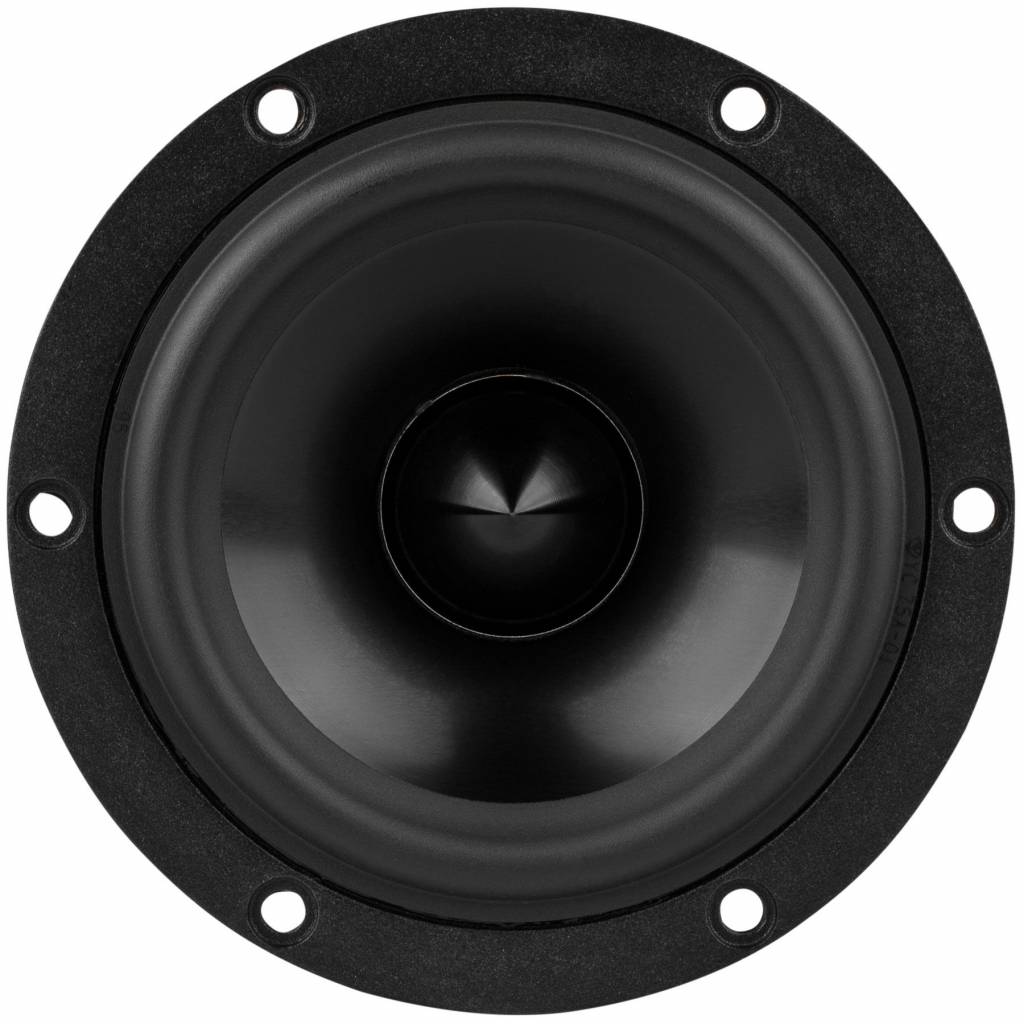

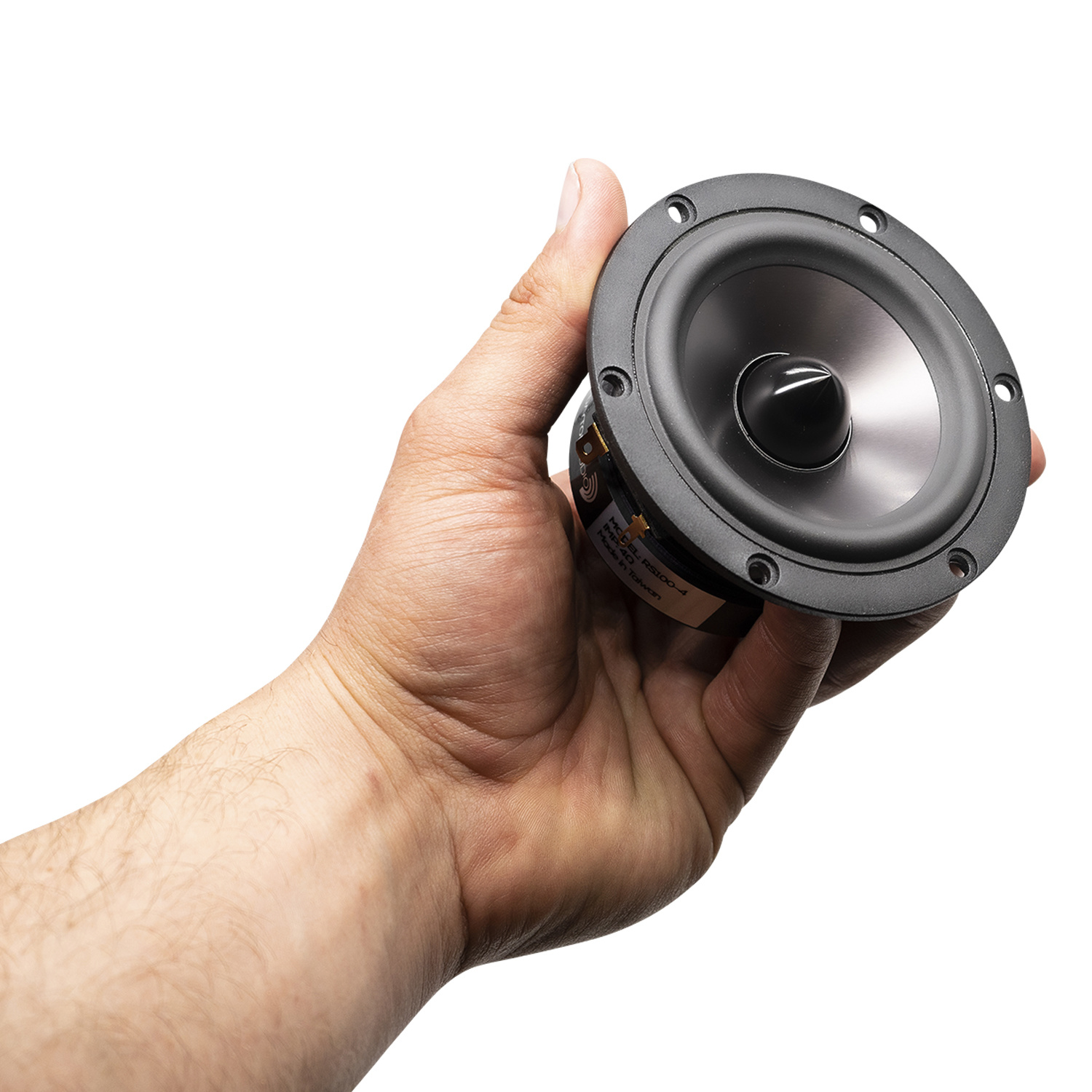

    Dayton Audio Reference RS100-4 | 4'' Aluminum Full-Range Driver | 4 Ω | 30 W

    € 35,50€ 42,95 >10 In stock: delivery time 1-4 business days
    Bulk discount Enjoy these awesome discount deals
    • -5% Order 4 for only €40,80 per piece
    • 24h express shipping available
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers.



    Highlights

    • Full-range capability
    • Long-excursion motor and suspension for strong bass performance
    • Subtle yet high-tech look makes a bold cosmetic statement
    • Designed and engineered in the U.S.A.
    • Great replacement for the Dayton RS100S-8 4" Reference Shielded Full-Range Driver



    Product details

    Dayton Audio RS100-4 4" Reference Full-Range Driver 4 Ohm

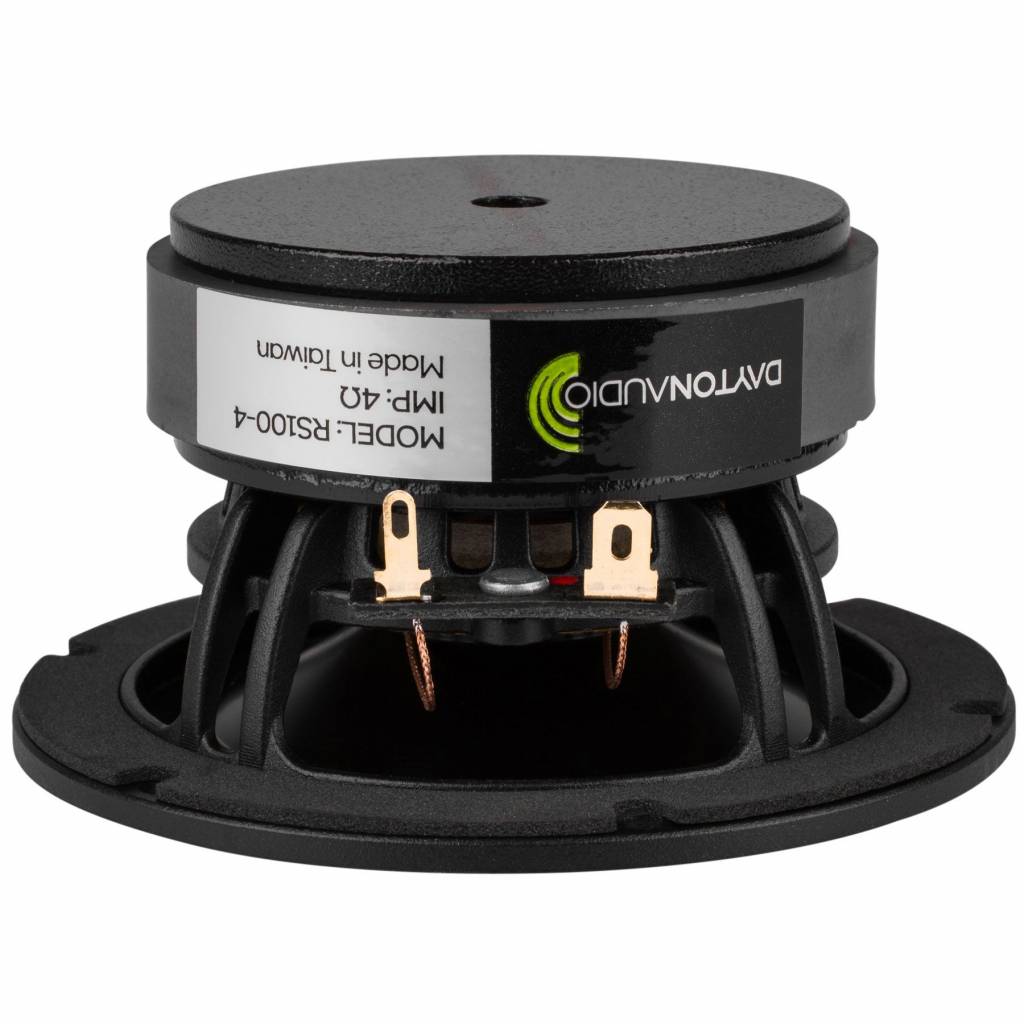

    The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofer features a black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminum phase plug, rubber magnet boot, and gold terminals.

    Specifications

    Article number
    RS100-4
    Woofer Series
    Reference Series
    Woofer Type
    Full-Range
    Nominal Diameter
    4"
    Power Handling (RMS)
    30 watts
    Power Handling (max)
    60 watts
    Impedance (Z)
    4 ohms
    Sensitivity
    87.5 dB @ 2.83V/1m
    Frequency Response
    80 - 20,000 Hz
    Voice Coil Diameter
    25 mm
    DC Resistance (Re)
    3 ohms
    Voice Coil Inductance (Le)
    0.28 mH @ 1 kHz
    Resonant Frequency (Fs)
    84.8 Hz
    Mechanical Q (Qms)
    2.55
    Electromagnetic Q (Qes)
    0.66
    Total Q (Qts)
    0.53
    Diaphragm Mass Inc. Airload (Mms)
    4.3g
    Mechanical Compliance of Suspension (Cms)
    0.83 mm/N
    Surface Area of Cone (Sd)
    35.3 cm²
    Volume of Displacement (Vd)
    14.1 cm³
    BL Product (BL)
    3.18 Tm
    Compliance Equivalent Volume (Vas)
    1.45 liters
    Maximum Linear Excursion (Xmax)
    4.0 mm
    Cone / Diaphragm Material
    Black Anodized Aluminum Cone
    Surround Material
    Rubber
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    Aluminum
    Basket / Frame Material
    Cast Aluminum
    Magnet Material
    Ferrite
    Overall Outside Diameter
    98 mm
    Overall Depth
    51 mm
    Baffle Cutout Diameter
    77.2 mm
    # Mounting Holes
    6
    Sealed Volume
    0.03 ft.³
    Sealed F3
    143 Hz
    Vented Volume
    0.1 ft.³
    Vented F3
    72 Hz
