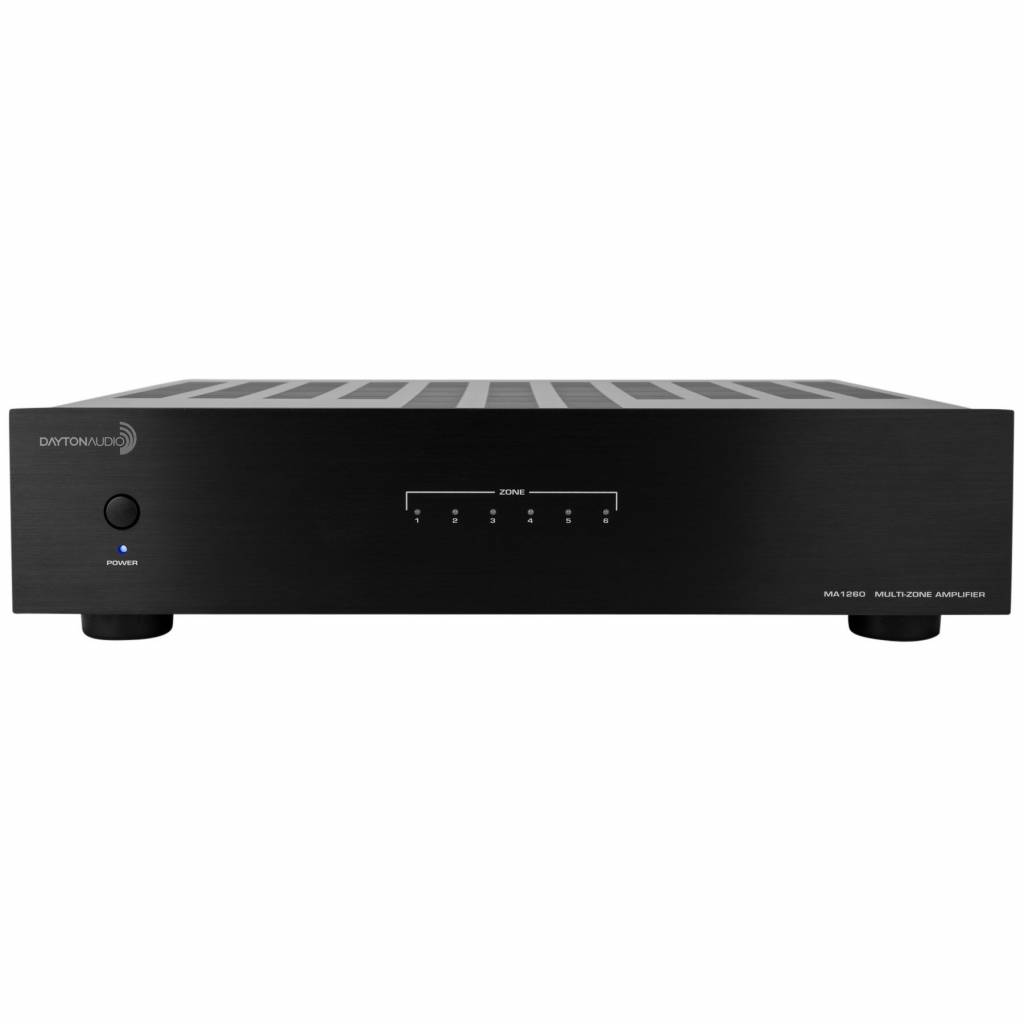

      Dayton Audio MA1260 Multi-Zone 12 Channel Amplifier

      € 619,79€ 749,95 >10 In stock: delivery time 1-4 business days
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      The Dayton Audio's MA1260 is a powerful but efficient, twelve channel class D amplifier. The amplifier is specifically engineered for multi-zone applications, but the flexible in- /output interface make this amplifier fit for many more applications. Ranging from amplifying the different drivers of an active speaker system to delivering up to twelve channel amplification for home cinema applications.



      Highlights

      • Class-D topology for high quality, but efficient reproduction.
      • Bus inputs along with independent inputs for each channel
      • Bridgeable outputs allow extra power when needed
      • Each channel has independent gain controls
      • Low standby power consumption



      Product details

      Dayton Audio MA1260 Multi-Zone 12 Channel Amplifier

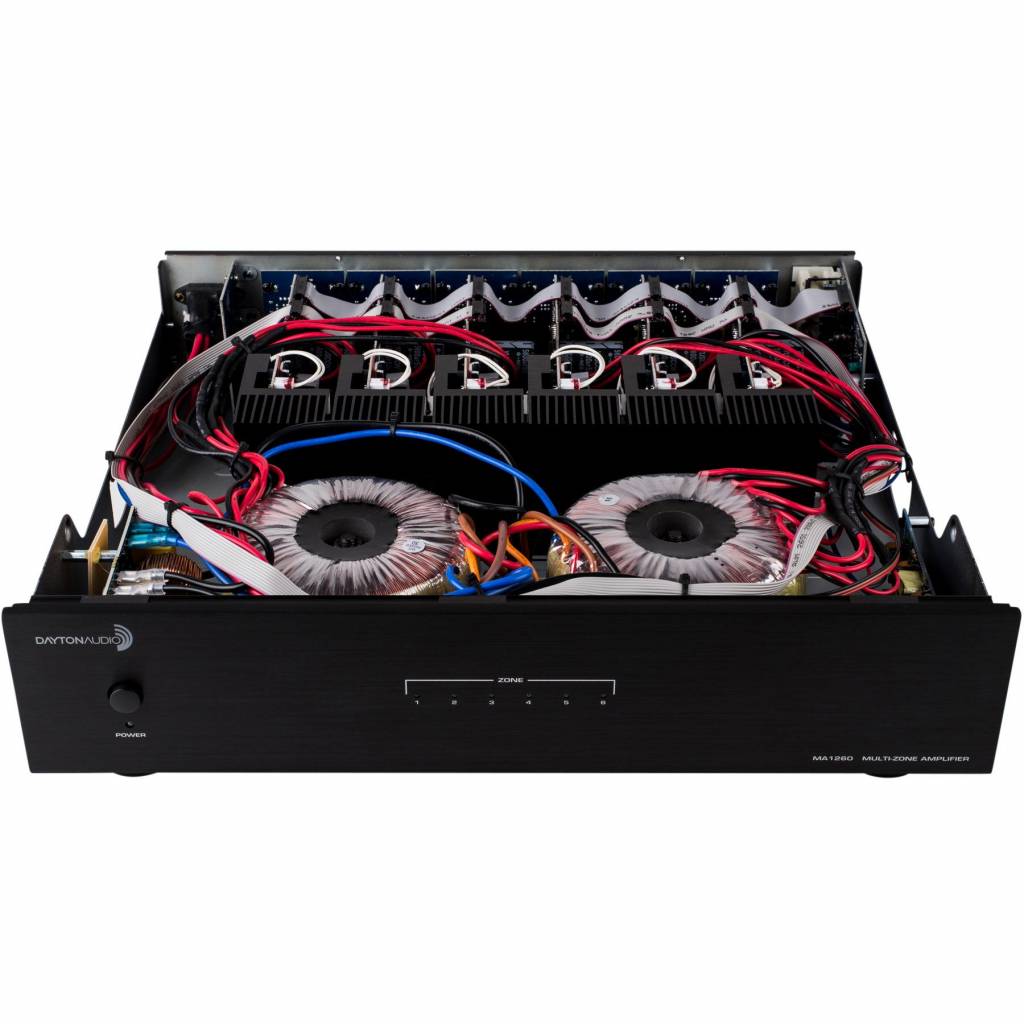

      The MA1260 is the multi-zone amplification solution from our home audio amplifier category. It shares its appearance and functionality with the slightly less potent class-AB sibling; the Dayton Audio MA1240a. The MA1260 relies on class-D technology for a more efficient but also more powerful output. The power supply uses two toroidal transformers that are followed by an individual rectification and buffer stage for each stereo zone.

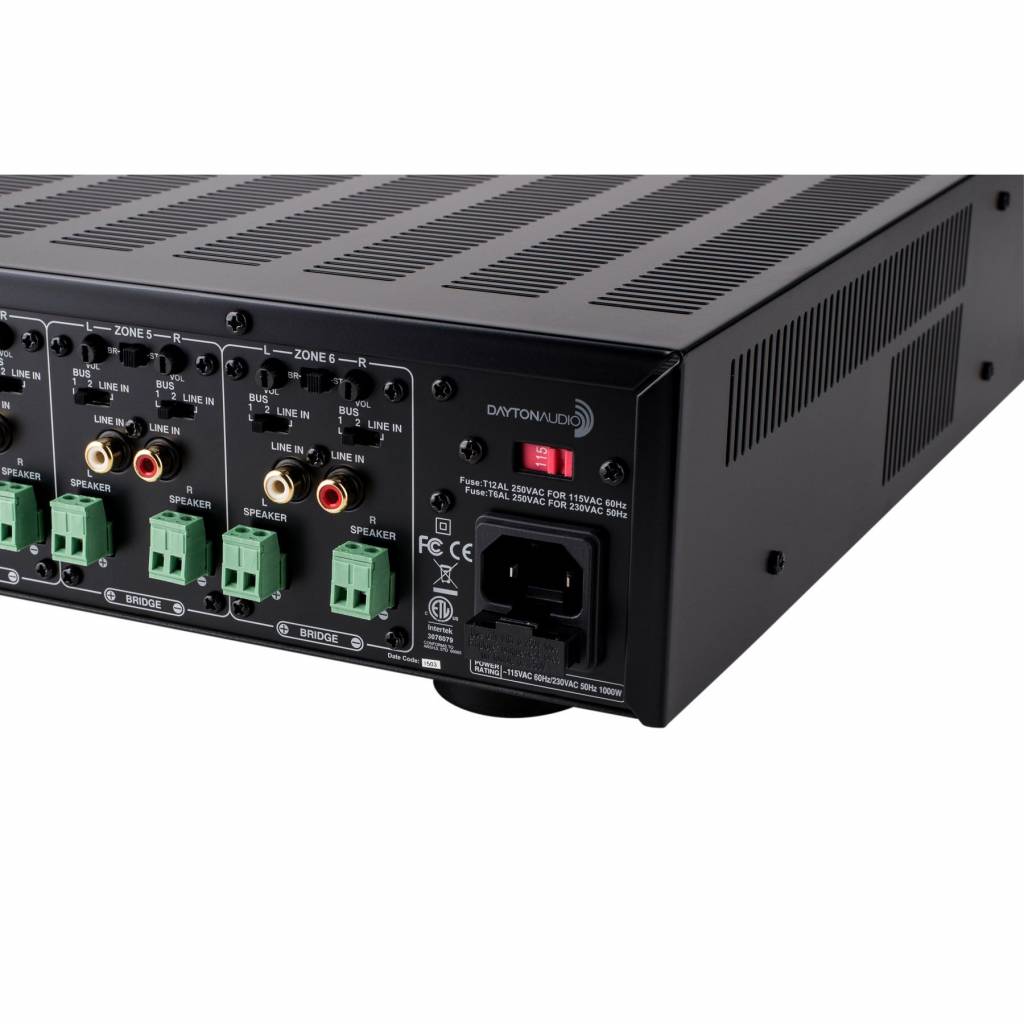

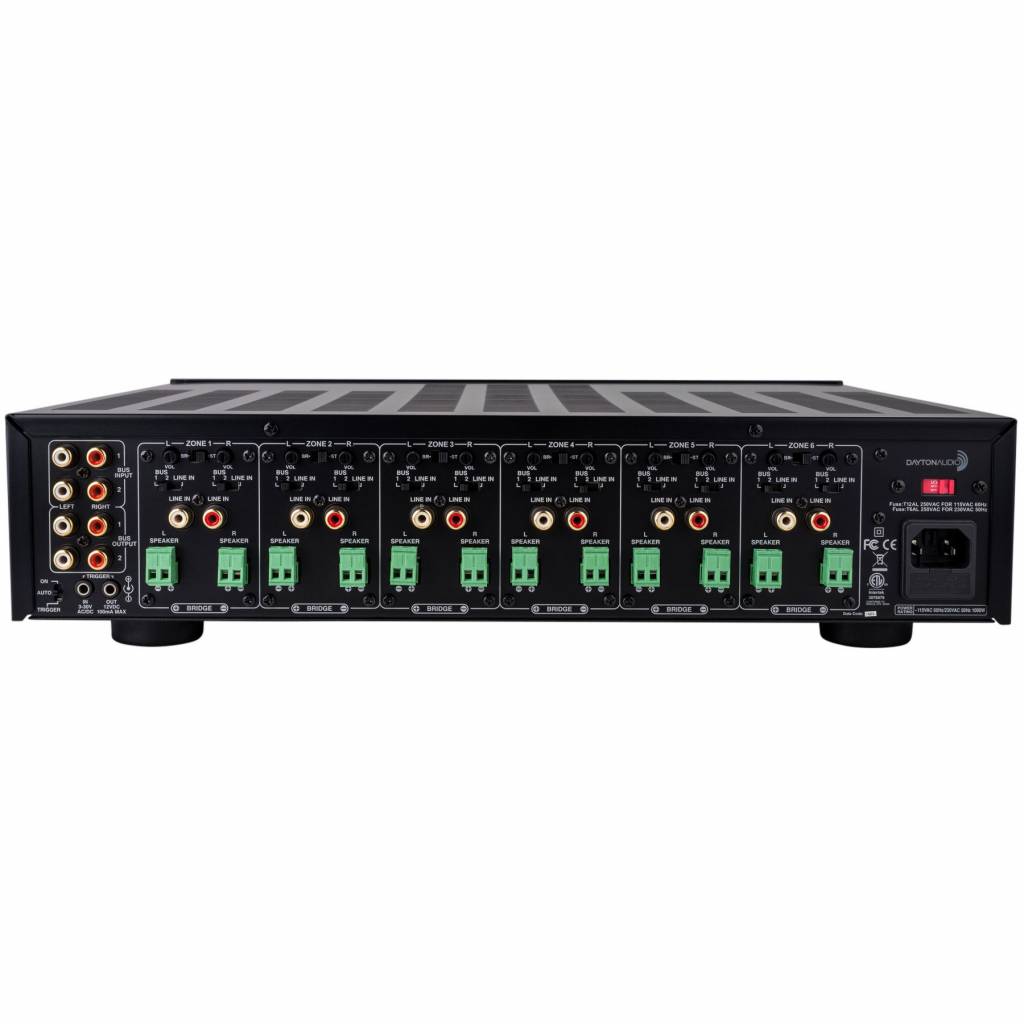

      The in- and output interface creates extended flexibility when it comes to source and speaker connections. Each zone uses two channels that can be switched for individual operation or for bridged operation if more power is required. Each channel has access to three inputs; an individual input and two bus inputs. The bus inputs can provide a single signal to all channels at once. If you wish to connect multiple devices the trigger input, trigger output and two bus outputs come in handy!



      The enclosure comes with feet for free standing applications and (removable) ears for 19” audio rack applications.



      FAQ

      Q: Can I use this amp with an audio streamer like Sonos connect, Apple Airport or Chromecast?

      A: The MA1260 accepts line-level sources on the individual and bus inputs. You can even use multiple or different streamers for different zones. If you are interested in building your own (multi-zone) streamer, take a look at our products from Arylic.



      Q: Which input should I use for bridge operation?

      A: In bridge mode, the amplifier will only use the left input.

      Specifications

      Article number
      MA1260
      Rated power output (RMS)
      12 x 65 Watts at 8 ohms | 12 x 89 Watts at 4 ohms
      Bridged power output (RMS)
      6 x 130 Watts at 8 ohms (8 ohm minimum)
      Minimum load
      4 - 8 ohms
      Signal-to-noise ratio (SNR)
      115 dB
      Distortion
      .032% 20 Hz - 20,000 Hz at 65 watts (4 ohms)
      Distortion bridged
      .080% 20 Hz - 20,000 Hz at 130 watts (8 ohms)
      Efficiency
      93%
      Frequency response
      7.5 Hz to 48,000 Hz
      Input impedance
      16.7k ohm
      Input sensitivity
      450 mV
      Auto turn-on sensitivity
      12.3 mV
      DSP
      -
      DAC
      -
      Maximum sampling rate
      -
      Circuit Topology
      -
      Amplifier classification
      D
      Speaker output channels
      12
      Subwoofer output channel
      -
      Analog in/out
      -
      Optical S/PDIF in/out
      -
      Coaxial in/out
      -
      RCA in/out
      8/2
      AUX in/out
      -
      Bus in/out
      2/2
      XLR in/out
      -
      USB
      -
      Memory card slot
      -
      Network connection
      -
      Headphone jack
      -
      Subwoofer pre-out
      -
      Bluetooth
      -
      NFC
      -
      Wi-Fi
      -
      Banana plug compatible
      -
      Remote control
      -
      App control
      -
      Auto turn-on
      Accepted file formats
      -
      Equalizer (EQ) adjustment
      -
      Equalizer (EQ) profiles
      -
      Multi zone/room
      -
      Crossover frequency adjustment
      -
      Bridge mode
      Power requirements
      115/230 VAC, 60 Hz/50 Hz
      Power inlet connector
      IEC14
      Power consumption
      -
      Stand-by power consumption
      -
      Dimensions (D x W x H)
      362 x 424 x 102 mm
      Case material
      Steel and brushed aluminum

      Show more

      Reviews

      5 from 5Based on 3 reviews
      Review this product
      5 of 5

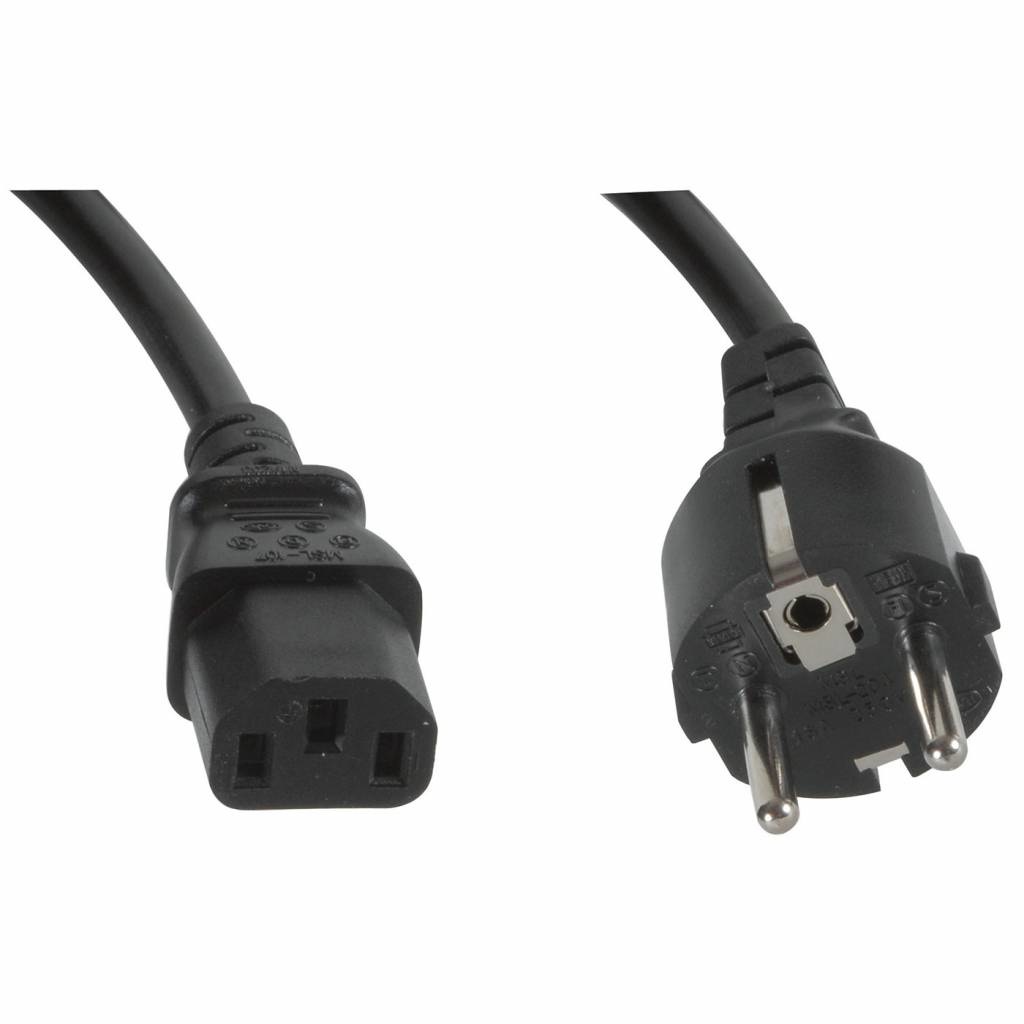

      A fantastic intstrument, Very versatile and reliable. The european power cord is much to short. Only the third of the american.
      By Peter D. on 30 August 2020
      4 of 5
      Gerät ist empfehlenswert Bei Auslieferung innerhalb von Deutschland sollte die 230 V Umstellung nicht vom Kunden gemacht werden müssen.
      By Udo P. on 4 June 2020
      Show more
