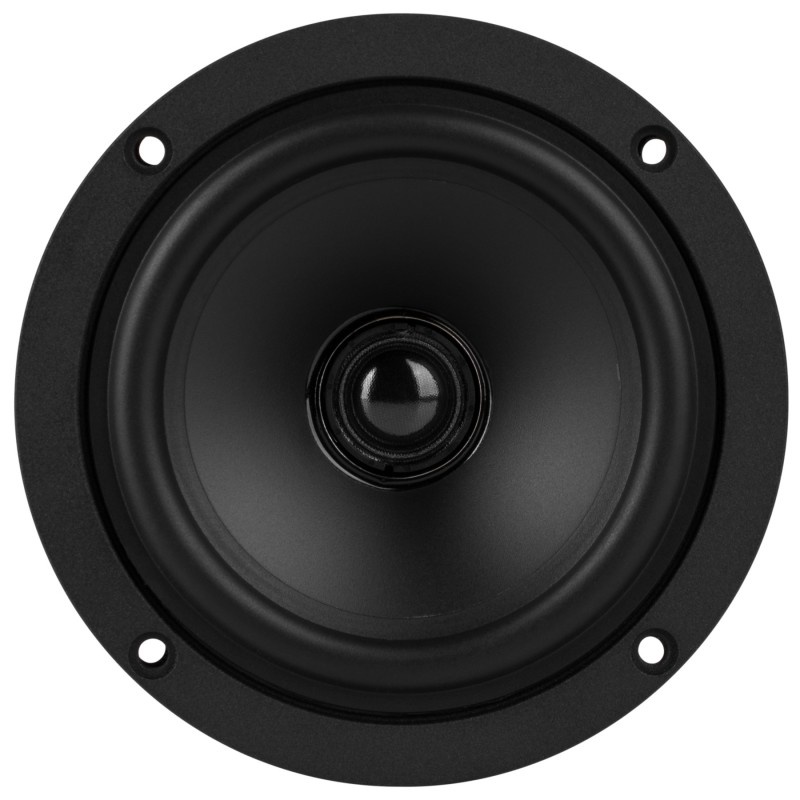

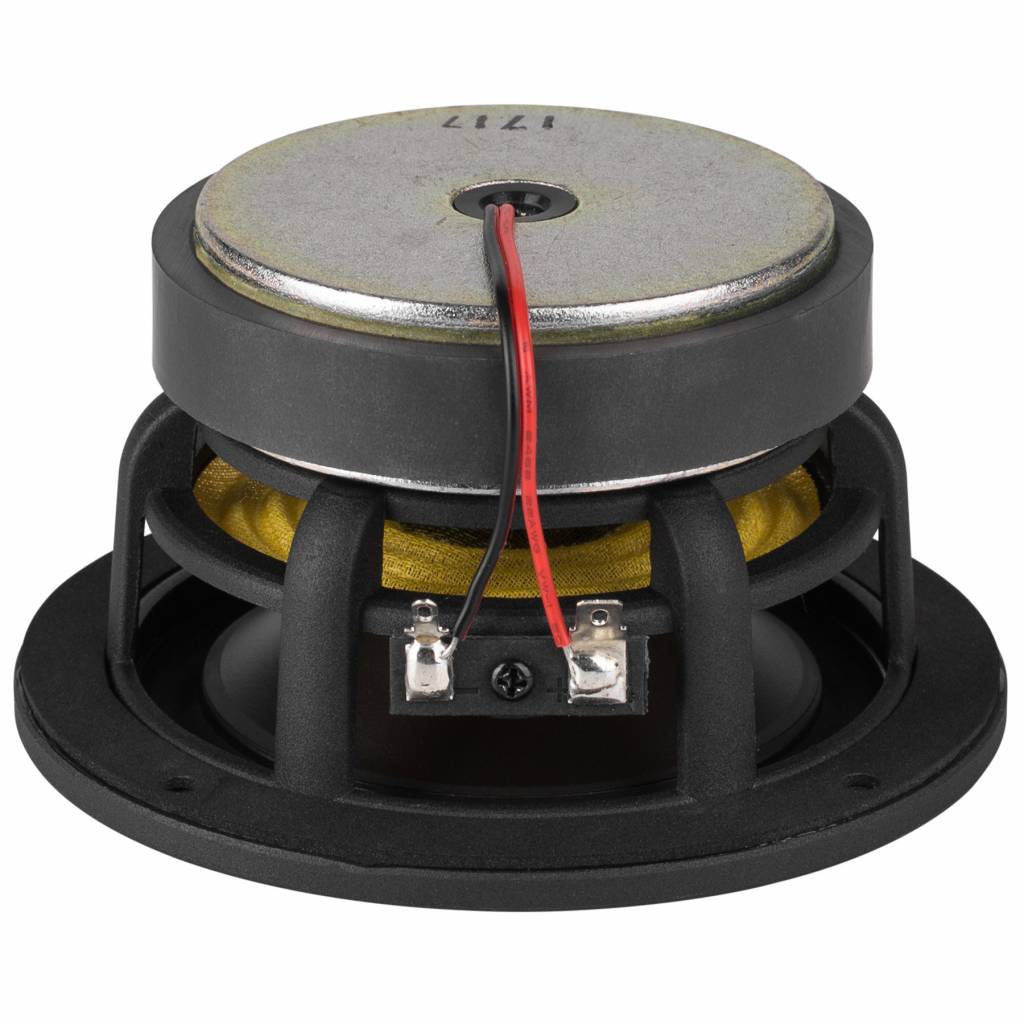

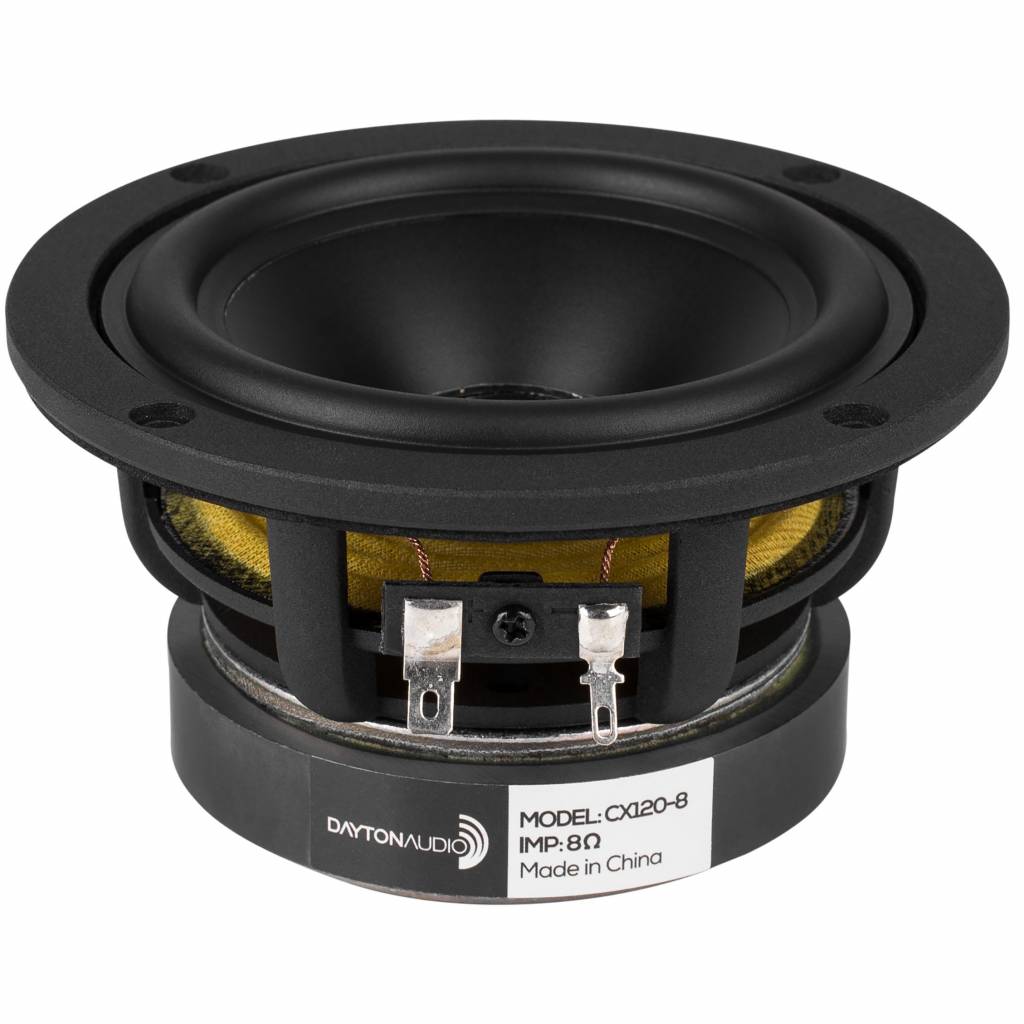

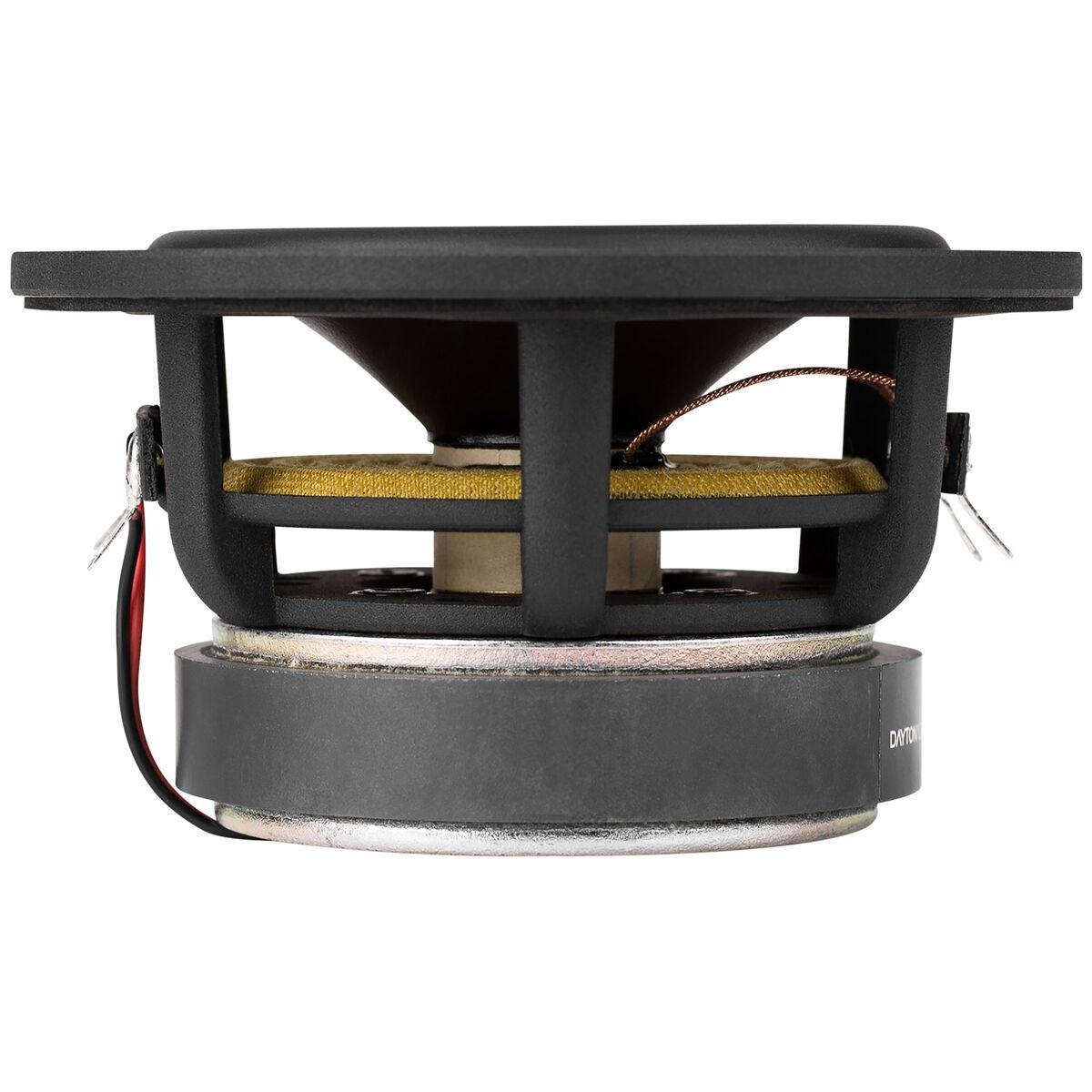

Dayton Audio CX120-8 4" Coaxial Driver with 3/4" Silk Dome Tweeter 8 Ohm

Brand: Dayton Audio

Show all Bass-mid woofer

Compare

4" | 8 Ω

CX120-8 4" Coaxial Driver with 3/4" Silk Dome Tweeter 8 Ohm

CX120-8 4" Coaxial Driver with 3/4" Silk Dome Tweeter 8 Ohm

CX120-8 4" Coaxial Driver with 3/4" Silk Dome Tweeter 8 Ohm

CX120-8 4" Coaxial Driver with 3/4" Silk Dome Tweeter 8 Ohm

CX120-8 4" Coaxial Driver with 3/4" Silk Dome Tweeter 8 Ohm

CX120-8 4" Coaxial Driver with 3/4" Silk Dome Tweeter 8 Ohm

CX120-8 4" Coaxial Driver with 3/4" Silk Dome Tweeter 8 Ohm

CX120-8 4" Coaxial Driver with 3/4" Silk Dome Tweeter 8 Ohm

€ 34,67€ 41,95 9 In stock10+ expected on 12-05-2023

24h express shipping available
Same day shipping
In-house technical support
45-day cooling-off period to return

Request quotation

Do you have a question about this product?

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

With a natural sounding 3/4" soft dome tweeter concentrically mounted in a long throw poly cone 4" woofer Dayton Audio's CX120-8 will produce extremely smooth response on and off-axis while avoiding the phase and lobing issues associated with standard 2-way designs. This driver is perfect for compact designs, portable speakers, or even custom car audio systems.

Highlights

Full-range with accurate bass and extended high frequency response
Coaxial mounted 3/4" silk dome tweeter
Open cast frame for improved air flow and minimal power compression
4" curvilinear poly cone woofer with rubber half roll surround

Product details

Dayton Audio CX120-8 4" Coaxial Driver with 3/4" Silk Dome Tweeter 8 Ohm

The Dayton Audio CX120-8 is a full-range coaxial loudspeaker providing high quality sound in a very compact format featuring a 4" curved linear poly cone woofer mated with a 3/4" silk dome tweeter. The poly cone woofer provides a good balance between stiffness, low mass and damping making for a very natural sounding driver with a smooth frequency response. The silk dome tweeter provides detailed and clear high frequencies with minimal distortion. In addition, the optimized tweeter placement and flaring reduces the phase issues with the woofer that is commonplace with even the BIG brand coaxes. Designed for use as a full-range in a small bookshelf speaker, an extended range (i.e. midrange/tweeter) driver in a 3-way system, or even car audio systems.

4" Woofer:

1" voice coil wound on an aluminum former for high power handling
Curved linear shaped poly cone provides a good balance between stiffness, low mass and damping making for a natural sounding driver with a smooth frequency response
Optimized rubber surround for reduced break up in the midrange band
Attractive rigid open cast frame cast frame to minimize reflections, resonances and improve air flow
High energy ceramic magnet for greater cone control and improved efficiency

Specifications: • Power handling: 40 watts RMS/80 watts max • VCdia: 1" • Le: 0.62 mH • Impedance: 8 ohms • Re: 6.2 ohms • Frequency response: 90-5,500 Hz • Fs: 87.5 Hz • SPL: 88.5 dB 2.83V/1m • Vas: 0.10 cu. ft. (2.99 liters) • Qms: 2.89 • Qes: 0.57 • Qts: 0.48 • Xmax: 3.0 mm • Dimensions: Overall diameter: 4-3/4", Cutout diameter: 3-7/8", Depth: 2".

3/4" Tweeter:

Silk dome provides detail and clarity of high frequencies
Coaxially mounted to pole piece of woofer cone
Optimized placement and trimmed flaring to reduce phase issue interaction with woofer
Strong neodymium magnet
Trimmed flared throat to minimize phase issues causing suck-out with woofer
High pass filter required (not included)

Specifications: Power handling: 20 watts RMS/40 watts max • VCdia: 3/4" • Le: 0.04 mH @ 10 kHz • Impedance: 8 ohms • Re: 5.6 ohms • Frequency response: 4,500-20,000 Hz • Fs: 2745 Hz • SPL: 89.2 dB 2.83V/1m • Qms: 2.20 • Qes: 7.91 • Qts: 1.72.

Show more

Specifications

Article number: CX120-8
Woofer Series: Coaxial
Woofer Type: Coaxial
Nominal Diameter: 4"
Power Handling (RMS): 40 watts
Power Handling (max): 80 watts
Impedance (Z): 8 ohms
Sensitivity: 88.5 dB 2.83V/1m
Frequency Response: 90 to 20,000 Hz
Voice Coil Diameter: 1"
DC Resistance (Re): 6.22 ohms
Voice Coil Inductance (Le): 0.63 mH
Resonant Frequency (Fs): 87.5 Hz
Mechanical Q (Qms): 2.89
Electromagnetic Q (Qes): 0.57
Total Q (Qts): 0.48
Diaphragm Mass Inc. Airload (Mms): 4.82g
Mechanical Compliance of Suspension (Cms): 0.765 mm/N
Surface Area of Cone (Sd): 52.51 cm²
BL Product (BL): 5.08 Tm
Compliance Equivalent Volume (Vas): 3.0 liters
Maximum Linear Excursion (Xmax): 3.0 mm
Cone / Diaphragm Material: Polypropylene
Surround Material: Rubber
Voice Coil Wire Material: CCA
Voice Coil Former: Aluminum
Basket / Frame Material: Cast Aluminum
Magnet Material: Ferrite
Overall Outside Diameter: 4.75"
Overall Depth: 3.875"
Baffle Cutout Diameter: 4.313"
# Mounting Holes: 4
Sealed Volume: 0.046 ft.³
Sealed F3: 156 Hz
Vented Volume: 0.147 ft.³
Vented F3: 80 Hz

Reviews

5 from 5Based on 7 reviews

Review this product

5 of 5

Highly recommended - the chassis are used in spherical speakes cases as satellites in an active 2.1 setup.

By JustMe on 4 March 2023

5 of 5

Prachtig geluid

By K on 18 February 2022

5 of 5

Nice and resolving rivers. I have not noticed the IMD issues that many warn about using coaxials. Using them in a 1.6 liter sealed enclosure with a subwoofer. Imaging and separation is some of the best I have heard and the frequency response is nice and even with a simple 3 component crossover. These drivers in the right enclosure sound very "high-end".

By Felix on 4 January 2021

5 of 5

very detailed sound from this speaker even at loud volumes. Was surprised by the clarity. Suitable for small to medium size speakers and does exceptionally well in portable projects since it eliminates the need for a midrange woofer and tweeter. So basically less components and no crossover needed. Only bad thing is that it isn’t available as a 4 ohm version.

By Johan Gustafsson on 31 July 2020

5 of 5

Es wurde keine Beschreibung gegeben.

By Johannes M. on 25 April 2020

5 of 5

No description was given

By Luboš S. on 3 January 2019

5 of 5

Great price/quality, Highly Recommanded

By Post u. on 25 April 2018
