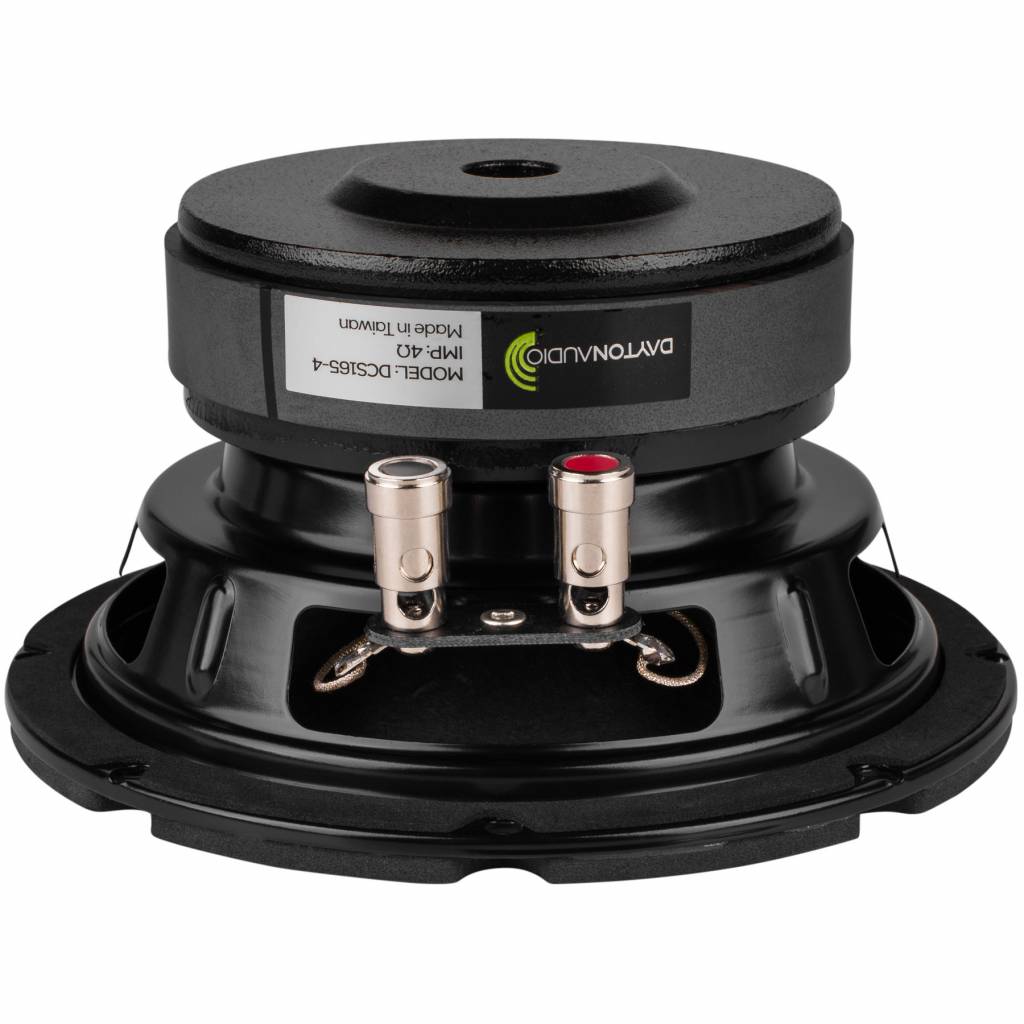

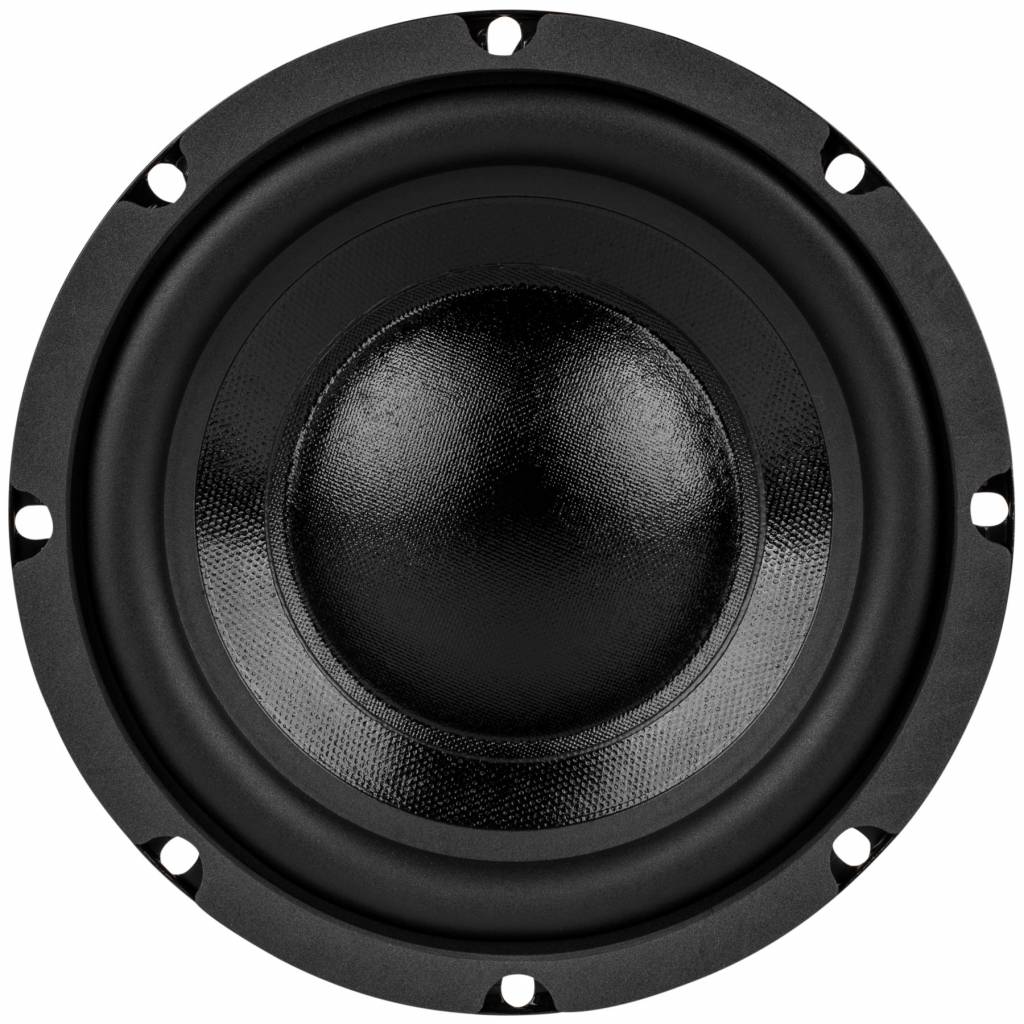

Dayton Audio DCS165-4 6-1/2" Classic Subwoofer 4 Ohm

Special order only. Delivery time is 3-6 weeks

  • Article code: DCS165-4
  • Out of stock

Capable of impressive low end when installed in enclosures of less than 0.5 cubic feet, the DCS165-4 6-1/2" subwoofer from Dayton Audio's Classic Series is the perfect low cost solution for compact low frequency designs.

€ 56,25 Incl. 21% VAT

  • Buy 4 for €53,44 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-day money back guarantee
  • International payment options

Product description

Dayton Audio DCS165-4 6-1/2" Classic Subwoofer 4 Ohm

Capable of impressive low end when installed in enclosures of less than 0.5 cubic feet, the DCS165-4 6-1/2" subwoofer from Dayton Audio's Classic Series is the perfect low cost solution for compact low frequency designs.



Highlights

  • 4-layer VC with polyimide former allows high power handling
  • Vented pole piece and bumped back plate provide plenty of VC travel with minimal compression
  • Copper pole piece cap minimizes inductance
  • Rigid non-pressed treated paper/Kevlar cone with rubber surround
  • Great for home and automotive applications



Product details

Dayton Audio DCS165-4 6-1/2" Classic Subwoofer 4 Ohm



Dayton Audio's rugged DCS165-4 6-1/2" subwoofer has all of the performance-enhancing attributes you would expect from a larger high-output subwoofer. With a vented pole piece and 4 ohm, 4-layer voice coil, this driver can handle up 100 watt RMS. The non-pressed paper cone is reinforced with Kevlar to increase stiffness, which promotes linear travel through the limits of its excursion. In addition, the pole piece includes a copper cap that keeps inductance to a minimum. The DCS165-4 driver is ideal for use in small multimedia speakers, portable speakers, or even automotive systems where space is at a minimum.

Specifications

Specifications for: DCS165-4 6-1/2" Classic Subwoofer 4 Ohm

  • Woofer Series Specific woofer production line of the manufacturer. Classic Series
  • Woofer Type The driver type for example subwoofer, mid-woofer, full range or coaxial woofer. Subwoofer
  • Nominal Diameter The approximate diameter of the driver, measured in inches. 6.50"
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 100 watts
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged. 200 watts
  • View all specifications
  • Continuous Program Power
  • Impedance 4 ohms
  • Sensitivity 87.4 dB @ 2.83V/1m
  • Frequency Response 36 - 1,100 Hz
  • Voice Coil Diameter 38.5 mm
  • Magnet Weight
  • DC Resistance (Re) 3.4 Ohms
  • Voice Coil Inductance (Le) 1.43 mH @ 1 kHz
  • Resonant Frequency (Fs) 35.7 Hz
  • Mechanical Q (Qms) 6.62
  • Electromagnetic Q (Qes) 0.36
  • Total Q (Qts) 0.34
  • Diaphragm Mass Inc. Airload (Mms) 39.5g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.5 mm/N
  • Surface Area of Cone (Sd) 124.7 cm²
  • Volume of Displacement (Vd) 74.8 cm³
  • BL Product (BL) 9.15 Tm
  • Compliance Equivalent Volume (Vas) 12.1 liters
  • Maximum Linear Excursion (Xmax) 6 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Paper / Kevlar Cone
  • Surround Material Rubber
  • Voice Coil Wire Material Copper
  • Voice Coil Former Kapton®/Polyimide
  • Dual Voice Coil
  • Basket / Frame Material Steel
  • Magnet Material Ferrite
  • Shielded
  • Overall Outside Diameter 6.57"
  • Overall Depth 3.25"
  • Baffle Cutout Diameter 5.62"
  • Bolt Circle Diameter
  • # Mounting Holes 8
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3

Documenten

Reviews

User reviews 5 / 5 Reviews: (10)

  • BN By Bright N. on 15-09-2020 15:24

    5 / 5

    This sub speaker is perfect and powerful, great the speaker work moor than I think. Thanks to soundimports. From Ireland.

  • GV By GIANLUCA V. on 21-08-2020 00:28

    5 / 5

    No description was given

  • JG By Johan Gustafsson on 10-08-2020 00:17

    5 / 5

    Lots of thump from this tiny speaker. Being used to using larger drivers I was sceptical a smaller driver could deliver the performance I was looking for in a portable speaker, I was wrong. This driver plays big and strong down to 40 hz in a 10 liter box. That’s why this is such a good driver for portable projects or very small subwoofers, it doesn’t need a huge box to play big. Now don’t expect it to play like a 10 inch or a 12 inch big sub with ”in your chest bass”. But, for a 6.5 inch sunwoofer? This thing rocks! For the price I highly doubt you can find any better.

  • SS By Sašo S. on 13-06-2020 16:08

    5 / 5

    No description was given

  • AM By Alexandru M. on 18-04-2020 14:33

    5 / 5

    No description was given

  • LR By Lukas R. on 25-03-2020 16:19

    5 / 5

    1SUPER

  • FN By Frank N. on 15-02-2020 17:28

    5 / 5

    Koper heeft geen omschrijving achtergelaten.

  • PB By Philip B. on 23-05-2019 08:19

    5 / 5

    very good

  • DV By dirk V. on 16-04-2019 10:55

    5 / 5

    super sound

  • AP By Atam P. on 05-01-2019 14:05

    5 / 5

    lijkt goed, moet nog installeren. Maar hele mooi.
