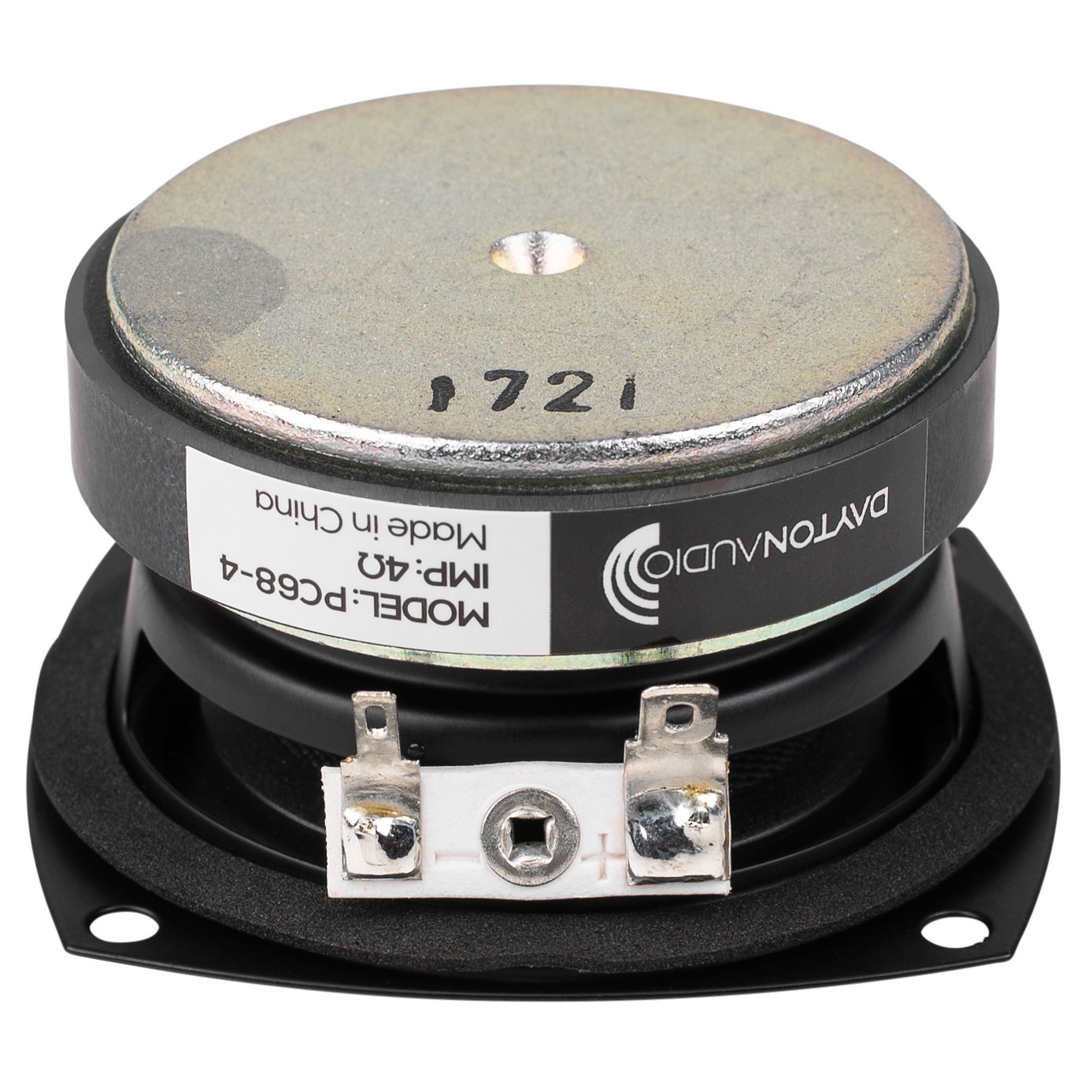

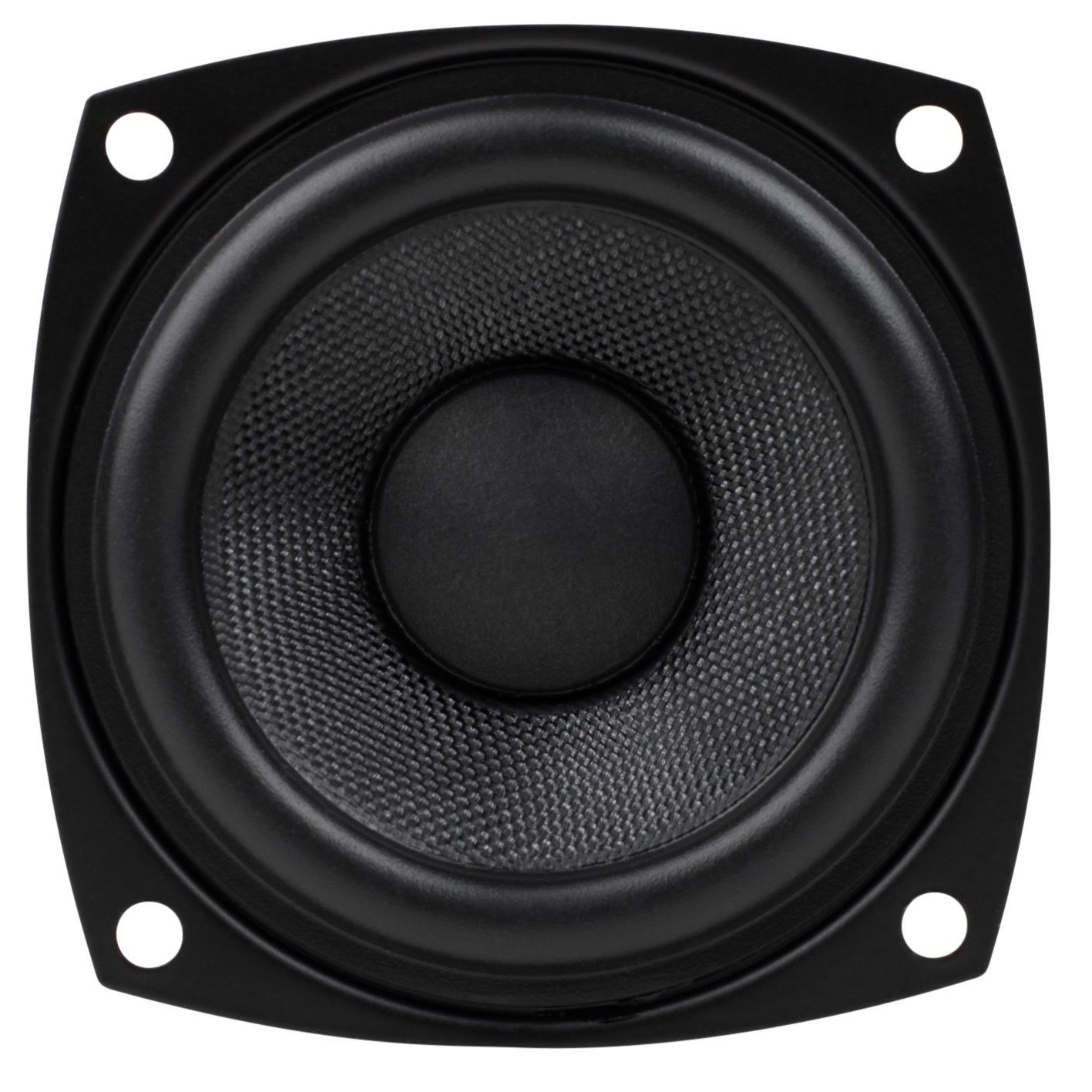

      Dayton Audio PC68-4 2-1/2" Full-Range Poly Cone Driver 4 Ohm

      € 10,29€ 12,45 10+ In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only € 11,83 per piece
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Dayton Audio's PC68-4 2-1/2" full-range driver will deliver smooth and natural response from extremely compact designs. When used in line arrays, portable speakers, sound bars, or as a dedicated mid-range in 3-way designs this driver will prove to be an excellent value.



      Highlights

      • Smooth response with true full-range reproduction for simple speaker designs
      • Poly damped woven glass fiber cone controls cone break-up and provides a smooth roll-off
      • Rubber surround improves cone linearity and transients
      • High energy ferrite magnet increases BL for higher efficiency and more output



      Product details

      Dayton Audio PC68-4 2-1/2" Full-Range Poly Cone Driver



      The Dayton Audio PC68-4 2-1/2" full-range driver features a poly damped woven glass fiber cone, rubber surround, and high energy motor. Offering great full-range performance, controlled off-axis response, and high efficiency, this driver will provide impressive output for its size. Perfect for use in line arrays, sound bars, portable speakers, or even car audio the Dayton Audio PC68-4 driver will deliver high fidelity and low distortion from compact applications for an amazing value.

      Specifications

      Article number
      PC68-4
      Woofer Series
      PC series
      Woofer Type
      Full-Range
      Nominal Diameter
      2.5"
      Power Handling (RMS)
      20 watts
      Power Handling (max)
      40 watts
      Continuous Program Power
      -
      Impedance (Z)
      4 ohms
      Sensitivity
      86.1 dB @ 2.83V/1m
      Frequency Response
      120 - 17,000 Hz

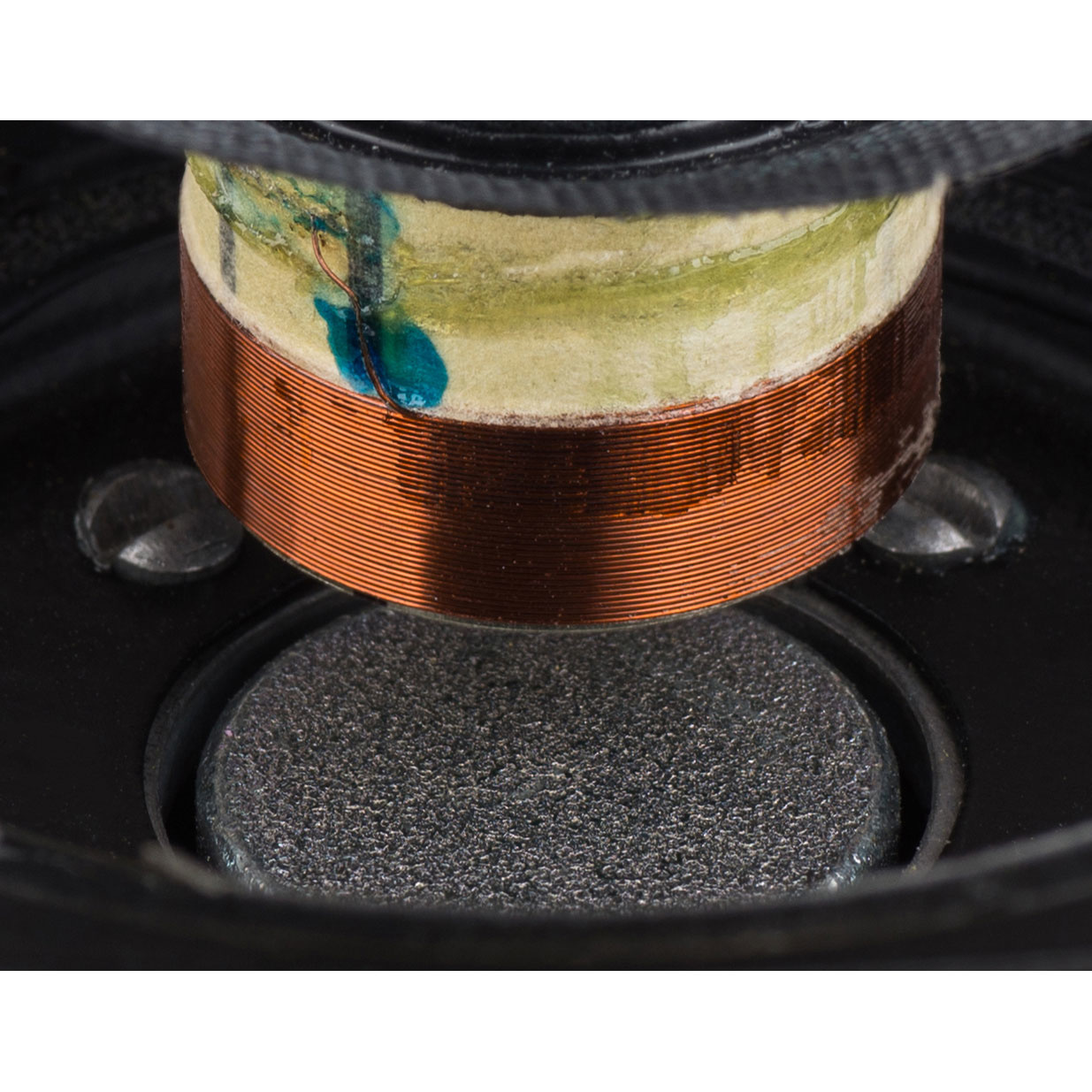

      Voice Coil Diameter
      19 mm
      Magnet Weight
      -
      DC Resistance (Re)
      3.8 ohms
      Voice Coil Inductance (Le)
      0.29 mH
      Resonant Frequency (Fs)
      117.1 Hz
      Mechanical Q (Qms)
      2.49
      Electromagnetic Q (Qes)
      0.87
      Total Q (Qts)
      0.65
      Diaphragm Mass Inc. Airload (Mms)
      1.7g
      Moving Mass Of Diaphragm (Mmd)
      -
      Mechanical Compliance of Suspension (Cms)
      1.07 mm/N
      Surface Area of Cone (Sd)
      21.2 cm²
      Volume of Displacement (Vd)
      4.2 cm³
      BL Product (BL)
      2.4 Tm
      Compliance Equivalent Volume (Vas)
      0.7 liters
      Maximum Linear Excursion (Xmax)
      2 mm
      Driver's Mechanical Losses (Rms)
      -
      Cone / Diaphragm Material
      Poly Composite
      Surround Material
      Rubber
      Voice Coil Wire Material
      Copper-clad aluminum
      Voice Coil Former
      Aluminum
      Dual Voice Coil
      -
      Basket / Frame Material
      Steel
      Magnet Material
      Ferrite
      Shielded
      -
      Overall Outside Diameter
      68 mm
      Overall Depth
      37 mm
      Baffle Cutout Diameter
      64 mm
      Bolt Circle Diameter
      73 mm
      # Mounting Holes
      4
      Mounting Hole Diameter
      4.2 mm
      Sealed Volume
      1.13 liters
      Sealed F3
      150 Hz
      Vented Volume
      1.7 liters
      Vented F3
      75 Hz

      Show more

      Reviews

      5 from 5Based on 5 reviews
      Review this product
      5 of 5
      Voldoed aan wat ik nodig had. Zeer snelle levering
      By Rene B. on 3 December 2020
      5 of 5
      used 2 of these as full range speakers in a 3.5l vented encosure and they sound realy good for how small they are.
      By tamas on 30 October 2020
