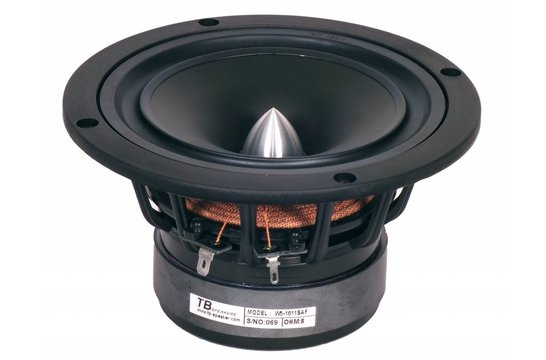

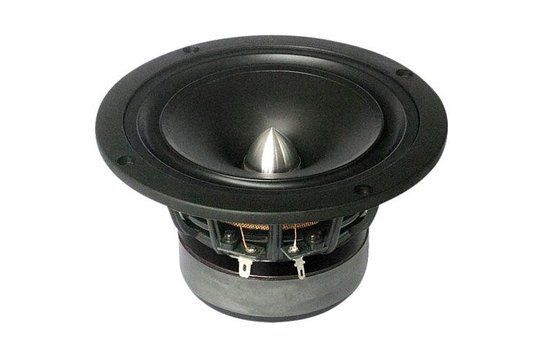

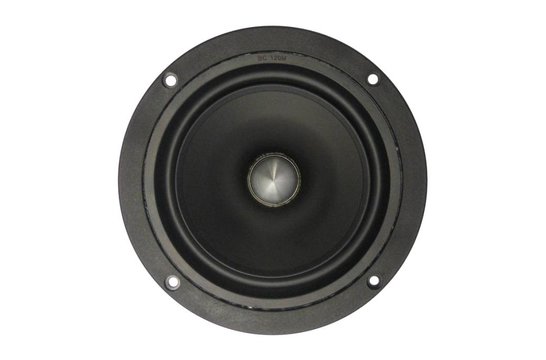

Tang Band W5-1611SAF 5" Full Range Speaker

2 reviews

Brand: Tang Band

Show all Full-range woofer

Compare

5" | 8 Ω

€ 74,34€ 89,95 Out of stock: please contact us for accurate delivery times

Backorder

24h express shipping available
Same day shipping
In-house techniscal support
45 days worry-free returns

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

Versatility and fidelity are the Tang Band W5-1611SAF 5" speaker's chief attributes. It is small enough to offer articulation and great HF dispersion, but big enough to pack a punch.

Highlights

Underhung design for low distortion and quick transient response
Aluminum pole piece increases dispersion
Accurate, smooth frequency response

Product details

Tang Band W5-1611SAF 5" Full Range Speaker

The Tang Band W5-1611SAF 5" speaker has a fiberglass-reinforced nylon frame, black polypropylene cone, and wide temperature range/high-loss rubber surround. An underhung 1" voice coil provides linear travel and the aluminum pole piece phase plug improves dispersion. The W5-1611SAF's extremely smooth, extended frequency response makes it suitable for a variety of applications, including full-range point source loudspeaker systems, line arrays, and midrange duty.

Specifications

Article number: W5-1611SAF
Woofer Type: Full-range
Nominal Diameter: 5"
Power Handling (RMS): 28 Watts
Power Handling (max): 56 Watts
Impedance (Z): 8 ohms
Sensitivity: 90 dB 1W/1m
Frequency Response: 60 to 20,000 Hz
Voice Coil Diameter: 1"
Magnet Weight: 18.6 oz.
DC Resistance (Re): 6.3 ohms
Voice Coil Inductance (Le): 0.02 mH
Resonant Frequency (Fs): 60 Hz
Mechanical Q (Qms): 2.8
Electromagnetic Q (Qes): 0.52
Total Q (Qts): 0.44
Diaphragm Mass Inc. Airload (Mms): 5.99g
Mechanical Compliance of Suspension (Cms): 1.31 mm/N
Surface Area of Cone (Sd): 94 cm²
BL Product (BL): 5.53 Tm
Compliance Equivalent Volume (Vas): 0.41 ft.³
Maximum Linear Excursion (Xmax): 3 mm
Cone / Diaphragm Material: Poly
Surround Material: Rubber
Basket / Frame Material: Polymer
Magnet Material: Ferrite
Overall Outside Diameter: 6.18"
Overall Depth: 3.44"
Baffle Cutout Diameter: 5.16"
# Mounting Holes: 4
Sealed Volume: 0.17 ft.³
Sealed F3: 109 Hz
Vented Volume: 0.44 ft.³
Vented F3: 56 Hz

Data sheet

Reviews

2 reviews

5 from 5Based on 2 reviews

Review this product

5 of 5

Klinkt goed en voldoet aan verwachting

By adriaan on 21 April 2021

5 of 5

These 5" full range speakers are made for high fidelity reproduction. I still didn't go through the 100-200h of breaking in, but after using them on a daily basis for two weeks I can finally start to hear what they should really sound like. I installed them in my 2m tall Voigt tube speakers, and they sound amazing. Because of the Voigt tube setup they gained in bass and lower middle frequencies without losing in precision. They reproduce sound perfectly even in low volume and every detail can be heard precisely and correctly. After testing them with a friend's marantz amplifier for a few hours I switched back to my old Pioneer. It only made me realize that I need a better amplifier for my new setup. On my other speakers (I have a lot of them) I couldn't notice the subtle difference between two similar amplifiers. These drivers, at least in my current Voigt tube speaker setup, make it very easy to discern the subtle differences between amplifiers. If you need high fidelity, point to source, full range drivers that are not colouring but have good bass, middle and high frequencies without really sacrificing anything, you should go with these speakers.

By Cvetko J. on 10 June 2020
