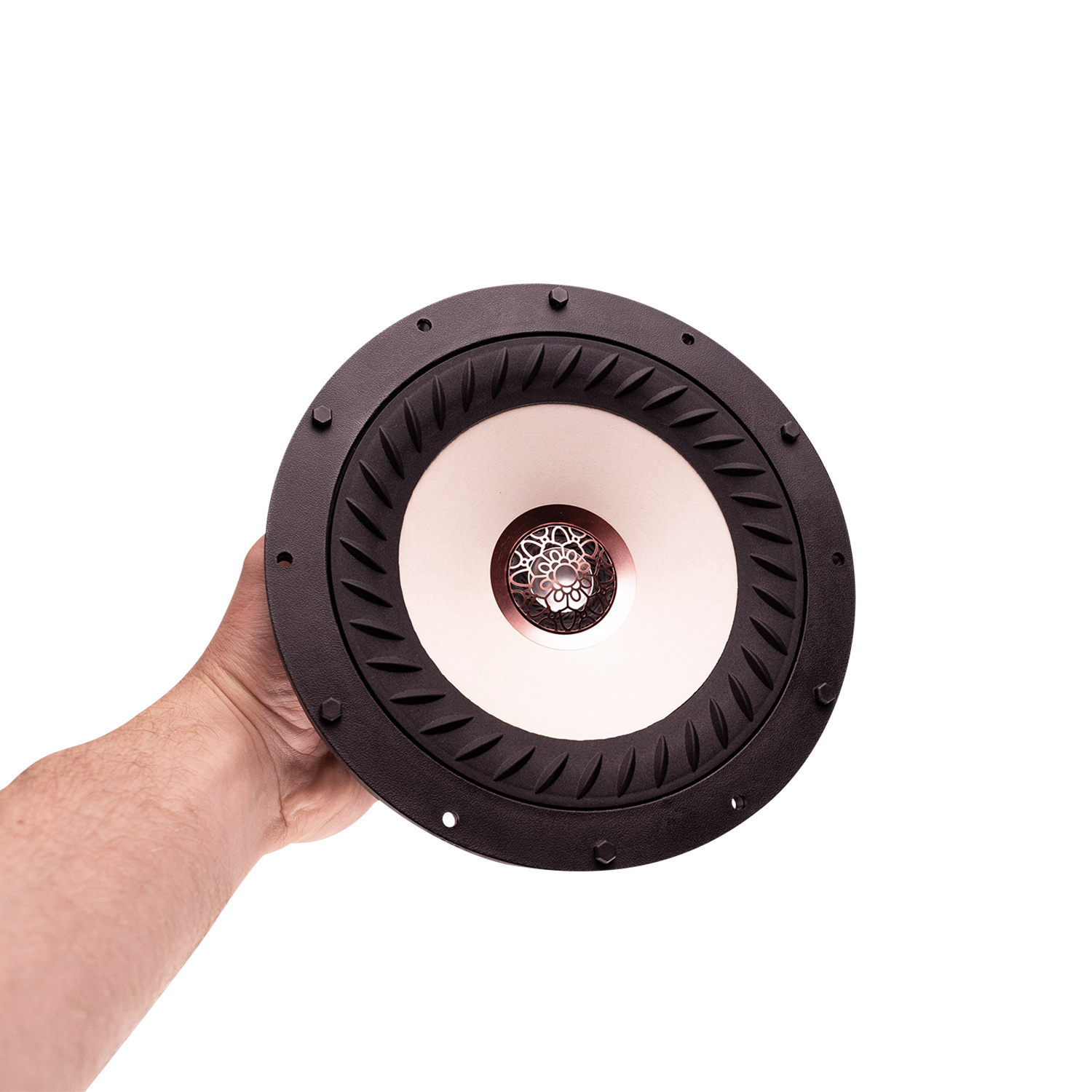

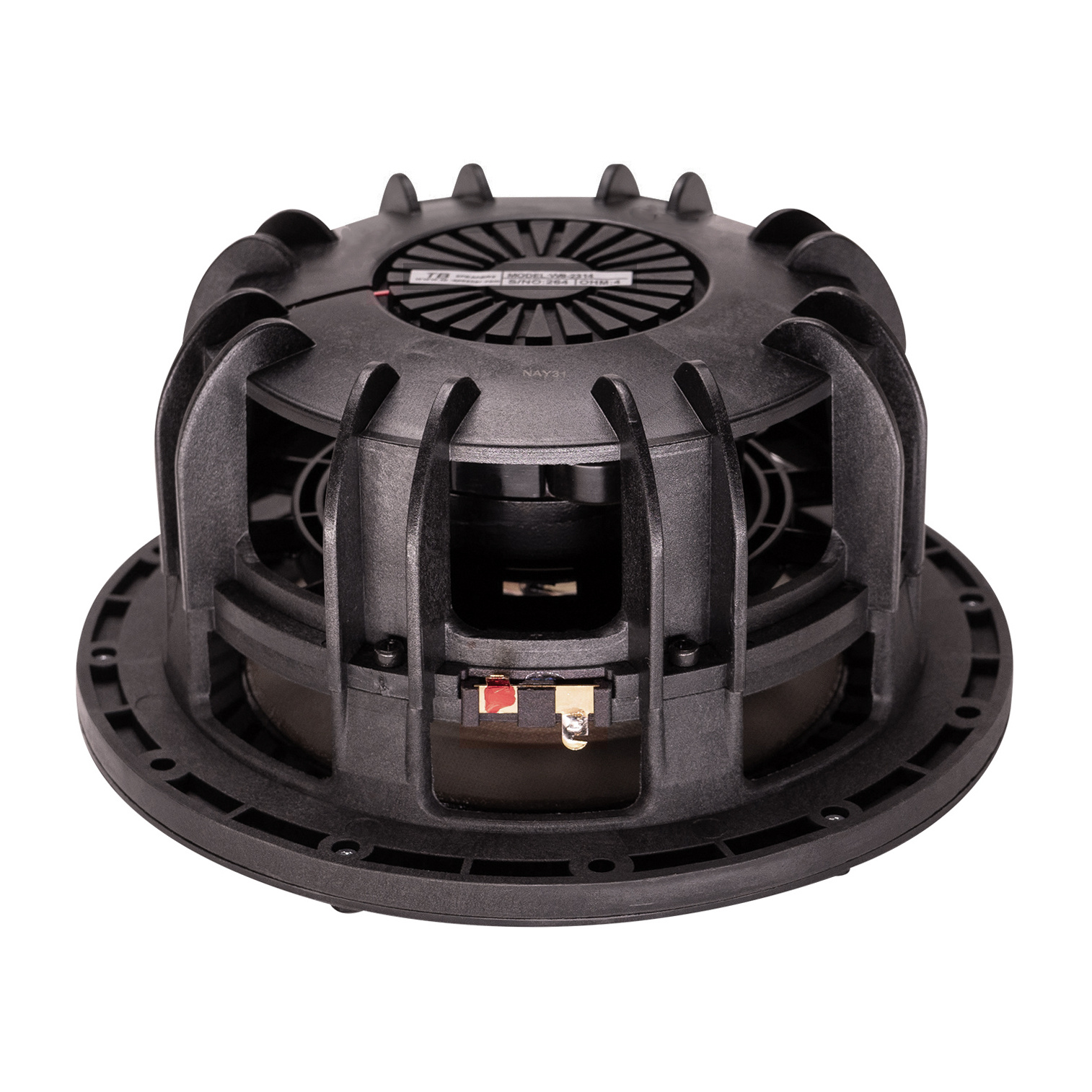

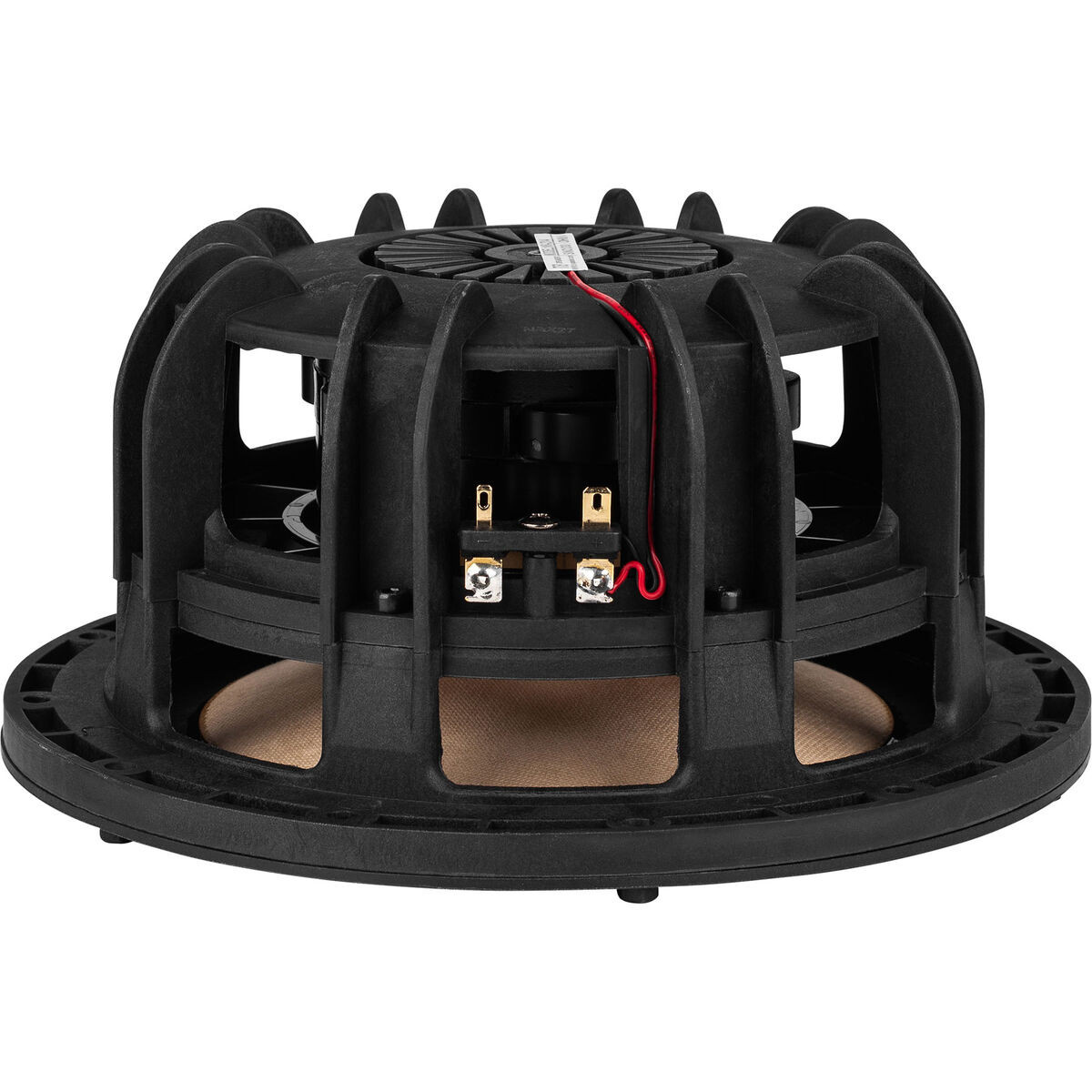

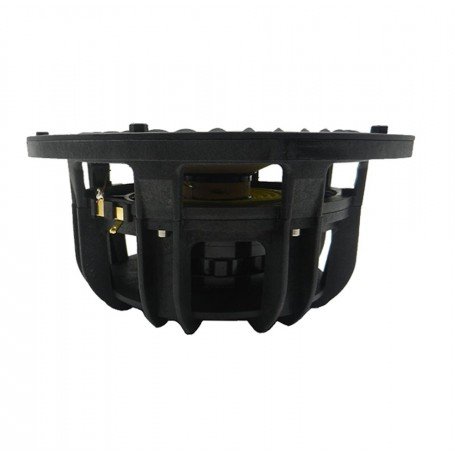

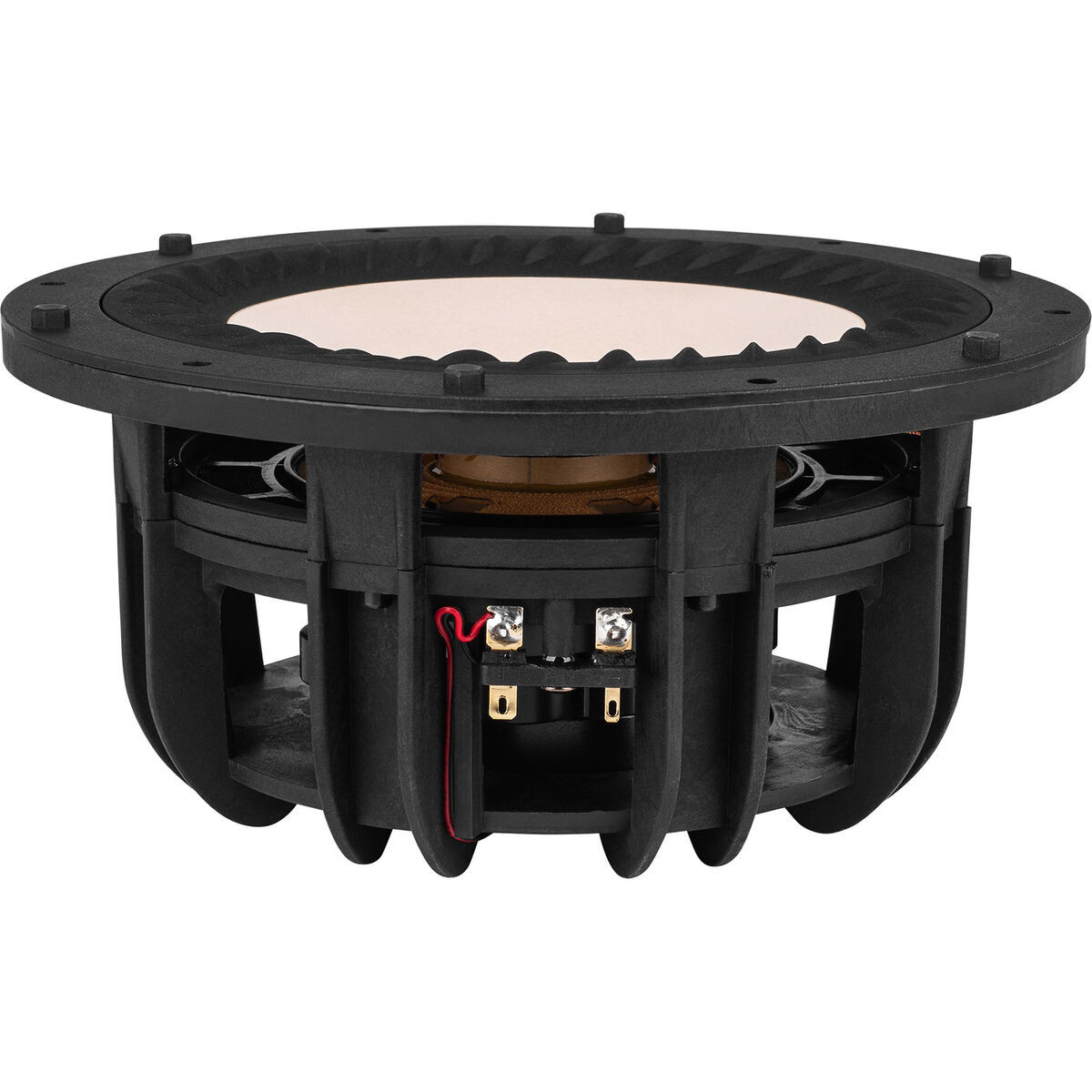

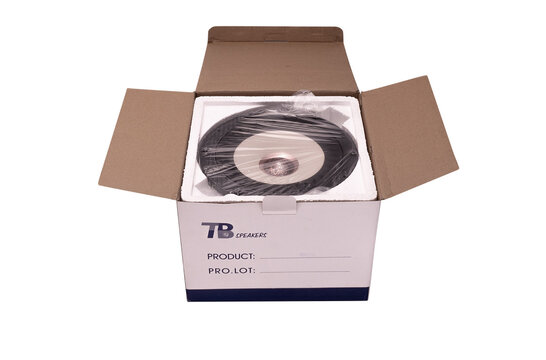

Tang Band W8-2314 8" Coaxial Full-Range Woofer

Brand: Tang Band

Show all Woofers

Compare

8" | 4 Ω

W8-2314 8" Coaxial Full-Range Woofer

W8-2314 8" Coaxial Full-Range Woofer

W8-2314 8" Coaxial Full-Range Woofer

W8-2314 8" Coaxial Full-Range Woofer

W8-2314 8" Coaxial Full-Range Woofer

W8-2314 8" Coaxial Full-Range Woofer

W8-2314 8" Coaxial Full-Range Woofer

W8-2314 8" Coaxial Full-Range Woofer

W8-2314 8" Coaxial Full-Range Woofer

W8-2314 8" Coaxial Full-Range Woofer

€ 223,10€ 269,95 4 In stock: delivery time 1-4 business days

24h express shipping available
Low international shipping rates
Same day shipping
In-house technical support

Do you have a question about this product?

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

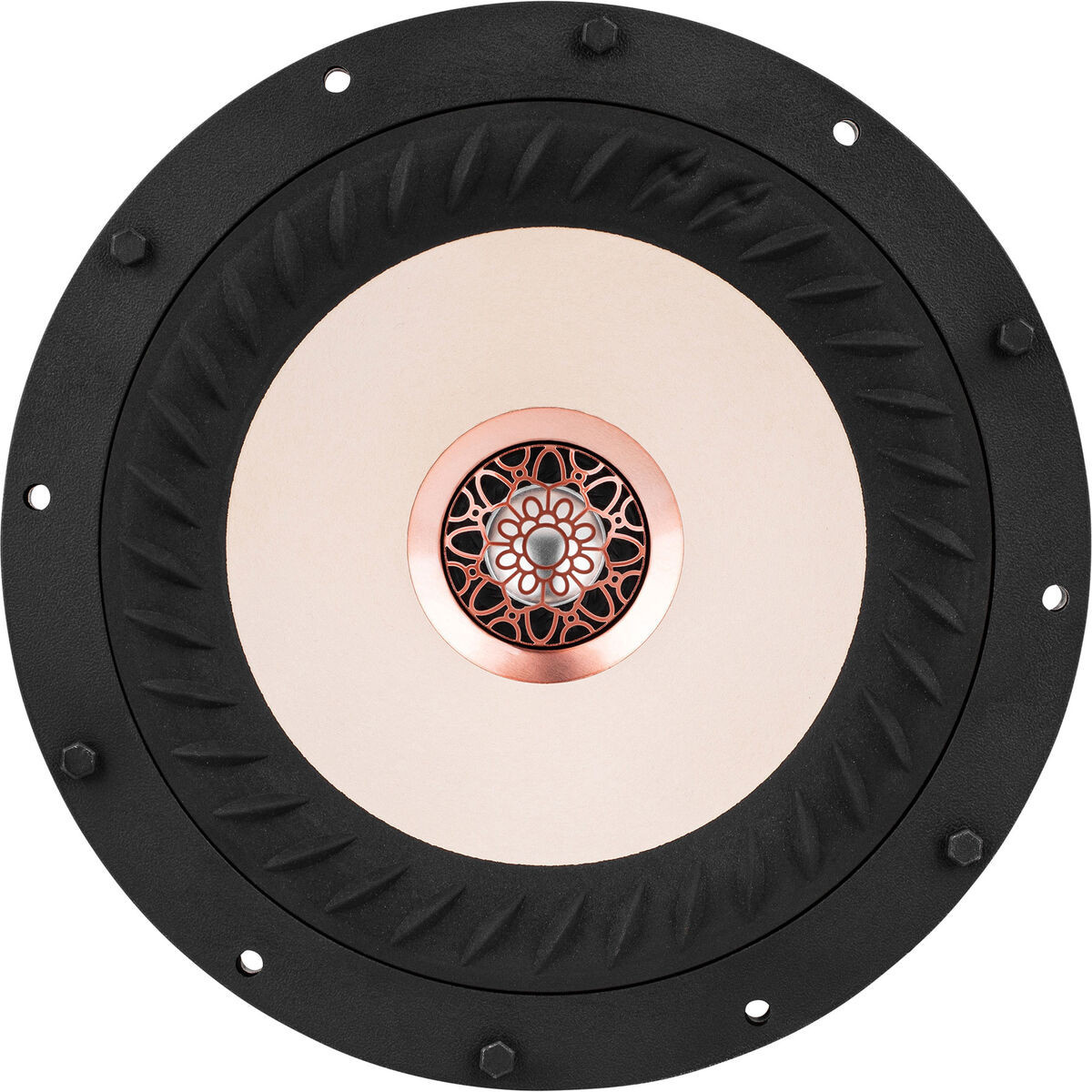

Tang Band's W8-2314 is an incredible 8" bamboo fiber woofer paired with a 1" hi-res tweeter in its center.

Highlights

Incredible full-range response from 38 - 40,000 Hz
Underhung neodymium motor design offers extremely low distortion
Utilizes Tang Band's famous bamboo fiber cone
Aluminum/Magnesium tweeter dome offers extremely high frequency extension

Product details

Tang Band W8-2314 8" Coaxial Full-Range Woofer

Tang Band's W8-2314 is an incredible 8" bamboo fiber woofer paired with a 1" hi-res tweeter in its center. The tweeter features an aluminum and magnesium blended dome that plays up to 40,000 Hz! This coaxial will produce an extremely smooth response on and off-axis while avoiding the phase and lobing issues associated with standard 2-way designs.

Specifications

Article number: W8-2314
Woofer Type: Coaxial
Nominal Diameter: 8"
Power Handling (RMS): 50 Watts
Power Handling (max): 100 Watts
Impedance (Z): 4 ohms
Sensitivity: 90 dB 1W/1m
Frequency Response: 38 to 40,000 Hz
Voice Coil Diameter: 1.75"
DC Resistance (Re): 3.6 ohms
Voice Coil Inductance (Le): 0.072 mH
Resonant Frequency (Fs): 38 Hz
Mechanical Q (Qms): 2.14
Electromagnetic Q (Qes): 0.37
Total Q (Qts): 0.31
Diaphragm Mass Inc. Airload (Mms): 23.14g
Mechanical Compliance of Suspension (Cms): 0.7459 mm/N
Surface Area of Cone (Sd): 220.1 cm2
BL Product (BL): 7.4 Tm
Compliance Equivalent Volume (Vas): 1.8 ft.³
Maximum Linear Excursion (Xmax): 6 mm
Cone / Diaphragm Material: Bamboo Fiber / Paper
Surround Material: Rubber
Basket / Frame Material: Polymer
Magnet Material: Neodymium
Overall Outside Diameter: 8.8"
Overall Depth: 3.7"
Baffle Cutout Diameter: 7.19"
Bolt Circle Diameter: 8.27"
# Mounting Holes: 6
Sealed Volume: 0.195 ft.³
Sealed F3: 110.8 Hz
Vented Volume: 0.647 ft.³
Vented F3: 59.13 Hz
