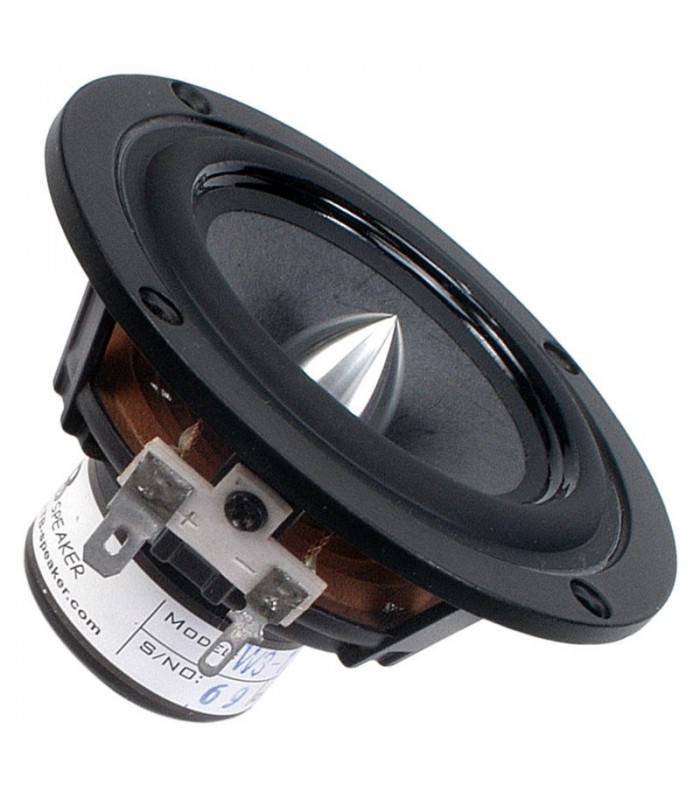

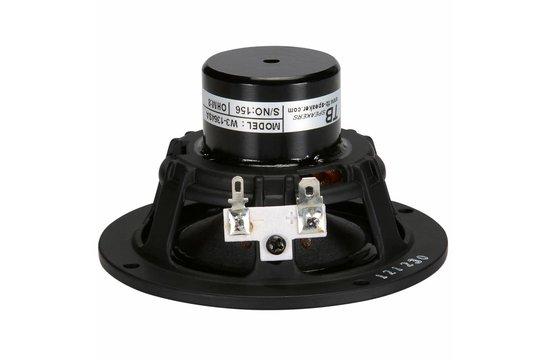

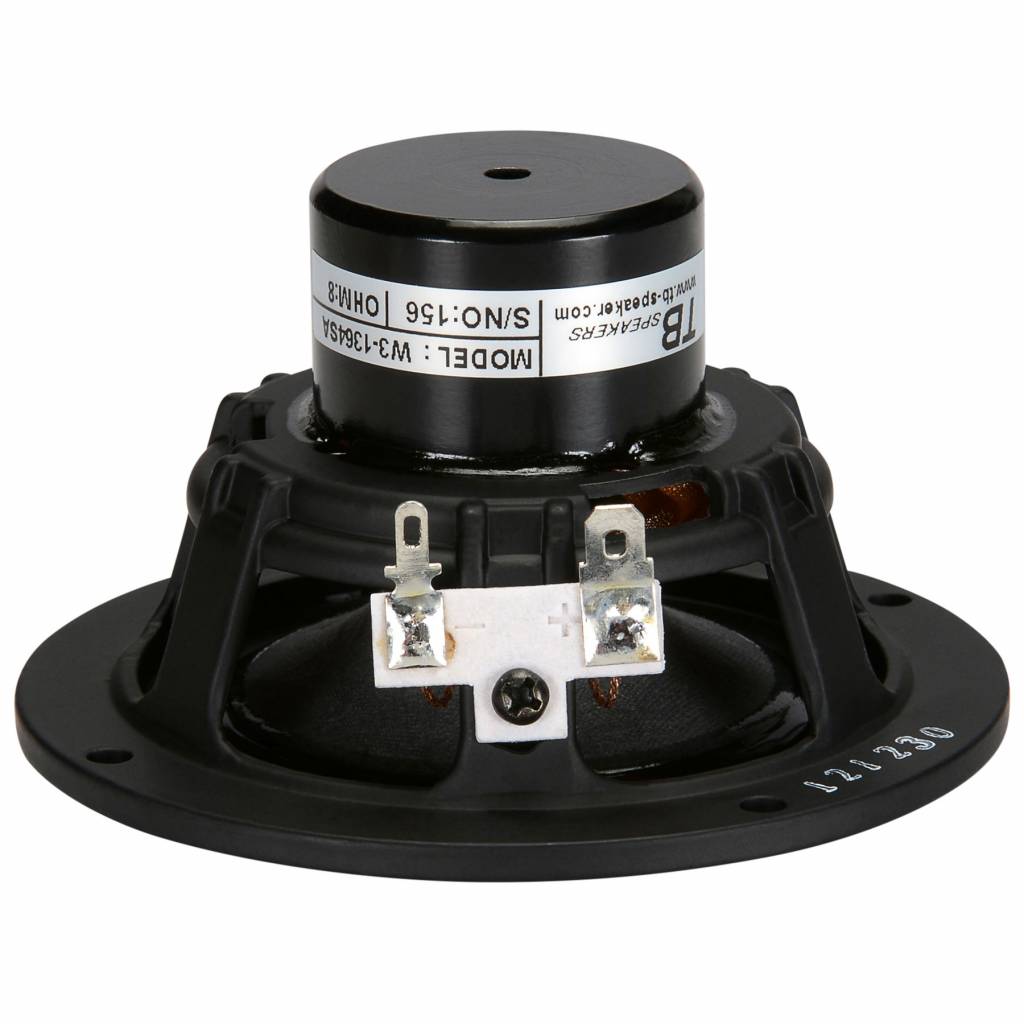

Tang Band W3-1364SA 3" Bamboo Cone Driver

In stock

  • Article code: W3-1364SA
  • Stock: >10 In stock

A blend of paper and Bamboo fibers provides a perfect combination of light weight and self-damping. A neodymium motor with a copper ring reduces distortion even further. The result of these features is a smooth frequency response with a very natural, open

€ 36,45 Incl. 21% VAT

  • Buy 4 for €34,63 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-day money back guarantee
  • International payment options

Product description

Tang Band W3-1364SA 3" Bamboo Cone Driver

A blend of paper and Bamboo fibers provides a perfect combination of light weight and self-damping. A neodymium motor with a copper ring reduces distortion even further. The result of these features is a smooth frequency response with a very natural, open sound.



Highlights

  • Paper cone reinforced with bamboo fibers reduces cone resonances
  • Copper shorting ring lowers inductance and distortion
  • Powerful neodymium motor cuts weight without sacrificing performance
  • Suprisingly smooth response from 100 to 20,000 Hz



Product details

Tang Band W3-1364SA 3" Bamboo Cone Driver



Another Tang Band first, Bamboo fiber cones! A blend of paper and Bamboo fibers provides a perfect combination of light weight and self-damping. A neodymium motor with a copper ring reduces distortion even further. The result of these features is a smooth frequency response with a very natural, open sound.

Specifications

Specifications for: W3-1364SA 3" Bamboo Cone Driver

  • Woofer Series Specific woofer production line of the manufacturer.
  • Woofer Type The driver type for example subwoofer, mid-woofer, full range or coaxial woofer. Full-range
  • Nominal Diameter The approximate diameter of the driver, measured in inches. 3"
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 12 Watts
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged. 25 Watts
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 86 dB 1W/1m
  • Frequency Response 105 to 20,000 Hz
  • Voice Coil Diameter 0.75"
  • Magnet Weight
  • DC Resistance (Re) 6.6 ohms
  • Voice Coil Inductance (Le)
  • Resonant Frequency (Fs) 105 Hz
  • Mechanical Q (Qms) 2.48
  • Electromagnetic Q (Qes) 0.77
  • Total Q (Qts) 0.59
  • Diaphragm Mass Inc. Airload (Mms)
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms)
  • Surface Area of Cone (Sd)
  • Volume of Displacement (Vd)
  • BL Product (BL)
  • Compliance Equivalent Volume (Vas) 0.07 ft.³
  • Maximum Linear Excursion (Xmax) 0.5 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Bamboo Fiber / Paper
  • Surround Material
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material
  • Magnet Material Neodymium
  • Shielded
  • Overall Outside Diameter 3.625"
  • Overall Depth 2"
  • Baffle Cutout Diameter 3"
  • Bolt Circle Diameter
  • # Mounting Holes 4
  • Mounting Hole Diameter
  • Sealed Volume 0.08 ft.³
  • Sealed F3 143 Hz
  • Vented Volume 0.15 ft.³
  • Vented F3 71 Hz
