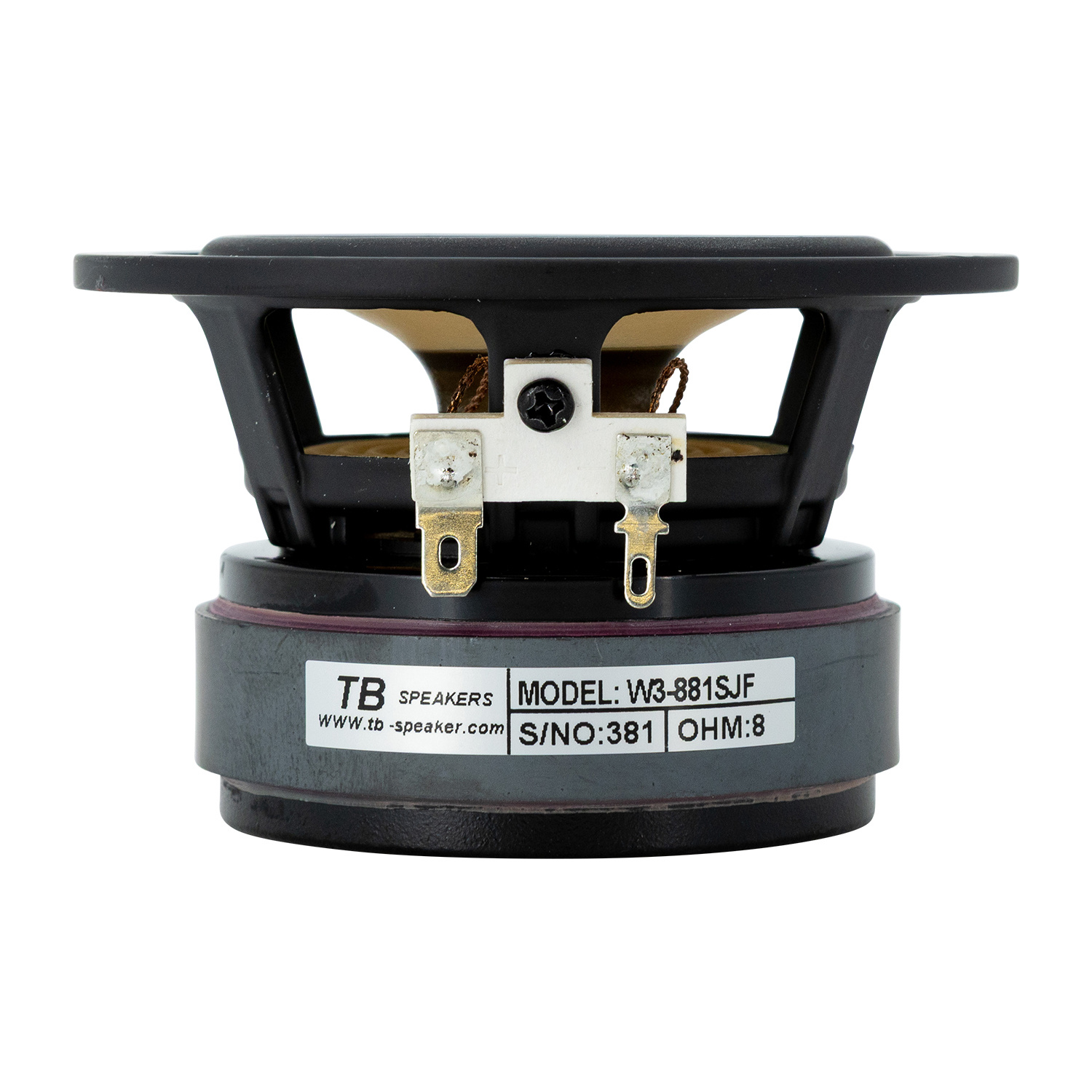

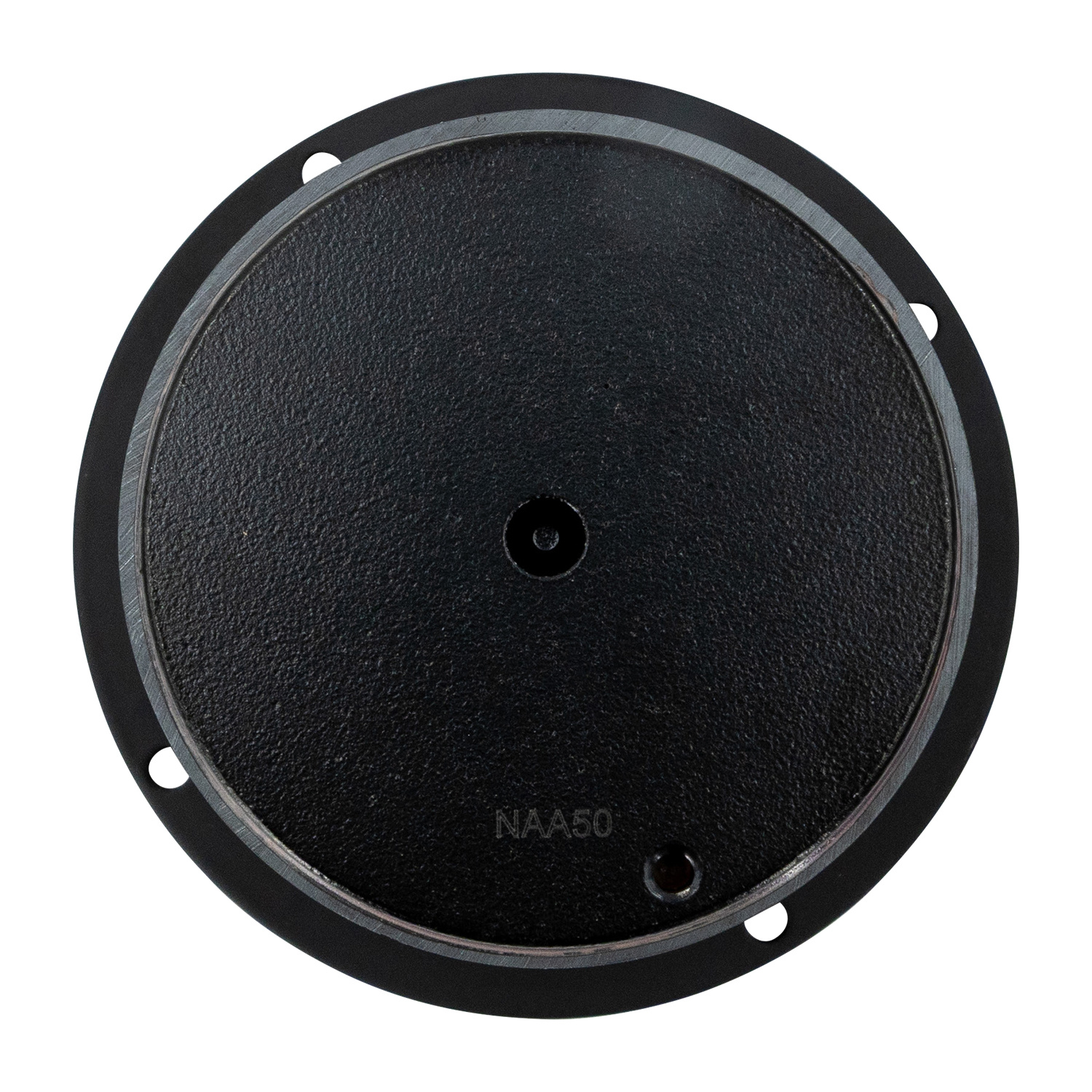

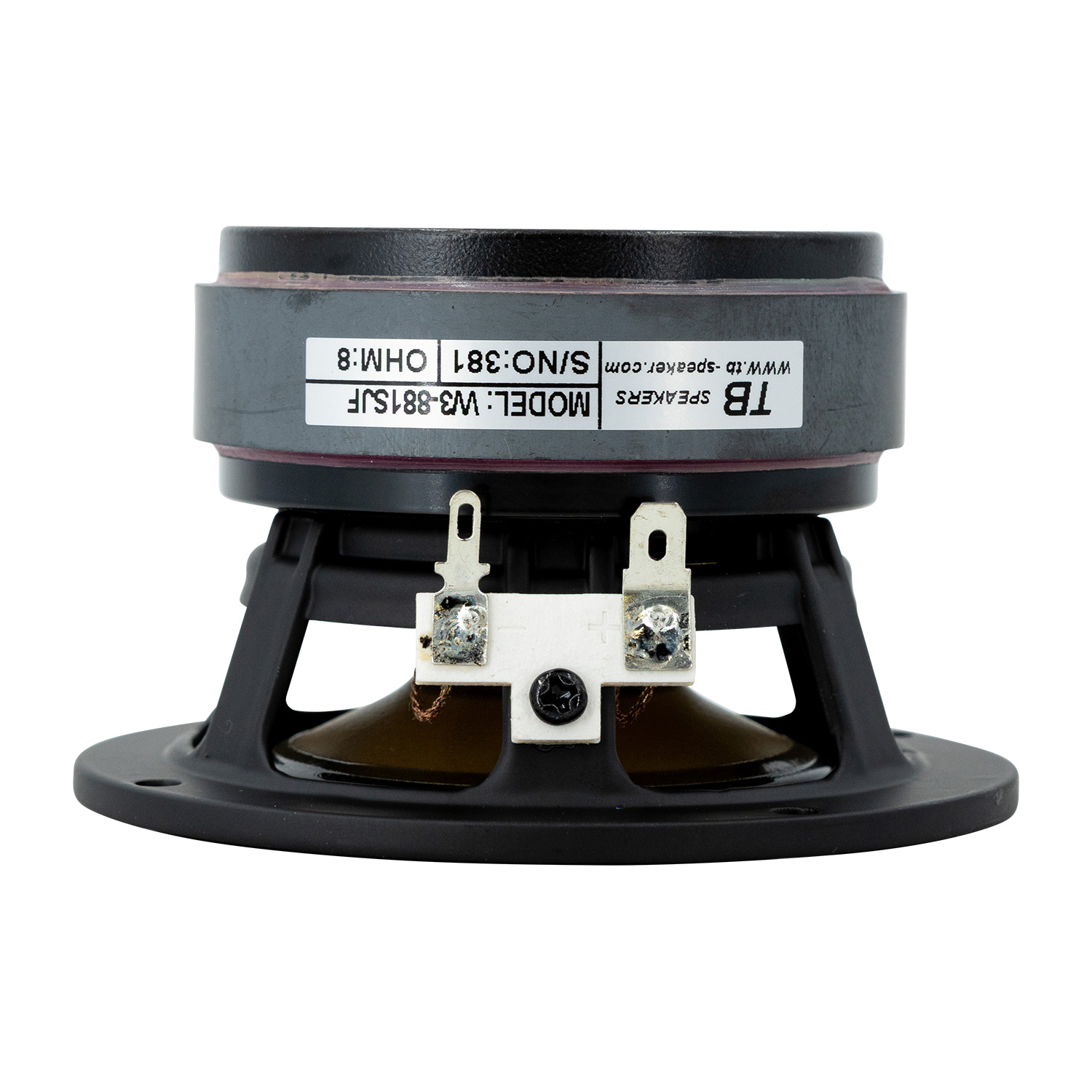

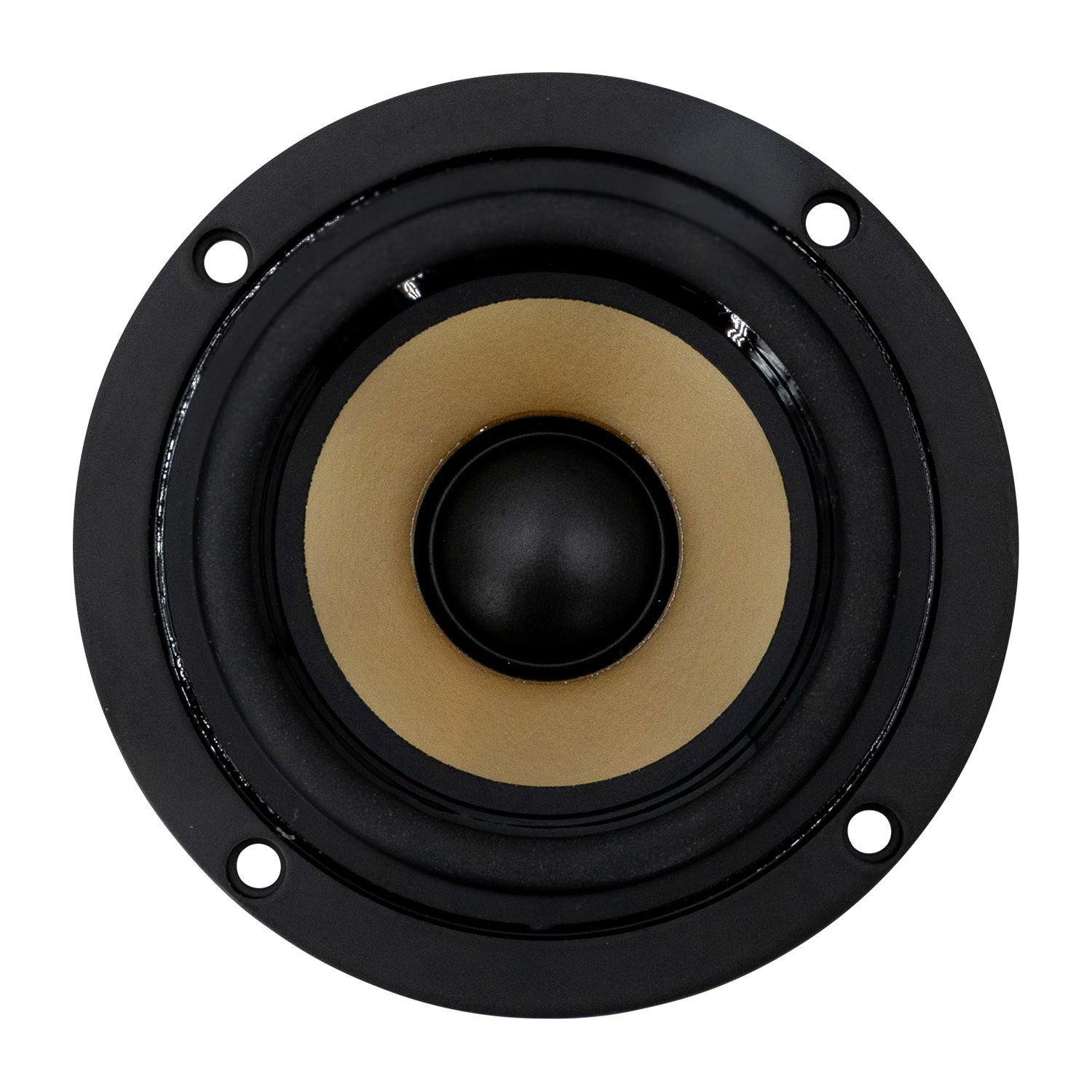

      Tang Band W3-881SJF 3" Full Range Speaker

      € 28,88€ 34,95 >10 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €33,20 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      The Tang Band W3-881SJF is characterized by extended, very smooth frequency response. Its powerful ceramic magnet system and underhung voice coil contribute to extremely low distortion.



      Highlights

      • Full range frequency response
      • Die cast basket
      • PPM cone with santoprene surround
      • CCAW with Kapton bobbin



      Product details

      Tang Band W3-881SJF 3" Full Range Speaker



      The Tang Band W3-881SJF is an exceptional 3" transducer that features a PPM cone, santoprene surround, cast aluminum frame, and powerful underhung-design ceramic motor. Its copper-clad aluminum wire voice coil is wound on a polyimide former, the combination of which provides high power handling and extended HF response. The W3-881SJF is an ideal choice for single driver full-range applications, as well as deployment in multiple speaker configurations such as line arrays.

      Specifications

      Article number
      W3-881SJF
      Woofer Type
      Full-range
      Nominal Diameter
      3"
      Power Handling (RMS)
      15 Watts
      Power Handling (max)
      30 Watts
      Impedance (Z)
      8 ohms
      Sensitivity
      88 dB 1W/1m
      Frequency Response
      100 to 20,000 Hz
      Voice Coil Diameter
      0.8"
      Magnet Weight
      7.7 oz.
      DC Resistance (Re)
      6.6 ohms
      Voice Coil Inductance (Le)
      0.8 mH
      Resonant Frequency (Fs)
      100 Hz
      Mechanical Q (Qms)
      6.44
      Electromagnetic Q (Qes)
      0.41
      Total Q (Qts)
      0.39
      Diaphragm Mass Inc. Airload (Mms)
      2g
      Mechanical Compliance of Suspension (Cms)
      1.32 mm/N
      Surface Area of Cone (Sd)
      32 cm²
      BL Product (BL)
      4.47 Tm
      Compliance Equivalent Volume (Vas)
      0.07 ft.³
      Maximum Linear Excursion (Xmax)
      0.5 mm
      Cone / Diaphragm Material
      Poly
      Surround Material
      Santoprene®
      Voice Coil Wire Material
      CCA
      Voice Coil Former
      Kapton® / Polyimide
      Basket / Frame Material
      Cast Aluminum
      Magnet Material
      Ferrite
      Overall Outside Diameter
      3.66"
      Overall Depth
      2.32"
      Baffle Cutout Diameter
      2.95"
      # Mounting Holes
      4
      Sealed Volume
      0.02 ft.³
      Sealed F3
      207 Hz
      Vented Volume
      0.05 ft.³
      Vented F3
      115 Hz

      Show more

      Reviews

      5 from 5Based on 3 reviews
      Review this product
      5 of 5
      Really great speaker, very clear sound! Happy with the product and the service!
      By Marco C. on 2 March 2021
      5 of 5
      great driver for the money invested
      By Vrbat I. on 28 June 2020
