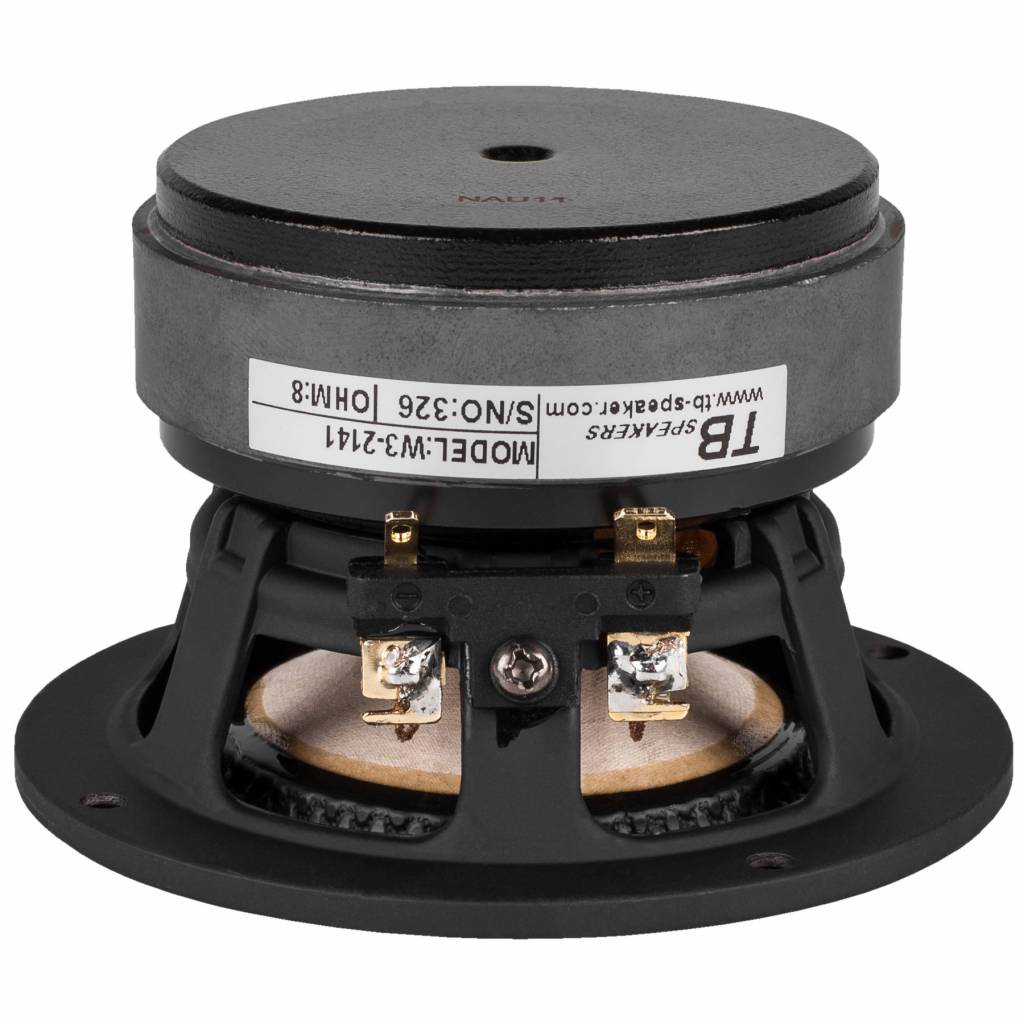

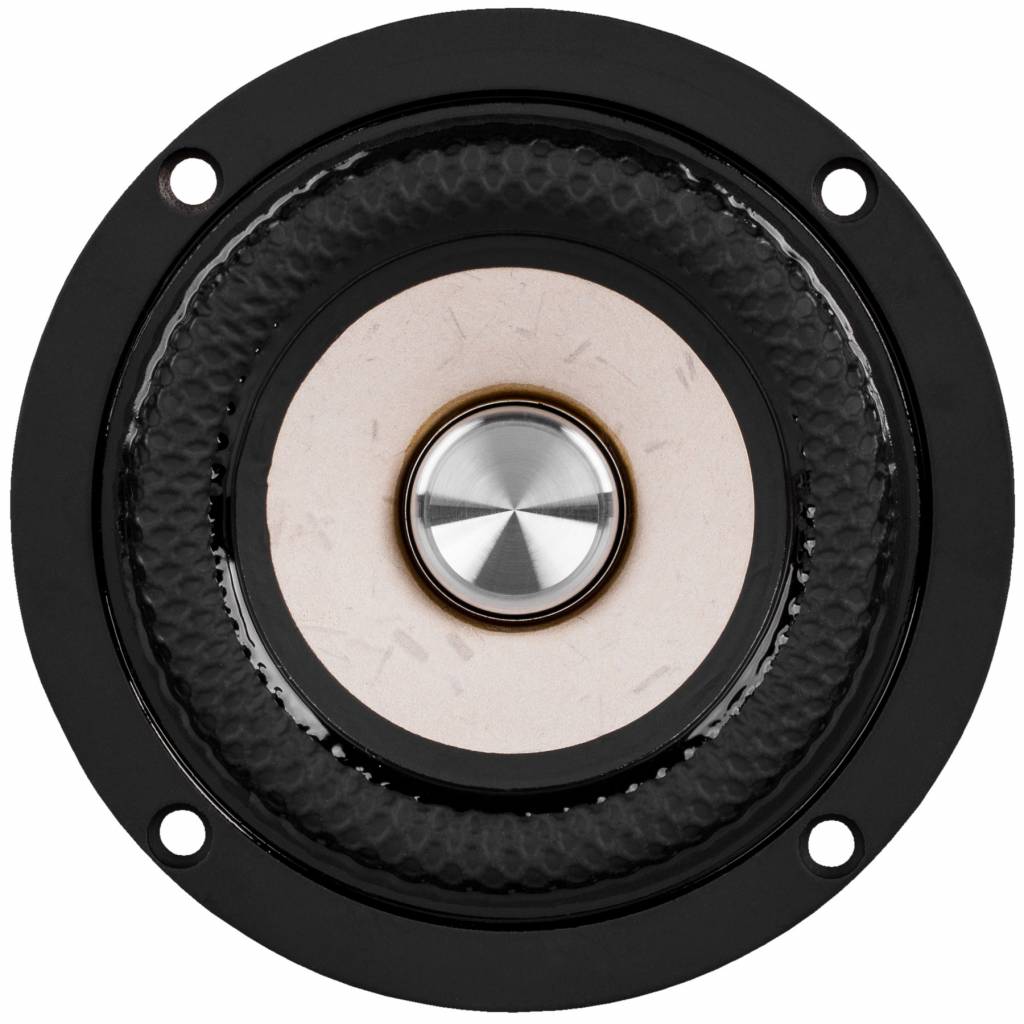

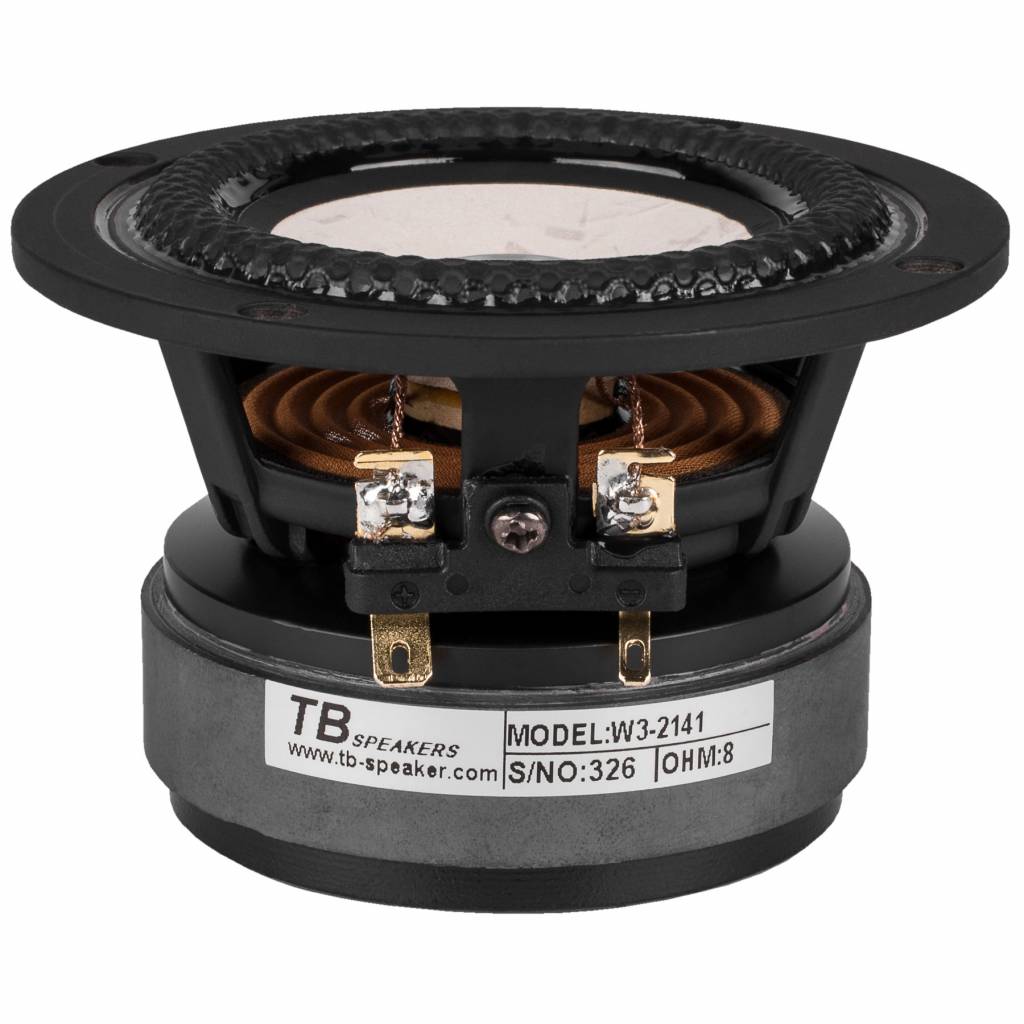

      Tang Band W3-2141 3-1/2" Paper Cone Full Range Driver 8 Ohm

      € 41,28€ 49,95 10+ In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only € 47,45 per piece
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      With a bamboo fiber paper cone, structured Santoprene surround, and underhung motor, the W3-2141 3" full range from Tang Band has impressive response from 75 to 20,000 with very low distortion.



      Highlights

      • Aluminum phase plug also acts as a shorting ring for lower distortion
      • Underhung voice coil improves control for lower distortion
      • Impressive efficiency (87 dB 1W/1m) for a driver this small
      • Unique surround and large spider keeps cone linear well beyond the rated xmax



      Product details

      Tang Band W3-2141 3" Paper Cone Full Range Driver 8 Ohm



      Tang Band's versatile W3-2141 full range driver uses an underhung voice coil, which places the entire coil inside the magnetic gap, for the utmost in control and accuracy. Designed for minimum distortion and resonance, the bamboo fiber paper cone and structured surround produces smooth response without harsh peaks or dips. The aluminum phase plug improves off axis response while also acting as a shorting ring providing greater control of the voice coil resulting in lower distortion.

      Specifications

      Article number
      W3-2141
      Woofer Type
      Full-range
      Nominal Diameter
      3-1/2"
      Power Handling (RMS)
      25 Watts
      Power Handling (max)
      50 Watts
      Impedance (Z)
      8 ohms
      Sensitivity
      87 dB 1W/1m
      Frequency Response
      75 to 20,000 Hz
      Voice Coil Diameter
      0.8"
      DC Resistance (Re)
      6.5 ohms
      Voice Coil Inductance (Le)
      0.02 mH
      Resonant Frequency (Fs)
      75 Hz
      Mechanical Q (Qms)
      2.51
      Electromagnetic Q (Qes)
      0.46
      Total Q (Qts)
      0.39
      Diaphragm Mass Inc. Airload (Mms)
      1.996g
      Mechanical Compliance of Suspension (Cms)
      2.25 mm/N
      Surface Area of Cone (Sd)
      32.09 cm²
      BL Product (BL)
      3.64 Tm
      Compliance Equivalent Volume (Vas)
      0.116 ft.³
      Maximum Linear Excursion (Xmax)
      0.5 mm
      Cone / Diaphragm Material
      Bamboo Fiber / Paper
      Surround Material
      Santoprene®
      Voice Coil Wire Material
      Copper
      Voice Coil Former
      Kapton® / Polyimide
      Basket / Frame Material
      Cast Aluminum
      Magnet Material
      Ferrite
      Overall Outside Diameter
      3.625"
      Overall Depth
      2.25"
      Baffle Cutout Diameter
      2.92"
      # Mounting Holes
      4
      Sealed Volume
      0.035 ft.³
      Sealed F3
      150 Hz
      Vented Volume
      0.087 ft.³
      Vented F3
      84 Hz
