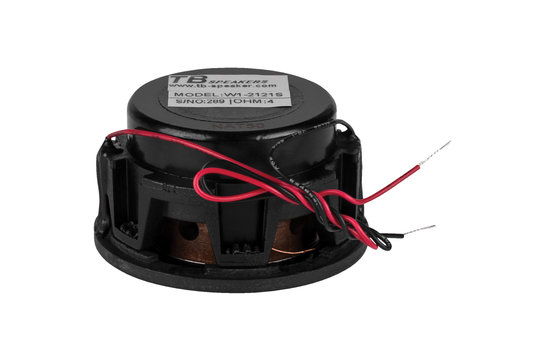

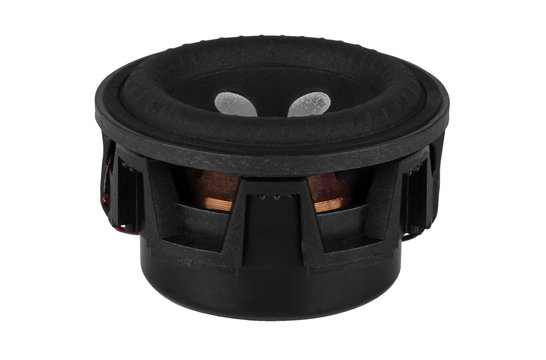

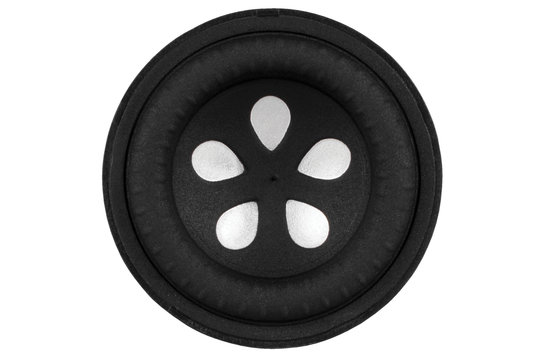

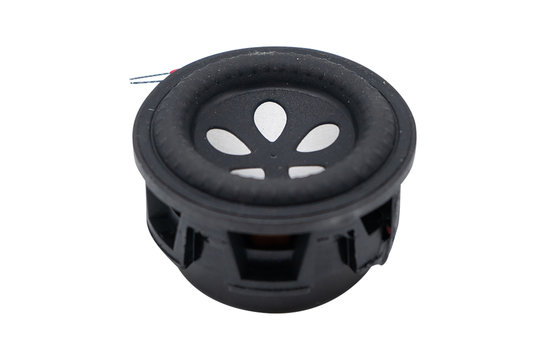

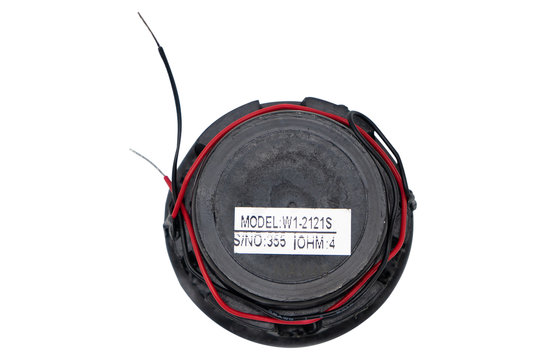

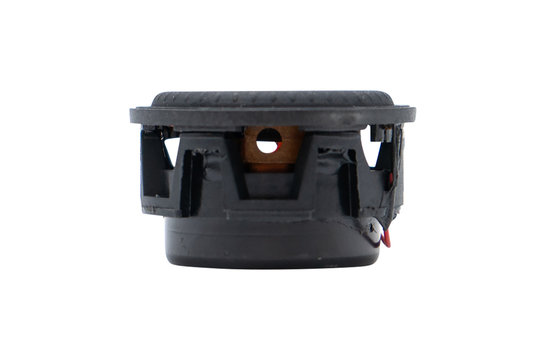

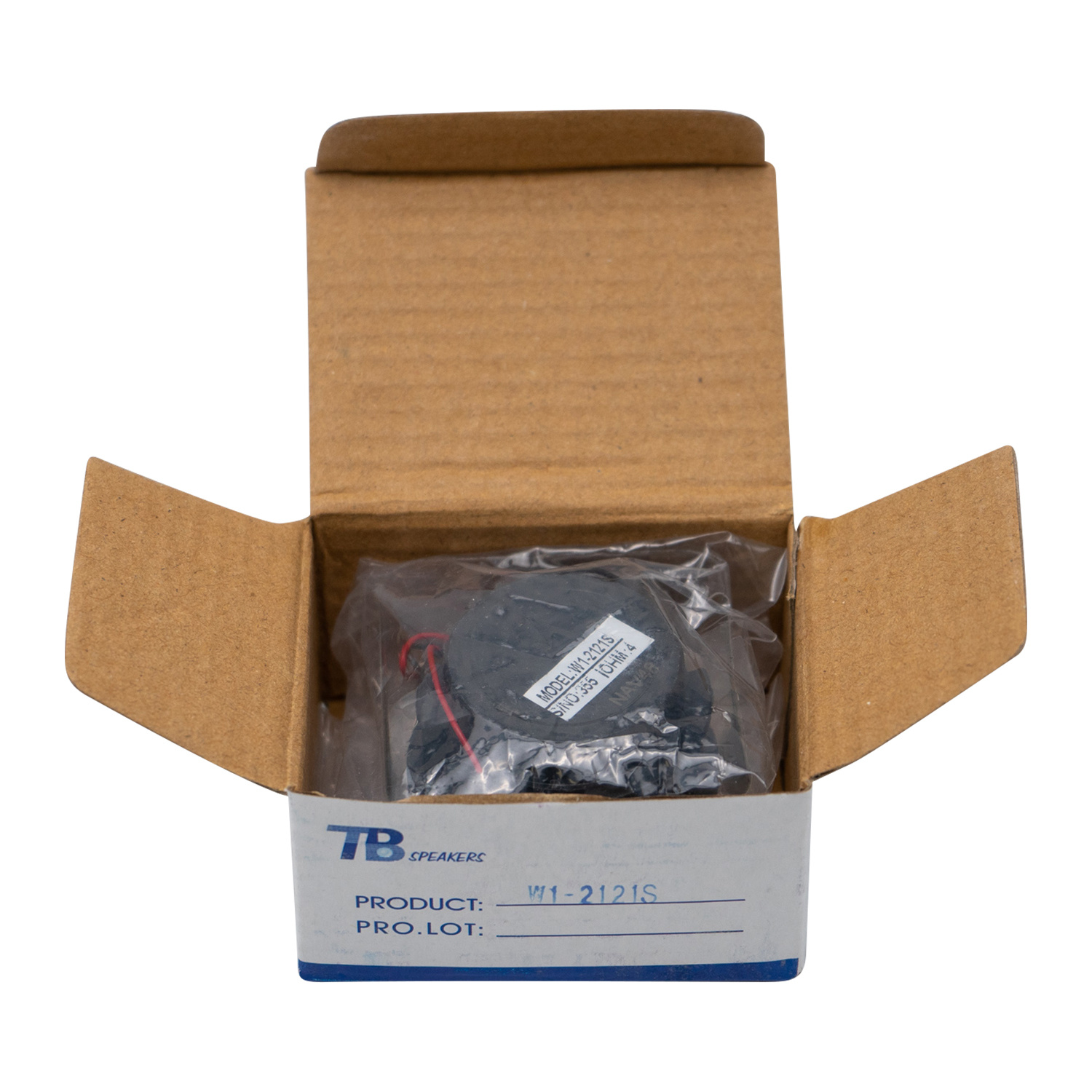

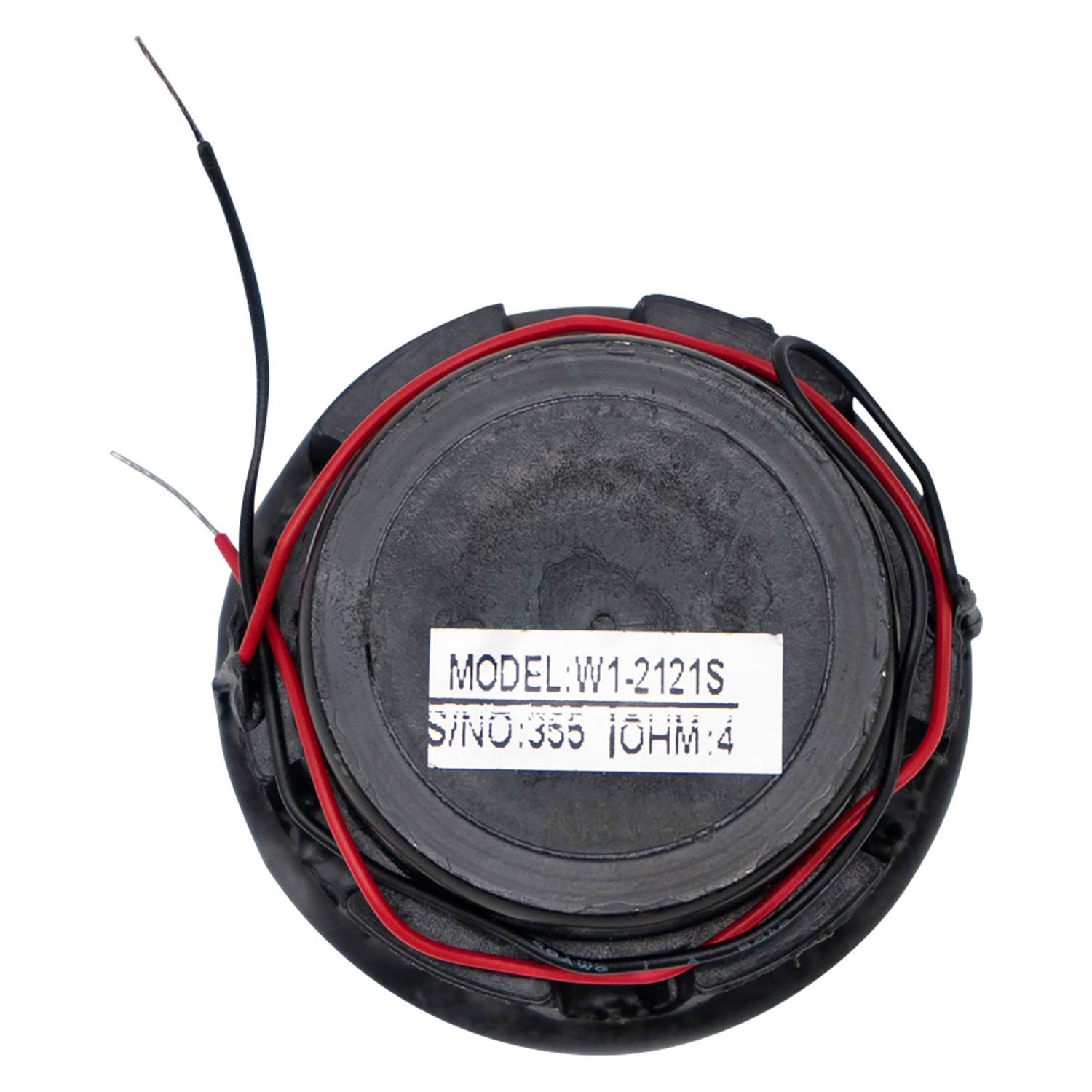

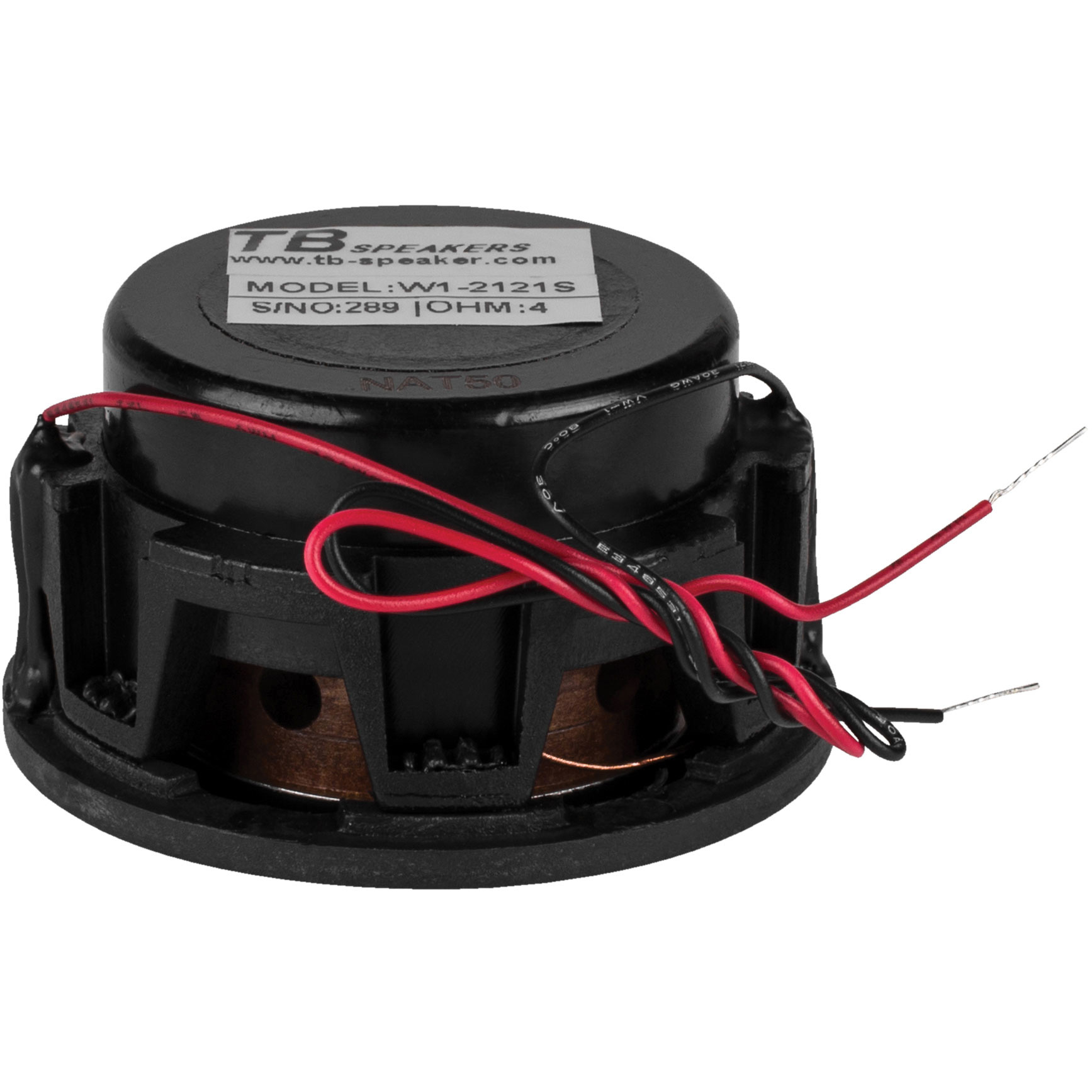

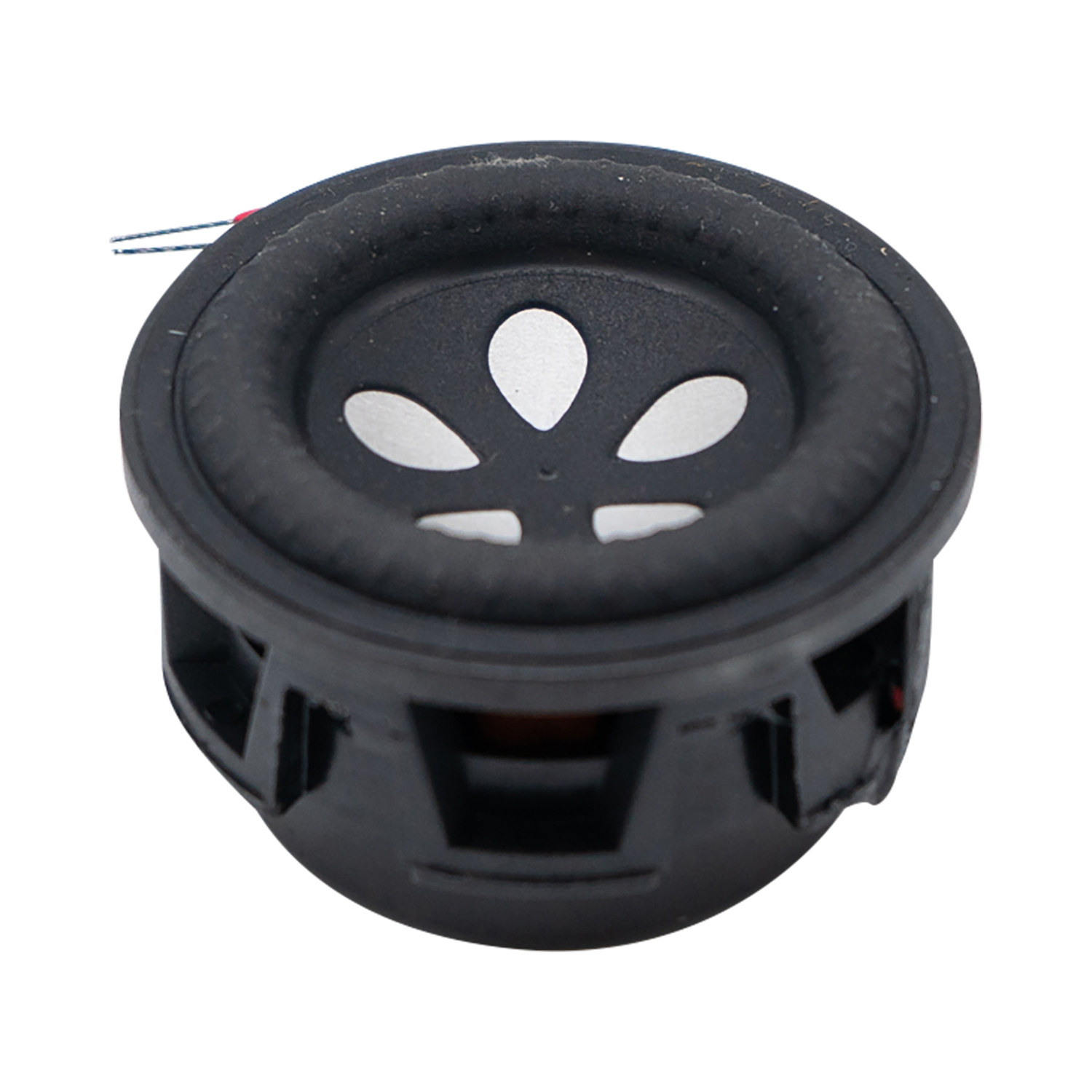

      Tang Band W1-2121S Aluminum Full Range Neodymium Driver

      € 33,02€ 39,95 5 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €37,95 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Tang Band, one of the leaders in small full range technology, presents the W1-2121S aluminum cone full range. This driver is a perfect candidate for use in portable speakers, computer speakers, or even TV sound bars.



      Highlights

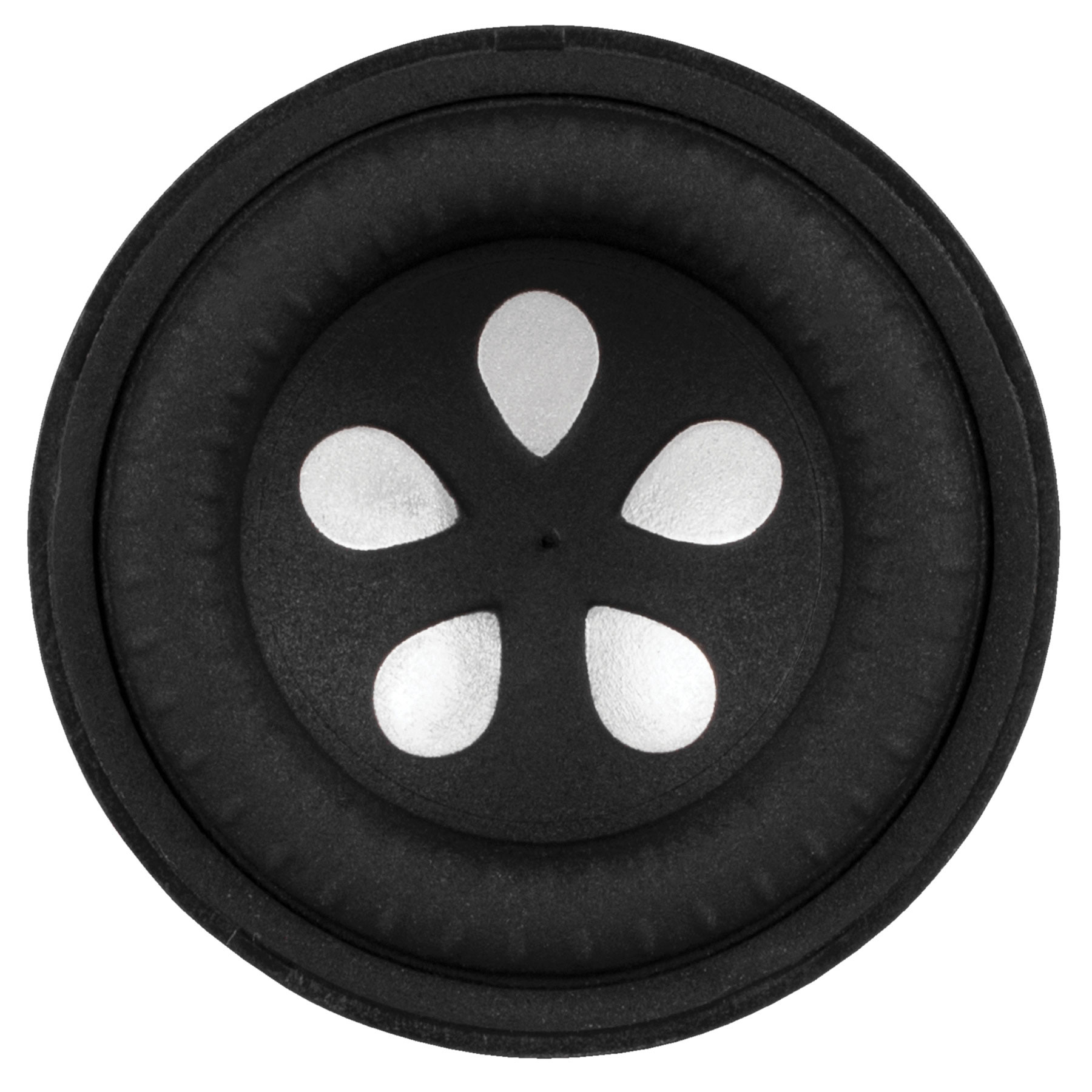

      • Unique Santoprene surround provides damping for the aluminum cone
      • Smooth response down to 120 Hz for easy transition to a subwoofer
      • Powerful neodymium motor keeps size and weight to a minimum
      • Excellent choice for use in line arrays and modern mini-speaker designs



      Product Details

      Tang Band W1-2121S 1-3/4" Aluminum Full Range Neodymium Driver

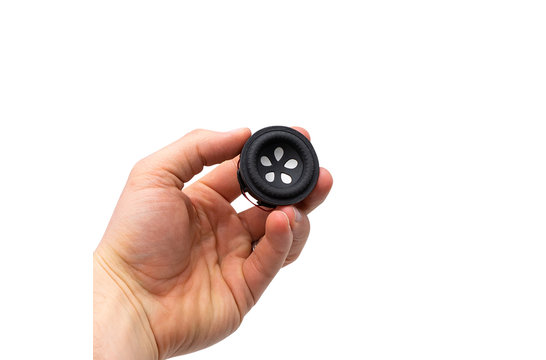

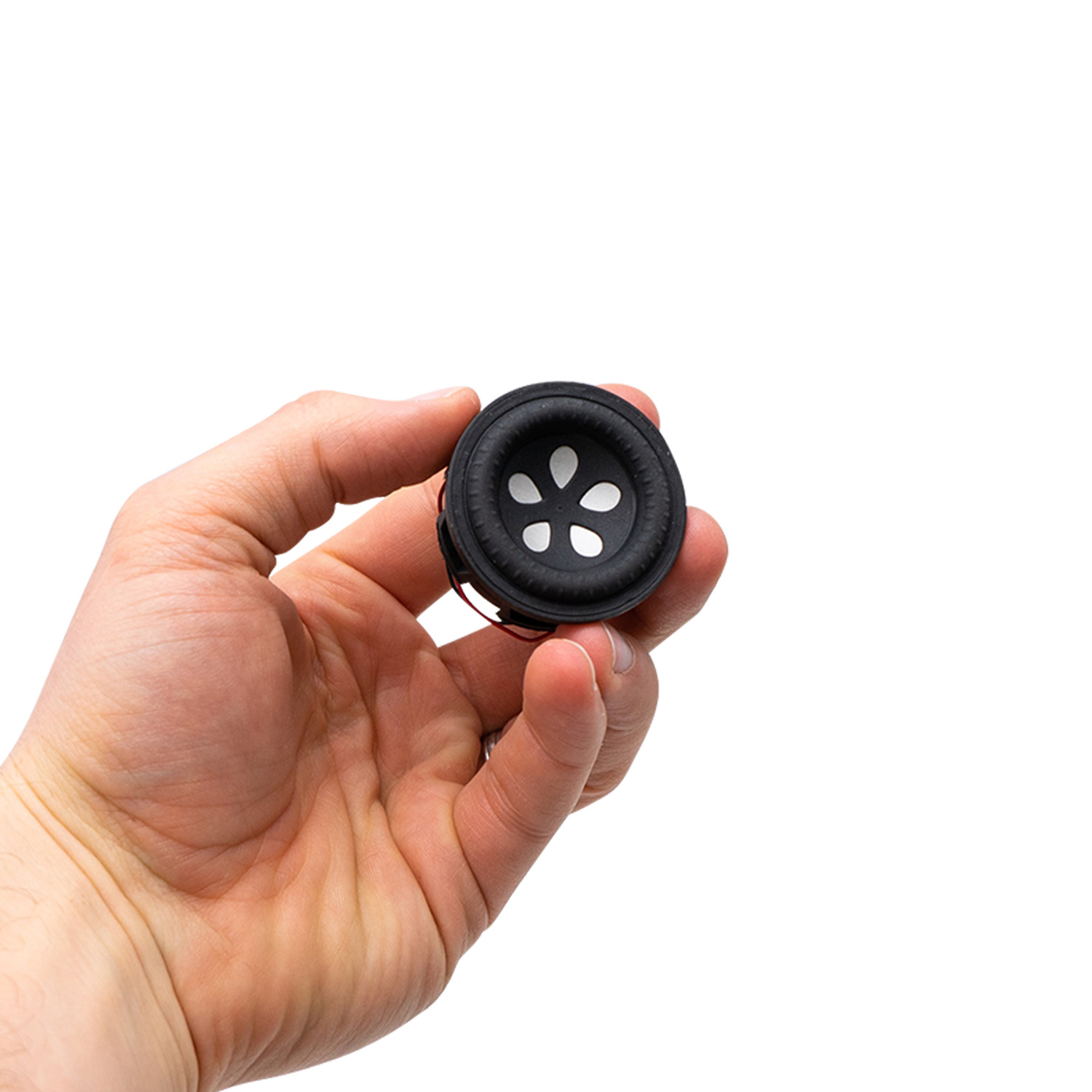

      Speakers today are becoming smaller and smaller and the need for small drivers is constantly increasing. Tang Band has been one of the leaders in small driver technology and now they bring you the 4 ohm W1-2121S 1-3/4" aluminum cone full range. At only 46 mm outside diameter, this driver will fit almost anywhere you can imagine. The incredibly smooth response from 120 to 15,000 Hz makes it excellent for use in portable Bluetooth speakers and small sound bars. When teamed up with a subwoofer the W1-2121S delivers superb performance in portable speakers or even an ultra-small satellite.

      Specifications

      Article number
      W1-2121S
      Woofer Type
      Full-range
      Nominal Diameter
      1-3/4"
      Power Handling (RMS)
      6 Watts
      Power Handling (max)
      12 Watts
      Impedance (Z)
      4 ohms
      Sensitivity
      79 dB 1W/1m
      Frequency Response
      120 to 15,000 Hz
      Voice Coil Diameter
      1.1"
      DC Resistance (Re)
      3.5 ohms
      Voice Coil Inductance (Le)
      0.07 mH
      Resonant Frequency (Fs)
      120 Hz
      Mechanical Q (Qms)
      1.33
      Electromagnetic Q (Qes)
      0.47
      Diaphragm Mass Inc. Airload (Mms)
      1.68g
      Mechanical Compliance of Suspension (Cms)
      0.949 mm/N
      Surface Area of Cone (Sd)
      8.935 cm²
      BL Product (BL)
      3.14 Tm
      Compliance Equivalent Volume (Vas)
      0.0038 ft.³
      Maximum Linear Excursion (Xmax)
      2.3 mm
      Cone / Diaphragm Material
      Aluminum
      Surround Material
      Santoprene®
      Voice Coil Wire Material
      Copper
      Basket / Frame Material
      Polymer
      Magnet Material
      Neodymium
      Overall Outside Diameter
      1.81"
      Overall Depth
      1.07"
      Baffle Cutout Diameter
      1.67"
      Sealed Volume
      0.00698 ft.³
      Sealed F3
      294 Hz
      Vented Volume
      0.00181 ft.³
      Vented F3
      167.9 Hz
