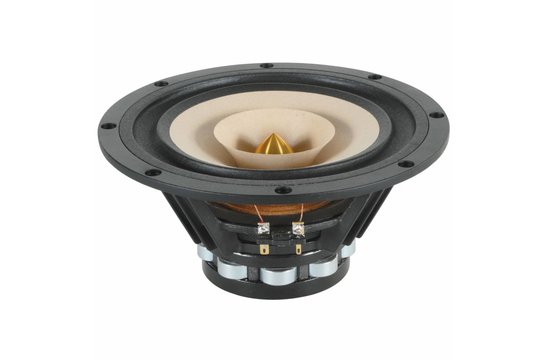

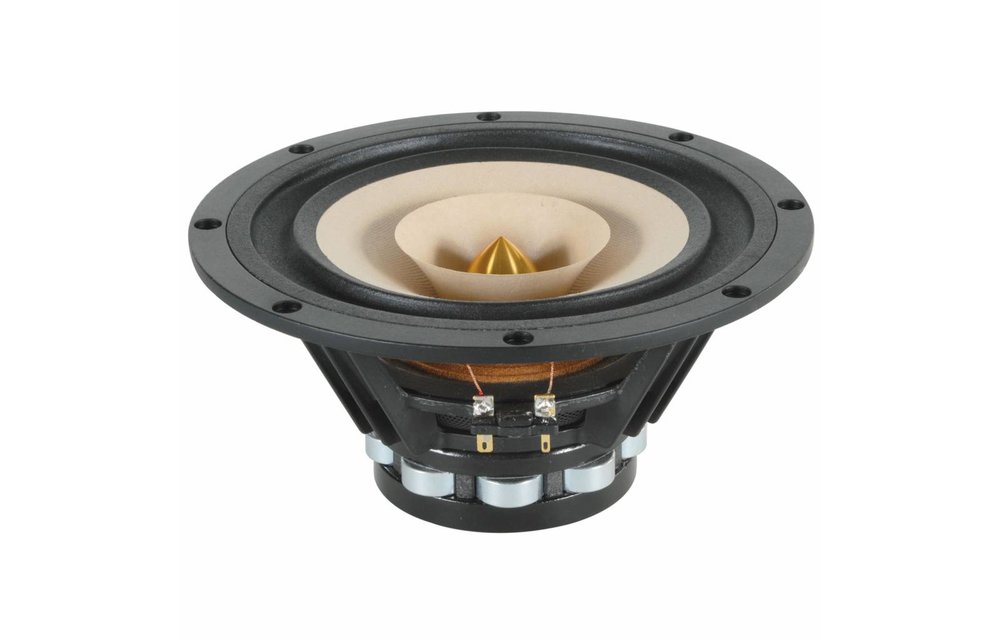

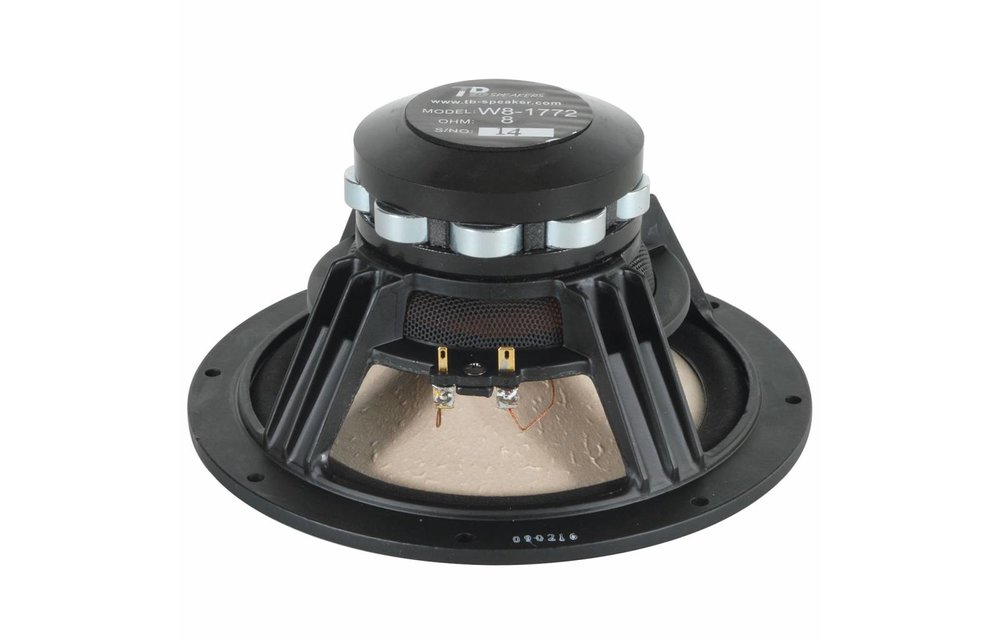

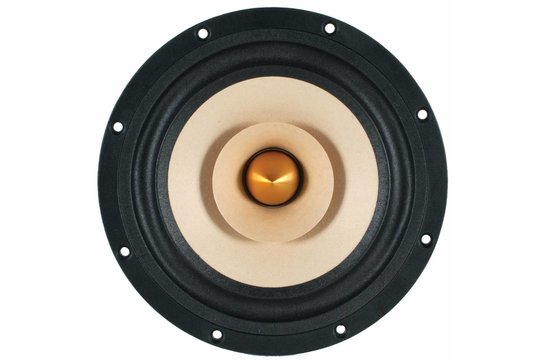

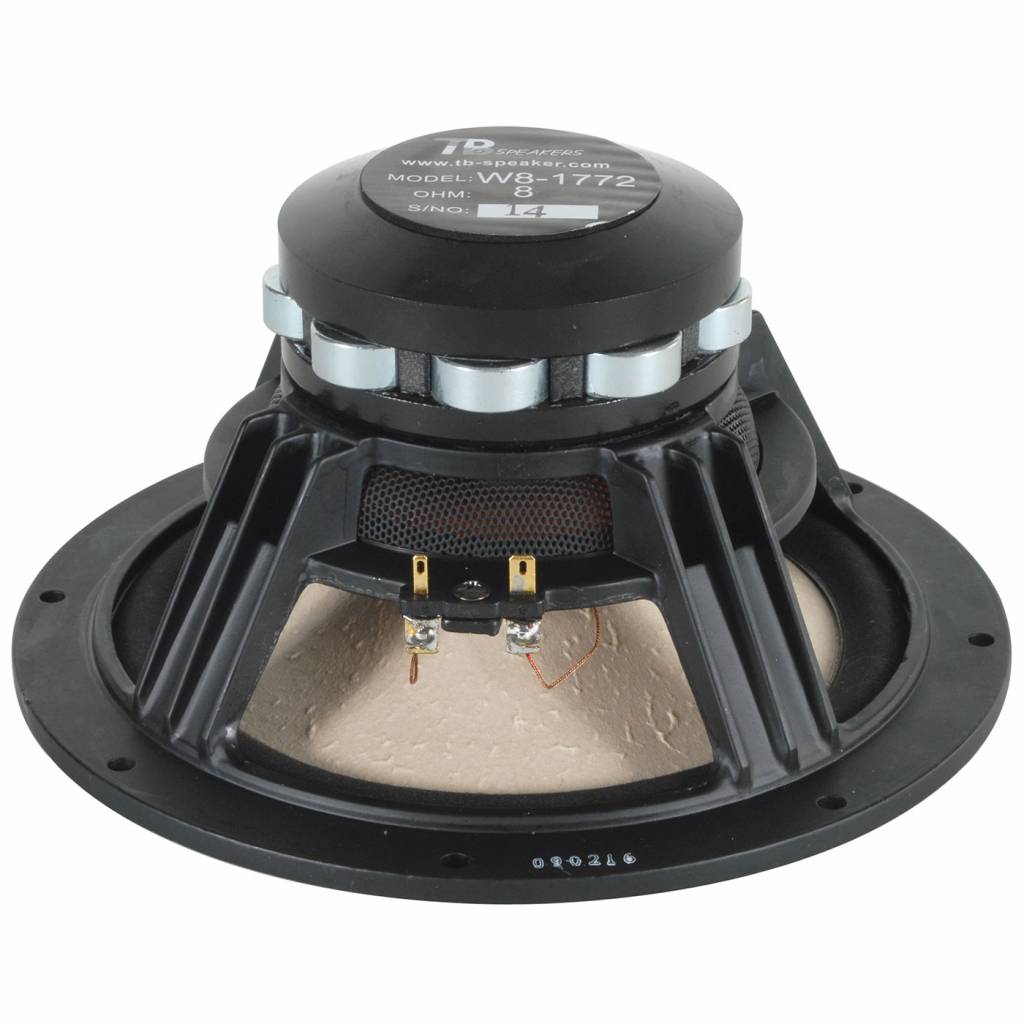

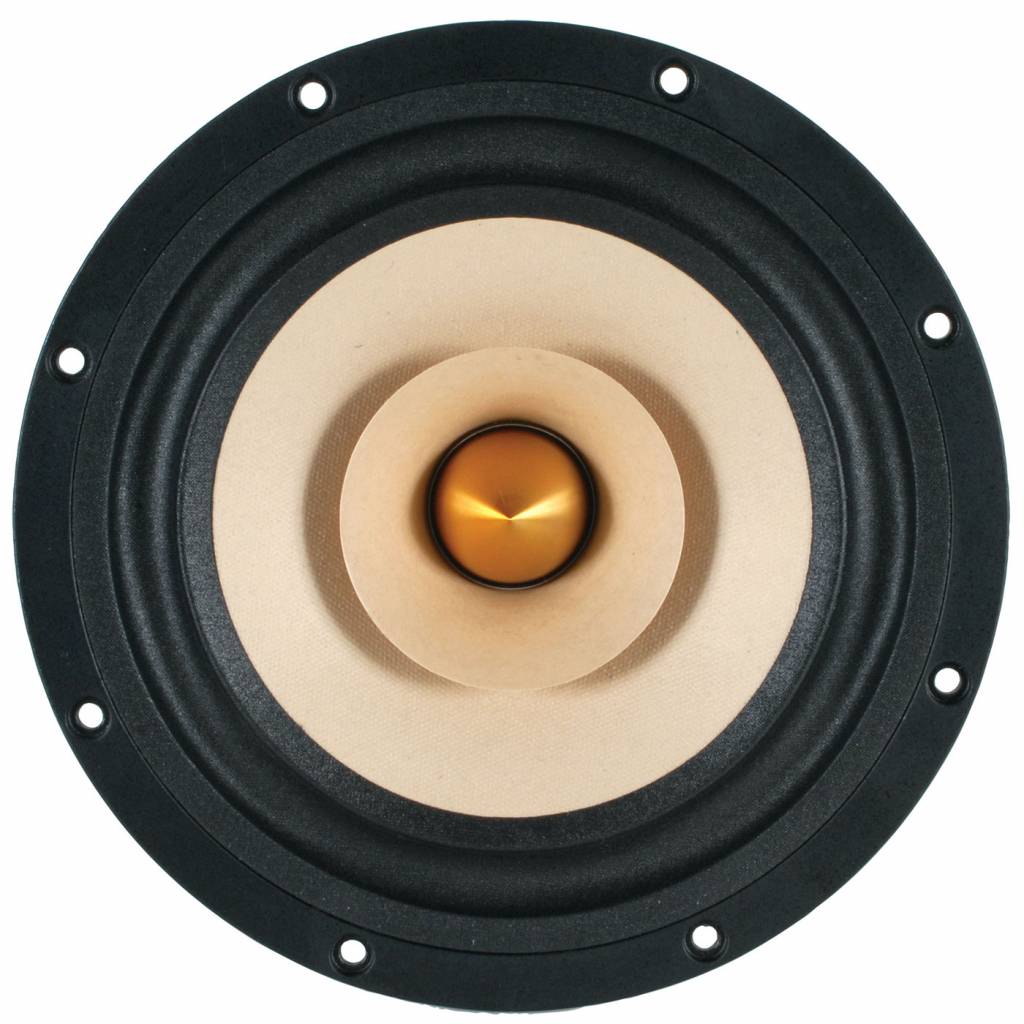

Tang Band W8-1772 8" Neodymium Full Range Driver

Name: Tang Band W8-1772 8" Neodymium Full Range Driver
Brand: Tang Band
SKU: W8-1772
Price: 299.95 EUR
Availability: InStock
Rating: 4.75 (4 reviews)

4 reviews

Brand: Tang Band

Show all Full-range woofer

Compare

8" | 8 Ω

€ 247,89€ 299,95 10+ In stock: delivery time 1-4 business days

24h express shipping available
Same day shipping
In-house techniscal support
45 days worry-free returns

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

Tang Band's W8-1772 full range driver features a sturdy cast frame, multiple-element neodymium magnet system, paper cone, and cloth half-roll surround.

Highlights

8" of full range speaker design
Neodymium magnet system, aluminum phase plug
Underhung design, very low 2nd and 3rd distortion (low THD)
SPL = 95dB/M/W, Qts = 0.27
Paper cone with fabric surround

Product details

Tang Band W8-1772 8" Neodymium Full Range Driver

Tang Band's W8-1772 full range driver features a sturdy cast frame, multiple-element neodymium magnet system, paper cone, and cloth half-roll surround. A precisely machined integral plug prevents phase cancellations and improves high frequency extension and dispersion. The underhung 1-1/2" voice coil reduces second and third harmonic distortion while still delivering high efficiency (95 dB 1W/1m ) and 3 mm of Xmax. Designed for point source/full range applications.

Specifications

Article number: W8-1772
Woofer Type: Full-range
Nominal Diameter: 8"
Power Handling (RMS): 30 Watts
Power Handling (max): 60 Watts
Impedance (Z): 8 ohms
Sensitivity: 95 dB 1W/1m
Frequency Response: 42 to 20,000 Hz
Voice Coil Diameter: 1.5"
DC Resistance (Re): 6.8 ohms
Voice Coil Inductance (Le): 0.009 mH
Resonant Frequency (Fs): 42 Hz
Mechanical Q (Qms): 1.02
Electromagnetic Q (Qes): 0.36
Total Q (Qts): 0.27
Diaphragm Mass Inc. Airload (Mms): 10.11g
Mechanical Compliance of Suspension (Cms): 1.37 mm/N
Surface Area of Cone (Sd): 9 cm²
BL Product (BL): 7.12 Tm
Compliance Equivalent Volume (Vas): 3.34 ft.³
Maximum Linear Excursion (Xmax): 3 mm
Cone / Diaphragm Material: Paper
Surround Material: Cloth
Magnet Material: Neodymium
Overall Outside Diameter: 9.2"
Overall Depth: 4.37"
Baffle Cutout Diameter: 7.48"
# Mounting Holes: 8
Sealed Volume: 0.34 ft.³
Sealed F3: 133 Hz
Vented Volume: 0.78 ft.³
Vented F3: 85 Hz

Data sheet

Reviews

4 reviews

5 from 5Based on 4 reviews

Review this product

4 of 5

Die Lautsprecher sind angekommen. Sie Gott sei Dank Ok ! da die Original Abdeckung aus Kunststoff in mehre Teile zerbrochen war. Das positive ist das kein Schaden an der Sicke entstanden ist. Ich würde innen raten vor der Auslieferung das zu kontrollieren. Lg. Hermann

By Ratz Hermann on 12 July 2022

5 of 5

Snelle levering en goede service. Grt Hondasnl.

By MARCUS D. on 13 May 2021
