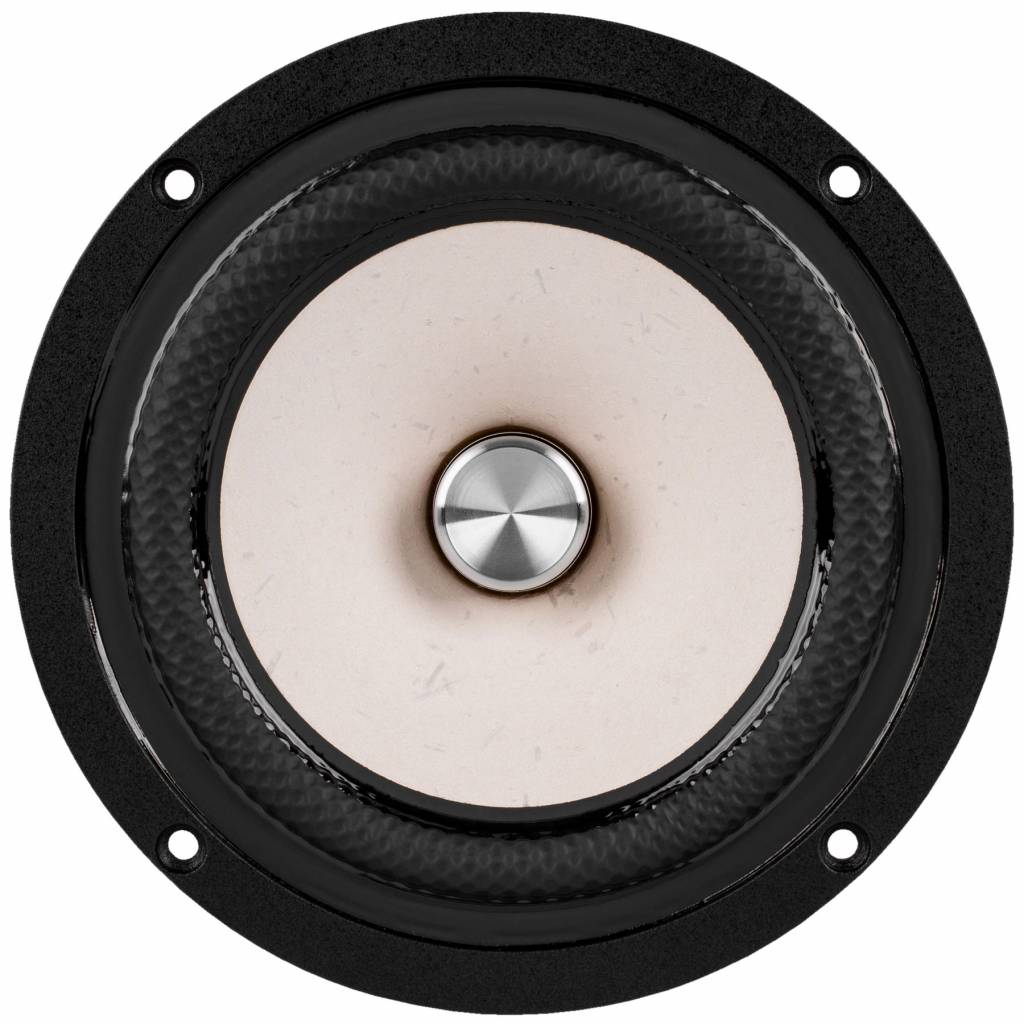

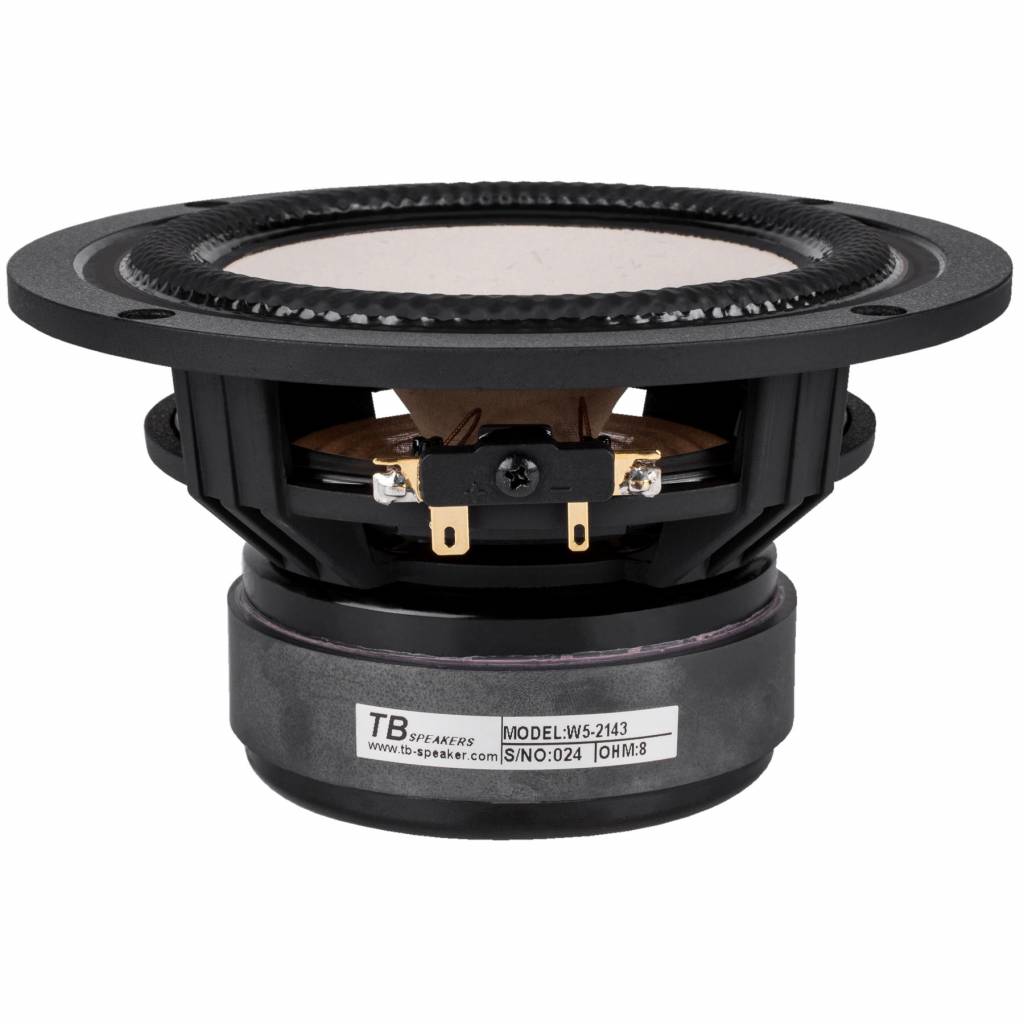

        Tang Band W5-2143 5" Paper Cone Full Range Driver 8 Ohm

        10 reviews
        Brand: Tang Band
        Show all Full-range woofer
        5" | 8 Ω
        W5-2143 5" Paper Cone Full Range Driver 8 Ohm
        W5-2143 5" Paper Cone Full Range Driver 8 Ohm
        W5-2143 5" Paper Cone Full Range Driver 8 Ohm
        W5-2143 5" Paper Cone Full Range Driver 8 Ohm
        W5-2143 5" Paper Cone Full Range Driver 8 Ohm
        W5-2143 5" Paper Cone Full Range Driver 8 Ohm
        W5-2143 5" Paper Cone Full Range Driver 8 Ohm
        W5-2143 5" Paper Cone Full Range Driver 8 Ohm
        € 90,87€ 109,95 Out of stock
        • -5% Order 4 for only € 104,45 per piece
        +-
        Add to cart

        Buy now, pay later

        • 24h express shipping available
        • Ordered now, shipped today
        • In-house technical support
        • 45-day cooling-off period to return
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        W5-2143 5" Paper Cone Full Range Driver 8 Ohm
        W5-2143 5" Paper Cone Full Range Driver 8 Ohm
        W5-2143 5" Paper Cone Full Range Driver 8 Ohm
        W5-2143 5" Paper Cone Full Range Driver 8 Ohm
        W5-2143 5" Paper Cone Full Range Driver 8 Ohm
        W5-2143 5" Paper Cone Full Range Driver 8 Ohm
        W5-2143 5" Paper Cone Full Range Driver 8 Ohm
        W5-2143 5" Paper Cone Full Range Driver 8 Ohm

        Product description

        With a bamboo fiber paper cone, structured Santoprene surround, and underhung motor, the W5-2143 5" full range from Tang Band has impressive response from 55 to 20,000 with very low distortion.



        Highlights

        • Aluminum phase plug also acts as a shorting ring for lower distortion
        • Underhung voice coil improves control for lower distortion
        • Impressive efficiency (90 dB 1W/1m) for a driver this small
        • Unique surround and large spider keeps cone linear well beyond the rated xmax



        Product details

        Tang Band W5-2143 5" Paper Cone Full Range Driver 8 Ohm



        Tang Band's versatile W5-2143 full range driver uses an underhung voice coil, which places the entire coil inside the magnetic gap, for the utmost in control and accuracy. Designed for minimum distortion and resonance, the bamboo fiber paper cone and structured surround produces smooth response without harsh peaks or dips. The aluminum phase plug improves off axis response while also acting as a shorting ring providing greater control of the voice coil resulting in lower distortion.

        Show more

        Specifications

        Article number
        W5-2143
        Woofer Type
        Full-range
        Nominal Diameter
        5"
        Power Handling (RMS)
        30 Watts
        Power Handling (max)
        60 Watts
        Impedance (Z)
        8 ohms
        Sensitivity
        90 dB 1W/1m
        Frequency Response
        55 to 20,000 Hz
        Voice Coil Diameter
        1"
        DC Resistance (Re)
        6.3 ohms
        Voice Coil Inductance (Le)
        0.023 mH
        Resonant Frequency (Fs)
        55 Hz
        Mechanical Q (Qms)
        3.21
        Electromagnetic Q (Qes)
        0.43
        Total Q (Qts)
        0.38
        Diaphragm Mass Inc. Airload (Mms)
        5.99g
        Mechanical Compliance of Suspension (Cms)
        1.398 mm/N
        Surface Area of Cone (Sd)
        97.83 cm²
        BL Product (BL)
        5.43 Tm
        Compliance Equivalent Volume (Vas)
        0.671 ft.³
        Maximum Linear Excursion (Xmax)
        2.5 mm
        Cone / Diaphragm Material
        Bamboo Fiber / Paper
        Surround Material
        Santoprene®
        Voice Coil Wire Material
        Copper
        Voice Coil Former
        Kapton® / Polyimide
        Basket / Frame Material
        Cast Aluminum
        Magnet Material
        Ferrite
        Overall Outside Diameter
        6.125"
        Overall Depth
        3.34"
        Baffle Cutout Diameter
        4.84"
        # Mounting Holes
        4
        Sealed Volume
        0.19 ft.³
        Sealed F3
        115 Hz
        Vented Volume
        0.46 ft.³
        Vented F3
        64 Hz

        Show more

        Reviews

        10 reviews
        5 from 5Based on 10 reviews
        Review this product
        5 of 5
        -
        By Ralf on 15 December 2022
        5 of 5
        Very nice driver for the money. Excellent vocal reproduction and overall frequency response. Sensitivy is nice and high so they don't take much driving. Distortion is quite low at around 1.5% peak THD in the low frequencies and much less in the mid-bass all the way to treble. I was expecting these drivers to have quite a hot top-end but to my surprise, they are actually quite flat. I think that may be due to these drivers being very directional at the upper frequencies and that i listen slightly off axis. I put these drivers in a 25L ported enclosure tuned to 46Hz (internal bracing, bitumen pad sound deadening, 3M TC1803 acoustic wadding and some recycled wool behind the driver) and they are a pleasure to listen to. I was also surprised by how much bass these littles 5" drivers can produce. I used active baffle-step compensation before the amplifier as to maintain driver efficiency and still have a flat frequency response. I highly recommend these speakers to anyone.
        By George on 4 September 2021
