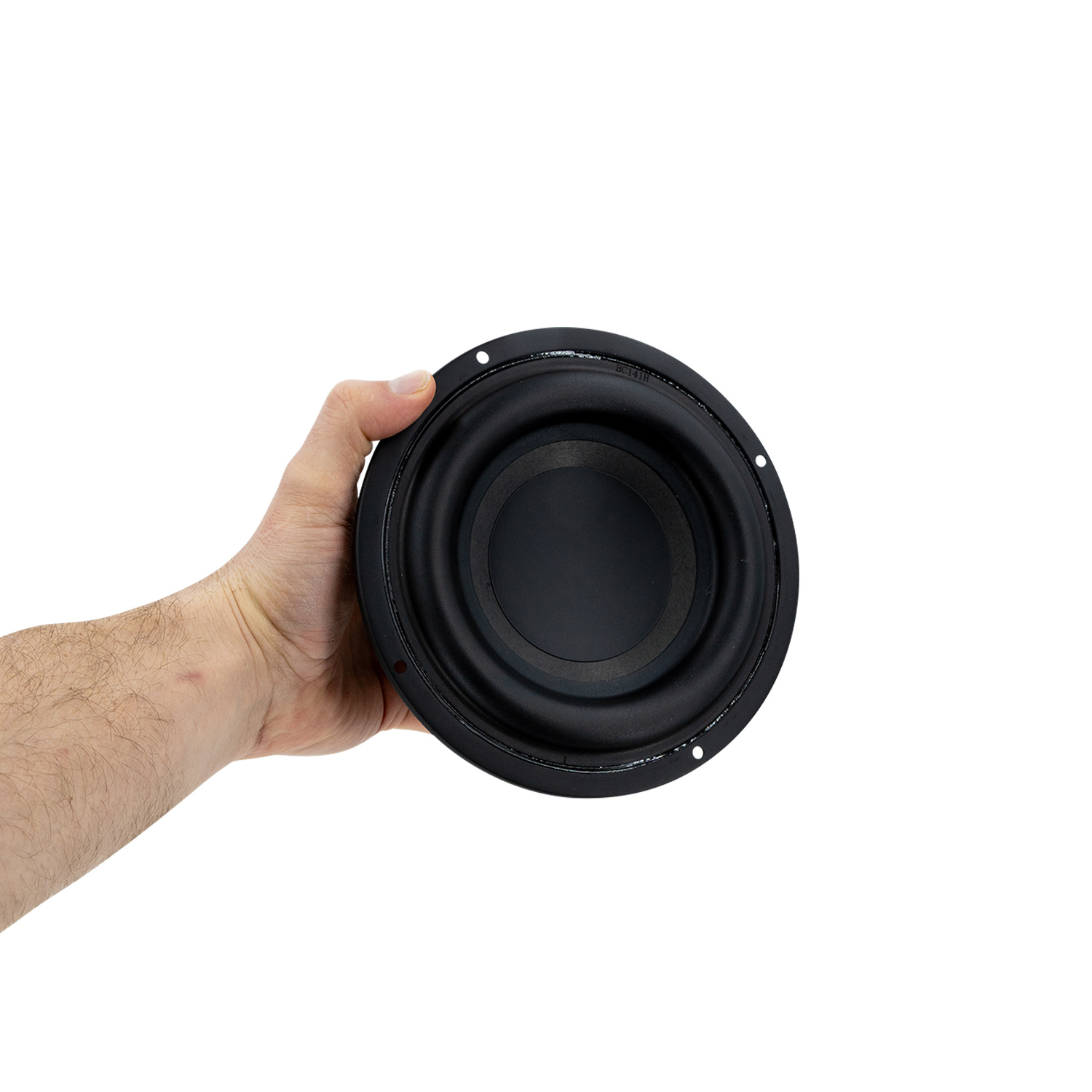

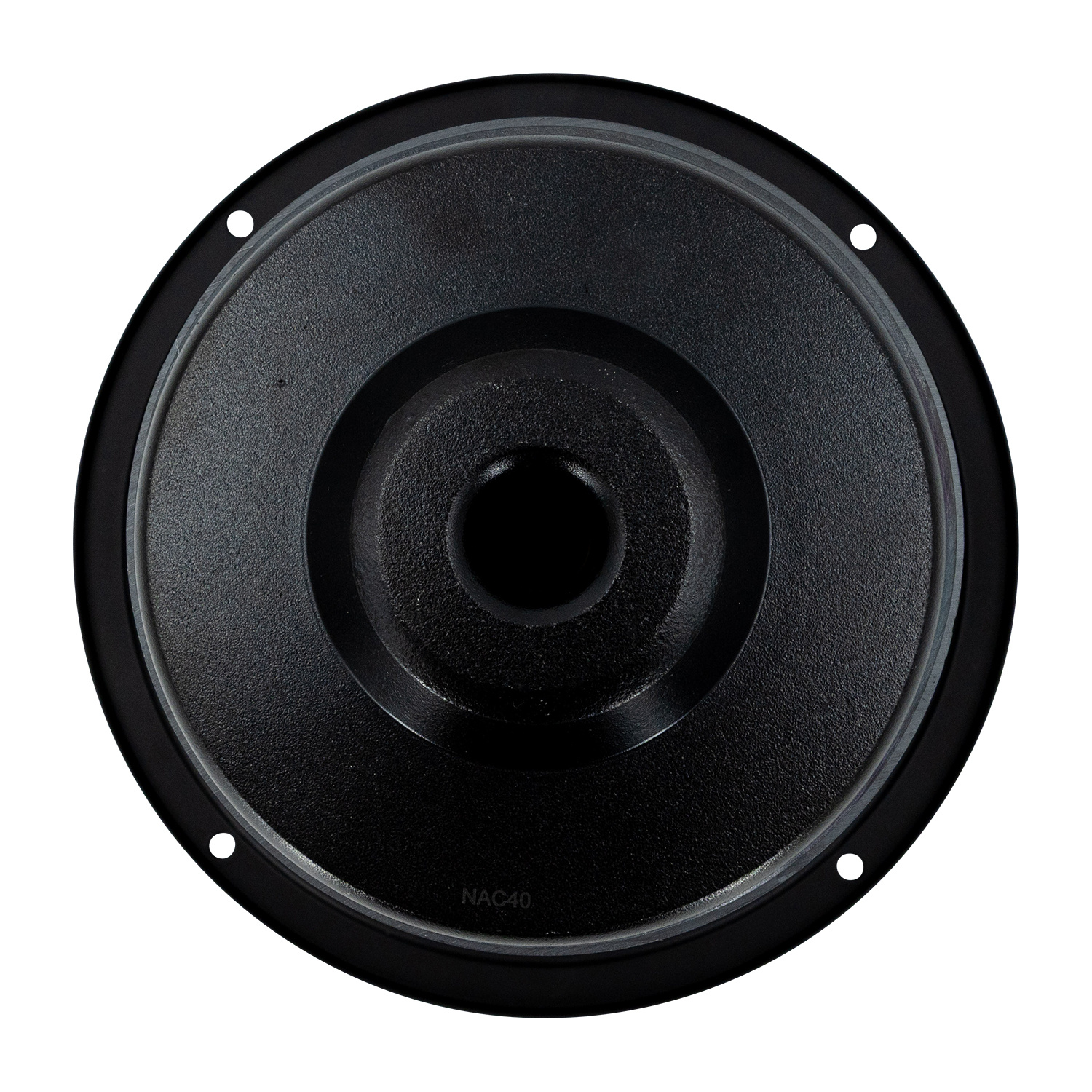

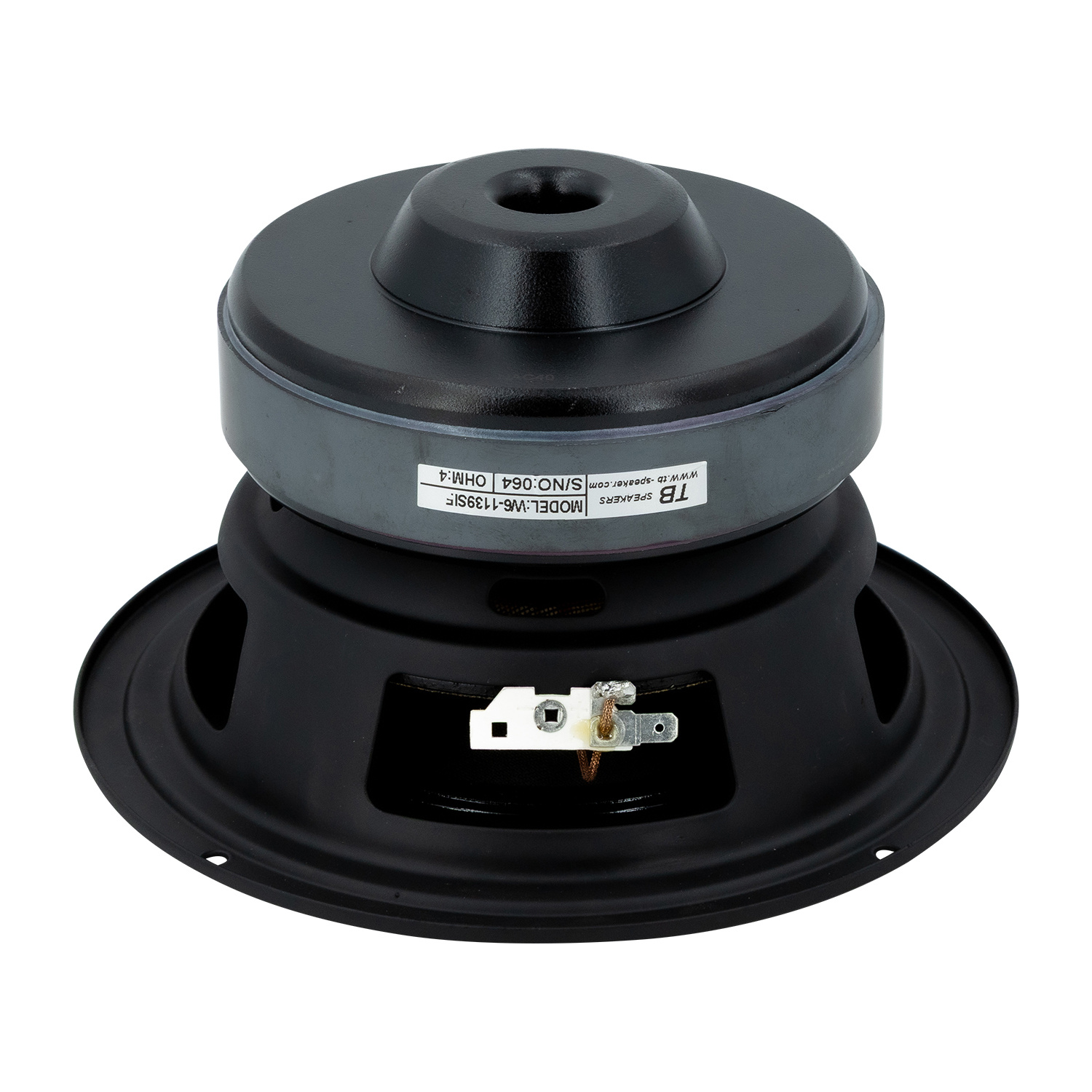

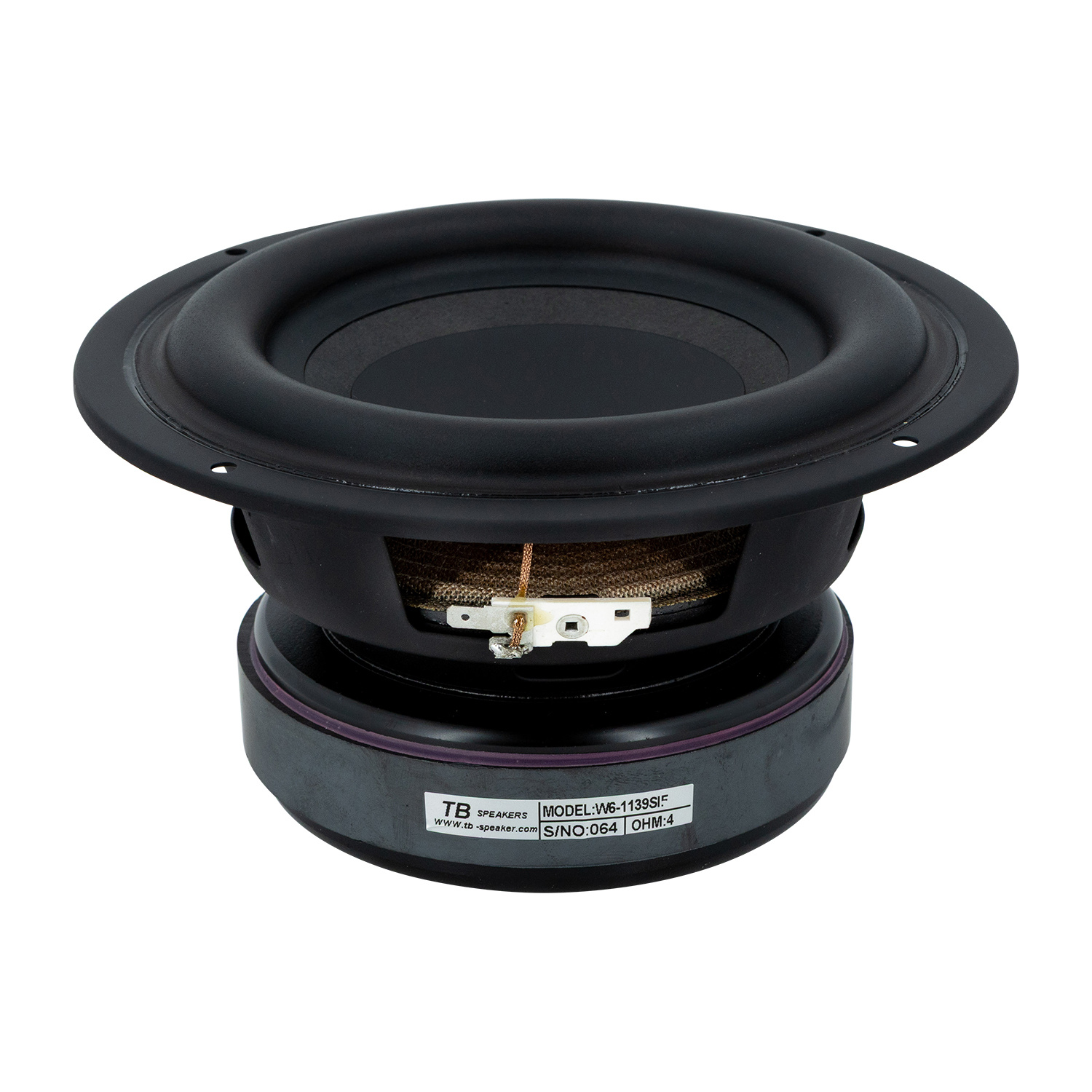

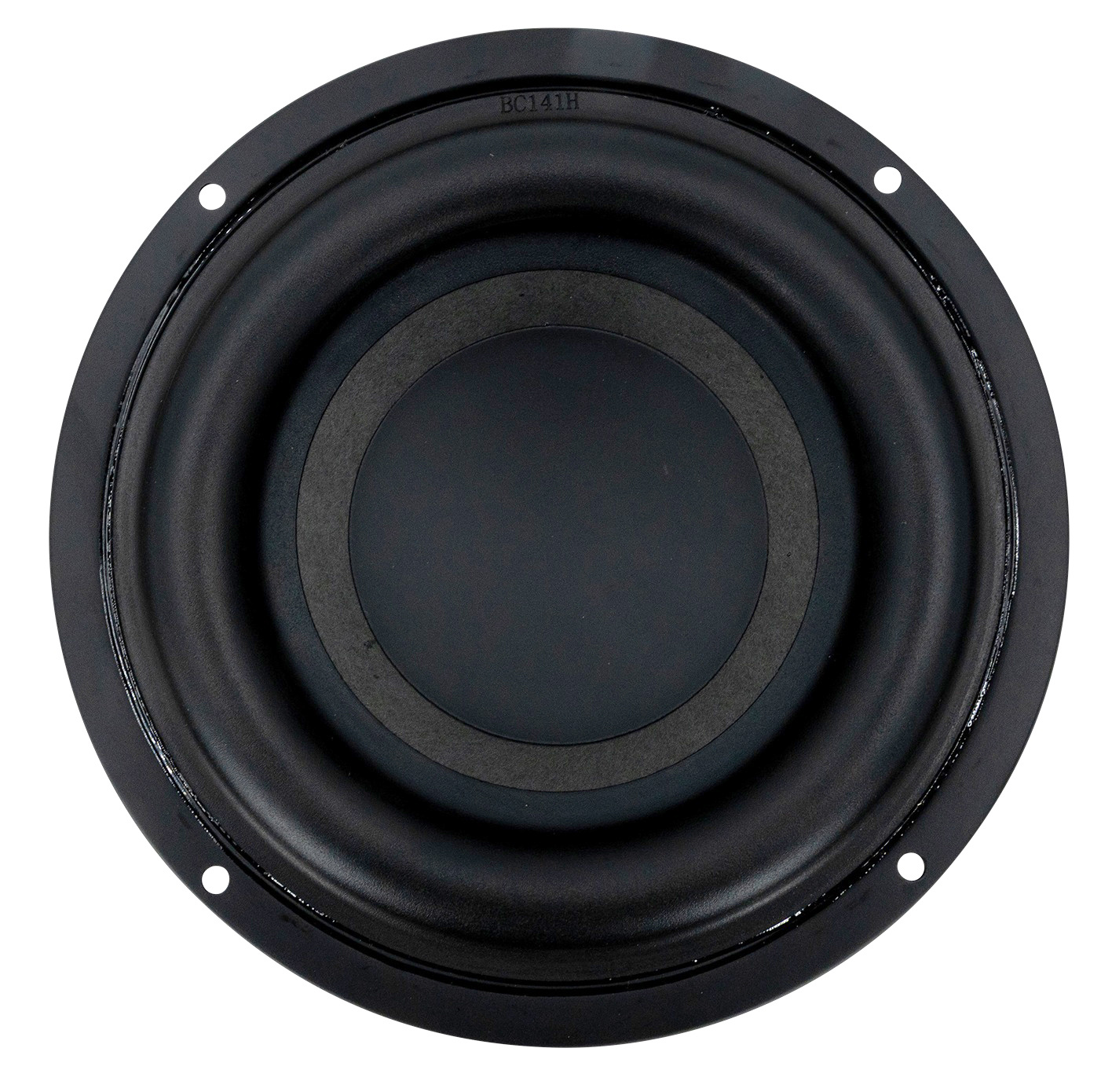

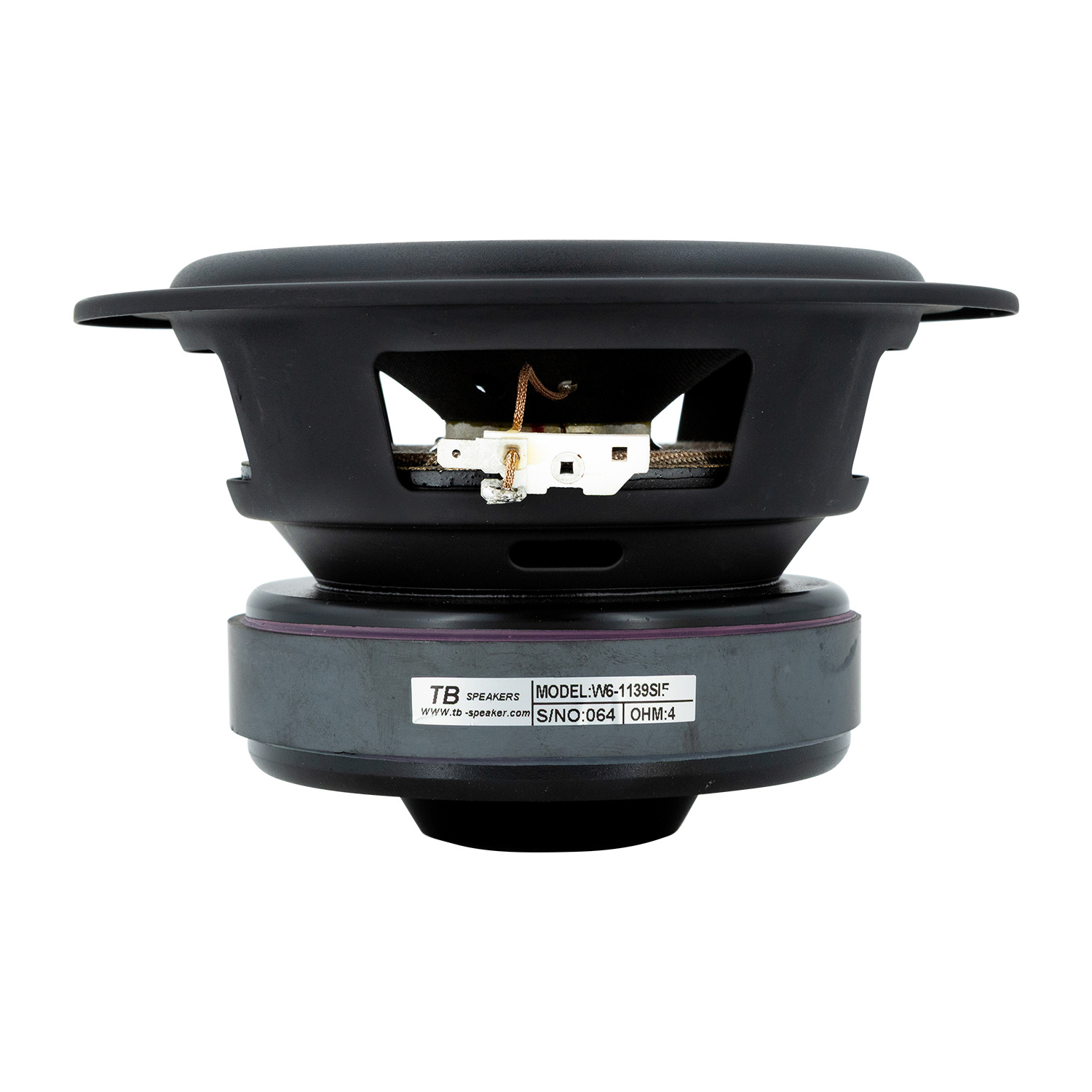

      Tang Band W6-1139SIF 6-1/2" Paper Cone Subwoofer Speaker

      € 74,34€ 89,95 10+ In stock
      • -5% Order 4 for only € 85,45 per piece

      Buy now, pay later

      • 24h express shipping available
      • Ordered now, shipped today
      • In-house techniscal support
      • 45 days worry-free returns
      Request quotation
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      The Tang Band W6-1139SIF 6-1/2" driver will surprise and impress when installed in subwoofer systems for compact home theater systems, multimedia setups, and mobile audio installations.



      Highlights

      • 11.5 mm xmax, amazing low frequency capability for a driver this small!
      • Wide half-roll surround, raised flat spider, and large 1-1/2" 4-layer voice coil ensure exceptional output
      • Vented pole piece and vented spider promote voice coil cooling
      • Features a rugged stamped steel basket and bumped back plate



      Product details

      Tang Band W6-1139SIF 6-1/2" Paper Cone Subwoofer Speaker



      The Tang Band W6-1139SIF 6-1/2" subwoofer's wide half-roll surround, raised flat spider, and large 1-1/2" 4-layer voice coil ensure exceptional output and high power handling. Boasting 11.5 mm of Xmax, the W6-1139SIF is capable of producing prodigious amounts of deep, low-distortion, punchy bass. A vented pole piece and vented spider promote voice coil cooling by improving heat dissipation and reducing efficiency-robbing power compression. This 4 ohm driver also features a rugged stamped steel basket and bumped back plate.

      Show more

      Specifications

      Article number
      W6-1139SIF
      Woofer Type
      Subwoofer
      Nominal Diameter
      6-1/2"
      Power Handling (RMS)
      50 Watts
      Power Handling (max)
      100 Watts
      Impedance (Z)
      4 ohms
      Sensitivity
      83 dB 1W/1m
      Frequency Response
      35 to 800 Hz
      Voice Coil Diameter
      1.52"
      Magnet Weight
      29.2 oz.
      DC Resistance (Re)
      3.6 ohms
      Voice Coil Inductance (Le)
      0.47 mH
      Resonant Frequency (Fs)
      35 Hz
      Mechanical Q (Qms)
      2.65
      Electromagnetic Q (Qes)
      0.47
      Total Q (Qts)
      0.4
      Diaphragm Mass Inc. Airload (Mms)
      39.91g
      Mechanical Compliance of Suspension (Cms)
      0.6 mm/N
      Surface Area of Cone (Sd)
      140 cm²
      Volume of Displacement (Vd)
      161 cm³
      BL Product (BL)
      8.47 Tm
      Compliance Equivalent Volume (Vas)
      11.78 liters
      Maximum Linear Excursion (Xmax)
      11.5 mm
      Cone / Diaphragm Material
      Paper
      Surround Material
      Rubber
      Basket / Frame Material
      Steel
      Magnet Material
      Ferrite
      Overall Outside Diameter
      6.95"
      Overall Depth
      4.33"
      Baffle Cutout Diameter
      5.57"
      # Mounting Holes
      4
      Sealed Volume
      0.13 ft.³
      Sealed F3
      70 Hz
      Vented Volume
      0.33 ft.³
      Vented F3
      38 Hz

      Show more

      Reviews

      5 from 5Based on 6 reviews
      Review this product
      5 of 5
      Excellent speaker for specific applications.
      By FuturePrimitive on 9 April 2022
      2 of 5
      Hello. This is useless speaker because the box must be as big as for 25cm woofer. If You have more membrane then You don't need so big x-max and You get more bass at lower freq and higher effeciency. I have built 3 different boxes for this speaker and none of them is good. This is kind of air pump without sound xD
      By Arek on 8 April 2020
