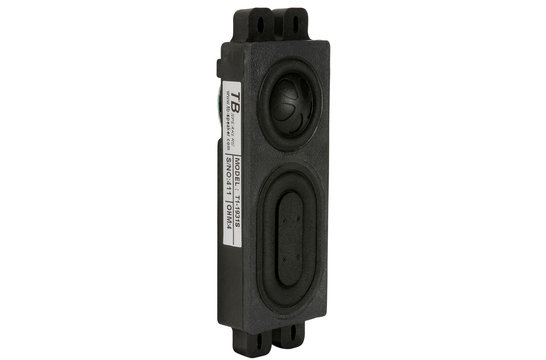

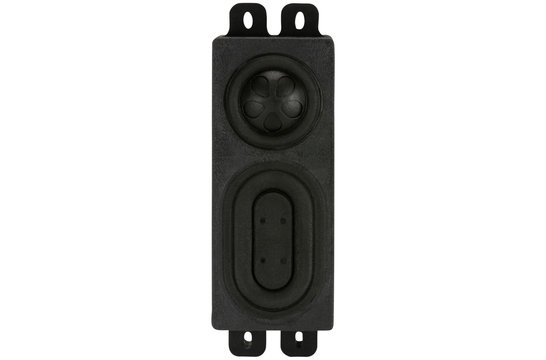

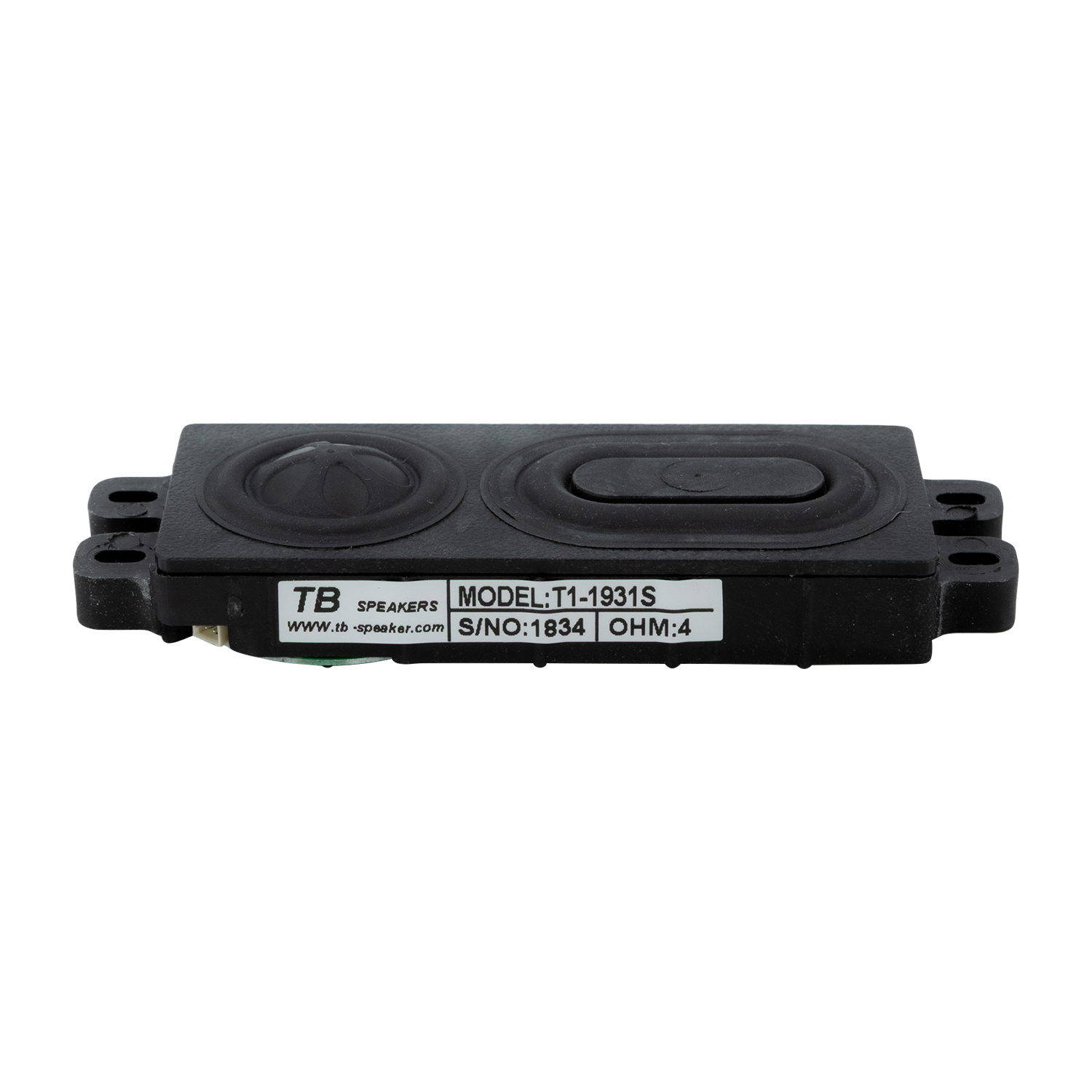

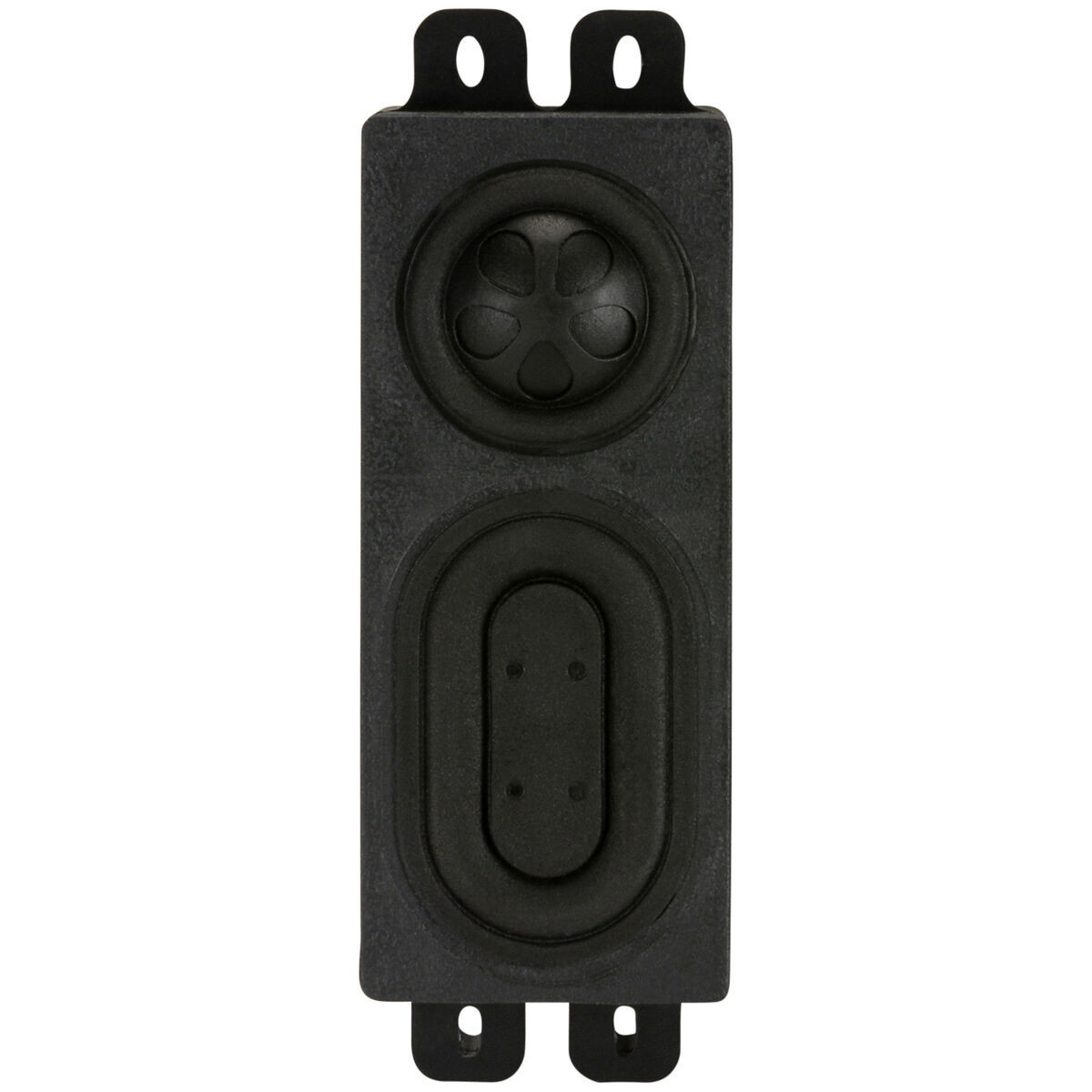

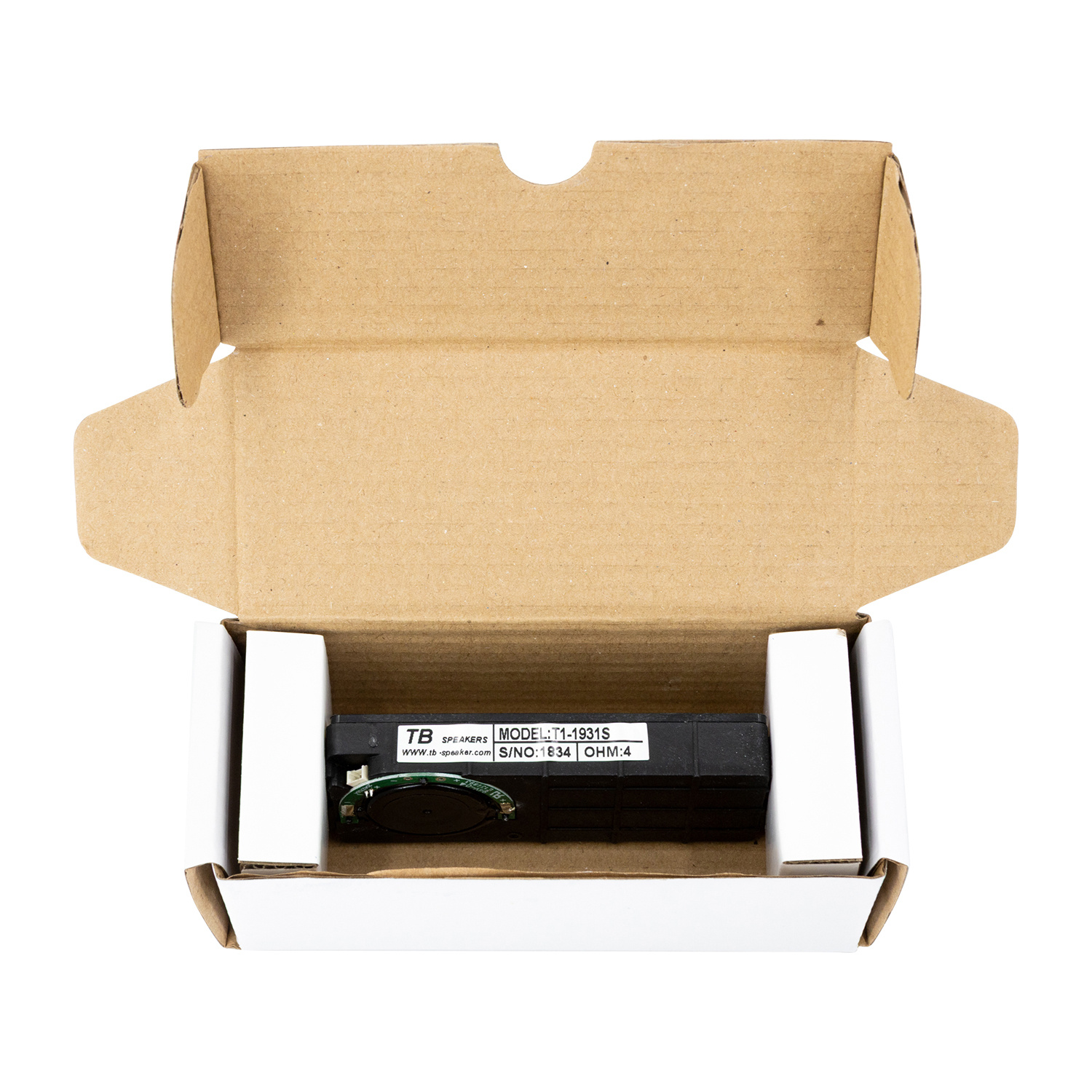

      Tang Band T1-1931S Speaker Module | 89 x 36,5 mm | 1" PP. rectangle full range module

      € 21,86€ 26,45 8 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only € 25,13 per piece
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Tang Band's T1-1931S features a passive radiator-assisted 1" driver that plays from 105 to 20,000 Hz in a tiny 3.5" x 1.44" package. Design modern speakers never before thought possible.



      Highlights

      • The easiest way to add hi-fi sound to almost any project
      • 31 mm polypropylene-composite dome driver
      • A small, oval passive radiator extends response to 150 Hz

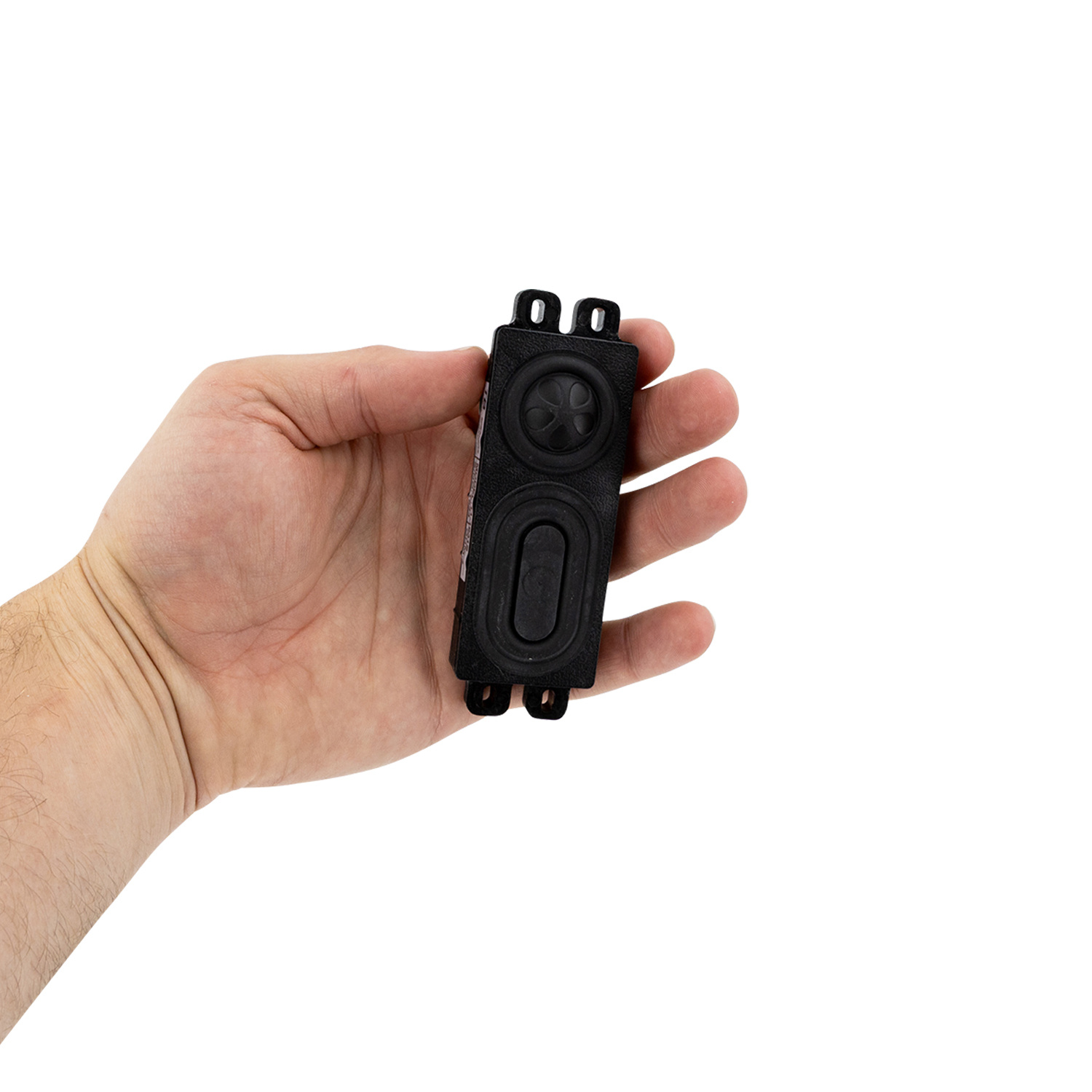

      • Tiny 4.25" H x 1.42" W x 0.76" D self-contained design



      Product details

      Tang Band T1-1931S Speaker Module | 89 x 36,5 mm | 1" PP. rectangle full range module



      Tang Band's line of patented speaker modules are designed for modern audio applications such as sound bars, desktop multimedia speakers, flat panel tv speakers, and portable audio systems. Don't let Tang Band's diminutive driver modules fool you; each is built with a passive radiator that extends midbass frequency response, allowing these to mate to a subwoofer system quite easily.

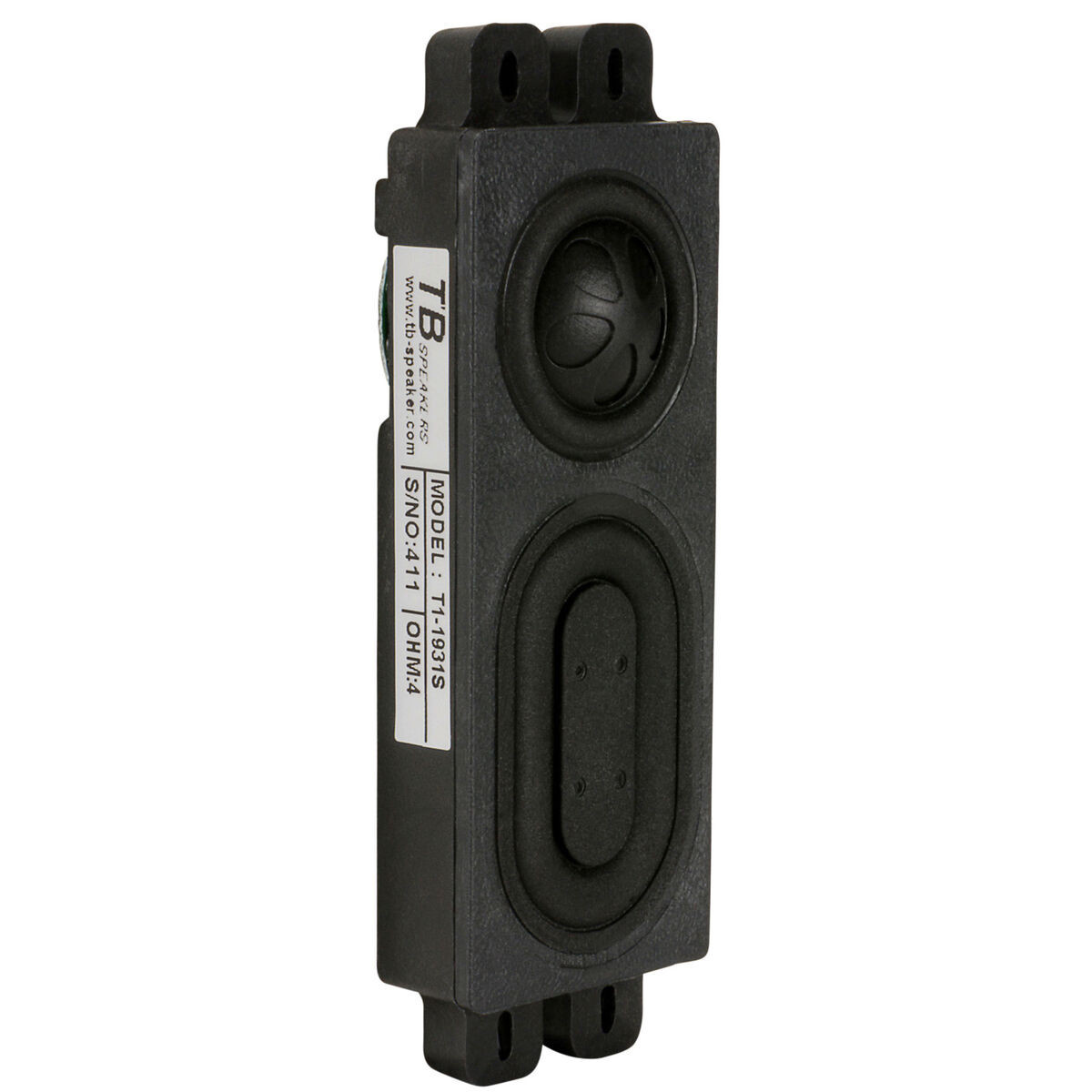

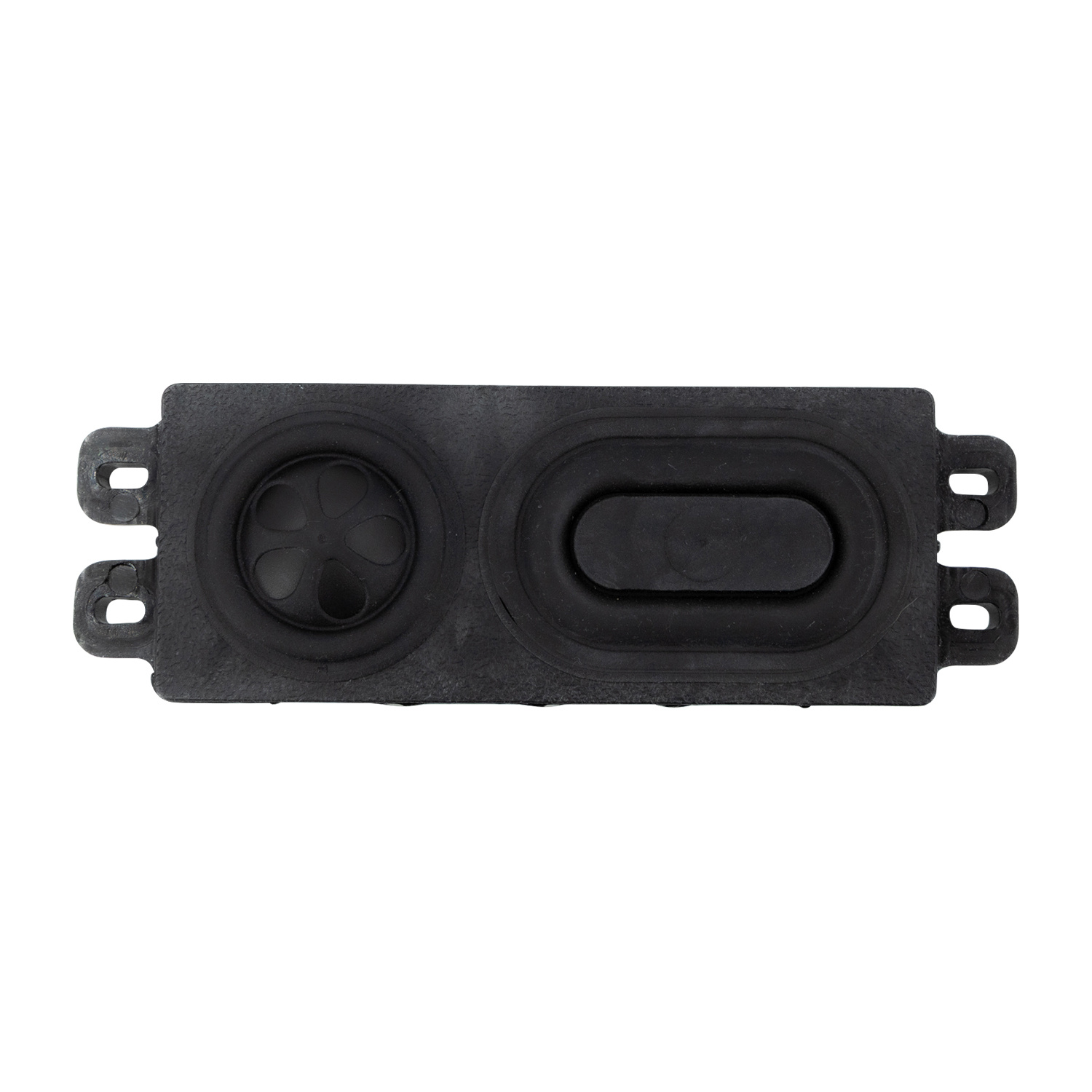

      The T1-1931S speaker module from Tang Band is built around a passive radiator assisted, polypropylene composite 31 mm inverted dome driver. This allows for a very full frequency response from a single, small driver. Advantages of this type of speaker design include the elimination of crossover components in the critical midrange, superb off-axis response due to the use of a small driver (without hot spots), and perfect time-alignment.

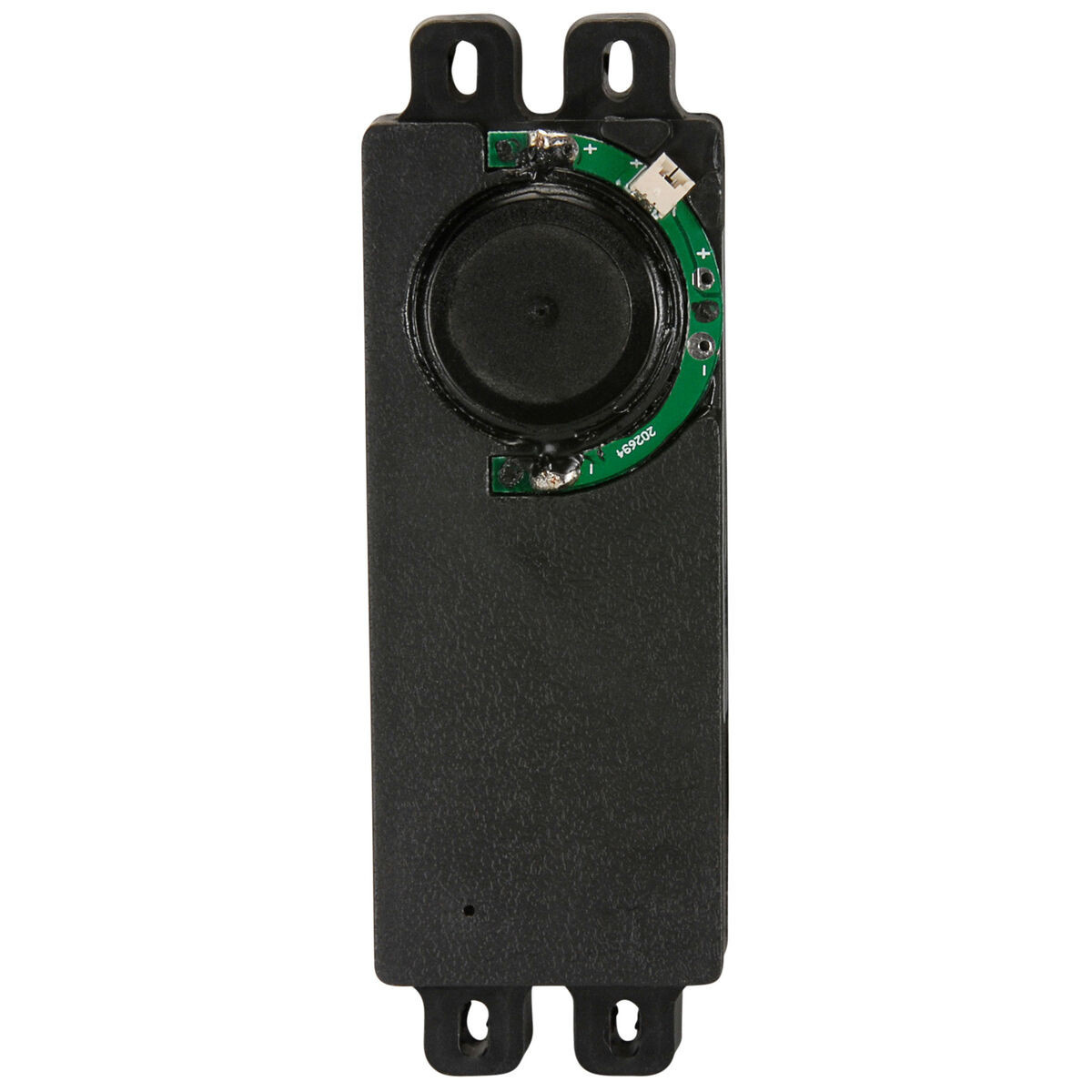

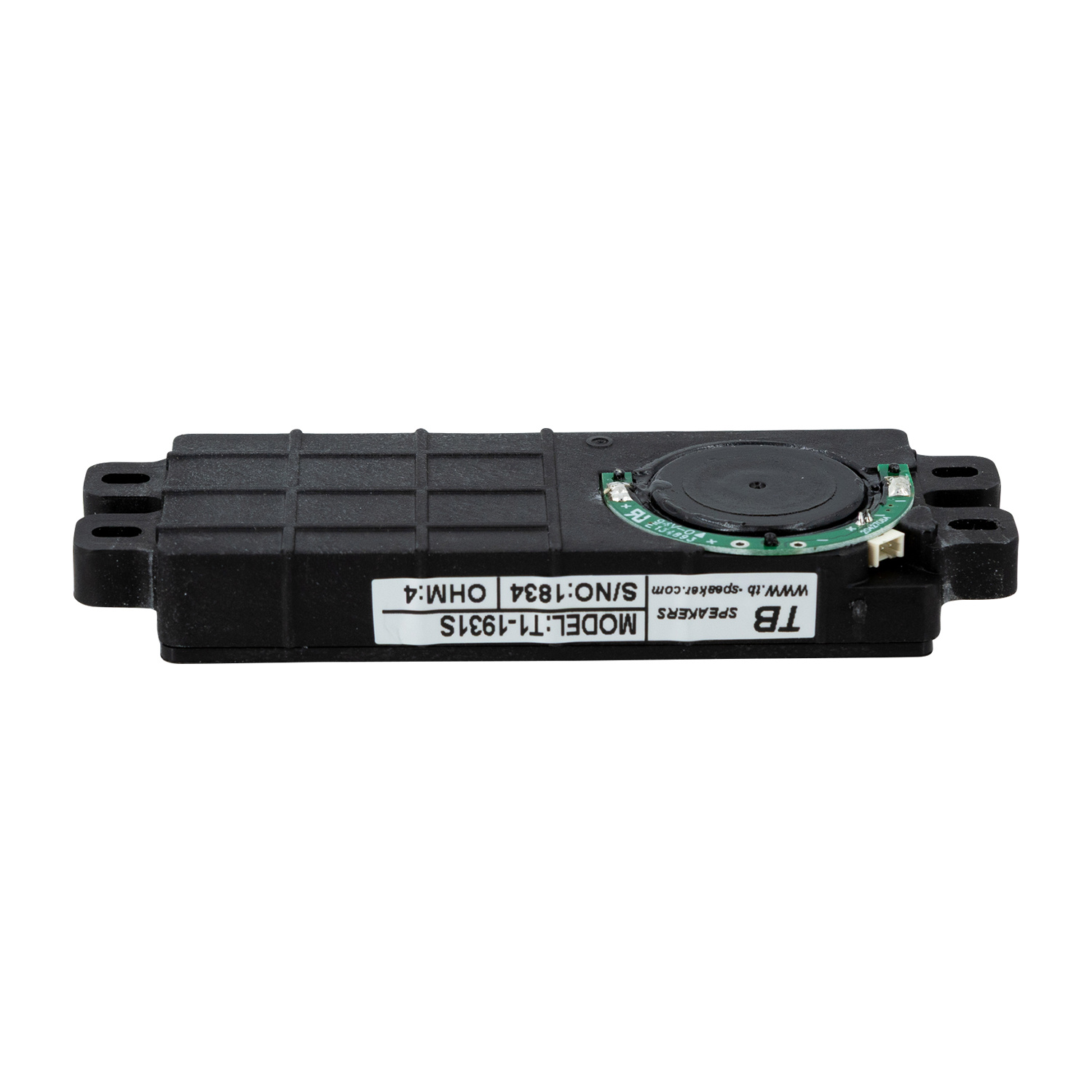

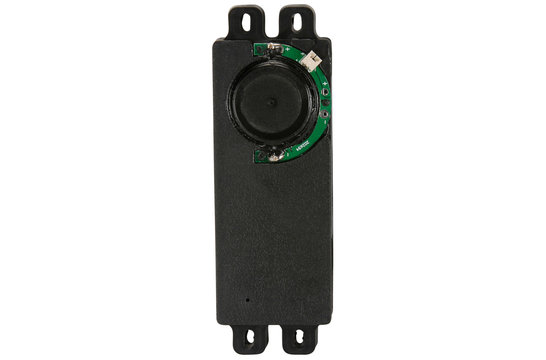

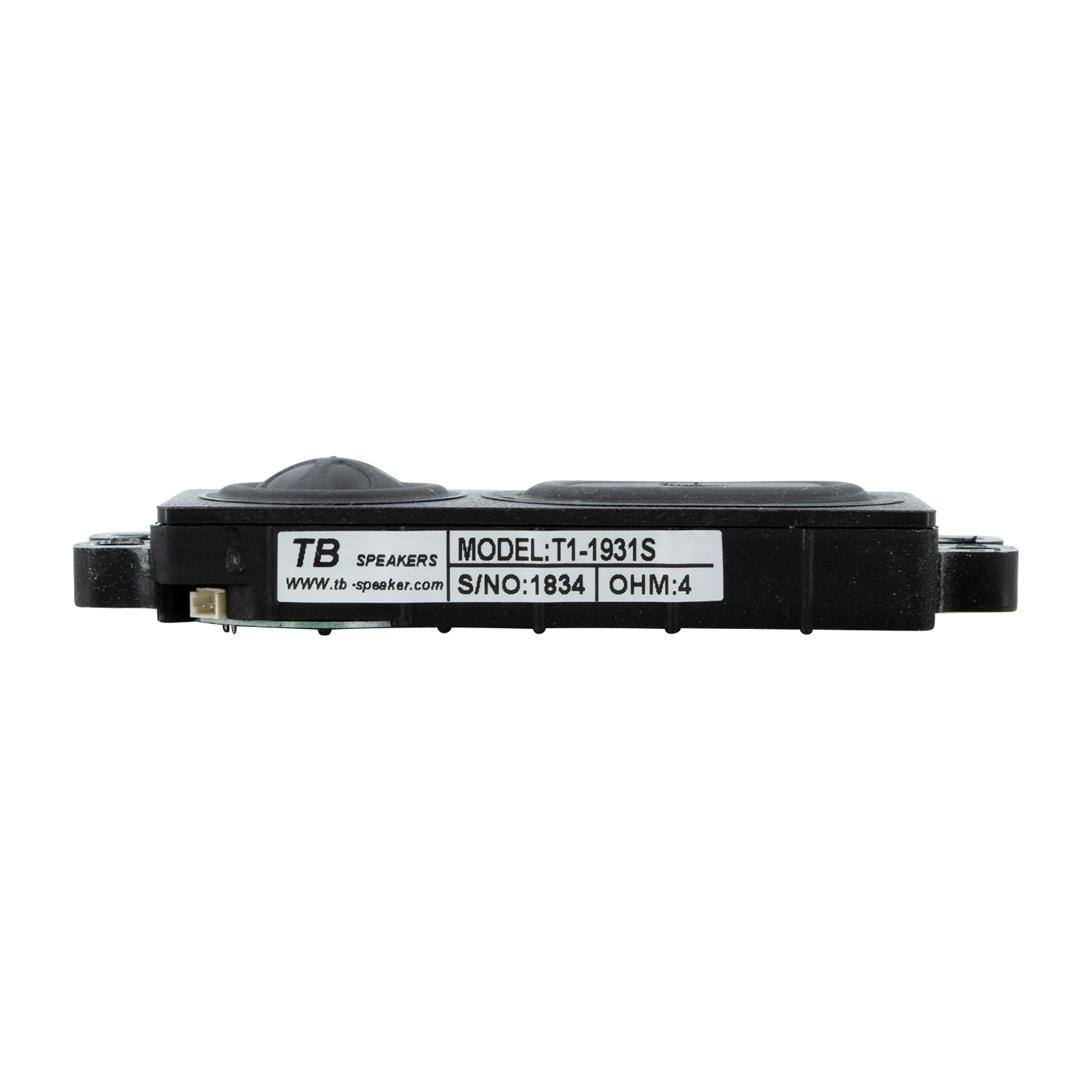

      Tang Band incorporated mounting tabs and a two-pin wiring harness jack into the T1-1931S to facilitate mounting and amplifier connection to the optional KIT-0041 speaker module mounting kit with amplifier. For custom applications, two polarity-indicated solder points are built onto the driver PCB.



      Note: Tang Band recommends the use of a 2nd order (-12 dB/octave) 100 Hz high pass filter for the best possible sound. Higher power handling and output is possible through the use of multiple modules.

      Specifications

      Article number
      T1-1931S
      Woofer Type
      Passive Radiator
      Nominal Diameter
      3-1/2" x 1-7/16"
      Power Handling (RMS)
      2 Watts
      Power Handling (max)
      4 Watts
      Impedance (Z)
      4 Ohms
      Sensitivity
      76dB 2.83V/1m
      Frequency Response
      105 to 20,000Hz
      Resonant Frequency (Fs)
      105Hz
      Cone / Diaphragm Material
      Poly Composite
      Surround Material
      Rubber
      Basket / Frame Material
      Polymer
      Magnet Material
      Neodymium
      Overall Outside Diameter
      3.46" x 1.41"; With mounting tabs: 4.25"
      Overall Depth
      0.76"
      # Mounting Holes
      4
