        W6-2253S Subwoofer

        W6-2253S Subwoofer

        €169,95

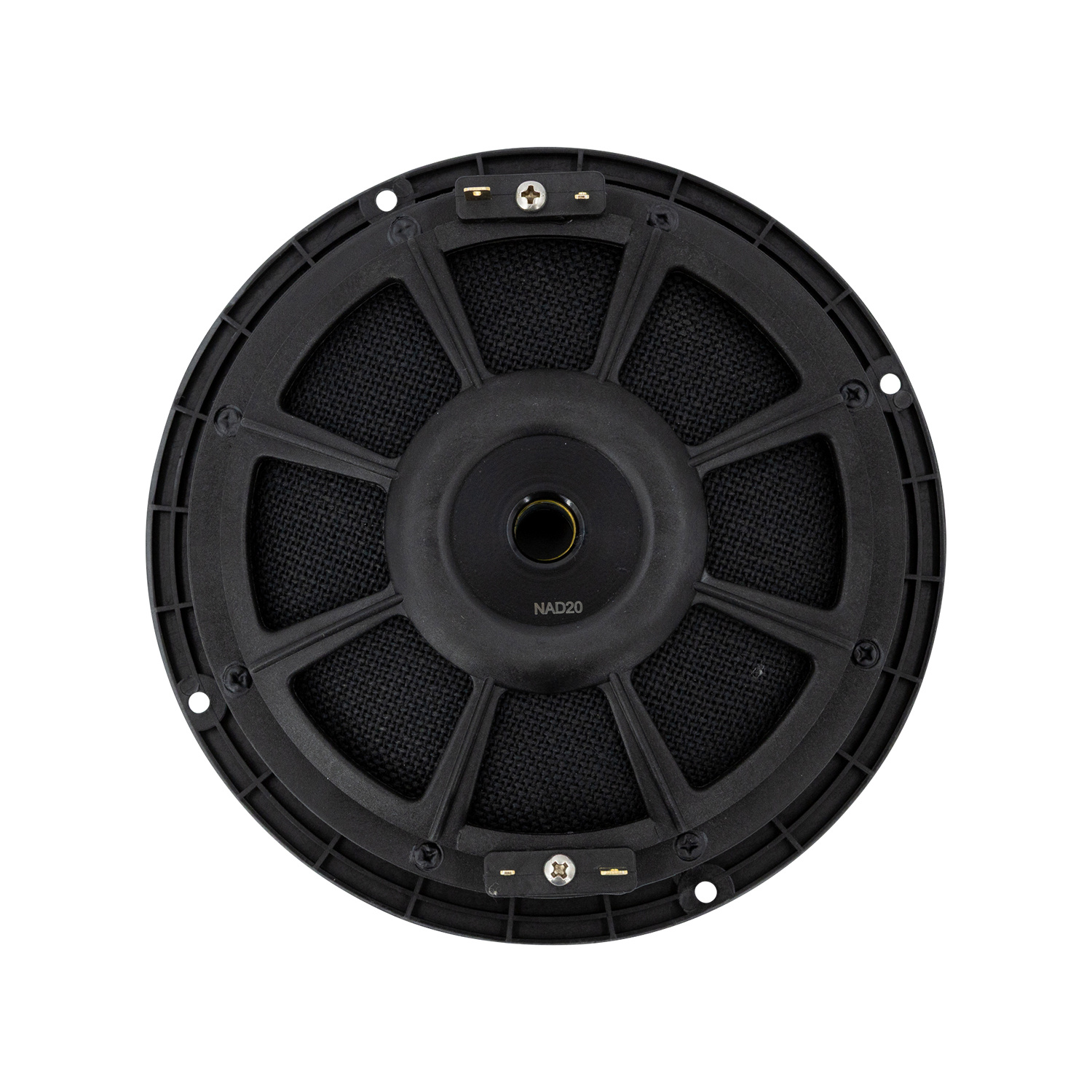

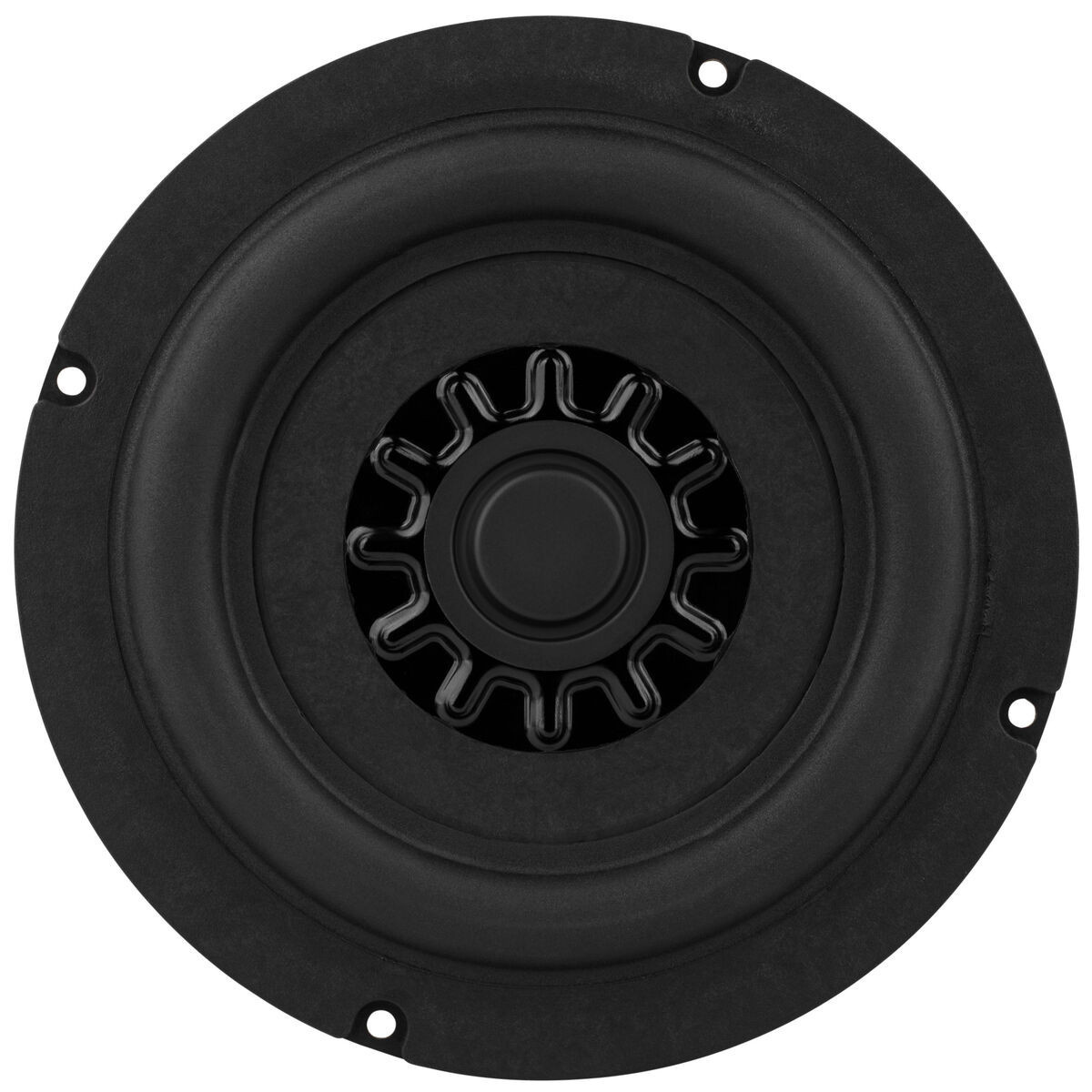

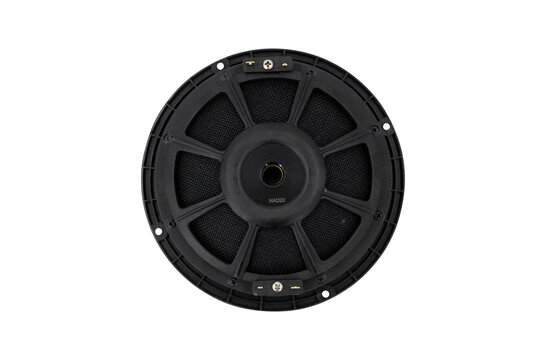

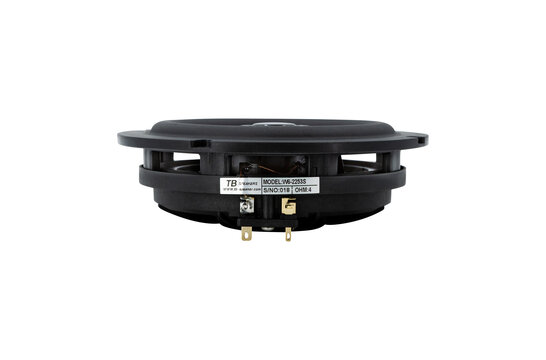

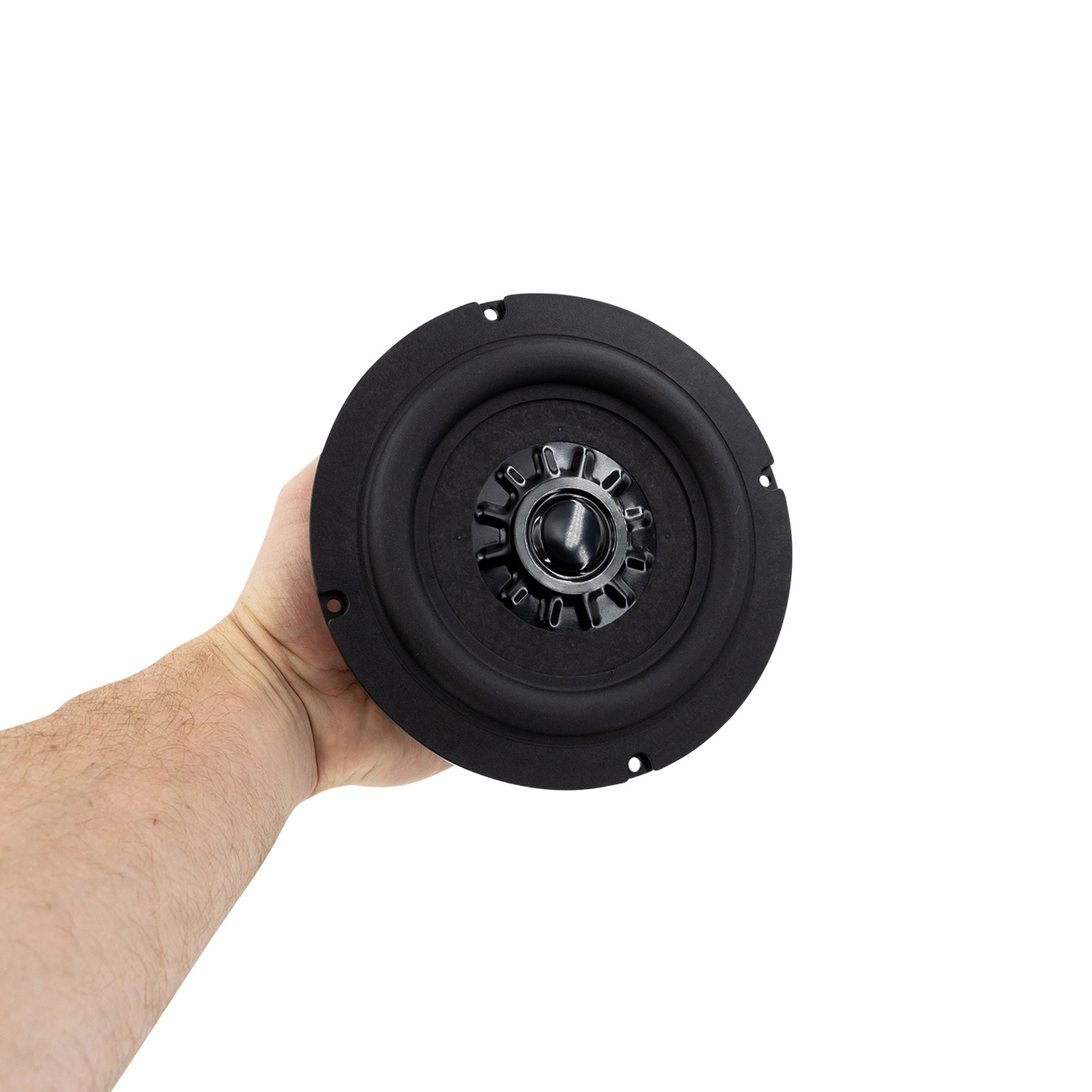

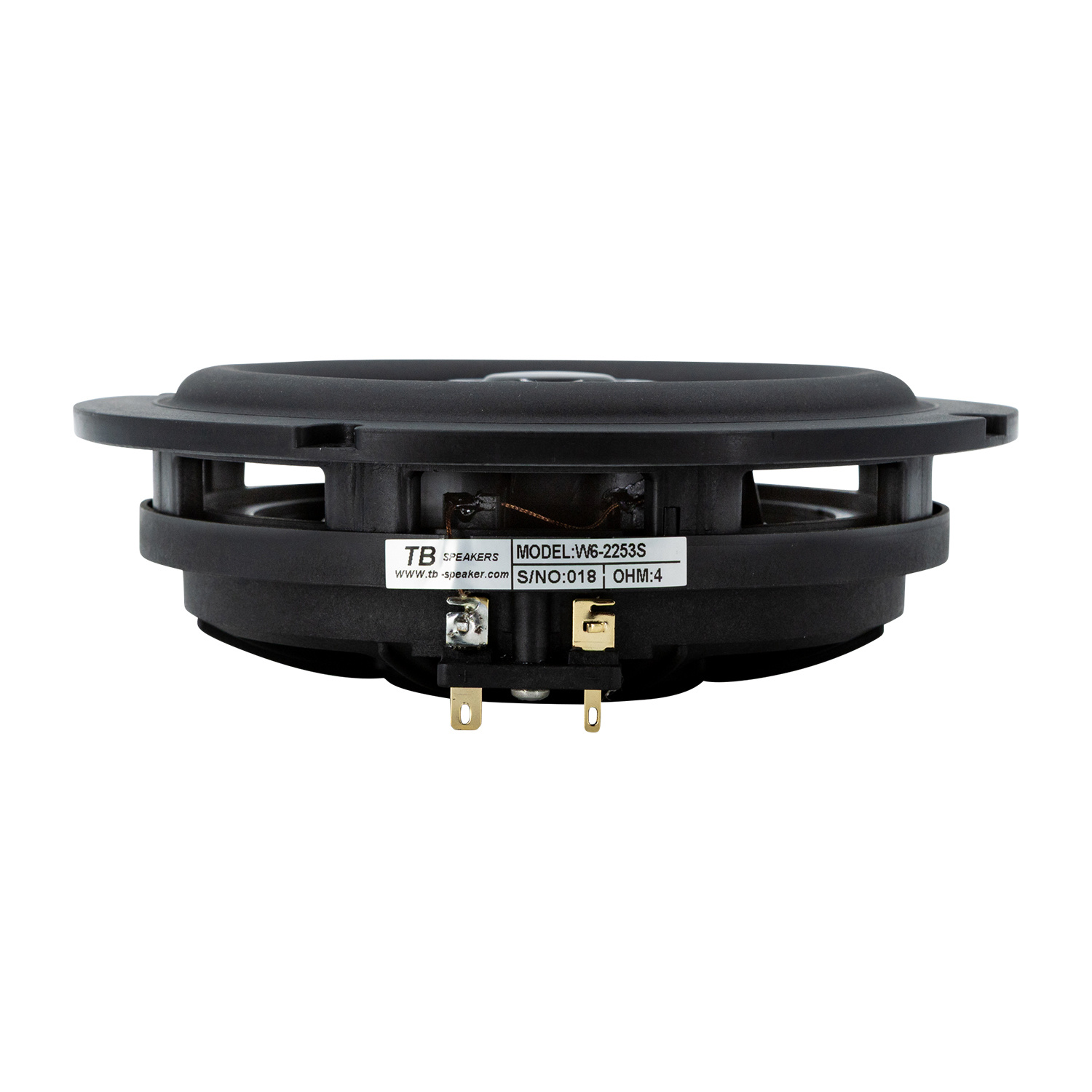

        Tang Band W6-2253S Subwoofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Tang Band
        € 140,45€ 169,95 3 In stock
        • -5% Purchase 4 for only € 161,45 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

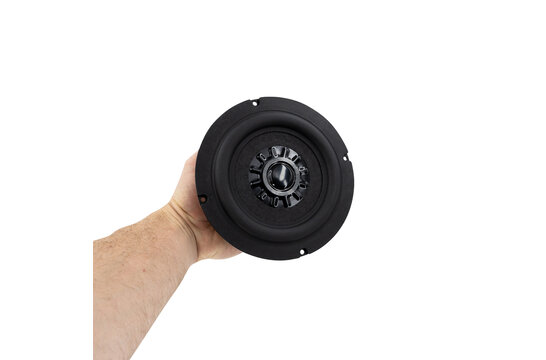

        If you need more low end, but space is at a minimum, Tang Band's W6-2253S 6-1/2" low profile subwoofer is the perfect choice. With a rigid polymer cone and frame, and a powerful neodymium motor, this unique driver will deliver impressive output from spaces where other drivers just will not fit.



        Highlights

        • Requires less than 2" of mounting depth, ideal for tight spaces
        • Unique cone and spider design keeps excursion linear
        • Extensive venting and 1.25" voice coil handles up to 100W RMS
        • Perfect for in wall, car door, or under seat designs



        Product details

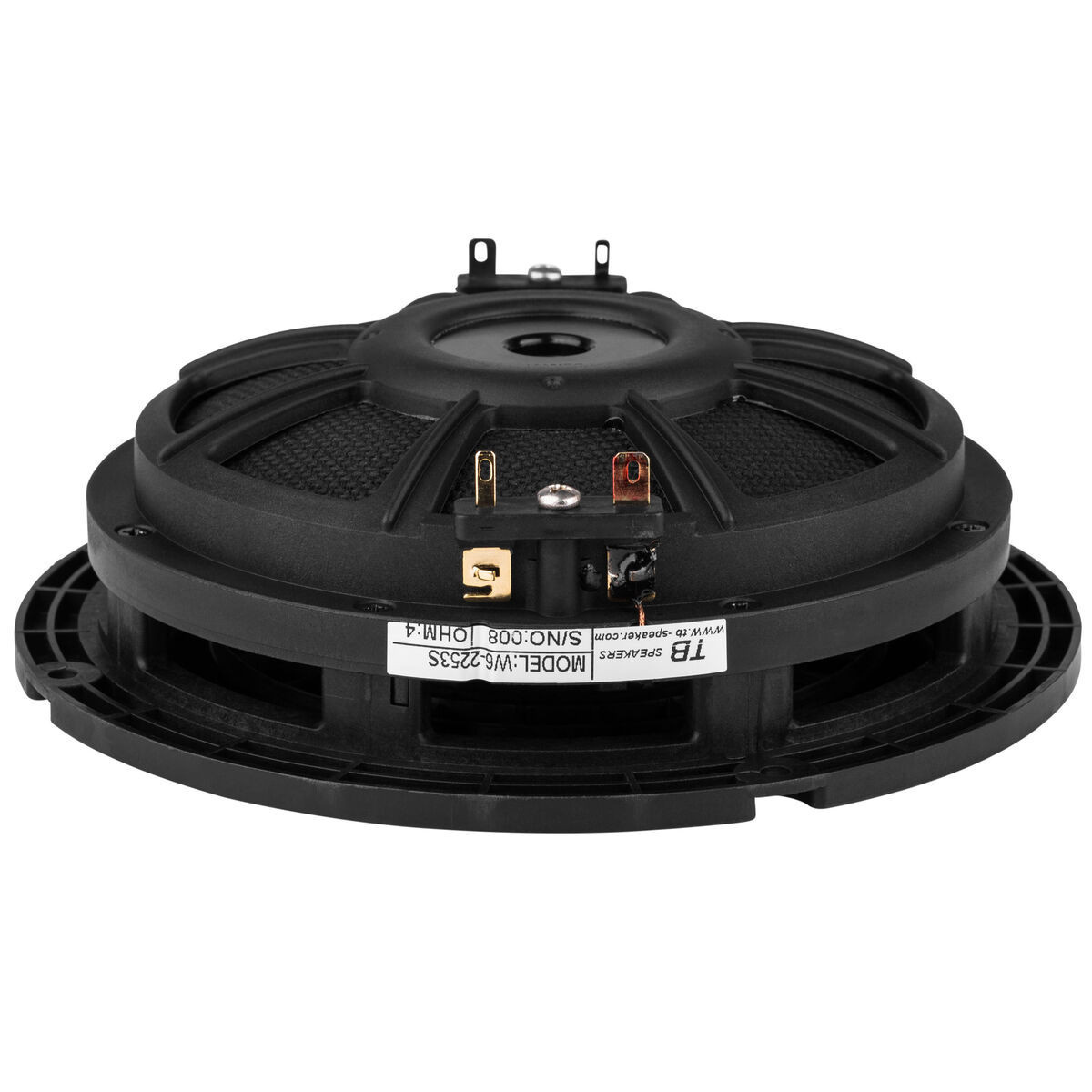

        Tang Band W6-2253S 6-1/2" Low Profile Subwoofer



        Tang Band's W6-2253S 6-1/2" shallow subwoofer uses a unique design and neodymium motor to produce low distortion bass from enclosures less than 2" deep. Tang Band used a one of a kind injection molded cone that allows the motor to be mounted directly behind the cone without sacrificing excursion. With venting under the spider, through the pole piece, and through the voice coil this driver can handle up to 100 watts RMS. Whether it be in a wall, under a couch, or in a car door, the W6-2253S can be installed in situations where most drivers can't.

        Show more

        Specifications

        Article number
        W6-2253S
        Woofer Type
        Subwoofer
        Power Handling (RMS)
        100 Watts
        Power Handling (max)
        200 Watts
        Impedance (Z)
        4 Ohms
        Sensitivity (SPL at 1m / 2.83V)
        80 dB
        Frequency Response
        40 to 700Hz
        Voice Coil Diameter
        1.25"
        DC Resistance (Re)
        3.6Ω
        Voice Coil Inductance (Le)
        0.19mH
        Resonant Frequency (Fs)
        40 Hz
        Mechanical Q (Qms)
        3.22
        Electromagnetic Q (Qes)
        0.6
        Total Q (Qts)
        0.51
        Moving Mass Of Diaphragm (Mmd)
        39.91
        Mechanical Compliance of Suspension (Cms)
        0.397mm/N
        Surface Area of Cone (Sd)
        110cm²
        BL Product (BL)
        7.75T·m
        Compliance Equivalent Volume (Vas)
        0.224ft³
        Maximum Linear Excursion (Xmax)
        5 mm
        Cone / Diaphragm Material
        Poly
        Surround Material
        Santoprene®
        Basket / Frame Material
        Polymer
        Magnet Material
        Neodymium
        Overall Outside Diameter
        6.69"
        Overall Depth
        1.81"
        Baffle Cutout Diameter
        5.78"
        Bolt Circle Diameter
        6.33
        # Mounting Holes
        4
        Sealed Volume
        0.12ft³
        Sealed F3
        67Hz
        Vented Volume
        0.2ft³
        Vented F3
        40Hz
