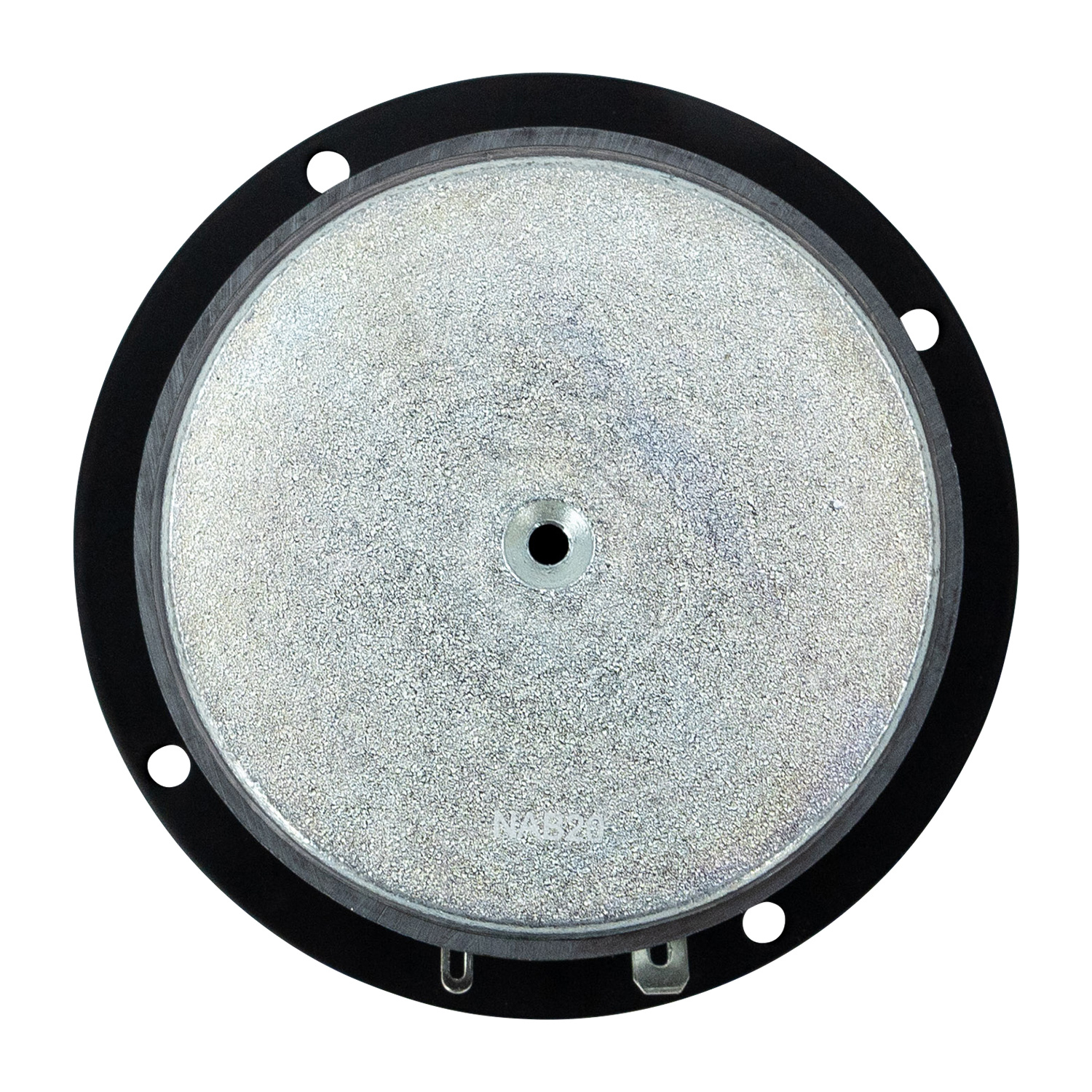

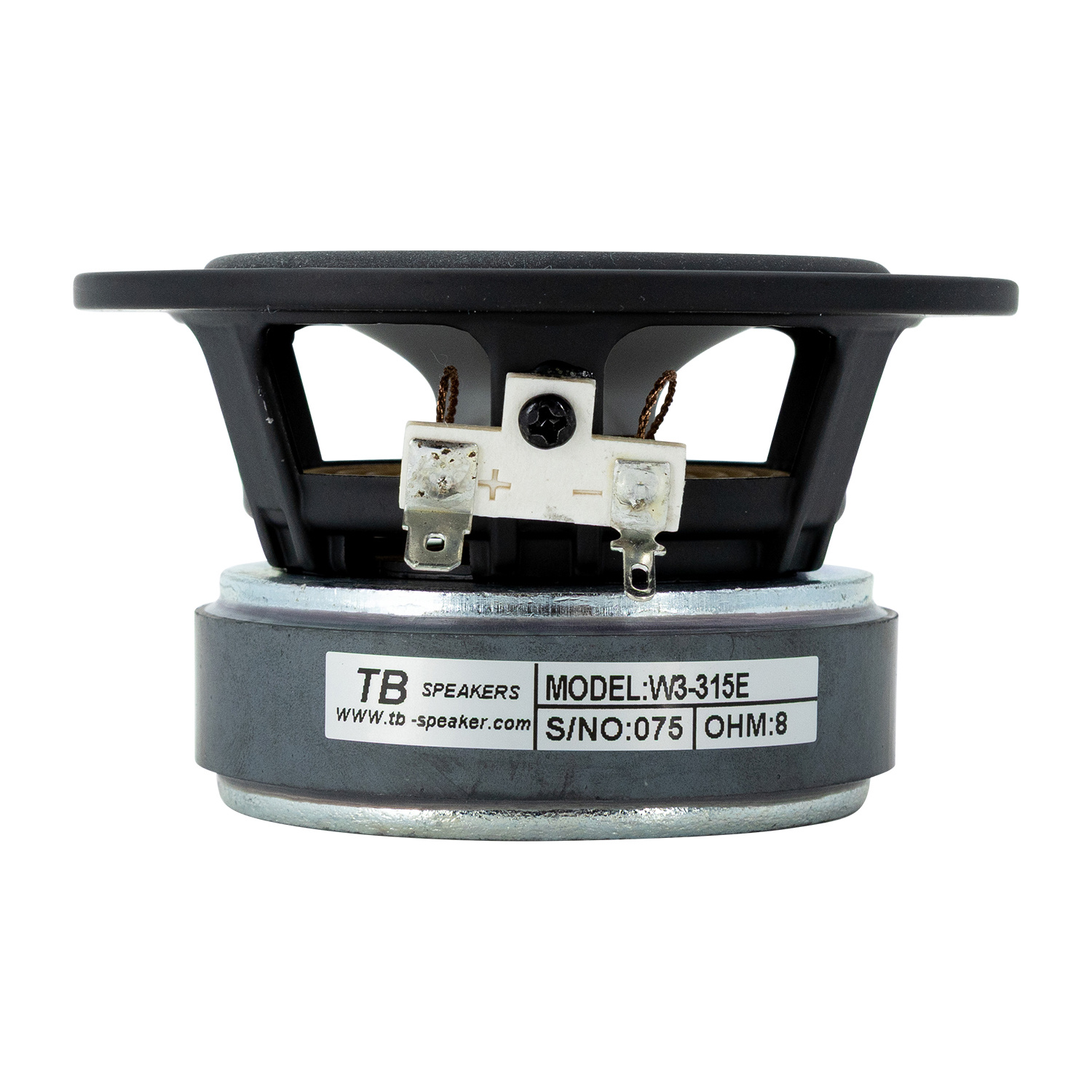

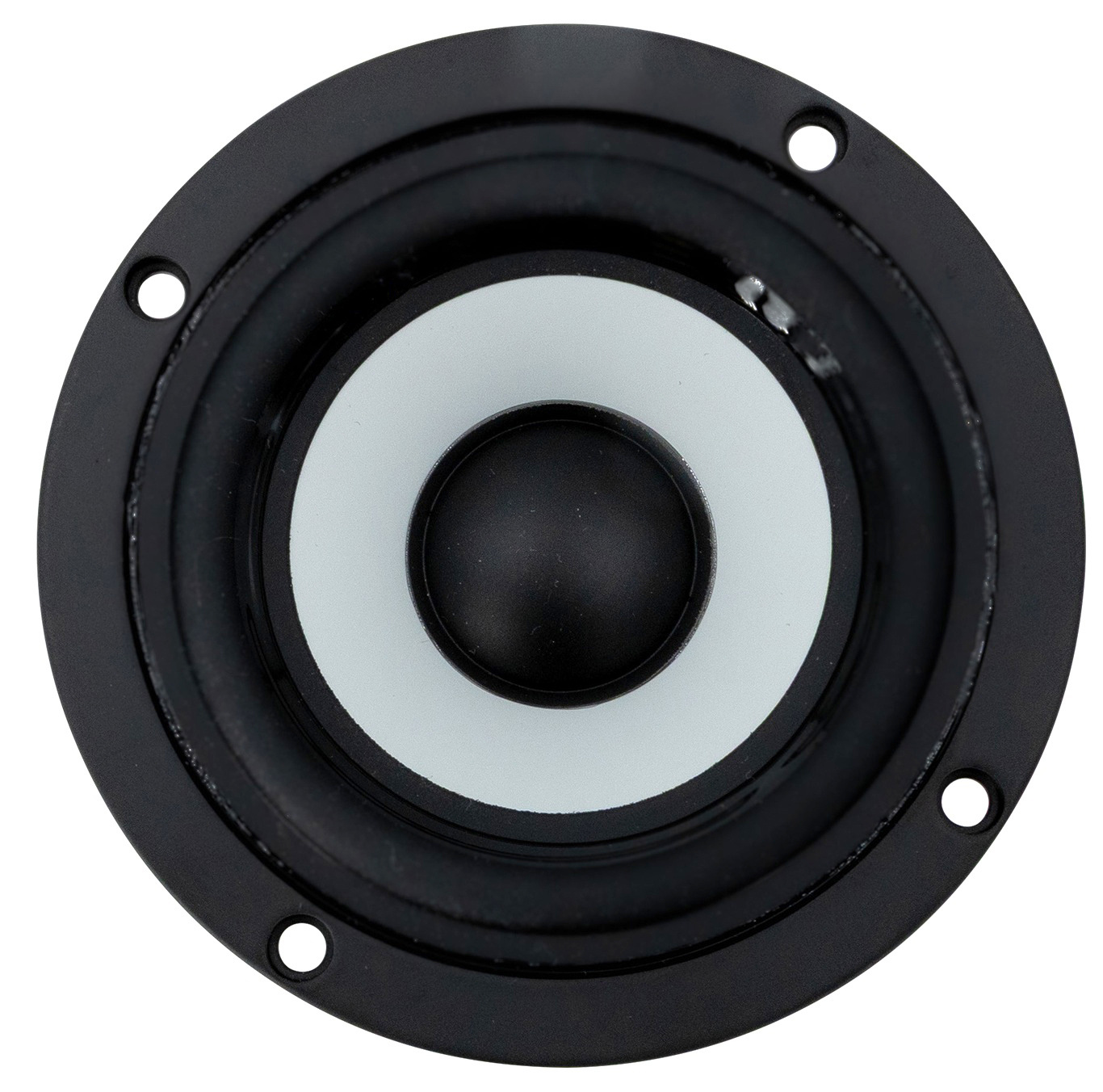

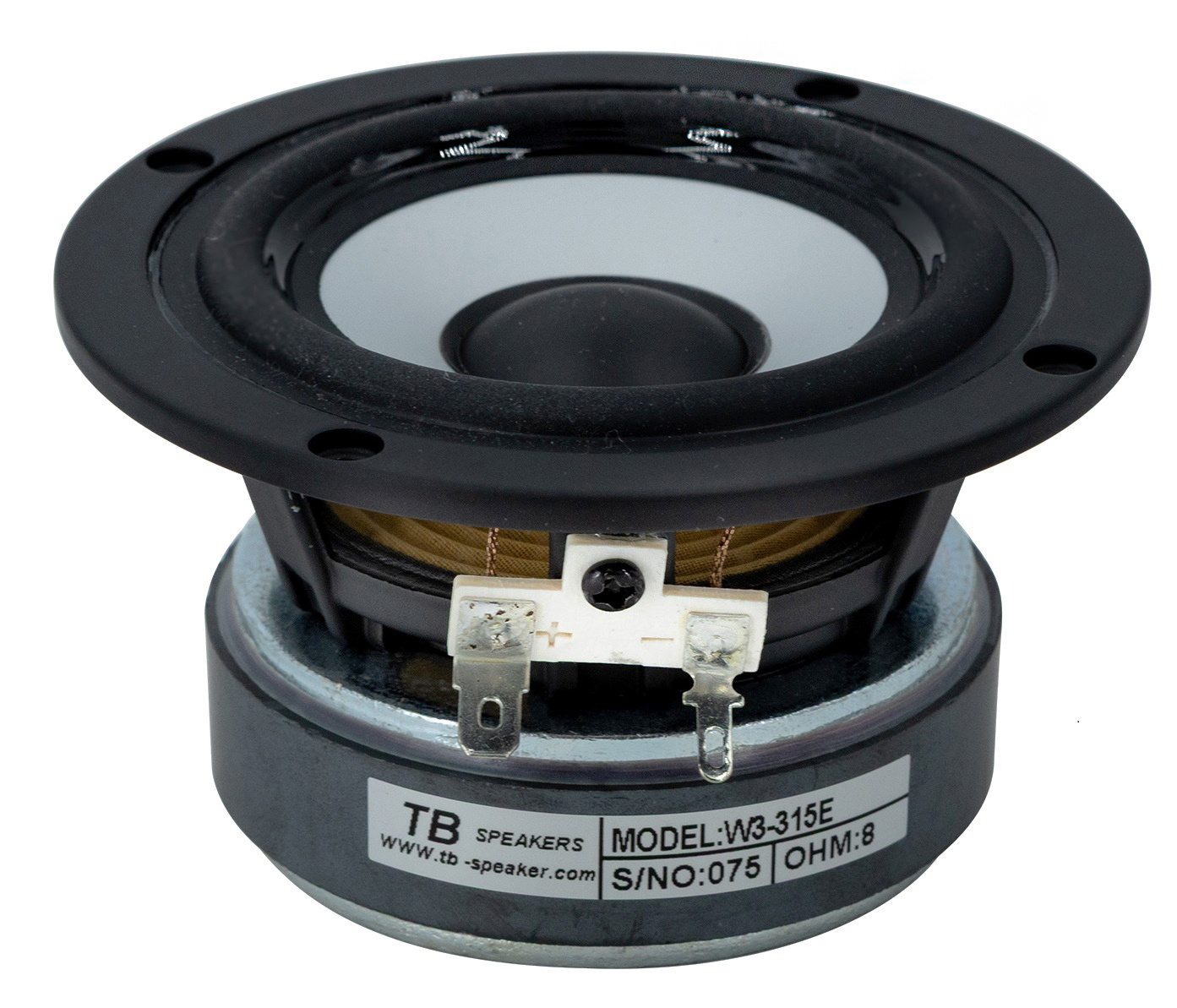

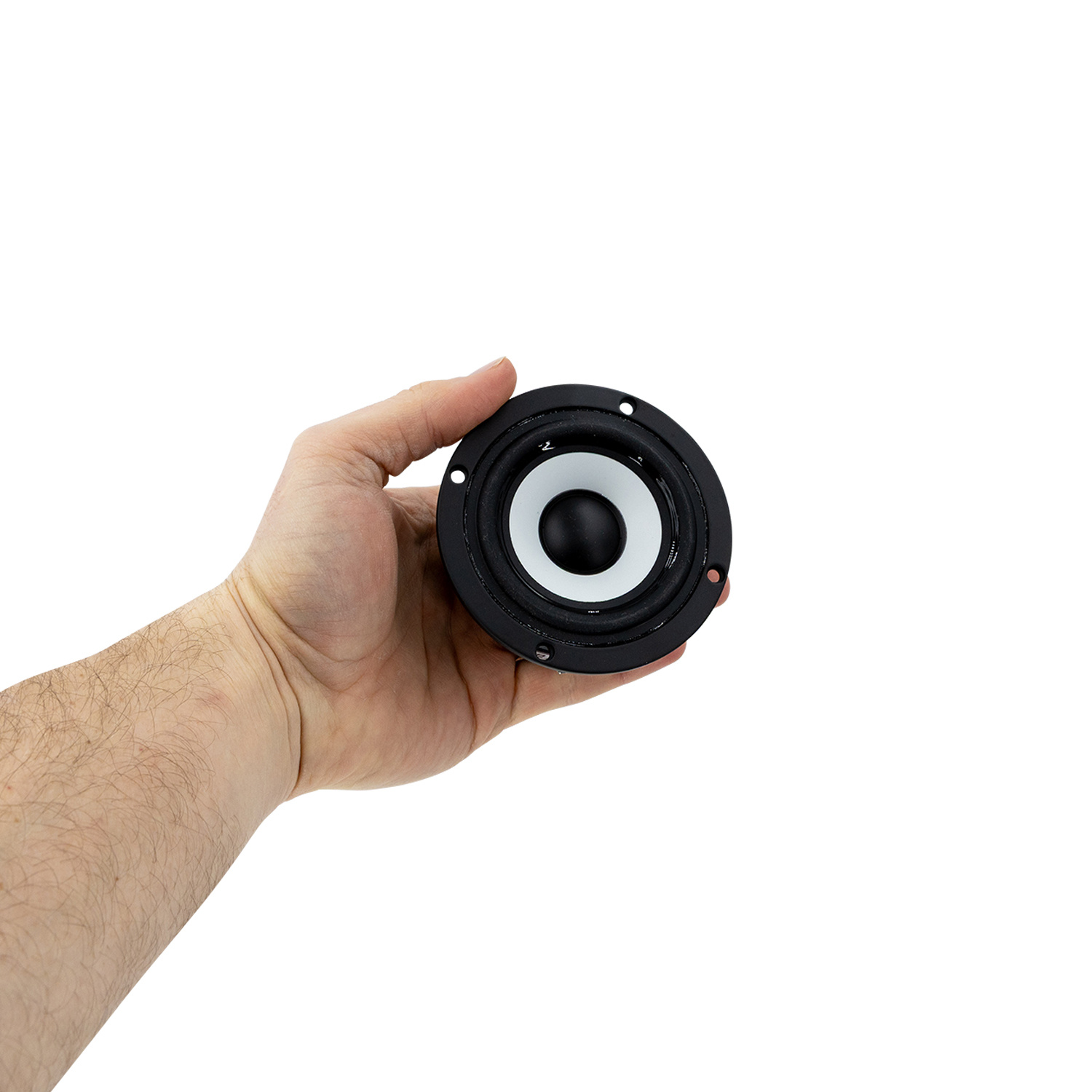

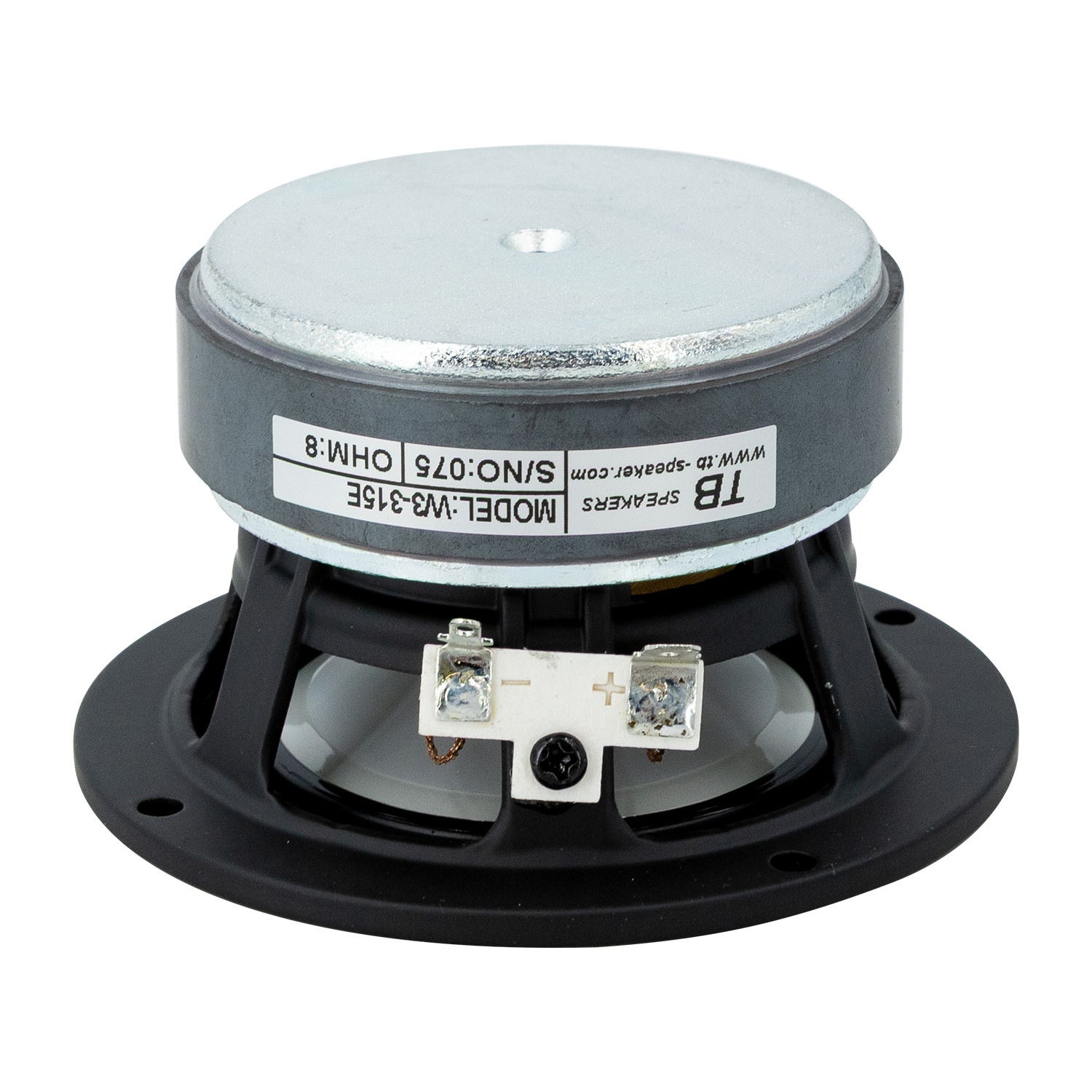

Tang Band W3-315E 3" Aluminum/Magnesium Full Range Driver

3 reviews

Brand: Tang Band

Show all Full-range woofer

Compare

3" | 8 Ω

W3-315E 3" Aluminum/Magnesium Full Range Driver

€ 31,78€ 38,45 4 In stock

24h express shipping available
Ordered now, shipped on Monday
In-house technical support
45 days worry-free returns

Request quotation

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

3" driver with an aluminum/magnesium cone, rubber surround, and cast aluminum frame.

Highlights

Full range frequency response
Die cast basket
Alum/Mg cone with Pulux surround
CCAW with Kapton bobbin

Product details

Tang Band W3-315E 3" Aluminum/Magnesium Full Range Driver

3" driver with an aluminum/magnesium cone, rubber surround, and cast aluminum frame. The rigid cone offers a very clean and clear midrange with a strong midbass.

Specifications

Article number: W3-315E
Woofer Type: Full-range
Nominal Diameter: 3"
Power Handling (RMS): 10 Watts
Power Handling (max): 20 Watts
Impedance (Z): 8 ohms
Sensitivity: 87 dB 1W/1m
Frequency Response: 100 to 20,000 Hz
Voice Coil Diameter: 0.8"
DC Resistance (Re): 6.6 ohms
Voice Coil Inductance (Le): 0.2 mH
Resonant Frequency (Fs): 100 Hz
Mechanical Q (Qms): 5.51
Electromagnetic Q (Qes): 0.57
Total Q (Qts): 0.52
Diaphragm Mass Inc. Airload (Mms): 2g
Mechanical Compliance of Suspension (Cms): 1.15 mm/N
Surface Area of Cone (Sd): 32 cm²
BL Product (BL): 3.89 Tm
Compliance Equivalent Volume (Vas): 0.06 ft.³
Maximum Linear Excursion (Xmax): 1.25 mm
Cone / Diaphragm Material: Aluminum / Magnesium
Surround Material: Santoprene®
Voice Coil Wire Material: CCA
Voice Coil Former: Kapton® / Polyimide
Basket / Frame Material: Cast Aluminum
Magnet Material: Ferrite
Overall Outside Diameter: 3.66"
Overall Depth: 2.13"
Baffle Cutout Diameter: 2.98"
# Mounting Holes: 4
Sealed Volume: 0.04 ft.³
Sealed F3: 154 Hz
Vented Volume: 0.1 ft.³
Vented F3: 74 Hz

Reviews

3 reviews

4 from 5Based on 3 reviews

Review this product

5 of 5

TOP!!! Ist genau, was ich erwartet habe; braucht aber unbedingt ein geschlossenes Gehäuse als Resonator (bei mir ca.1,9Liter) bringt dann richtig Schalldruck!

By Jürgen B. on 20 February 2020

4 of 5

quiet a good driver but i prefer the polypropylene version instead of aluminium

By Gerald S. on 16 February 2019
