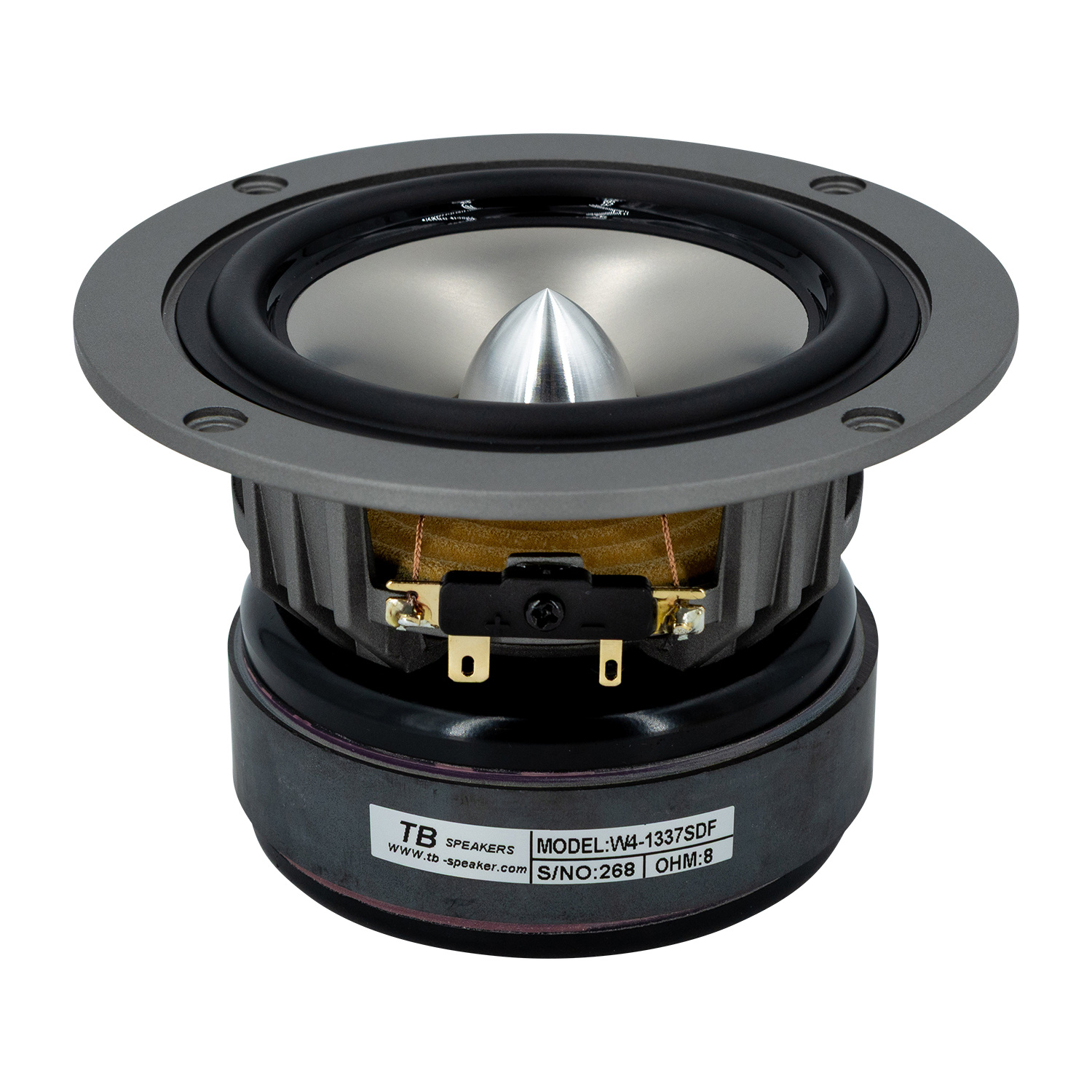

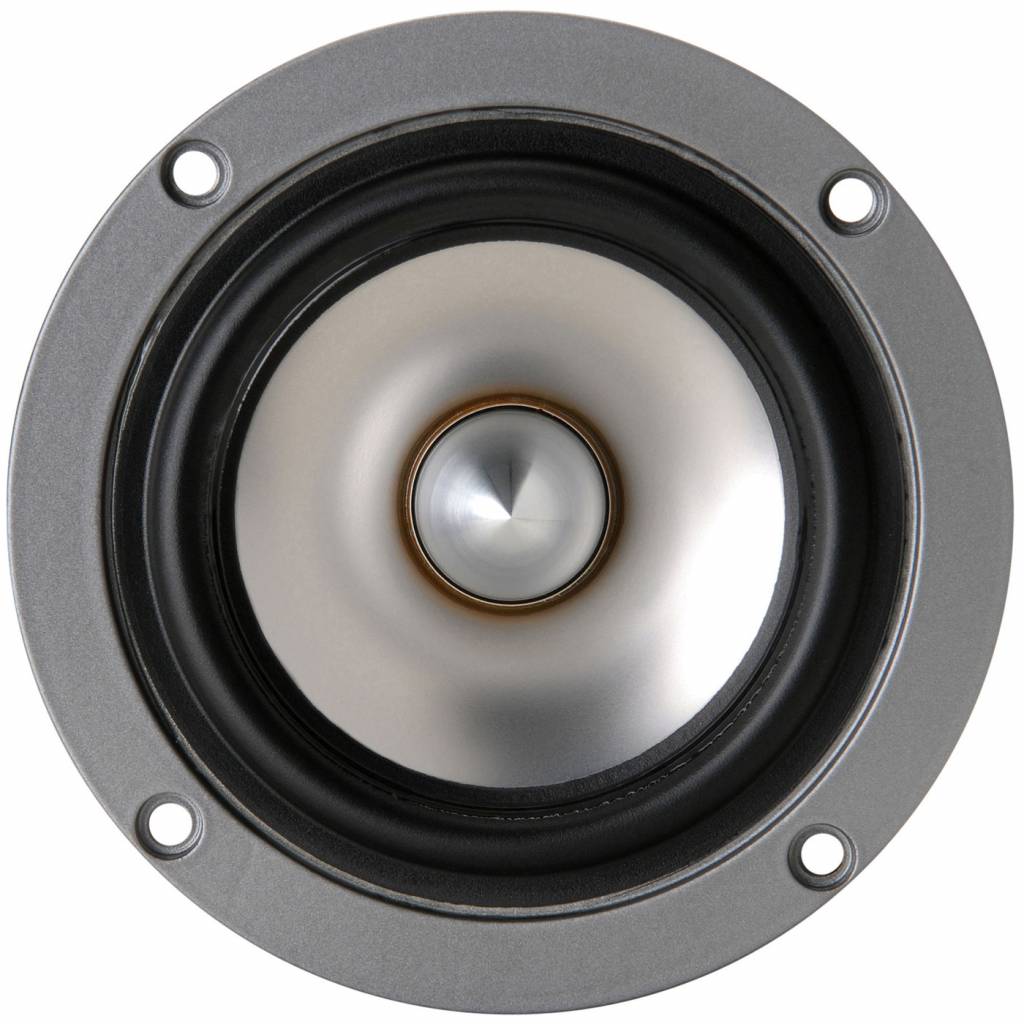

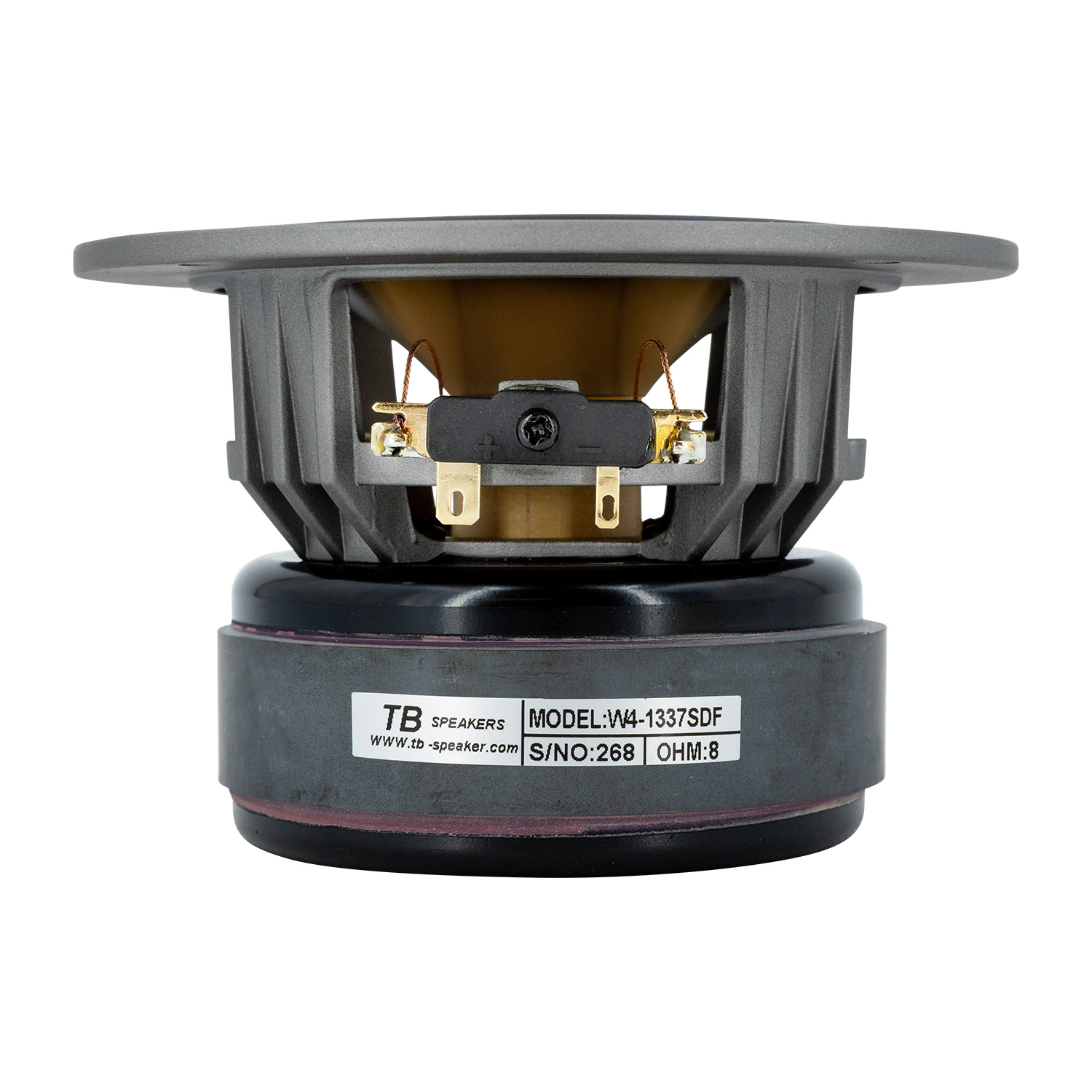

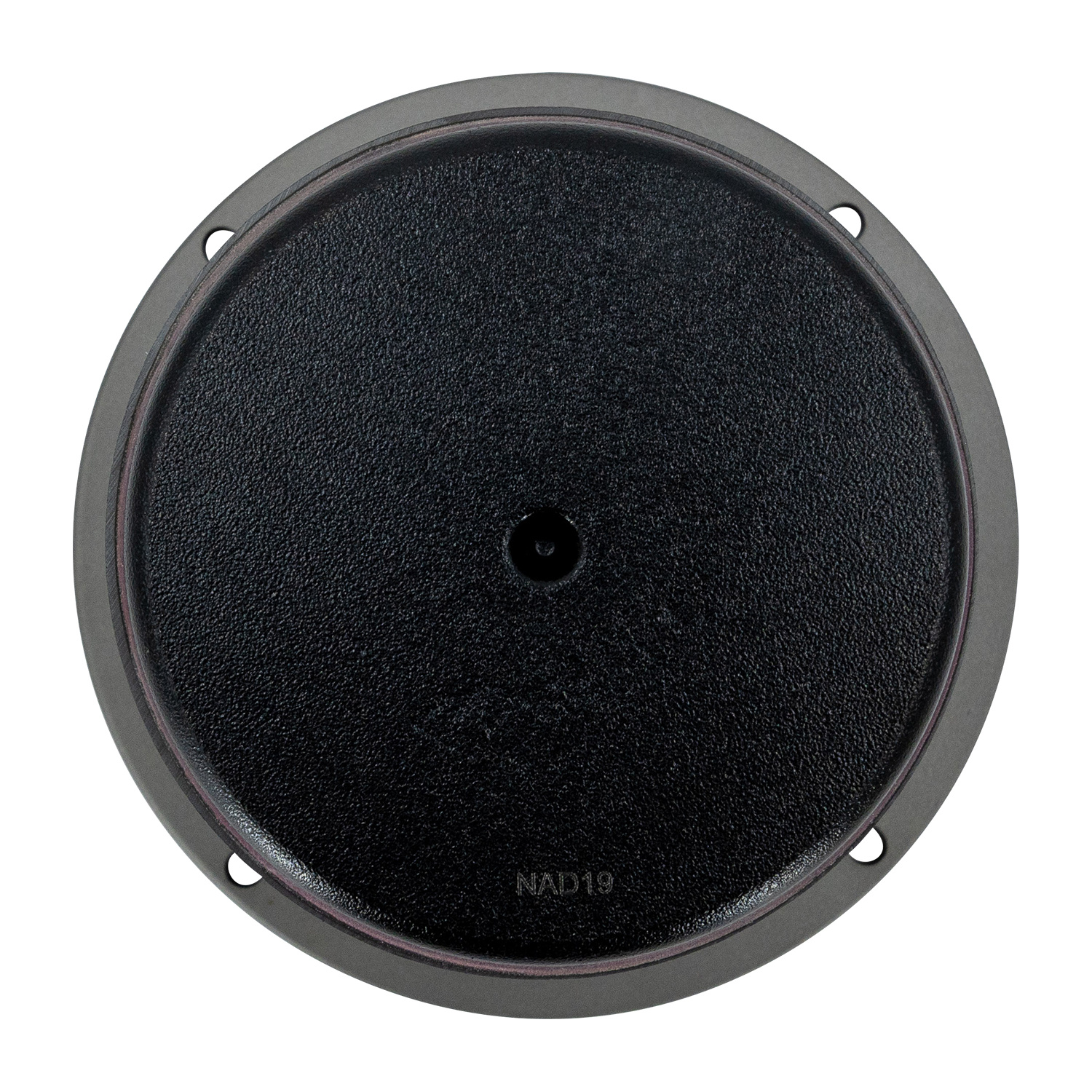

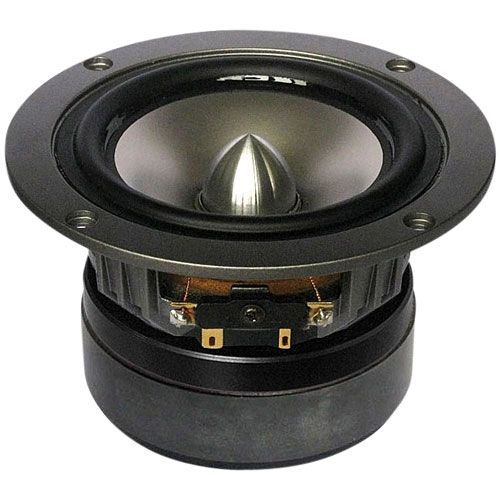

    Tang Band W4-1337SDF 4" Titanium Full Range Speaker

    € 60,70€ 73,45 >10 In stock: delivery time 1-4 business days
    Bulk discount Enjoy these awesome discount deals
    • -5% Order 4 for only €69,78 per piece
    • 24h express shipping available
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    The Tang Band W4-1337SDF 4" driver achieves extended range and high efficiency, thanks in large part to its exotic titanium cone.



    Highlights

    • Achieves extended range thanks in part to its exotic titanium cone
    • Offers high power handling, good mechanical excursion abilities, and strong bass performance
    • Great for home theater or hi-fi midbass applications



    Product details

    Tang Band W4-1337SDF 4" Titanium Full Range Speaker

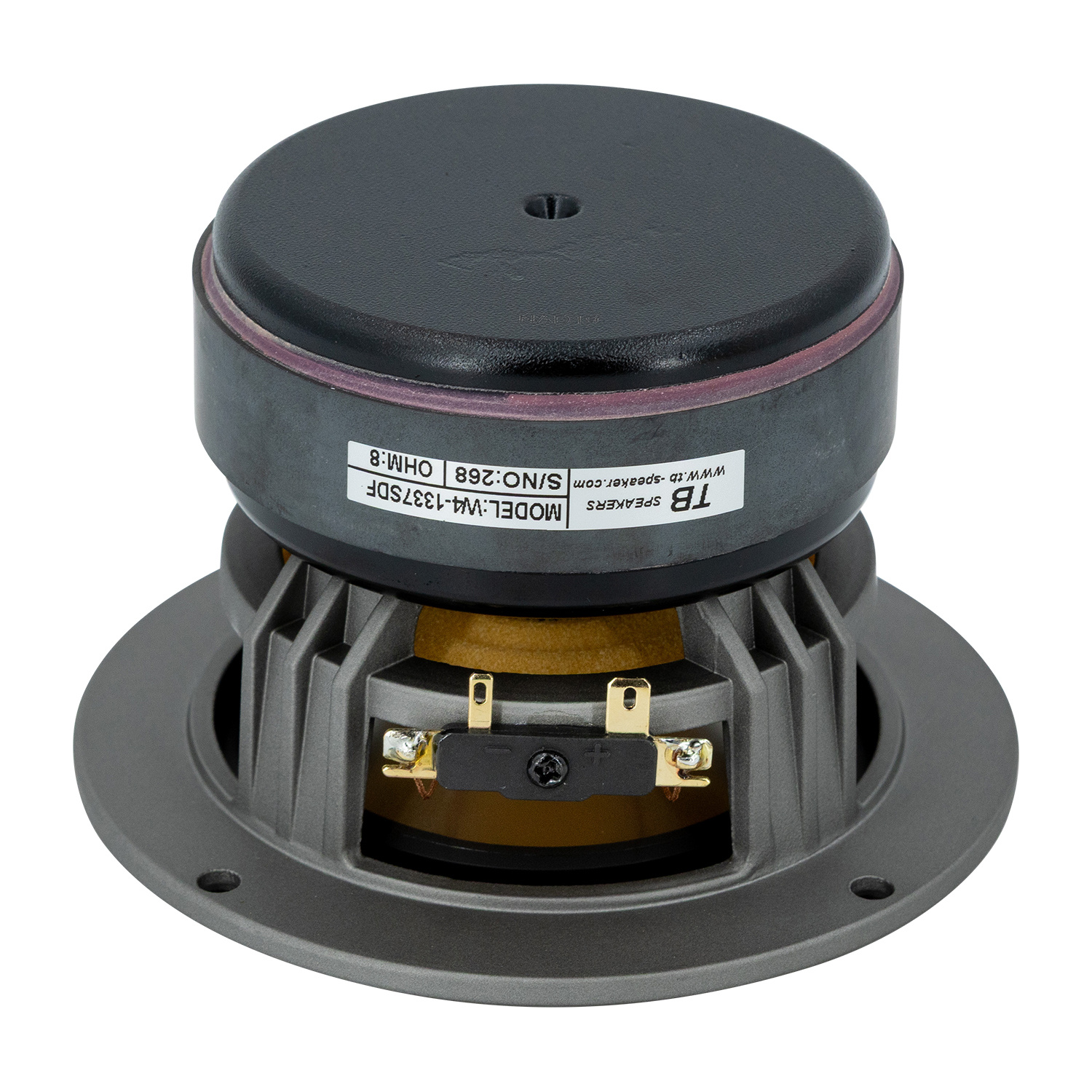

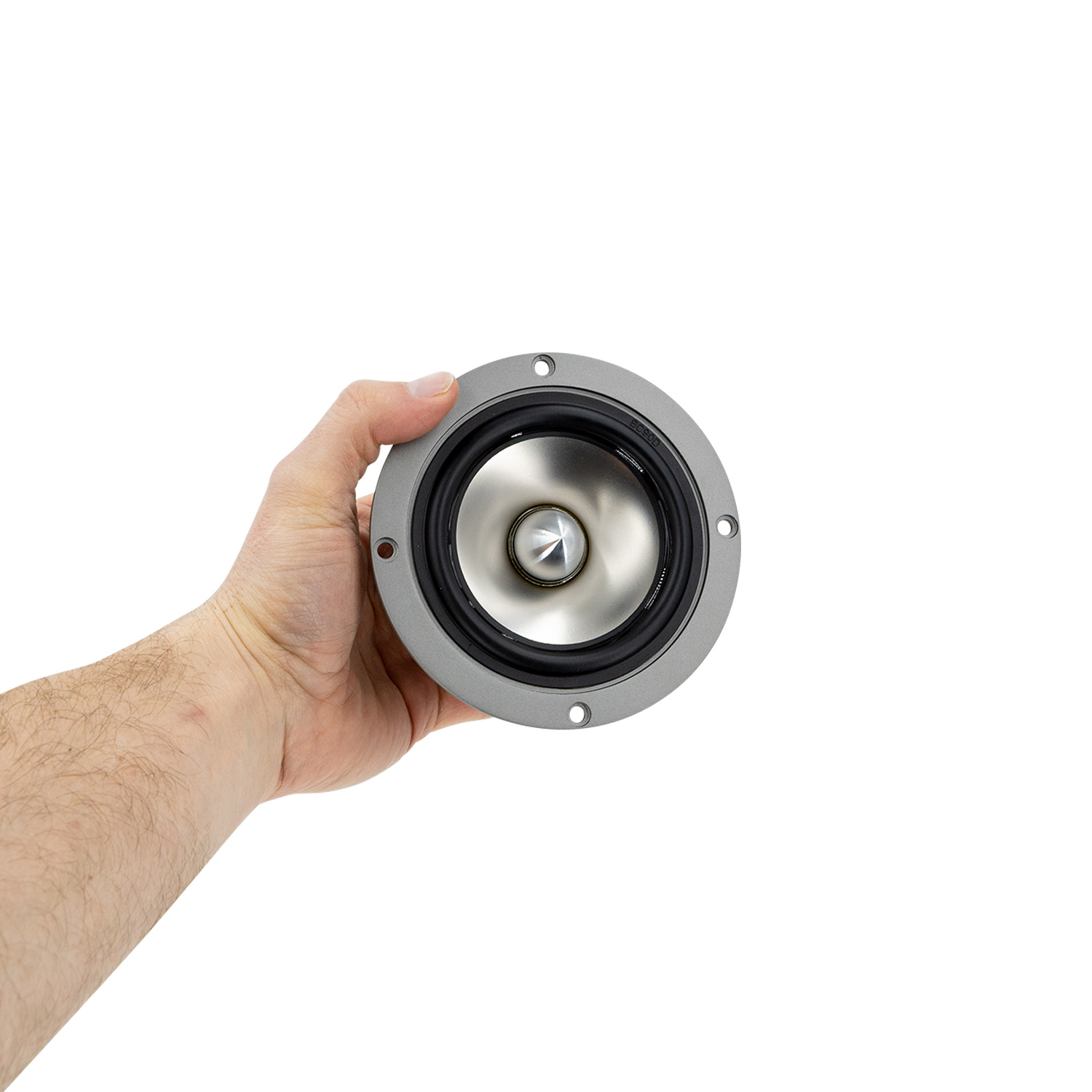

    This high-quality full range 4" driver, the Tang Band W4-1337SDF, utilizes a unique titanium cone, solid aluminum phase plug, Santoprene rubber half-roll surround, underhung voice coil, and large ceramic ferrite motor structure. The W4-1337SDF offers high power handling, good mechanical excursion abilities, and strong bass performance for a driver of its size. Great for home theater or hi-fi midbass applications.

    Specifications

    Article number
    W4-1337SDF
    Woofer Type
    Full-range
    Nominal Diameter
    4"
    Power Handling (RMS)
    25 Watts
    Power Handling (max)
    50 Watts
    Impedance (Z)
    8 ohms
    Sensitivity
    89 dB 1W/1m
    Frequency Response
    70 to 20,000 Hz
    Voice Coil Diameter
    1"
    Magnet Weight
    18.6 oz.
    DC Resistance (Re)
    6.3 ohms
    Voice Coil Inductance (Le)
    0.03 mH
    Resonant Frequency (Fs)
    70 Hz
    Mechanical Q (Qms)
    2.04
    Electromagnetic Q (Qes)
    0.4
    Total Q (Qts)
    0.34
    Diaphragm Mass Inc. Airload (Mms)
    3.99g
    Mechanical Compliance of Suspension (Cms)
    1.21 mm/N
    Surface Area of Cone (Sd)
    57 cm²
    BL Product (BL)
    5.32 Tm
    Compliance Equivalent Volume (Vas)
    0.2 ft.³
    Maximum Linear Excursion (Xmax)
    2.5 mm
    Cone / Diaphragm Material
    Titanium
    Surround Material
    Santoprene®
    Basket / Frame Material
    Cast Aluminum
    Magnet Material
    Ferrite
    Overall Outside Diameter
    4.94"
    Overall Depth
    3.24"
    Baffle Cutout Diameter
    3.74"
    # Mounting Holes
    4
    Sealed Volume
    0.04 ft.³
    Sealed F3
    167 Hz
    Vented Volume
    0.09 ft.³
    Vented F3
    101 Hz

    Reviews

    5 from 5Based on 4 reviews
    Review this product
    5 of 5
    Ich setze diesen Lautsprecher als Ersatz in einer 35 Jahre alten P&S (Pöhler und Schilling) , hier die kleinste Baby, ein. Die P&S ist eine nach oben abstrahlende kleine geschlossene Standbox mit ca. 9 Liter Volumen. - Auf einen weiteren Höchtöner habe ich vorerst verzichtet. - Der Sound ist ein überwältigender Genuss bei Streich- Instrumenten, selbst Schlagzeug und Bass. Selbstverständlich ist der Bass nicht für Techno oder Rock ausreichend (hier hilft dann ein kleiner sep. Subwoofer) - Aber sonst für alle Hörgenusse sehr gut. Ein sehr kleiner Dämpfer ist allerdings bei Blasinstrumenten, hier besonders bei Waldhörnern , feststellbar. -
    Ich werde diesen Typ in den weiteren Überlegungen für die Sanierung von alten Boxen favorisieren!
    By Klaus-Peter H. on 11 April 2021
    5 of 5
    Solide speaker, mooie specs. Ben nog aan het expirimenteren met een hoorn speaker en de demping dus kan nog geen goed oordeel geven. Klinkt wel beter dan een Fostex met dezelfde maten.
    By Paul G. on 31 October 2020
