        75-1558SH 3" Fabric Dome Midrange

        75-1558SH 3" Fabric Dome Midrange

        €249,95

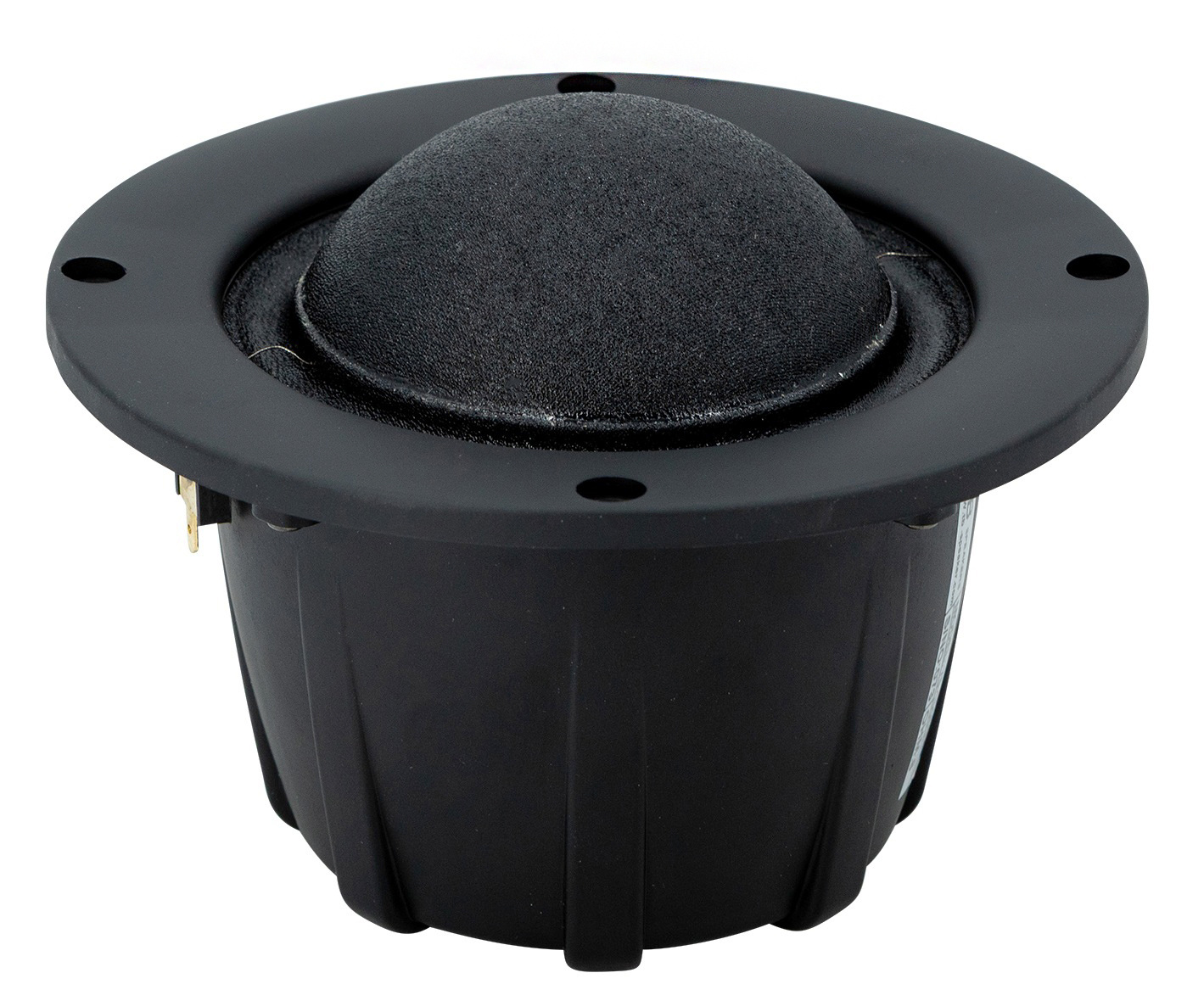

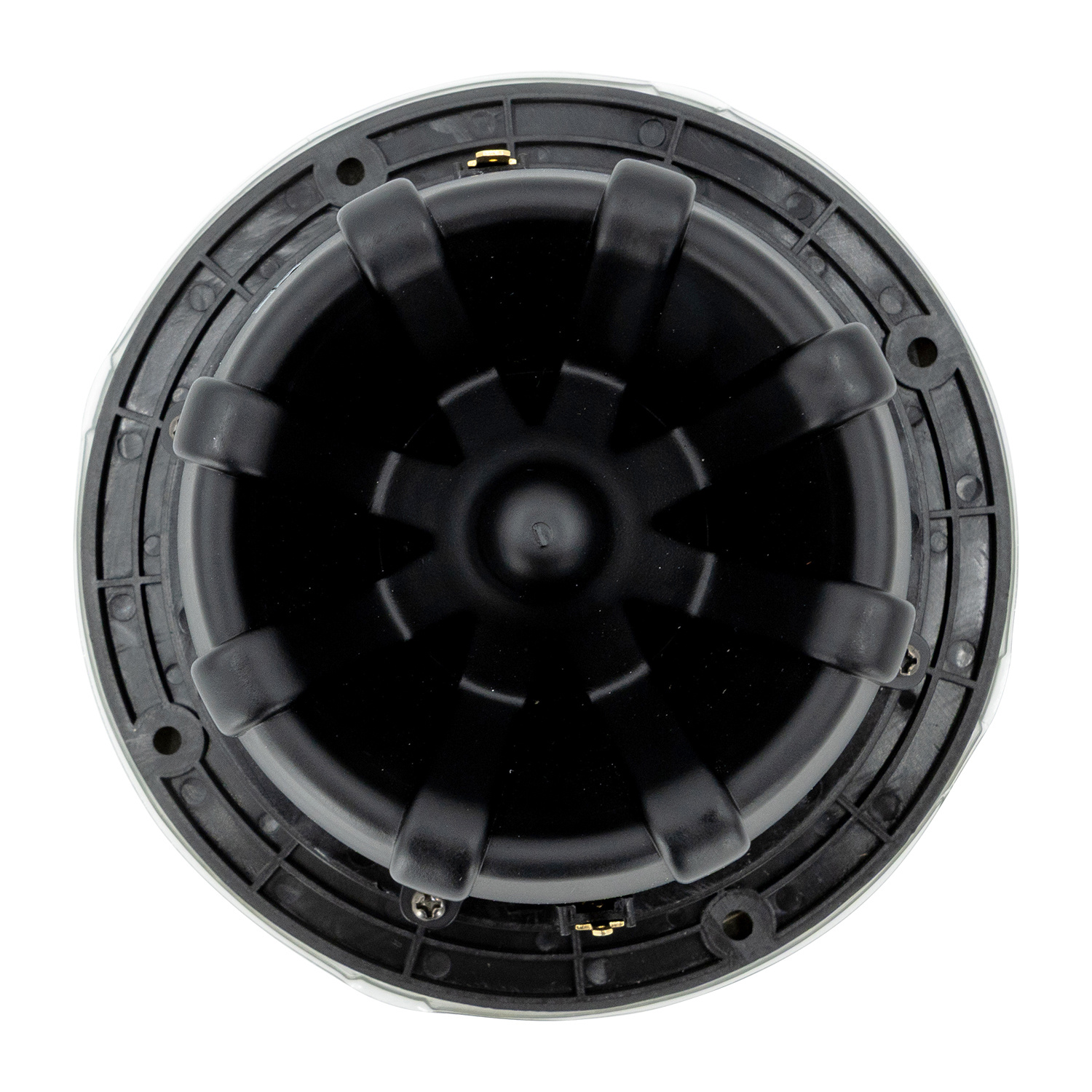

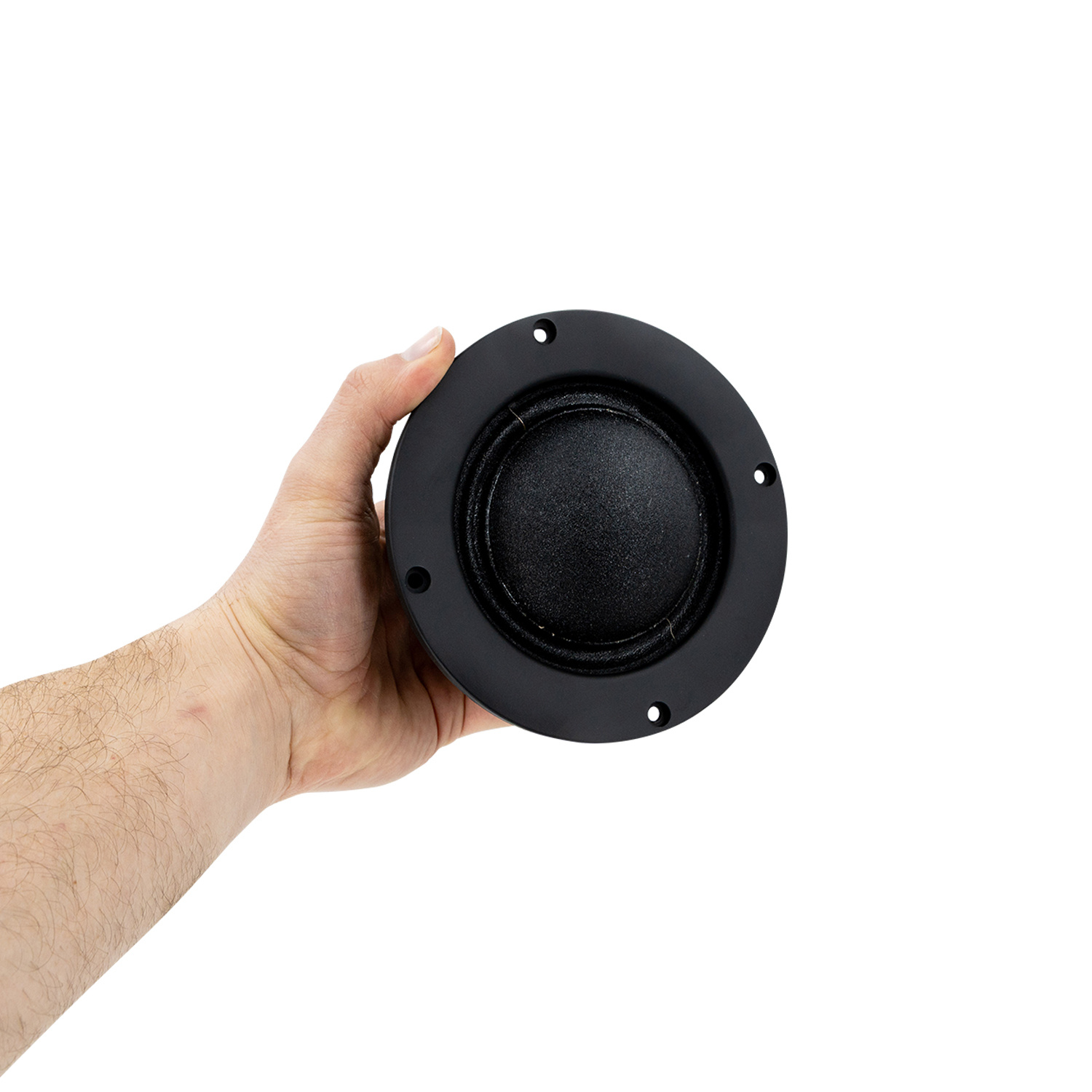

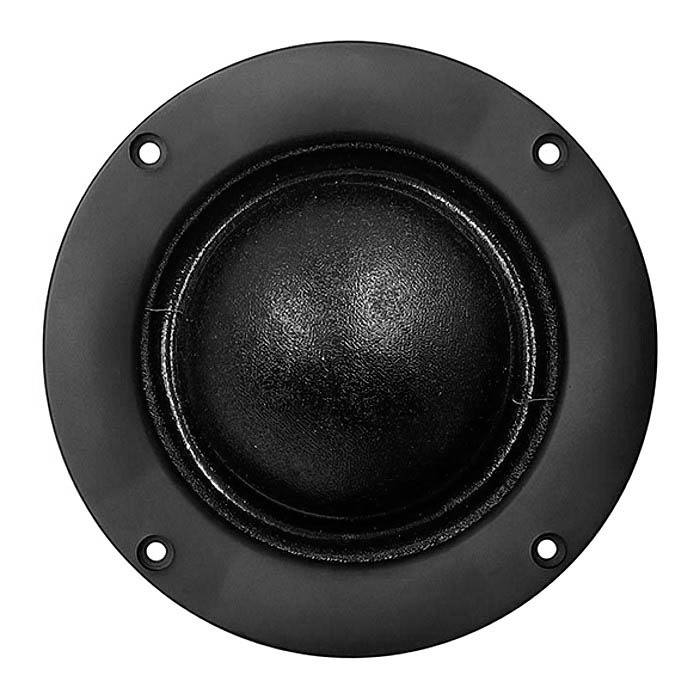

        Tang Band 75-1558SH 3" Fabric Dome Midrange

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Tang Band
        € 206,57€ 249,95 2 In stock
        • -5% Purchase 4 for only € 237,45 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Pros and cons

        According to our specialists
        • Broad 260-8,000 Hz frequency response

        Product description

        Take your speaker from ordinary to extraordinary with the Tang Band 75-1558SH Soft Dome Midrange.



        Highlights

        • 3" voice coil with damped soft dome
        • Shorting ring and optimized rear chamber for lower distortion
        • 90 dB SPL for high efficiency systems
        • Ferrofluid cooling for increased power handling
        • Low Fs and extended frequency response allows this to mate with almost any woofer and tweeter



        Product details

        Tang Band 75-1558SH Soft Dome Midrange.



        The Tang Band 75-1558SH is a low distortion, wide bandwidth soft dome midrange that will create uncolored natural vocals and snappy dynamics to your next multi-way speaker build. High efficiency is achieved with a neodymium motor, and low second and third order harmonic distortion is aided with the used of a shorting ring and damped dome. The 75-1558SH has a broad 260-8,000 Hz frequency response that allows it to work with just about any size woofer and tweeter combination. Ferrofluid cooling keeps power compression low and power handling high.

        Show more

        Specifications

        Article number
        75-1558SH
        Woofer Type
        Midrange Dome
        Nominal Diameter
        3"
        Power Handling (RMS)
        25 Watts
        Power Handling (max)
        200 Watts
        Impedance (Z)
        Sensitivity (SPL at 1m / 2.83V)
        90 dB
        Frequency Response
        260 to 8,000Hz
        Voice Coil Diameter
        3"
        DC Resistance (Re)
        6.5Ω
        Voice Coil Inductance (Le)
        0.014mH
        Resonant Frequency (Fs)
        260 Hz
        Mechanical Q (Qms)
        1.14
        Electromagnetic Q (Qes)
        0.75
        Total Q (Qts)
        0.45
        Maximum Linear Excursion (Xmax)
        1.5 mm
        Cone / Diaphragm Material
        Soft Dome
        Basket / Frame Material
        Polymer
        Magnet Material
        Neodymium
        Overall Outside Diameter
        5.51"
        Overall Depth
        2.95"
        Baffle Cutout Diameter
        4.6"
        Bolt Circle Diameter
        5.04
        # Mounting Holes
        4
