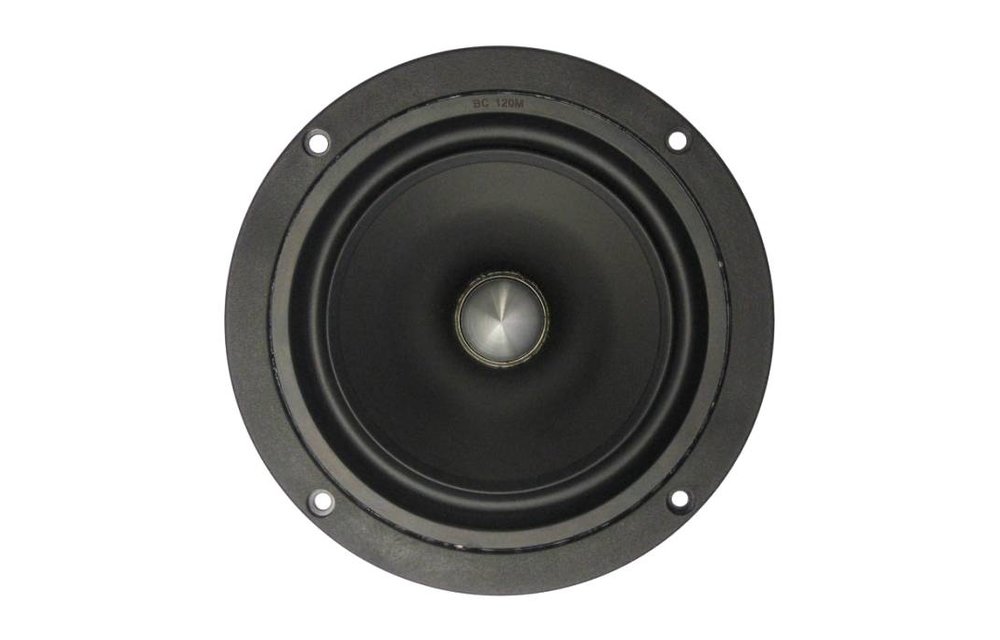

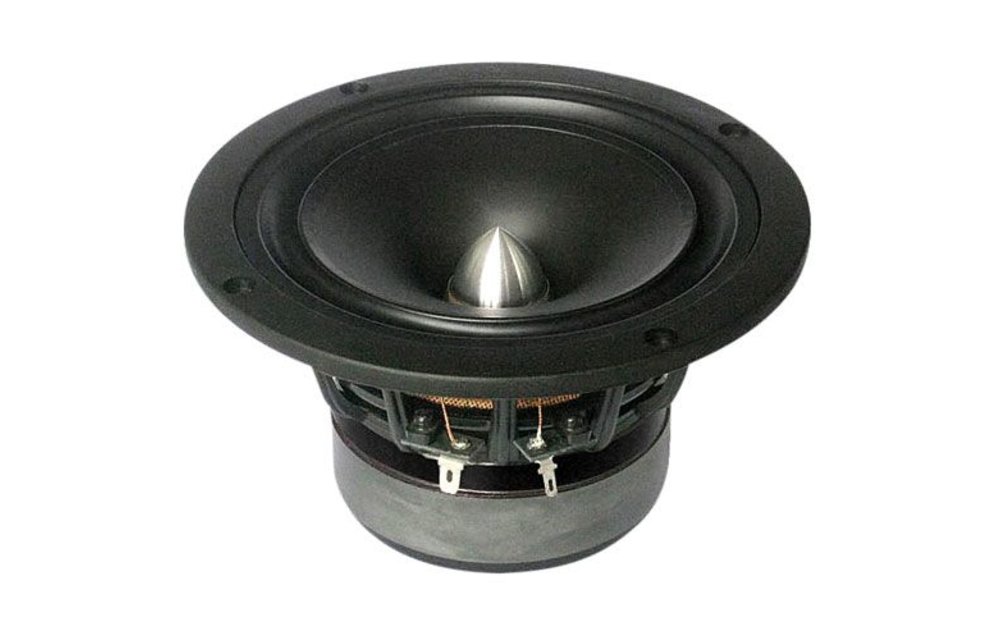

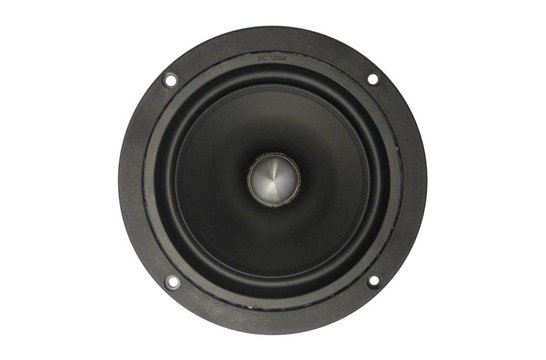

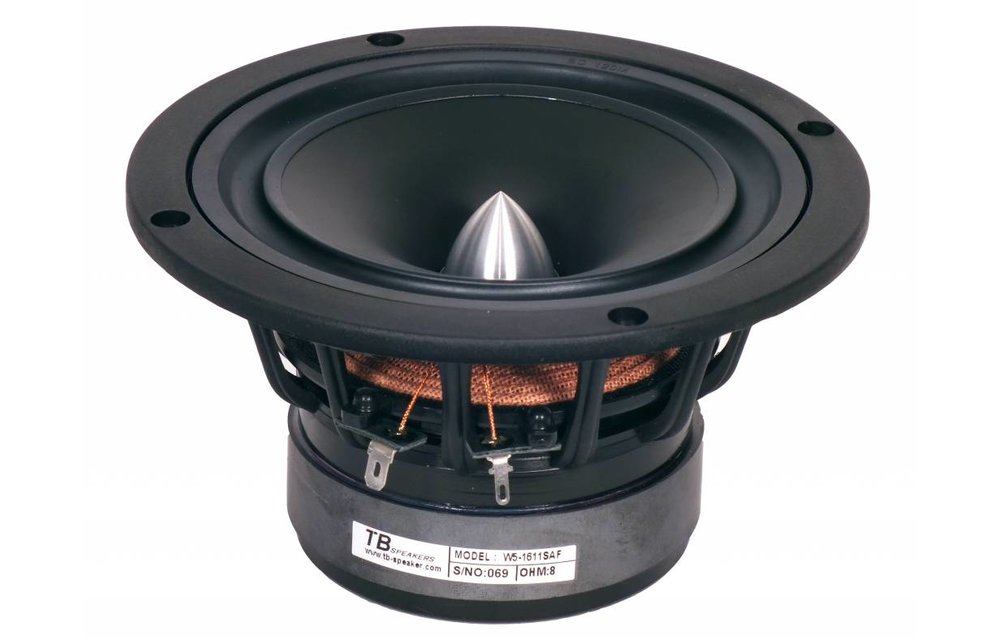

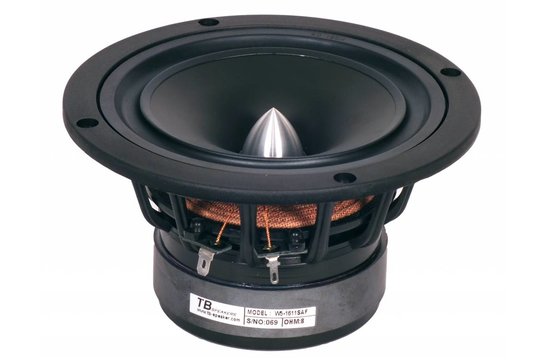

- Artikelnummer
- W5-1611SAF
- Woofer Type
- Full-range
- Nominal Diameter
- 5"
- Power Handling (RMS)
- 28 Watts
- Power Handling (max)
- 56 Watts
- Impedance
- 8 ohms
- Sensitivity
- 90 dB 1W/1m
- Frequency Response
- 60 to 20,000 Hz
- Voice Coil Diameter
- 1"
- Magnet Weight
- 18.6 oz.
- DC Resistance (Re)
- 6.3 ohms
- Voice Coil Inductance (Le)
- 0.02 mH
- Resonant Frequency (Fs)
- 60 Hz
- Mechanical Q (Qms)
- 2.8
- Electromagnetic Q (Qes)
- 0.52
- Total Q (Qts)
- 0.44
- Diaphragm Mass Inc. Airload (Mms)
- 5.99g
- Mechanical Compliance of Suspension (Cms)
- 1.31 mm/N
- Surface Area of Cone (Sd)
- 94 cm²
- BL Product (BL)
- 5.53 Tm
- Compliance Equivalent Volume (Vas)
- 0.41 ft.³
- Maximum Linear Excursion (Xmax)
- 3 mm
- Cone / Diaphragm Material
- Poly
- Surround Material
- Rubber
- Basket / Frame Material
- Polymer
- Magnet Material
- Ferrite
- Overall Outside Diameter
- 6.18"
- Overall Depth
- 3.44"
- Baffle Cutout Diameter
- 5.16"
- # Mounting Holes
- 4
- Sealed Volume
- 0.17 ft.³
- Sealed F3
- 109 Hz
- Vented Volume
- 0.44 ft.³
- Vented F3
- 56 Hz
