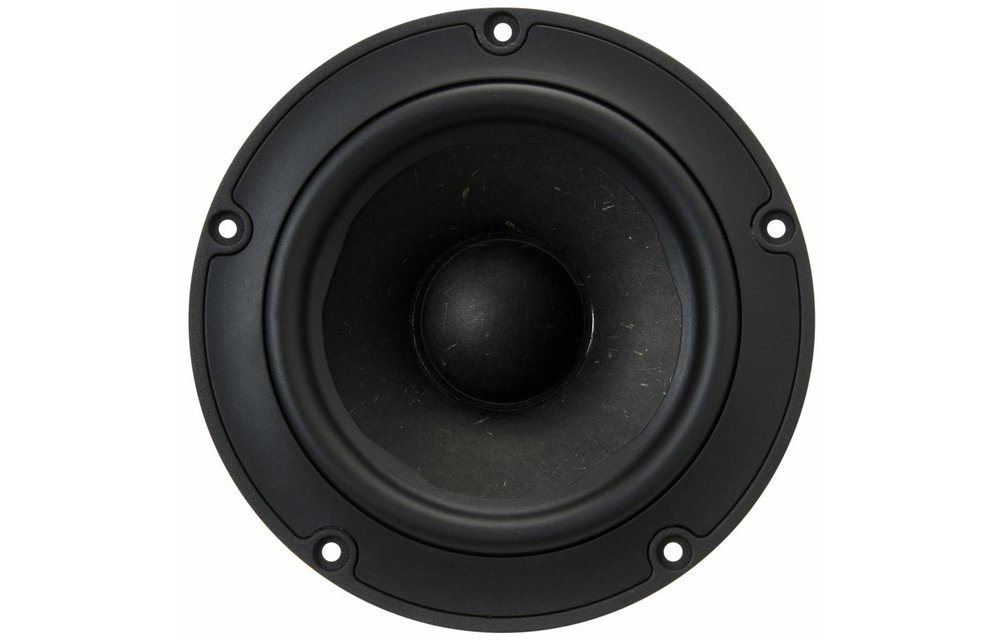

    Peerless by Tymphany NE149W-08 5-1/4" Woofer

    € 90,87€ 109,95 3 Op voorraad: levertijd 1 werkdag
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €104,45 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    The advanced design and superior construction of Tymphany's NE149W-08 5-1/4" neodymium speaker make it a preferred component for sophisticated audio designs.



    Highlights

    • Cast aluminum frame promotes motor cooling
    • Sculpted design improves airflow and reduces reflections
    • High-strength compact neodymium magnet system
    • Proprietary coated natural wood fiber cone with half-roll rubber surround
    • Long-throw 1-1/2" voice coil on titanium former
    • Copper pole piece cap for extended HF response
    • 8 ohm nominal impedance



    Product details

    Peerless by Tymphany NE149W-08 5-1/4" Woofer

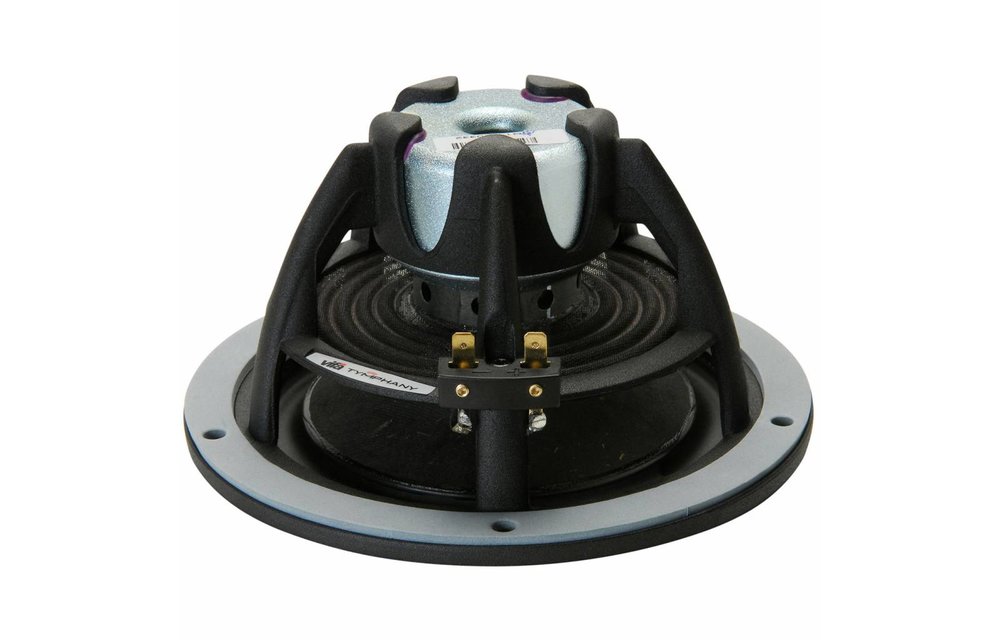

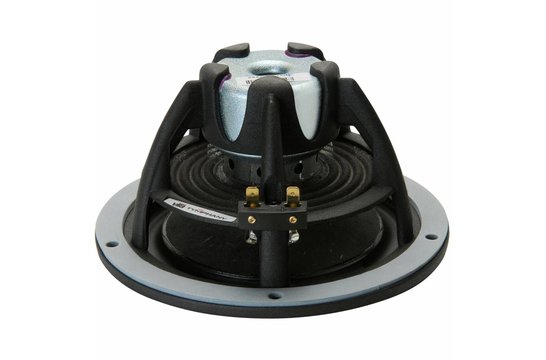

    This 5.25 inch 8 ohm member of the NE family has leading-edge transducer technology packaged in a cutting edge, stylistic design. The woofers in this family feature an innovative cast aluminium basket design which minimizes acoustic reflections inside the driver, through large basket windows and sculpted basket spokes. The basket also is designed to act as a highly coupled heat sink to the Neodymium-Iron-Boron magnet (NdFeB) motor, so as to improve power handling capacity. The cone and dust cap are constructed of natural wood fiber material with proprietary coating formulas and processes, so as to yield high clarity products. The cone designs also utilize pentacone technology for improved frequency response. The voice coil bobbin is titanium, for improved performance. The FEA-designed motor features copper caps to minimize inductance and extend performance to high frequencies. Rounding out the design is a 4-way terminal block connector, for ease of electrical connection.

    Specificaties

    Artikelnummer
    NE149W-08
    Woofer type
    Woofer
    Nominale diameter
    5-1/4"
    Belastbaarheid (RMS)
    60 Watts
    Belastbaarheid (max)
    120 Watts
    Impedantie (Z)
    8 ohms
    Gevoeligheid
    86 dB 1W/1m
    Frequentierespons
    50 to 5,000 Hz
    Spreekspoeldiameter
    1.5"
    Gelijkstroomweerstand (Re)
    6.3 ohms
    Spreekspoelinductie (Le)
    0.08 mH
    Resonantiefrequentie (Fs)
    54 Hz
    Mechanische Q (Qms)
    8.19
    Elektrische Q (Qes)
    0.4
    Totale Q (Qts)
    0.38
    Bewegende massa (Mms)
    10.3g
    Compliantie van de ophanging (Cms)
    0.84 mm/N
    Effectief oppervlak (Sd)
    85 cm²
    Krachtsfactor (BL)
    7.42 Tm
    Equivalentvolume (Vas)
    0.3 ft.³
    Maximale excursie (Xmax)
    5 mm
    Cone / Diaphragm Material
    Wood Fiber
    Surroundmateriaal
    Rubber
    Magneetmateriaal
    Neodymium
    Totale buitendiameter
    5.39"
    Totale diepte
    3.18"
    Montagegatdiameter
    4.92"
    # Bevestigingsgaten
    5
    Gesloten volume
    0.09 ft.³
    Gesloten F3
    113 Hz
    Gepoort volume
    0.2 ft.³
    Gepoort F3
    63 Hz

    Reviews

    5 from 5Based on 1 reviews
    Schrijf een review
    5 van 5
    Great sound. +4.5dB peak between 800 and 1600Hz needs to be handled (worths the effort).
    Door Zoltan P. on 24 April 2021
