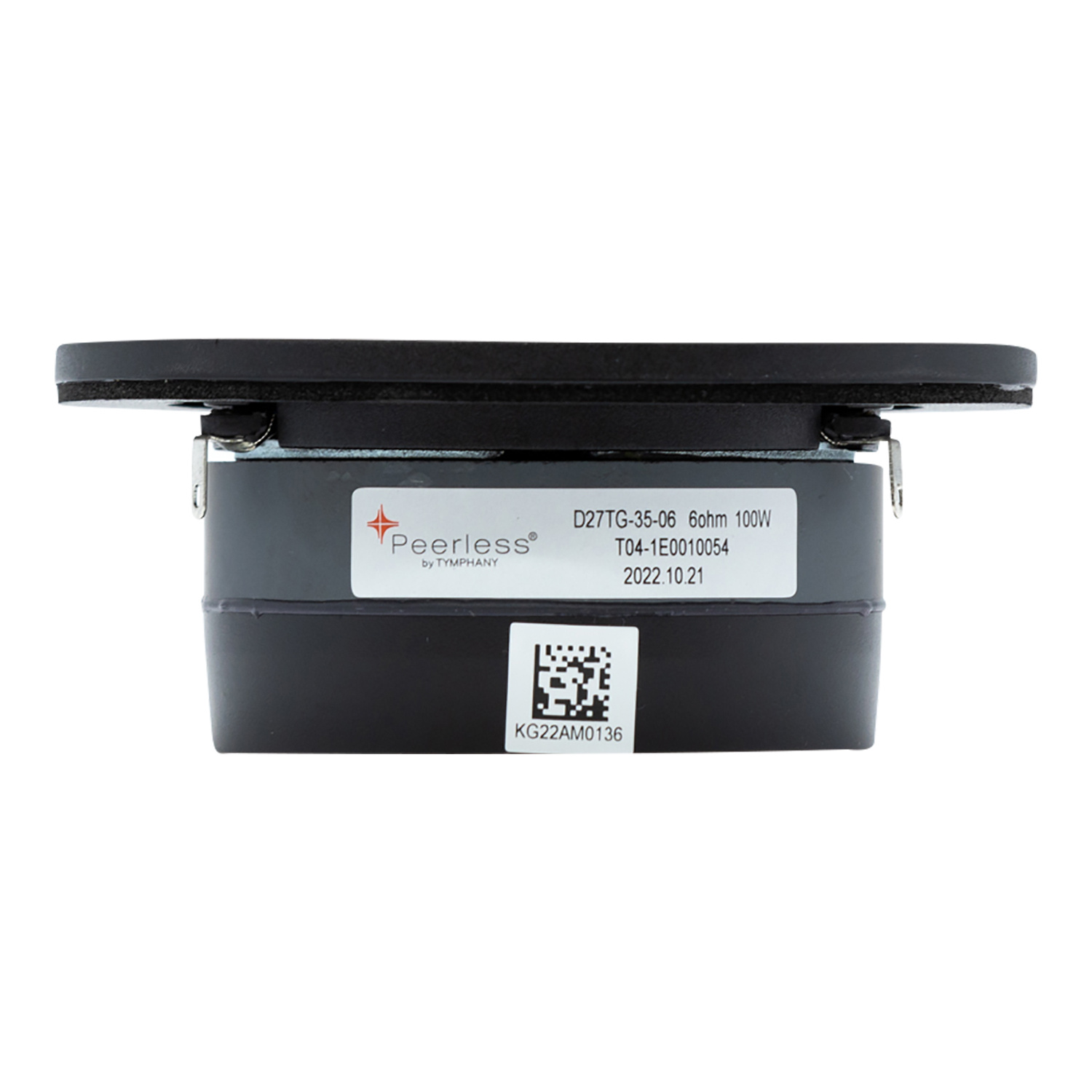

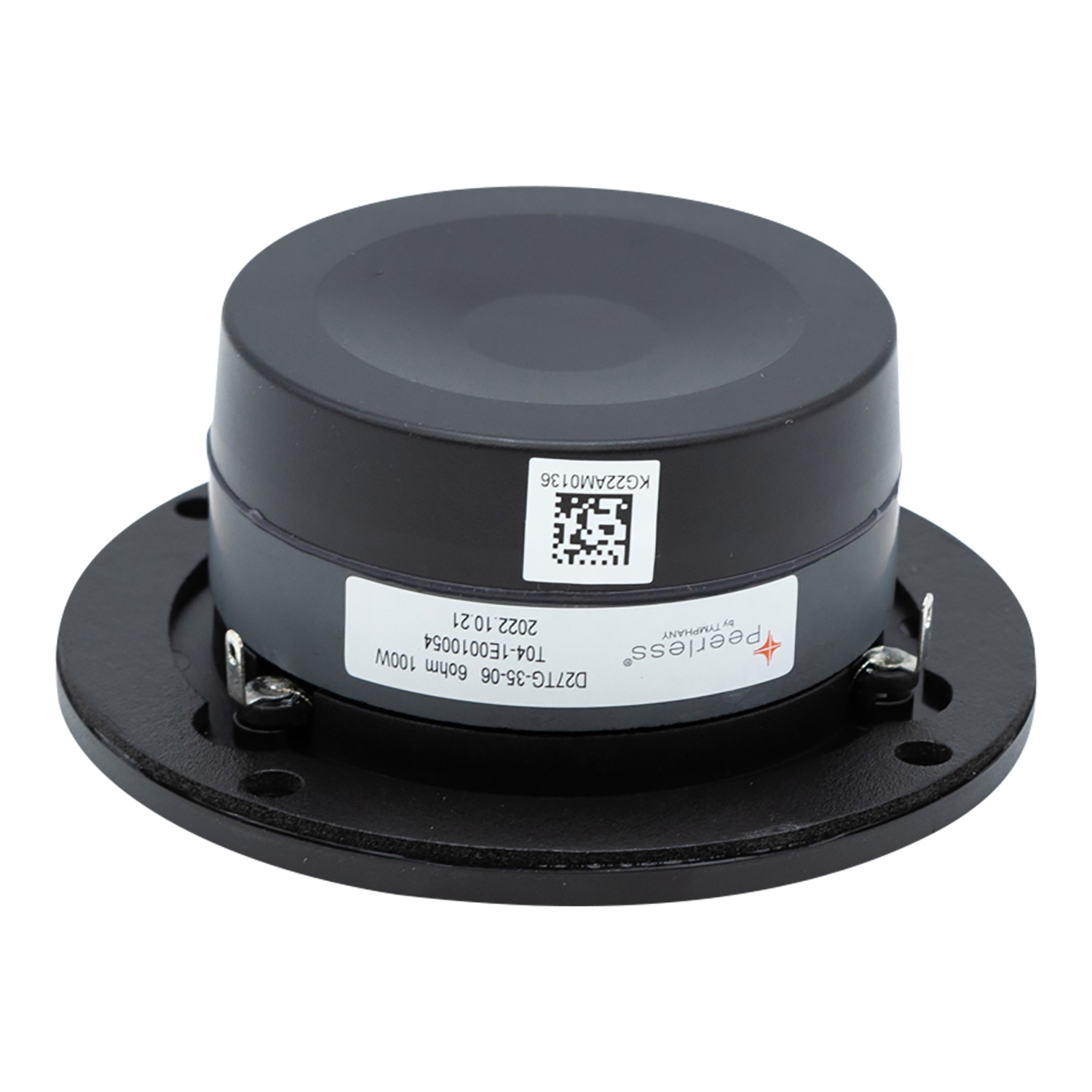

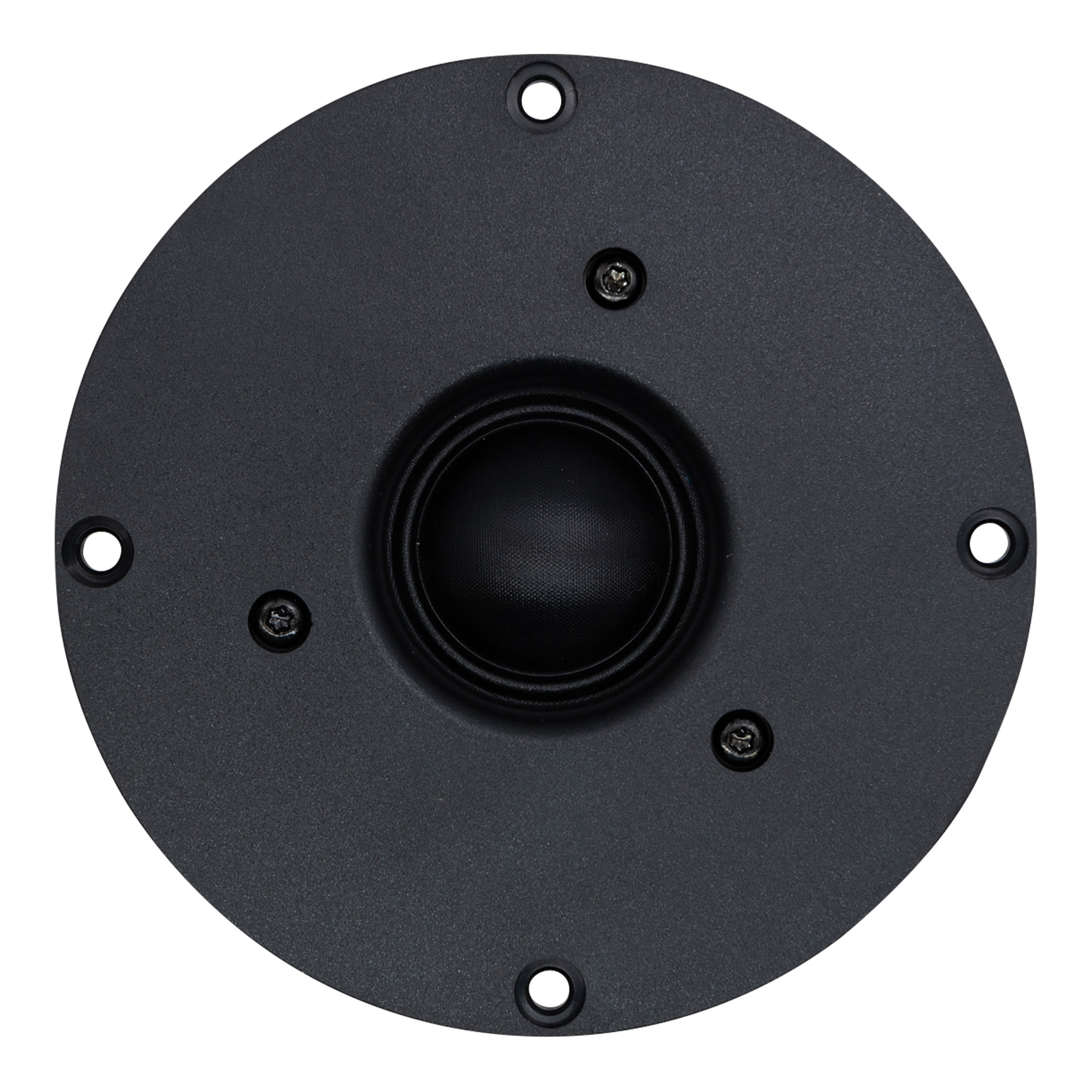

Peerless by Tymphany D27TG35-06 1" Silk Dome Tweeter

Name: Peerless by Tymphany D27TG35-06 1" Silk Dome Tweeter
Brand: Peerless by Tymphany
SKU: D27TG35-06
Price: 38.45 EUR
Availability: InStock
Rating: 4.3 (7 reviews)

7 reviews

Brand: Peerless by Tymphany

Show all Dome tweeter

Compare

1" | 6 Ω

€ 31,78€ 38,45 7 In stock: delivery time 1-4 business days

24h express shipping available
Same day shipping
In-house techniscal support
45 days worry-free returns

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

The Tymphany high performance D27TG35-06 1" coated silk dome tweeter features ferrofluid cooling, linear response faceplate, braided tinsel leads, and a double chamber for lower resonance.

Highlights

Linear response faceplate
1" treated soft dome
Double chamber lowers resonance
Frequency response extends past 30 kHz

Product details

Peerless by Tymphany D27TG35-06 1" Silk Dome Tweeter

This D family tweeter features an 6 ohm 25 mm voice coil, a treated silk dome, large rear chamber for low resonant frequency, and a ferrofluid-cooled ferrite magnet motor. The large motor and rear chamber allow for robust power handling capacity. The tweeter comes with a faceplate with recessed mounting holes, for easy installation into the desired application.

Specifications

Article number: D27TG35-06
Tweeter Type: Soft Dome
Tweeter Series: D Series
Cone / Dome Diameter: 25 mm | 1"
Power Handling (RMS): 100 Watts
Impedance (Z): 6 Ω
Sensitivity: 91.1 dB 1W/1m
Frequency Response: 2500 to 20,000 Hz
Resonant Frequency (Fs): 1,657 Hz
DC Resistance (Re): 4.9 ohms
Voice Coil Inductance (Le): 0.04 mH
Mechanical Q (Qms): 1.21
Electromagnetic Q (Qes): 1.01
Total Q (Qts): 0.55
Overall Outside Diameter: 4.09”
Cutout Diameter: 3.18”
Depth: 1.69"

Data sheet

Reviews

7 reviews

4 from 5Based on 7 reviews

Review this product

4 of 5

Mooi helder geluid. Ik hoor weer mooi stereo uit mijn B&W boxen. In het begin vond ik de 's' wat te scherp klinken maar dat valt mij nu niet meer op. Wellicht moeten deze tweeters wat ingespeeld worden voordat het scherpe randje er af gaat. Ik moet altijd wennen aan een nieuwe speaker. Wellicht ligt het ook daar aan.

By F. E. on 9 December 2020

4 of 5

uded it to replace the tweeter in my Cerwin Vegas LS10's and they took some reworking of the cabinet to fit. great sound very impressive. I knocked off 1 star because the packaging was piss poor, which meant the cone was squashed in, thankfully no lasting damage.

By Max and Lisa S. on 29 May 2020
