        XT25TG30-04 Ring Radiator Tweeter

        XT25TG30-04 Ring Radiator Tweeter

        €59,95

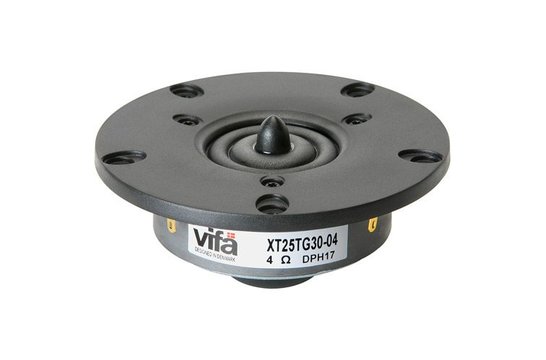

        Peerless by Tymphany XT25TG30-04 Ring Radiator Tweeter

        7 reviews
        5 from 5
        7 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 49,55€ 59,95 10+ In stock
        • -5% Purchase 4 for only € 56,95 per piece

        Buy now, pay later

        • We ship to
        • Same day shipping
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        The XT25TG30-04 from Tymphany features a patented dual concentric diaphragm and a unique wave guide center plug which provide an excellent on- and off-axis response.



        Highlights

        • Outstanding performance in 2-way systems
        • Dual ring radiator diaphragm (patented)
        • Waveguide center plug (patented)
        • Copper-clad aluminum VC wire
        • Flat response well beyond 20 kHz
        • Low distortion



        Product details

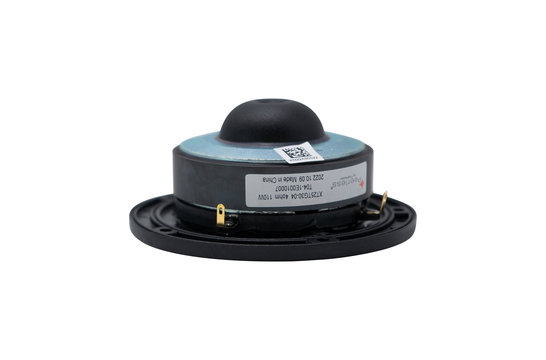

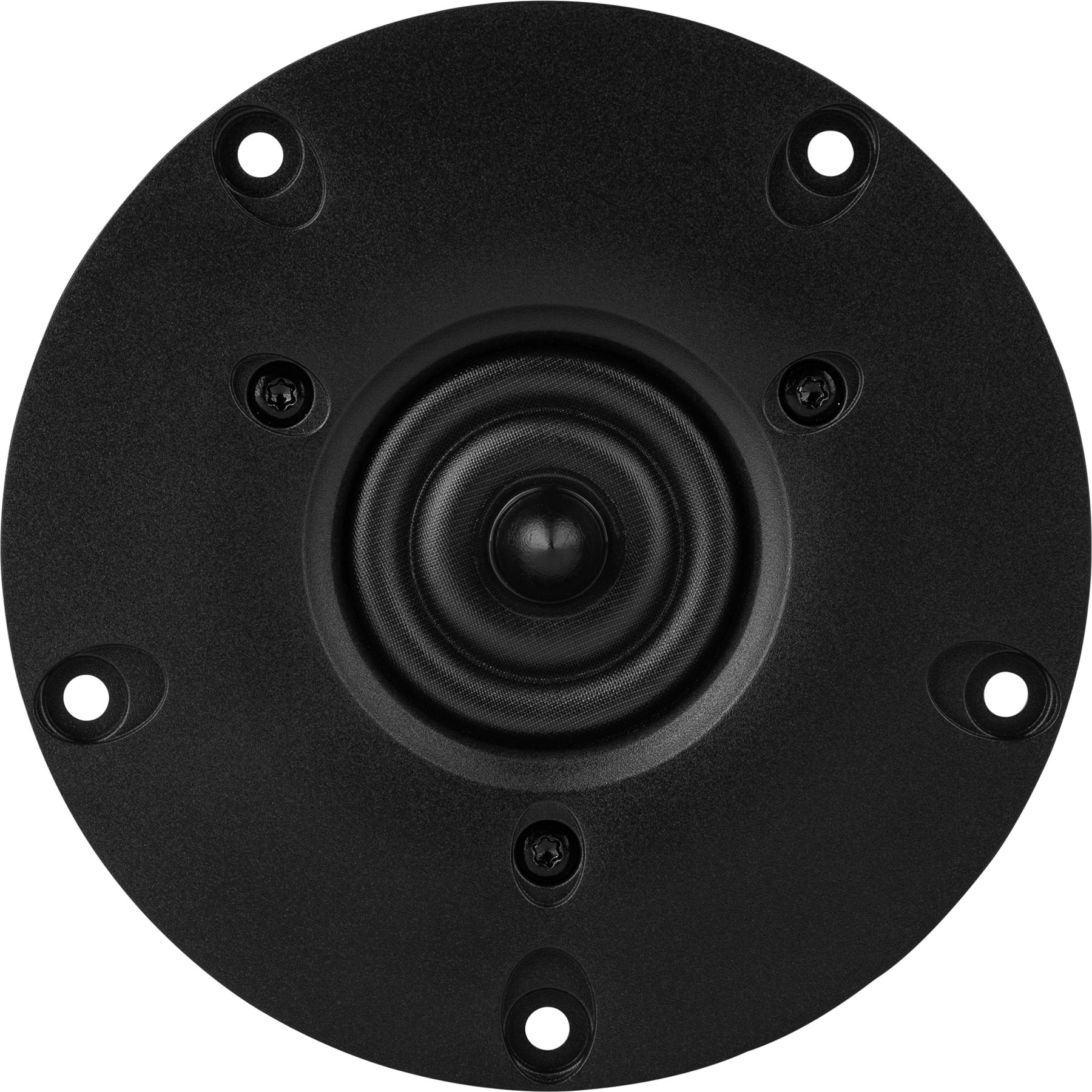

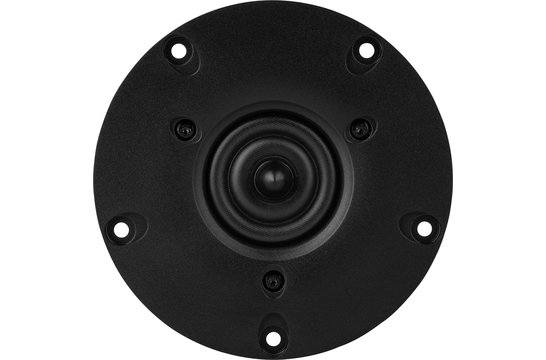

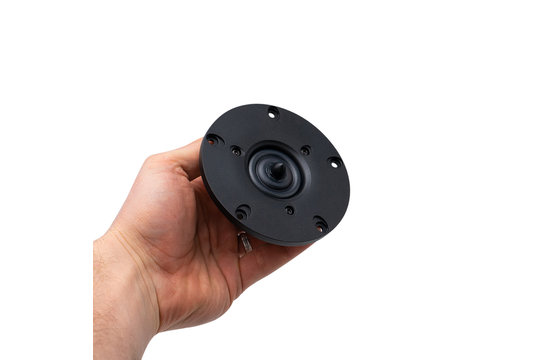

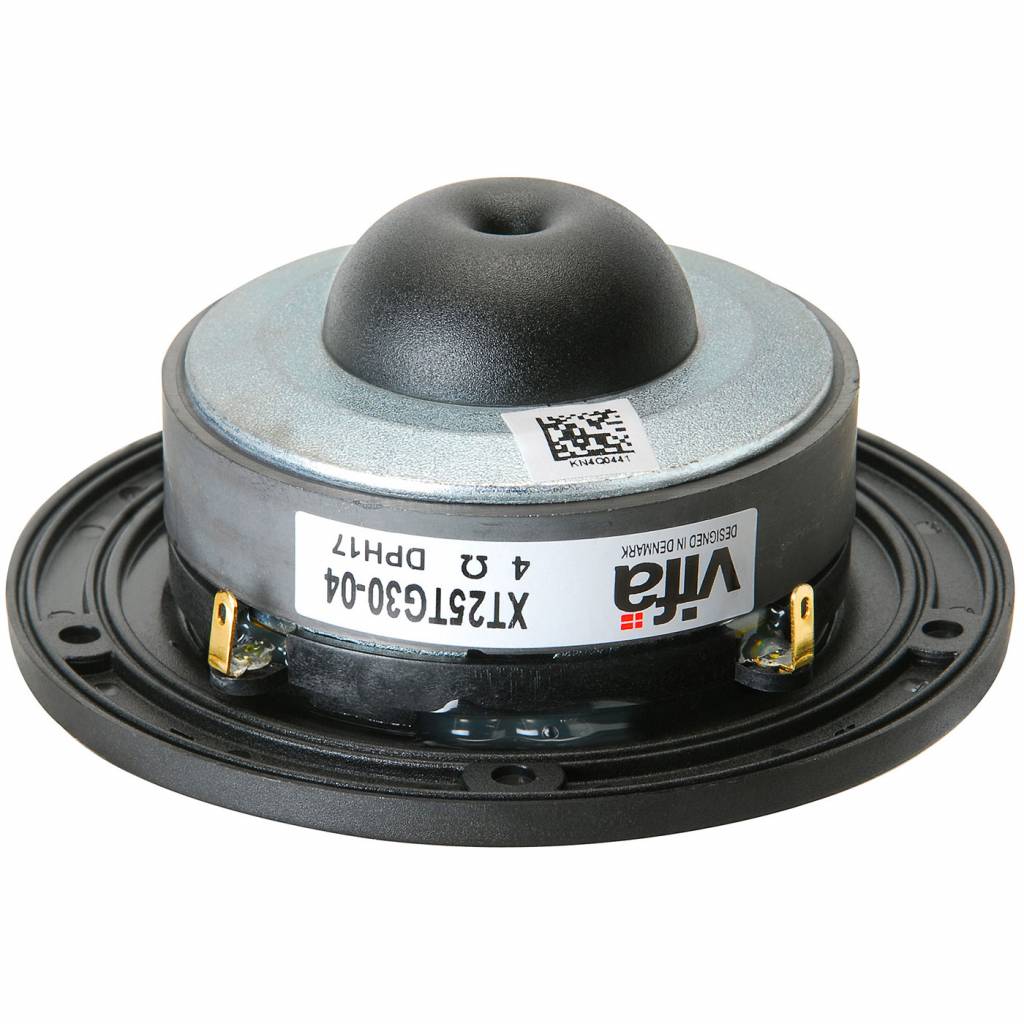

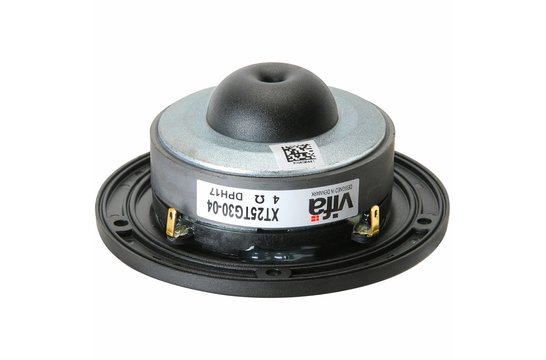

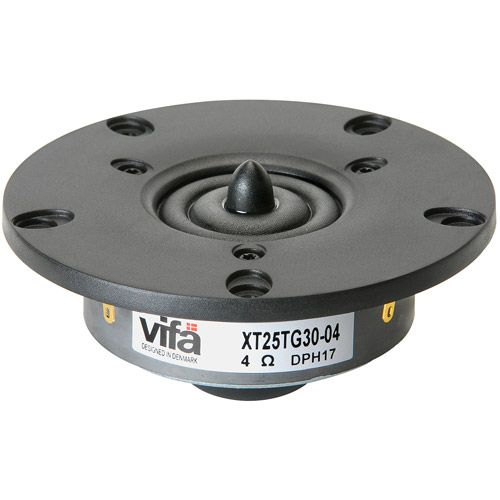

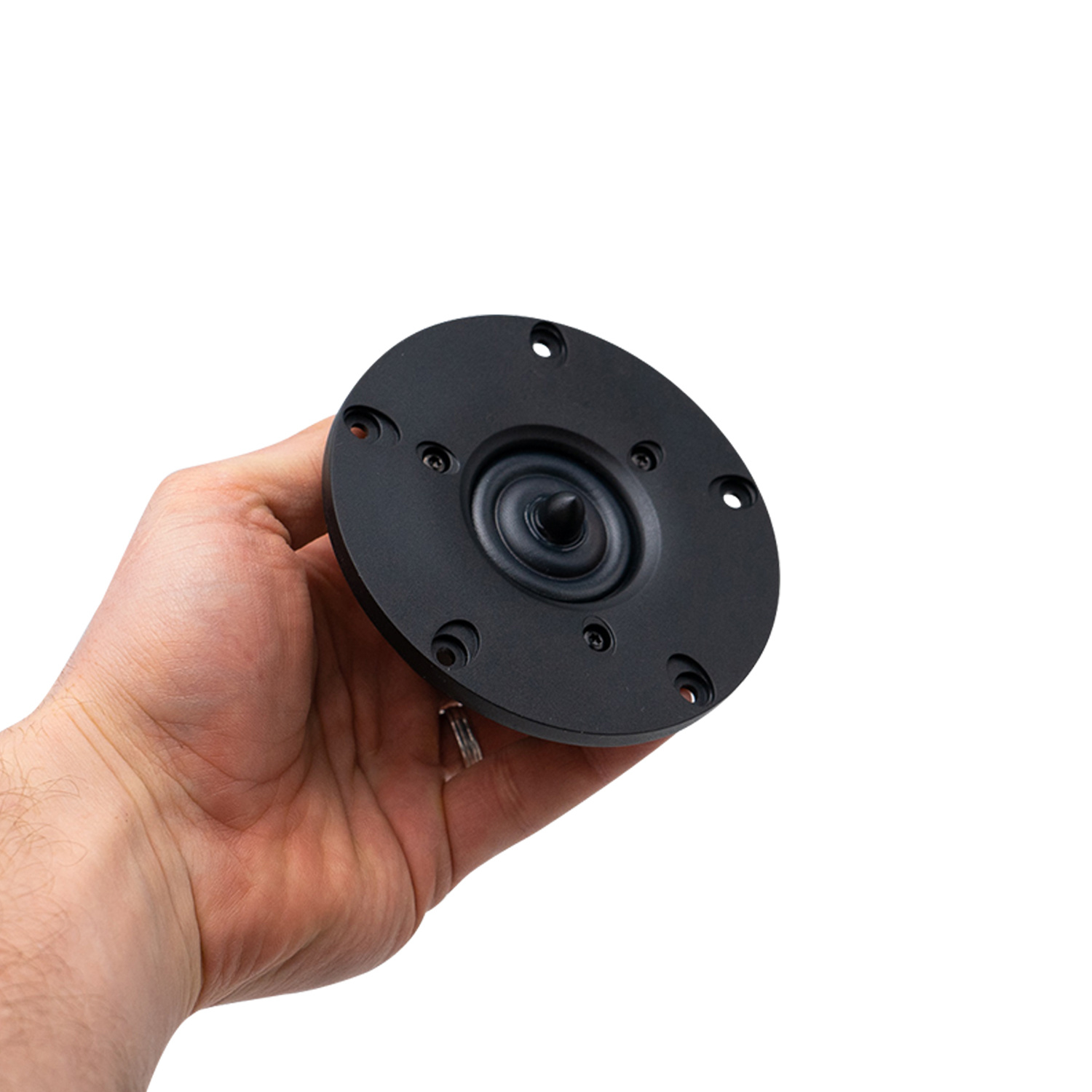

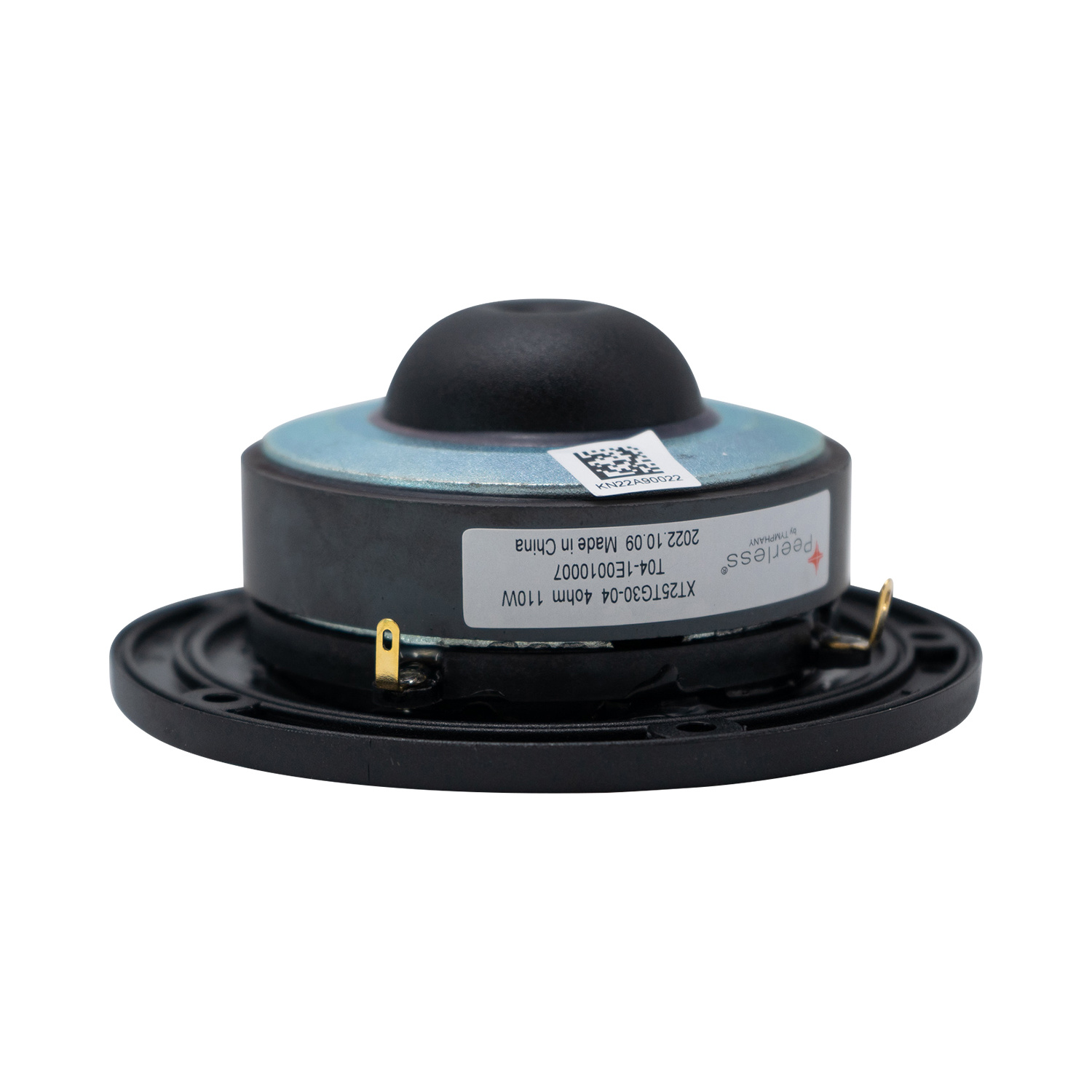

        Peerless by Tymphany XT25TG30-04 1" Dual Ring Radiator Tweeter



        This member of the XT tweeter family utilizes two Tymphany technologies to deliver exceptional sound quality: the ring radiator patent, and the central waveguide patent. This model features a 4 ohm 25mm voice coil, mounted in a ferrite magnet motor. The tweeter also features a rear chamber to create extended low frequency response. The faceplate features recessed mounting holes which minimizes reflections off of mounting screws.

        Show more

        Specifications

        Article number
        XT25TG30-04
        Tweeter Type
        Ring Radiator
        Tweeter Series
        XT Series
        Cone / Dome Diameter
        25 mm | 1"
        Power Handling (RMS)
        110 Watts
        Impedance (Z)
        4 Ω
        Sensitivity (SPL at 1m / 2.83V)
        92.8 dB
        Frequency Response
        1300 to 20,000 Hz
        Resonant Frequency (Fs)
        426 Hz
        DC Resistance (Re)
        3 ohms
        Voice Coil Inductance (Le)
        0.01 mH
        Mechanical Q (Qms)
        2.5
        Electromagnetic Q (Qes)
        0.54
        Total Q (Qts)
        0.44
        Overall Outside Diameter
        4.09”
        Cutout Diameter
        2.83”
        Depth
        1.77"

        Show more

        5 of 5
        Nutze ihn in der Samuel-HQ. Großartiger Hochtöner!
        By Sascha on 22 December 2023
        5 of 5
        Prima en snel geholpen met 2 Vifa/Peerless ring radiator tweeters voor de resto van mijn Impulse Imp&Base. Klinkt goed:-)!
        By Hans on 25 April 2022
