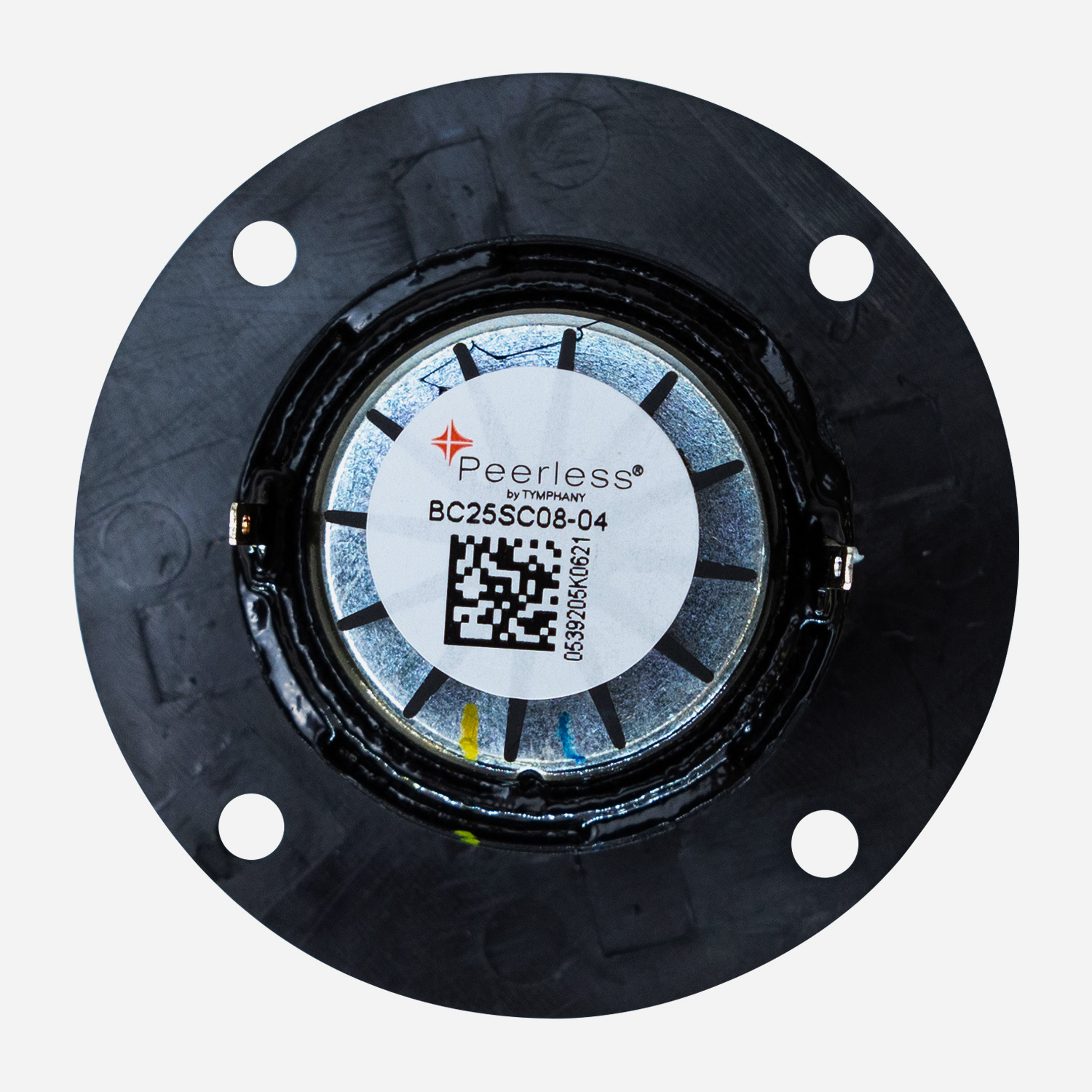

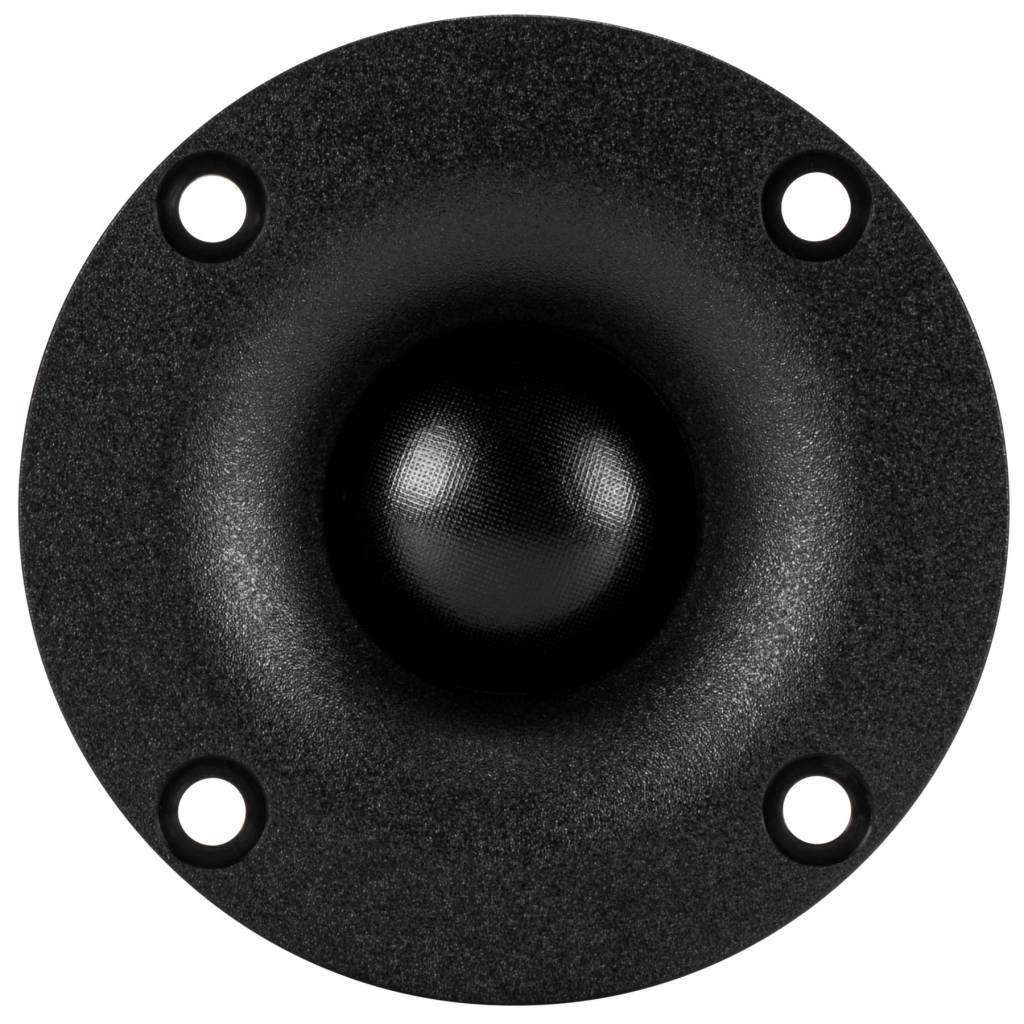

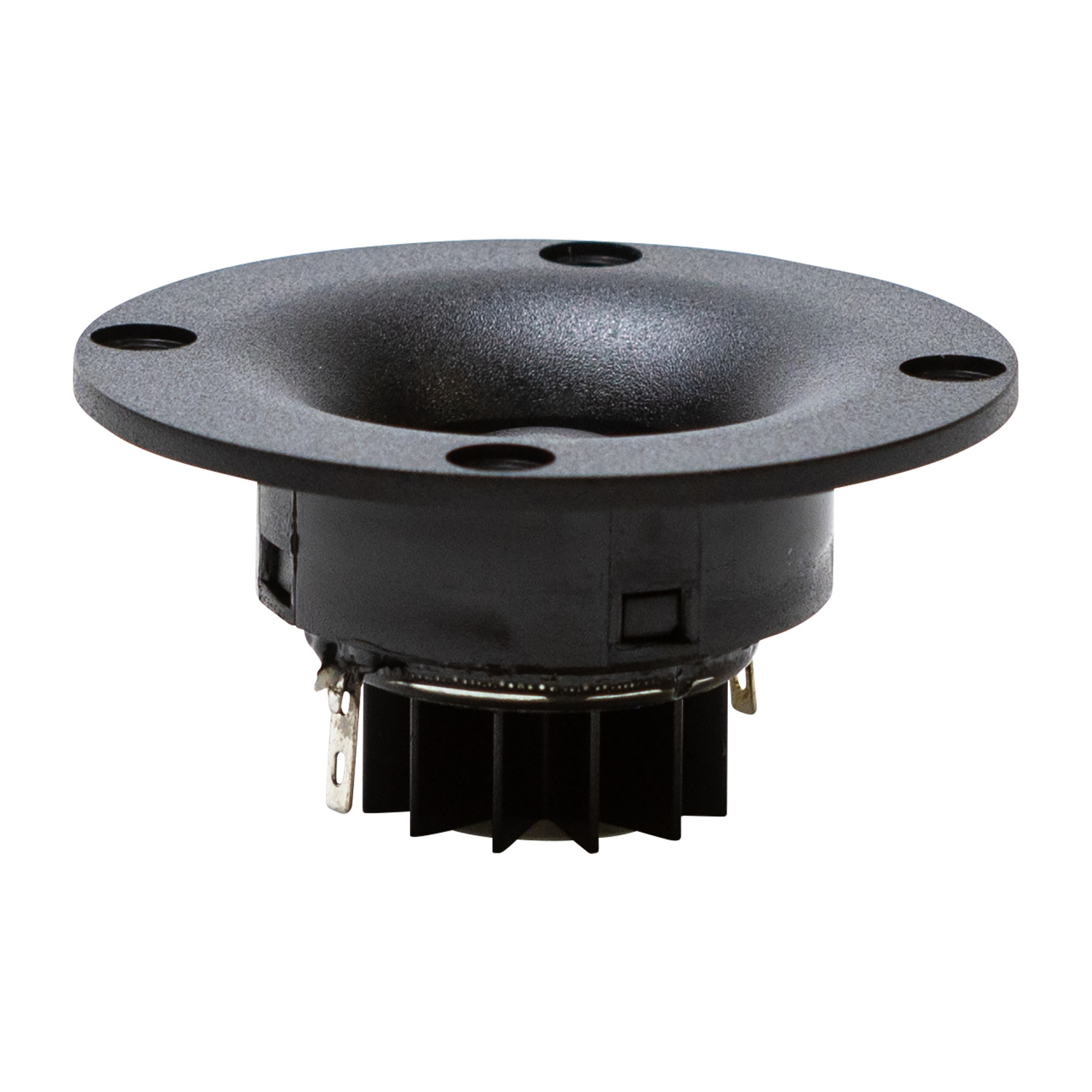

        BC25SC08-04 Dome Tweeter With Waveguide

        BC25SC08-04 Dome Tweeter With Waveguide

        €28,45

        Peerless by Tymphany BC25SC08-04 Dome Tweeter With Waveguide

        7 reviews
        5 from 5
        7 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 23,51€ 28,45 10+ In stock
        • -5% Purchase 4 for only € 27,03 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Tymphany's BC25SC08-04 4 ohm 1" silk dome tweeter is surprisingly efficient for its size. With natural response up to 20,000 Hz it is a great choice where space is at a minimum.



        Highlights

        • Powerful neodymium motor increases efficiency and control
        • The silk dome produces a natural, non-fatiguing frequency response
        • Ferrofluid and cooling fins on the motor assembly for increased power handling
        • Waveguide faceplate controls dispersion and increases sensitivity



        Product details

        Peerless by Tymphany BC25SC08-04 1" Silk Dome Tweeter with Waveguide

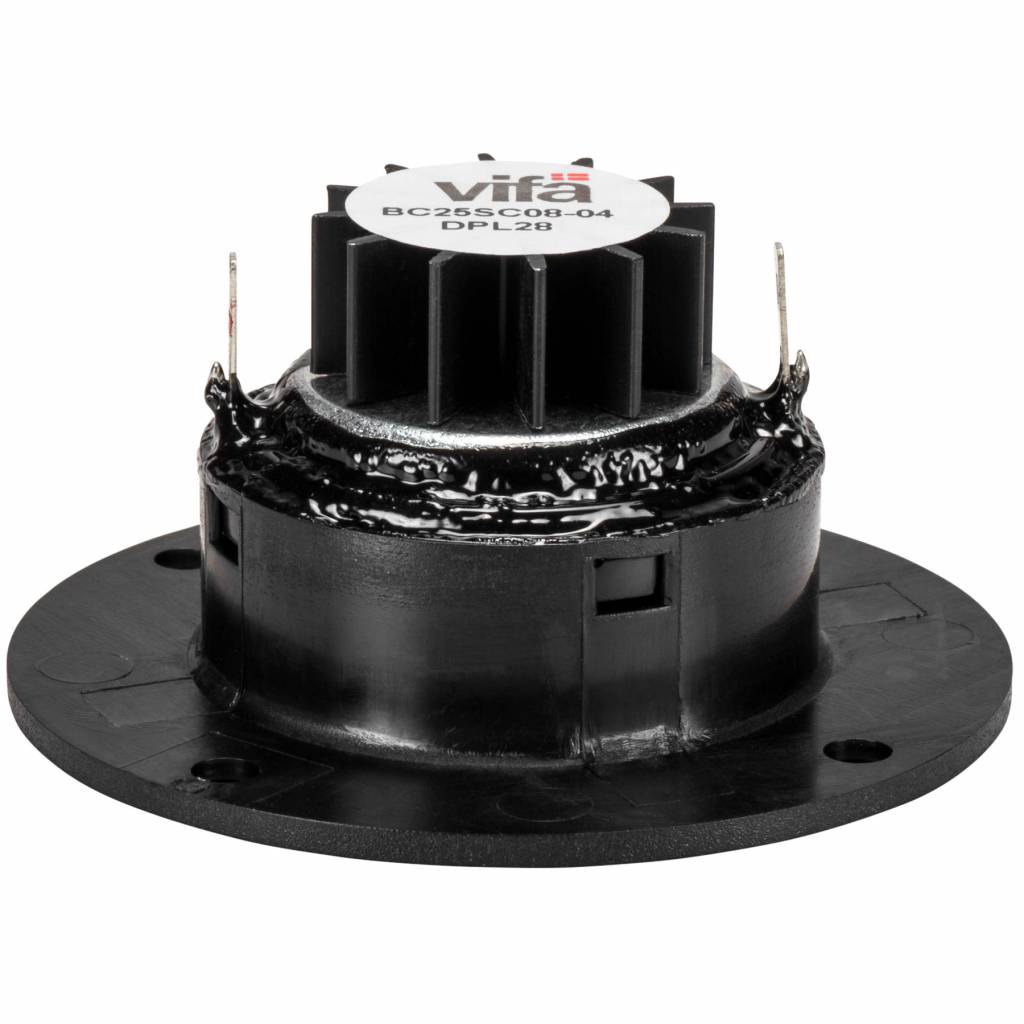

        This BC family tweeter features a 4 ohm 25 mm voice coil, a damped fabric dome for smooth frequency response performance, and ferrofluid in the gap of the NdFeB motor, providing enhanced cooling of the voice coil. The tweeter comes with a compact faceplate with recessed mounting holes. A finned heat sink has been added for improved power handling.

        Show more

        Specifications

        Article number
        BC25SC08-04
        Tweeter Type
        Soft Dome
        Tweeter Series
        BC Series
        Cone / Dome Diameter
        25 mm | 1"
        Power Handling (RMS)
        100 Watts
        Impedance (Z)
        4 Ω
        Sensitivity (SPL at 1m / 2.83V)
        101.8 dB
        Frequency Response
        2500 to 18,000 Hz
        Resonant Frequency (Fs)
        1660 Hz
        DC Resistance (Re)
        2.8 ohms
        Voice Coil Inductance (Le)
        0.02 mH
        Mechanical Q (Qms)
        4.9
        Electromagnetic Q (Qes)
        1.53
        Total Q (Qts)
        1.17
        Overall Outside Diameter
        2.75
        Cutout Diameter
        1.75”
        Depth
        1.32"

        Show more
