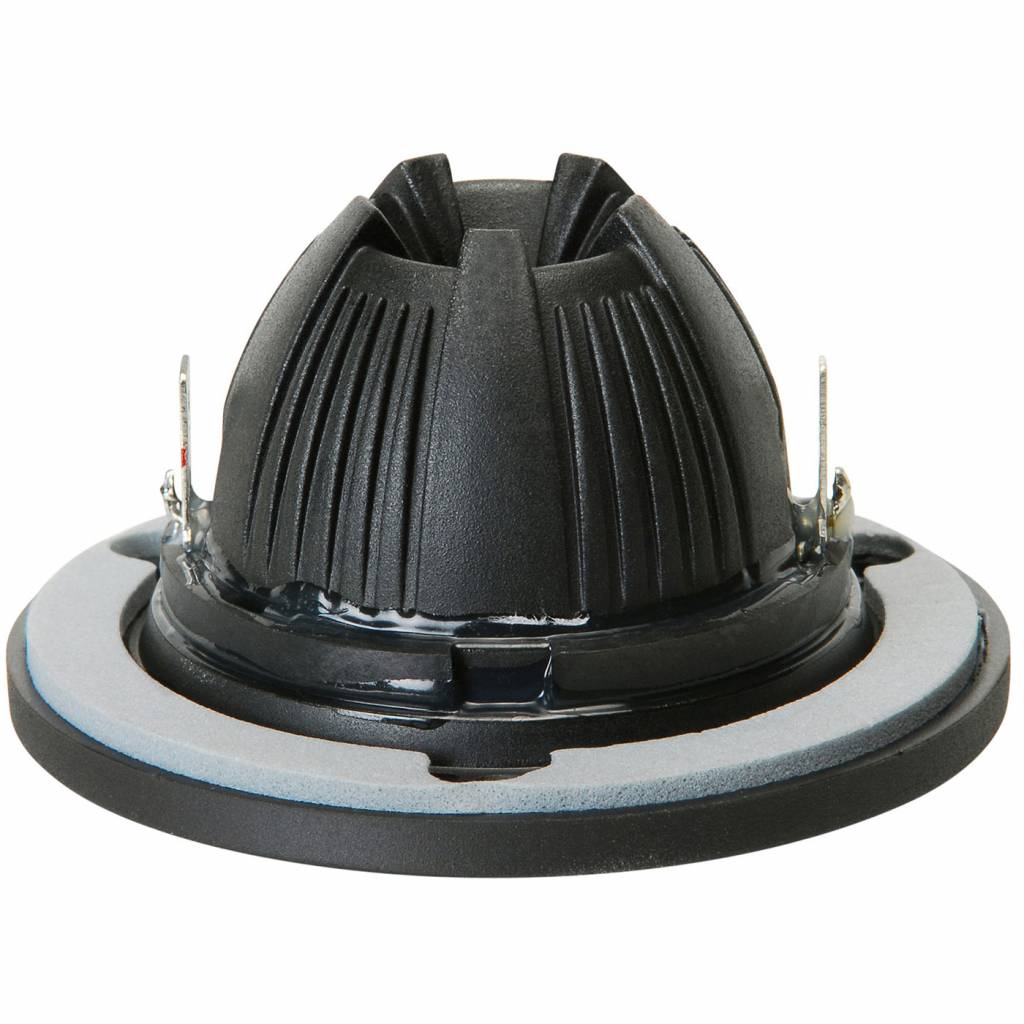

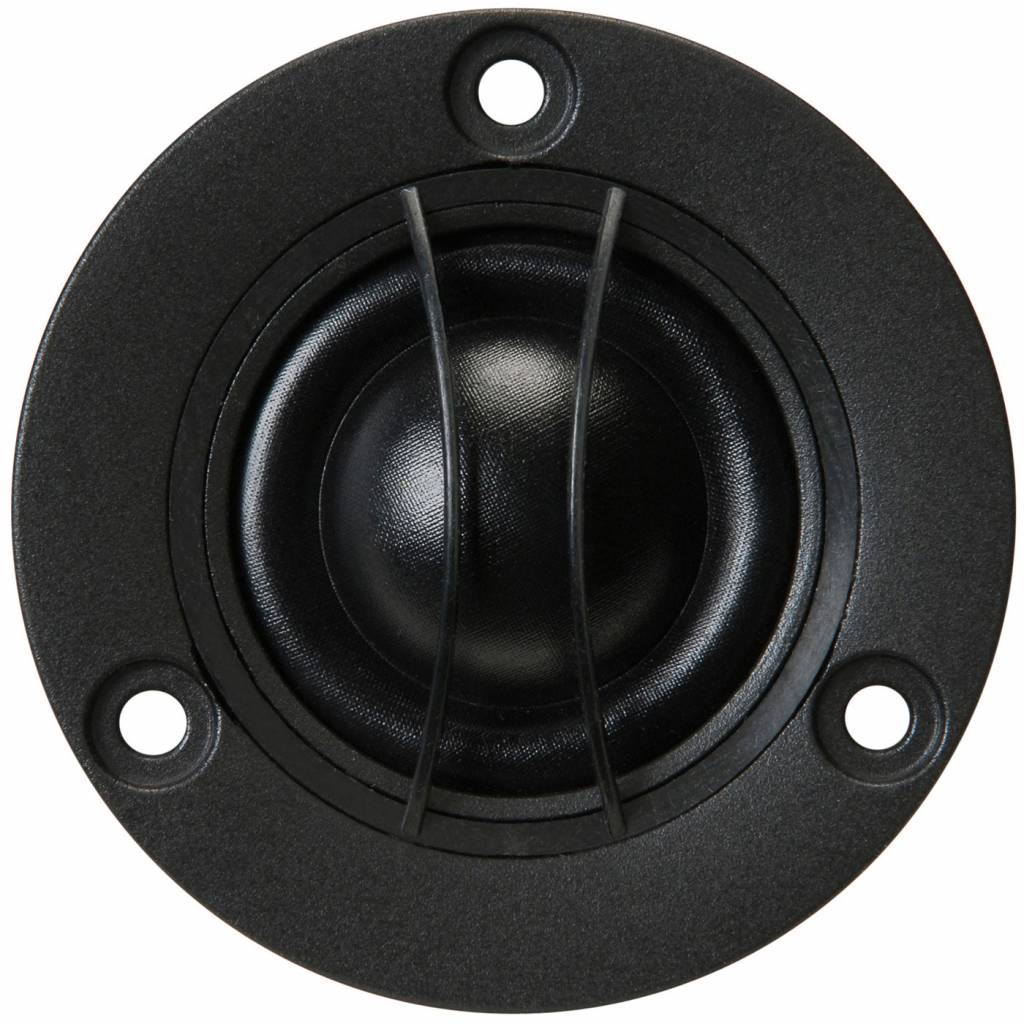

        NE25VTS-04 Dome Tweeter

        NE25VTS-04 Dome Tweeter

        €46,95

        Peerless by Tymphany NE25VTS-04 Dome Tweeter

        5 reviews
        5 from 5
        5 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 38,80€ 46,95 Out of stock2 expected on 30-08-2024
        • -5% Purchase 4 for only € 44,60 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        The Tymphany NE product line of tweeters has leading-edge transducer technology packaged in cutting edge, stylistic designs.



        Highlights

        • 1" silk dome
        • Advanced design neo motor system
        • Copper caps reduce inductance and extend HF response
        • Aluminum rear chamber lowers resonance and doubles as a heatsink
        • Aluminum face plate and plastic protective grill



        Product details

        Peerless by Tymphany NE25VTS-04 1" Silk Dome Tweeter



        The 25 mm 4 ohm member of the NE family has leading-edge transducer technology packaged in a cutting edge, stylistic design. The tweeters in this family feature finite element analysis designed Neodymium-Iron-Boron magnet (NdFeB) motors, with copper caps for extended frequency response and reduced distortion. The aluminium rear chambers offer extended low frequency performance, while doubling as heat sinking. The butterfly supporting the tweeter diaphragm is made of a high temperature plastic, consistent with the products high temperature performance rating, and features supporting terminals. The dome material in this design is silk, and the design has been optimized for sound quality and clarity. Rounding out the design is an aluminium face plate and plastic grille, which offers protection for the tweeter diaphragm.

        Show more

        Specifications

        Article number
        NE25VTS-04
        Tweeter Type
        Soft Dome
        Tweeter Series
        NE Series
        Cone / Dome Diameter
        25 mm | 1"
        Power Handling (RMS)
        80 Watts
        Impedance (Z)
        4 Ω
        Sensitivity (SPL at 1m / 2.83V)
        91.1 dB
        Resonant Frequency (Fs)
        732 Hz
        DC Resistance (Re)
        3.15 ohms
        Voice Coil Inductance (Le)
        0.01 mH
        Mechanical Q (Qms)
        4.41
        Electromagnetic Q (Qes)
        1.12
        Total Q (Qts)
        0.89
        Overall Outside Diameter
        2.59"
        Cutout Diameter
        1.89"
        Depth
        1.22"

        Show more
