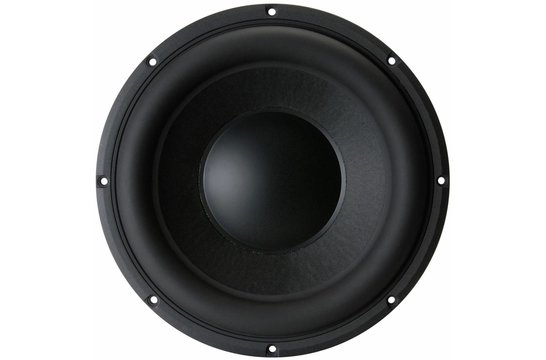

Peerless by Tymphany XLS-P830452 10" XLS Subwoofer

Delivery time: 1-4 business days

  • Article code: XLS-P830452
  • Stock: 5 In stock

This series of state-of-the-art subwoofers continues to enhance Peerless's reputation for delivering the highest quality components for bass.

€ 177,25 Incl. 21% VAT

  • Buy 4 for €168,39 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-day money back guarantee
  • International payment options

Product description

Peerless by Tymphany XLS-P830452 10" XLS Subwoofer

This series of state-of-the-art subwoofers continues to enhance Peerless's reputation for delivering the highest quality components for bass.



Highlights

  • 12.5 mm of linear excursion
  • Thick Nomex cone
  • Cast aluminum frame
  • Flat spider and HD rubber half roll surround
  • Massive stacked magnet



Product Details

Peerless by Tymphany XLS-P830452 10" XLS Subwoofer



This 10 inch 4 ohm member of the XLS product family has all the design features suitable for a high performance subwoofer driver. The motor features a double ferrite magnet motor, supporting high excursion, and aluminium shorting rings and pole extenders, lowering and linearizing the inductance of the overhung voice coil. The nomex cone is vented under the dust cap, to reduce air compression. The suspension system features a low-creep rubber surround, and a nomex spider, ensuring long-term reliability under high power conditions. The product also features a rigid cast aluminium basket.

Specifications

Specifications for: XLS-P830452 10" XLS Subwoofer

  • Woofer Series Specific woofer production line of the manufacturer. XLS Series
  • Woofer Type The driver type for example subwoofer, mid-woofer, full range or coaxial woofer. Subwoofer
  • Nominal Diameter The approximate diameter of the driver, measured in inches. 10"
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 150 Watts
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged. 300 Watts
  • View all specifications
  • Continuous Program Power
  • Impedance 4 ohms
  • Sensitivity 86.6 dB 2.83V/1m
  • Frequency Response 19 to 700Hz
  • Voice Coil Diameter 2"
  • Magnet Weight
  • DC Resistance (Re) 3.6 ohms
  • Voice Coil Inductance (Le) 0.99 mH
  • Resonant Frequency (Fs) 22 Hz
  • Mechanical Q (Qms) 3.86
  • Electromagnetic Q (Qes) 0.24
  • Total Q (Qts) 0.23
  • Diaphragm Mass Inc. Airload (Mms) 136.6g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.39 mm/N
  • Surface Area of Cone (Sd) 349.7 cm²
  • Volume of Displacement (Vd)
  • BL Product (BL) 16.75 Tm
  • Compliance Equivalent Volume (Vas) 2.36 ft.³
  • Maximum Linear Excursion (Xmax) 12.5 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Paper
  • Surround Material Rubber
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material Cast Aluminum
  • Magnet Material Ferrite
  • Shielded
  • Overall Outside Diameter 10.59"
  • Overall Depth 4.88"
  • Baffle Cutout Diameter 9.4"
  • Bolt Circle Diameter
  • # Mounting Holes 6
  • Mounting Hole Diameter
  • Sealed Volume 0.12 ft.³
  • Sealed F3 95 Hz
  • Vented Volume 0.24 ft.³
  • Vented F3 65 Hz
