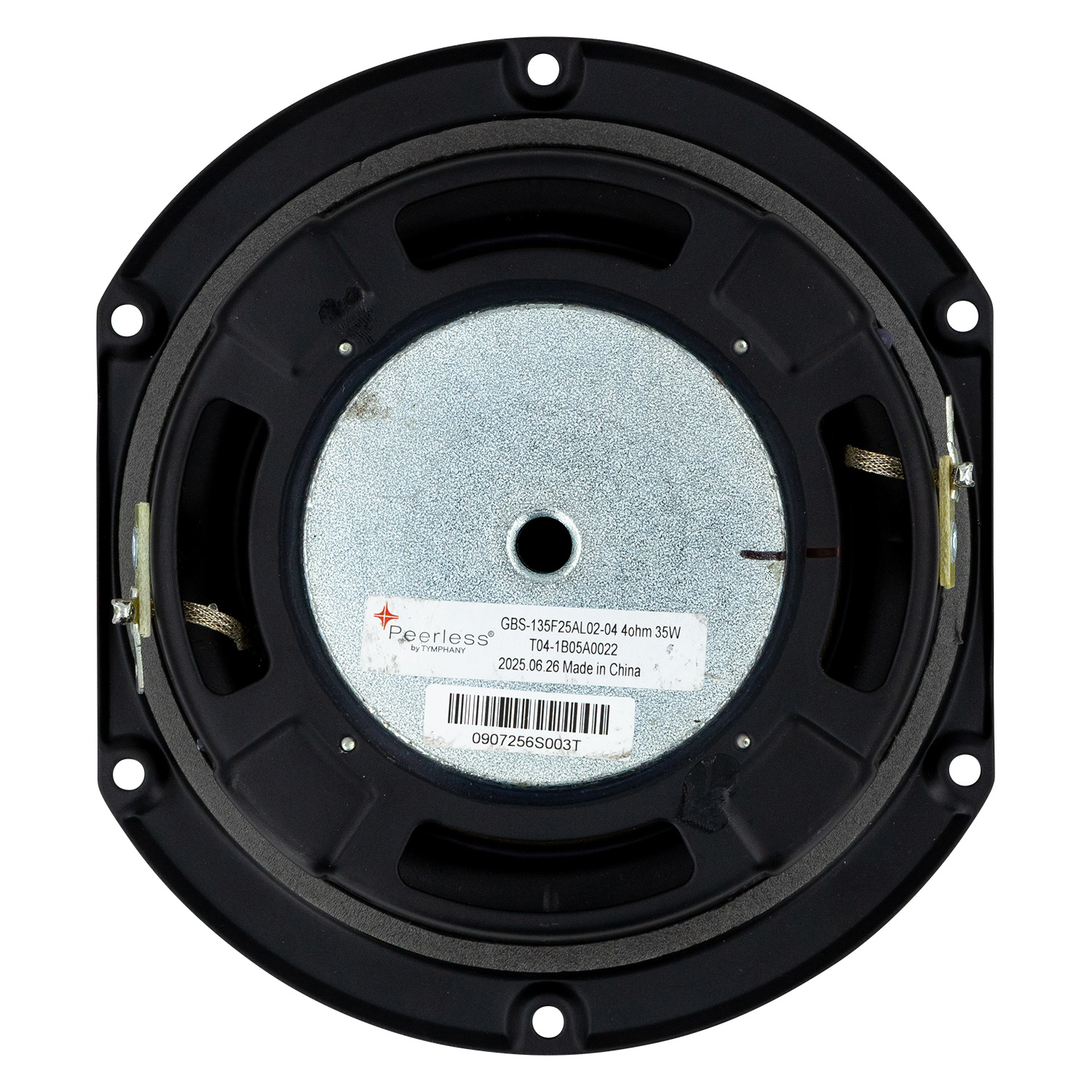

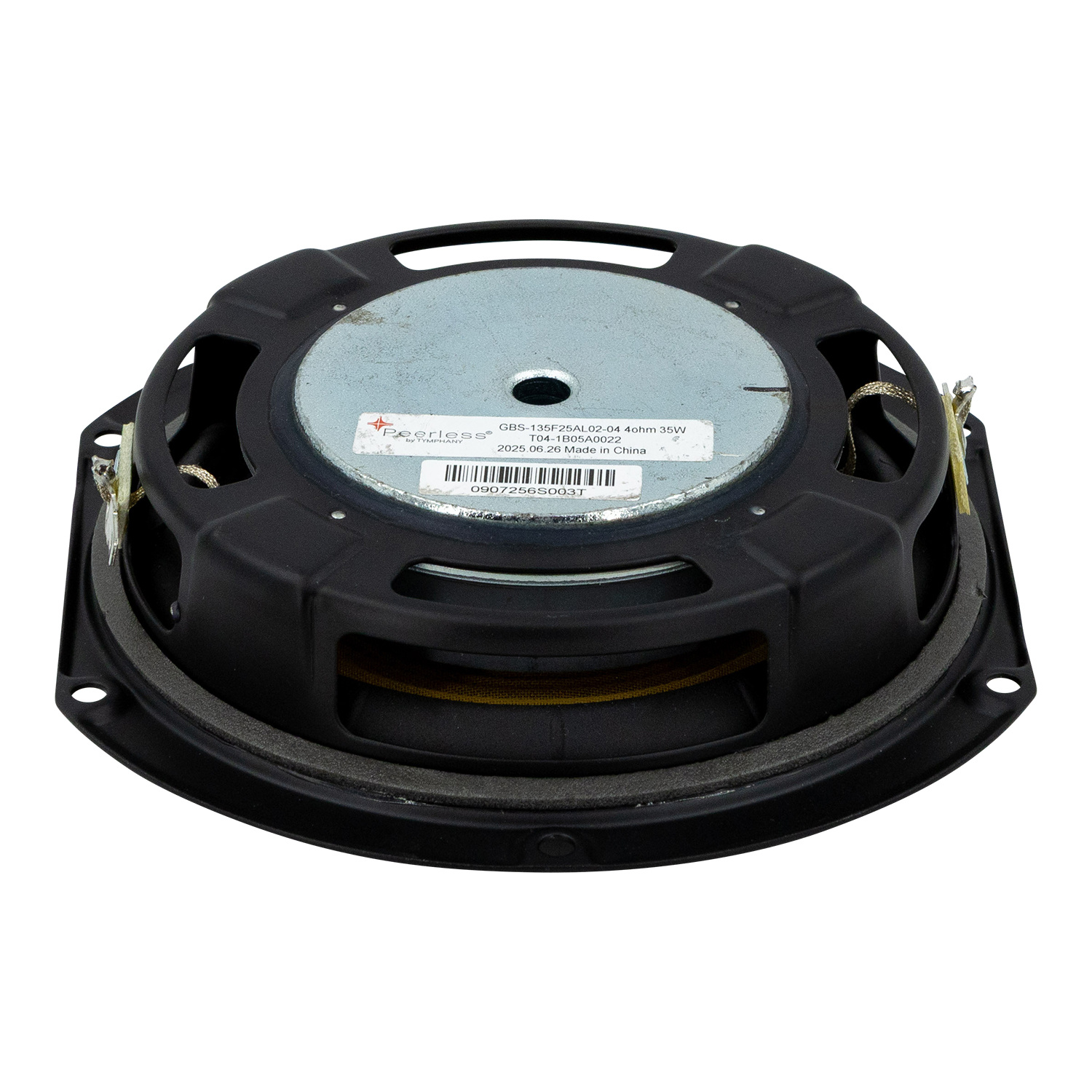

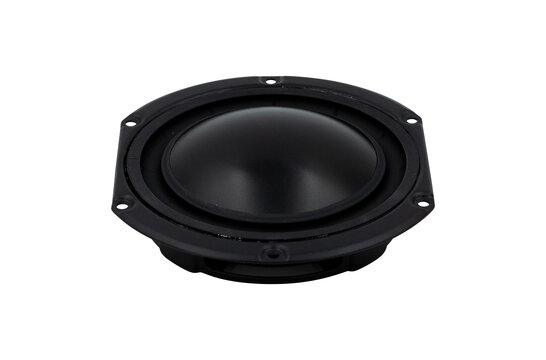

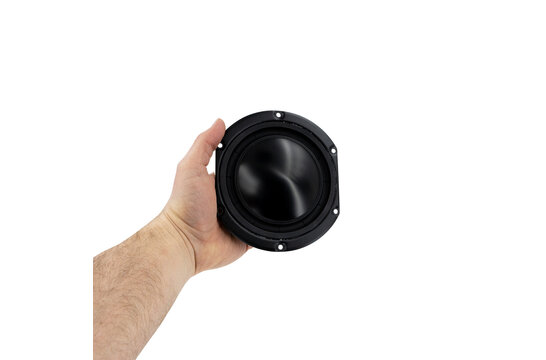

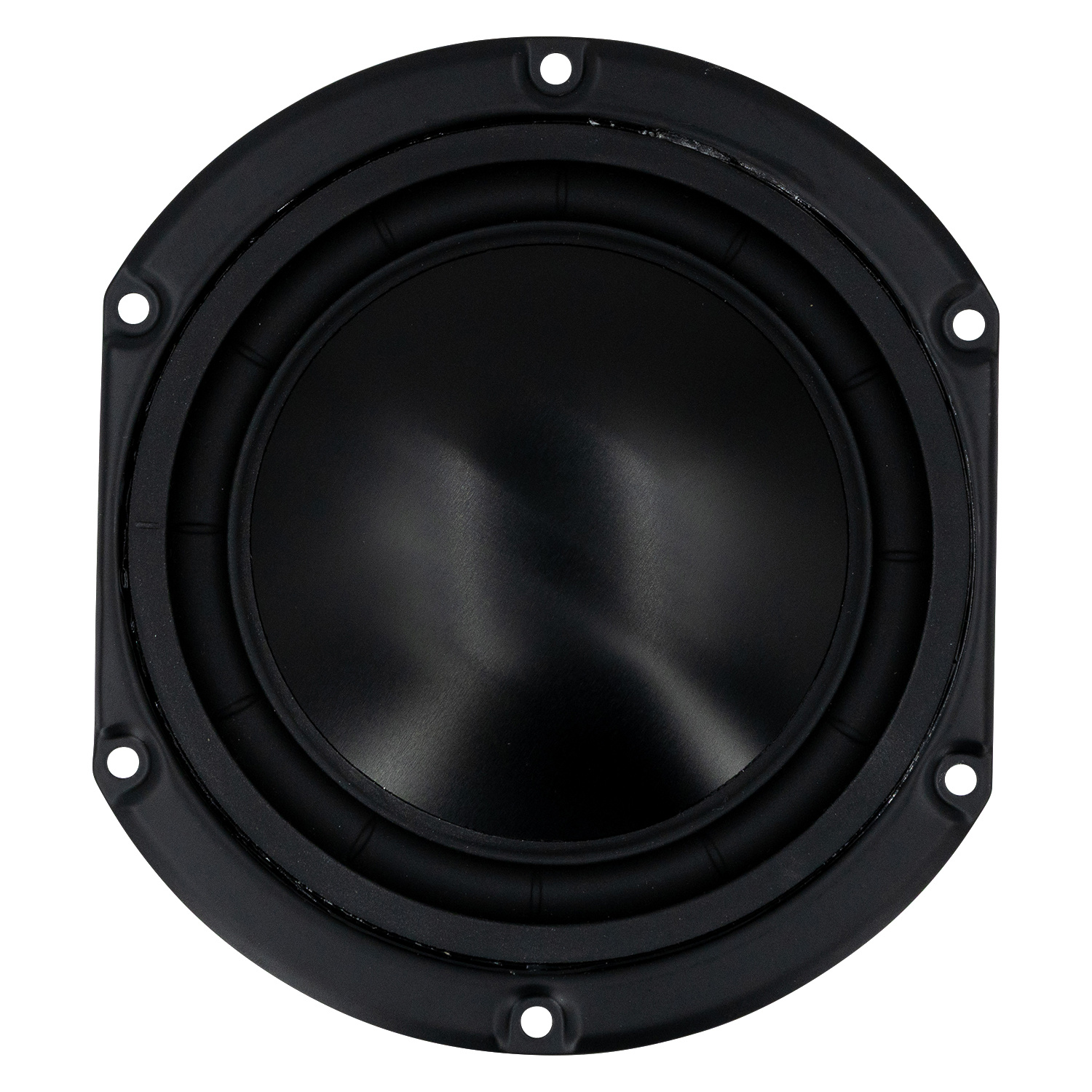

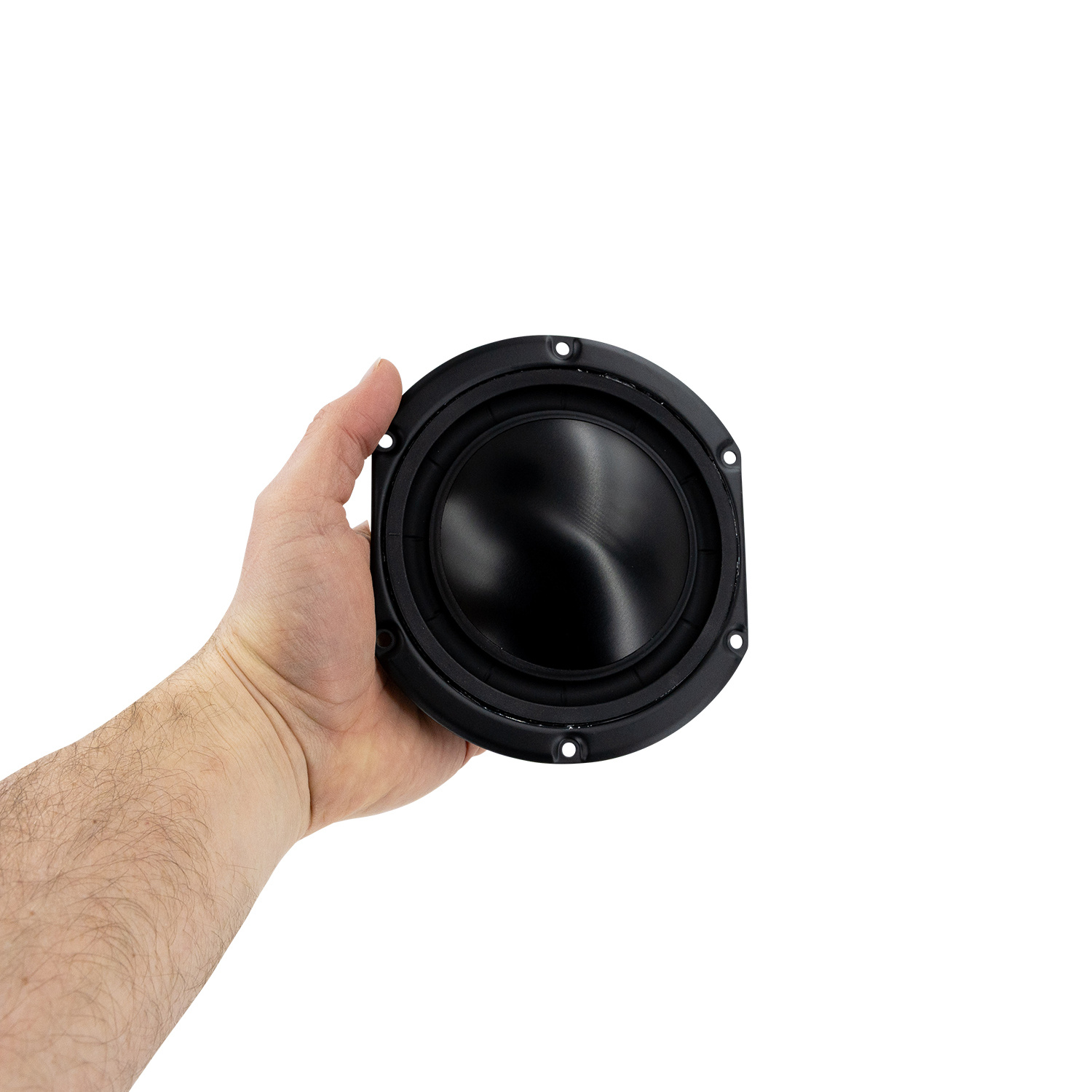

        Peerless by Tymphany GBS-135F25AL02-04 5-1/4" Aluminum Cone Woofer

        3 reviews
        4 from 5
        3 reviews
        5 stars
        33%
        4 stars
        0%
        3 stars
        67%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Peerless by Tymphany
        Show all Bass-mid woofer
        5¼" | 4 Ω

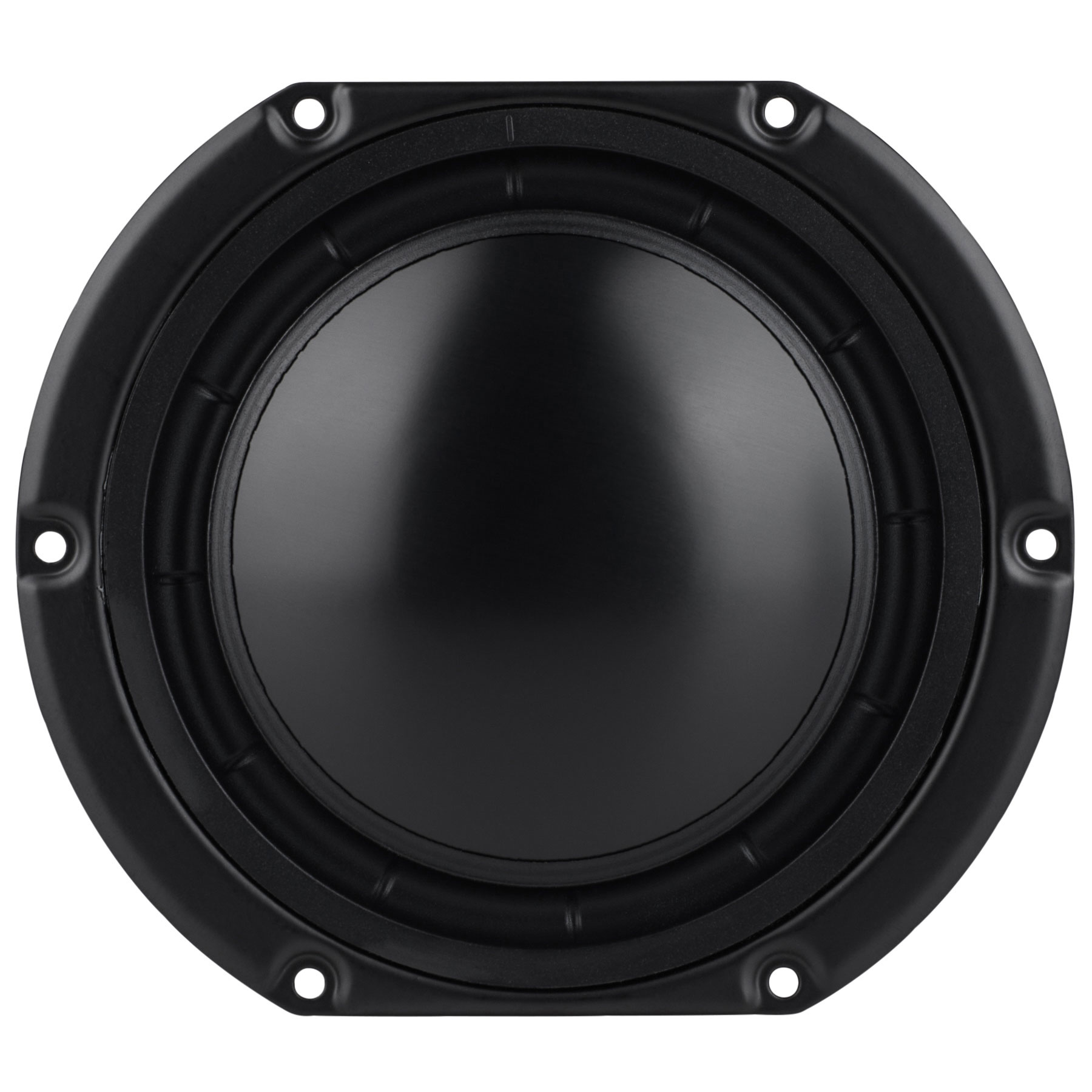

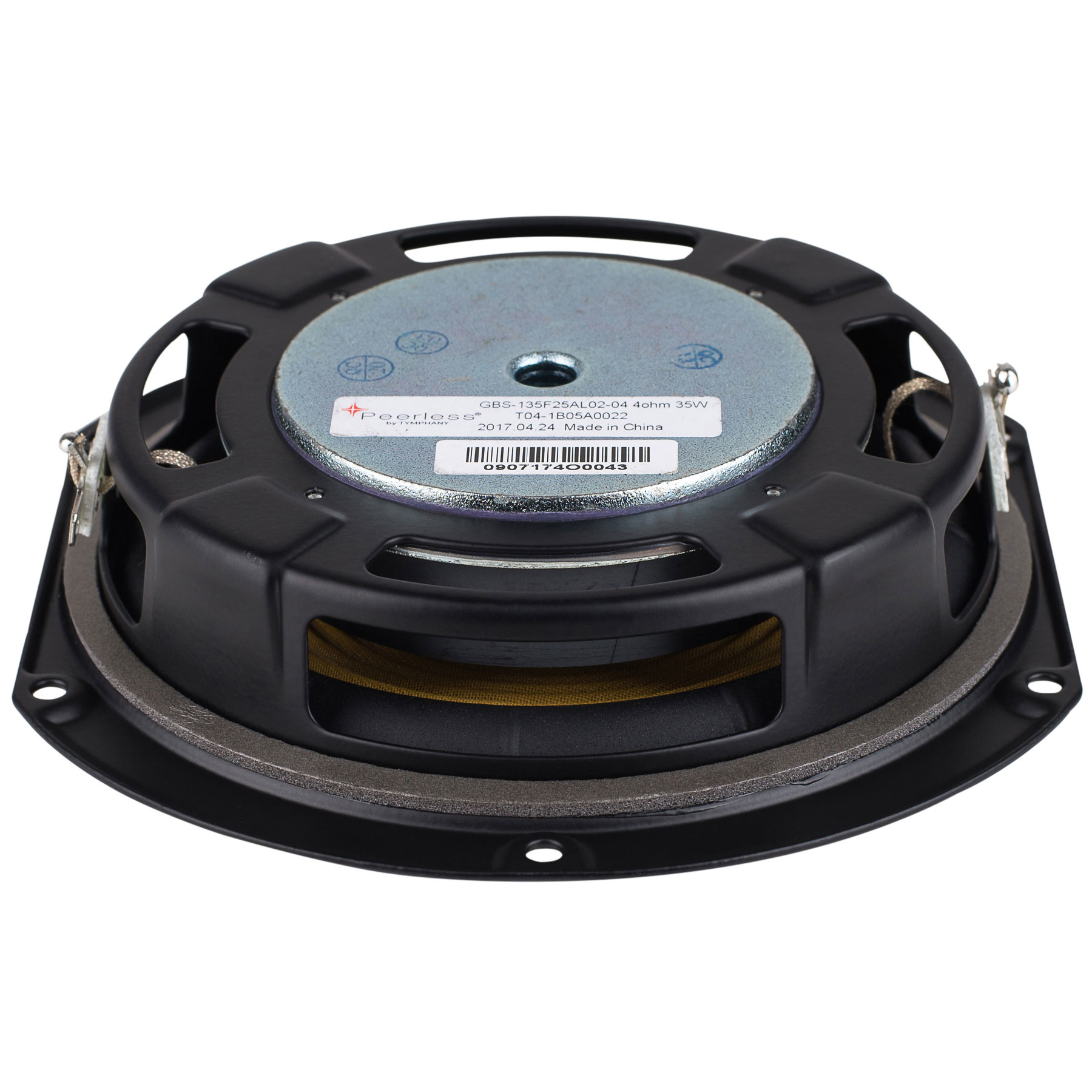

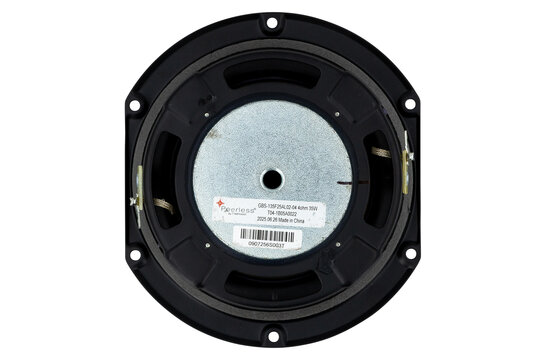

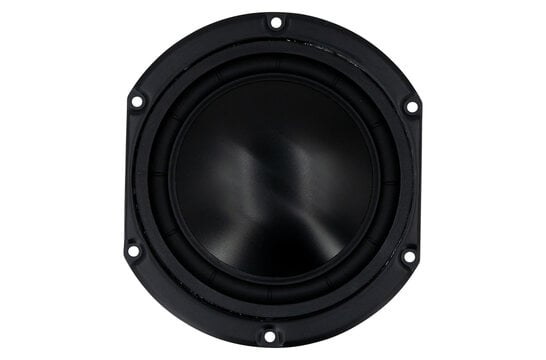

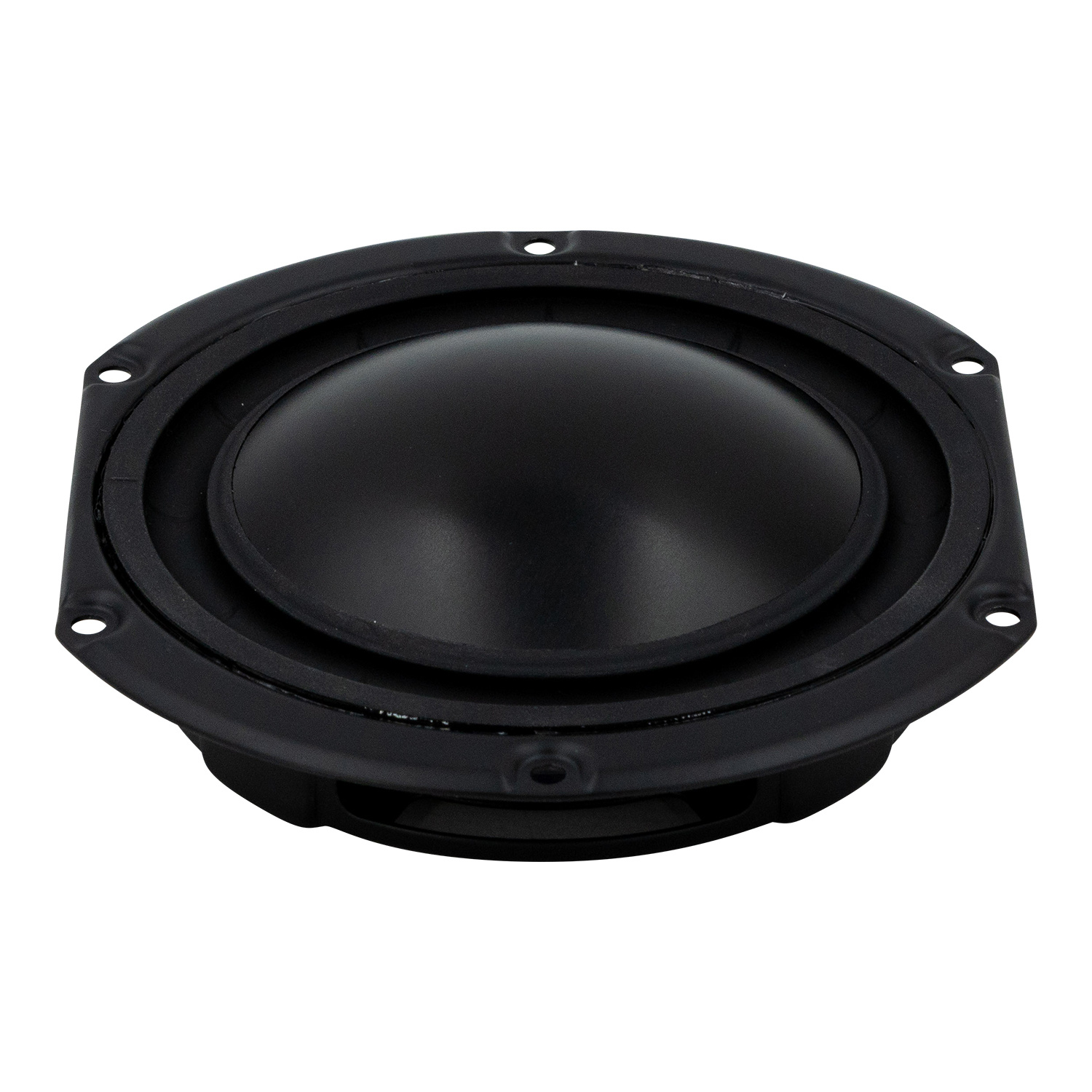

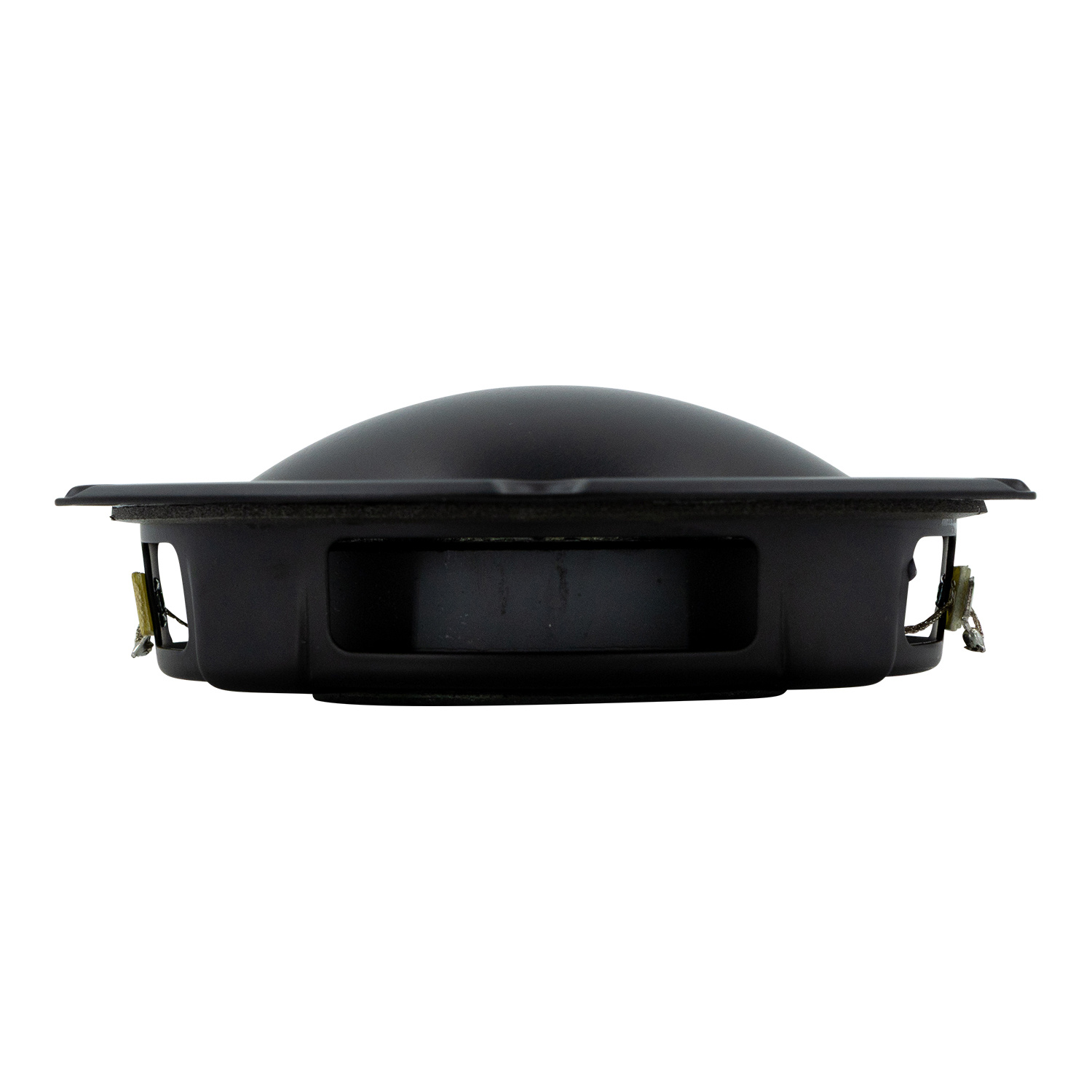

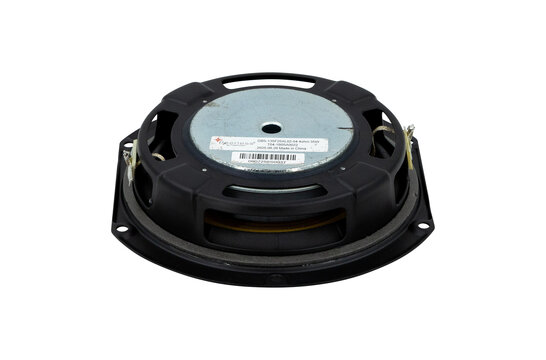

        GBS-135F25AL02-04 5-1/4" Aluminum Cone Woofer
        GBS-135F25AL02-04 5-1/4" Aluminum Cone Woofer
        GBS-135F25AL02-04 5-1/4" Aluminum Cone Woofer
        GBS-135F25AL02-04 5-1/4" Aluminum Cone Woofer
        GBS-135F25AL02-04 5-1/4" Aluminum Cone Woofer
        GBS-135F25AL02-04 5-1/4" Aluminum Cone Woofer
        € 33,02€ 39,95 1 In stock
        • -5% Order 4 for only € 37,95 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        GBS-135F25AL02-04 5-1/4" Aluminum Cone Woofer
        GBS-135F25AL02-04 5-1/4" Aluminum Cone Woofer
        GBS-135F25AL02-04 5-1/4" Aluminum Cone Woofer
        GBS-135F25AL02-04 5-1/4" Aluminum Cone Woofer
        GBS-135F25AL02-04 5-1/4" Aluminum Cone Woofer
        GBS-135F25AL02-04 5-1/4" Aluminum Cone Woofer

        Product description

        The low profile GBS-135F25AL02-04 from Peerless can deliver high-end performance even when space is at a minimum. With smooth response up to 3,500 Hz and extremely well controlled dispersion, this unique driver can deliver hi-fi sound from the shallowest designs.



        Highlights

        • Just over 1" mounting depth without sacrificing sound quality
        • Amazing excursion capability for powerful bass response from shallow enclosures
        • Optimized ferrite motor design allows impressive efficiency for a low profile driver
        • Excellent choice for car audio systems where space is at a premium



        Product details

        Peerless by Tymphany GBS-135F25AL02-04 5-1/4" Shallow Woofer



        The Peerless GBS-135F25AL02-04 5-1/4" 4 ohm woofer provides a very slim profile that is capable of large excursion. An anodized aluminum dome helps to extend the piston bands in the working range to deliver flat response from 55 Hz to 3,500 Hz with remarkable off-axis performance. A highly optimized ferrite motor and unique suspension layout combine to give a cost effective solution in a previously unavailable package.

        Show more

        Specifications

        Article number
        GBS-135F25AL02-04
        Woofer Series
        GBS Series
        Woofer Type
        Subwoofer
        Nominal Diameter
        5-1/4"
        Power Handling (RMS)
        35 Watts
        Power Handling (max)
        70 Watts
        Impedance (Z)
        4 ohms
        Sensitivity
        88.45 dB 1W/1m
        Frequency Response
        55 to 3,500 Hz
        Voice Coil Diameter
        1"
        DC Resistance (Re)
        3.28 ohms
        Voice Coil Inductance (Le)
        0.21 mH
        Resonant Frequency (Fs)
        63 Hz
        Mechanical Q (Qms)
        4.12
        Electromagnetic Q (Qes)
        0.66
        Total Q (Qts)
        0.57
        Diaphragm Mass Inc. Airload (Mms)
        12.3g
        Surface Area of Cone (Sd)
        85.22 cm²
        BL Product (BL)
        4.92 Tm
        Compliance Equivalent Volume (Vas)
        0.189 ft.³
        Maximum Linear Excursion (Xmax)
        3.3 mm
        Cone / Diaphragm Material
        Aluminum
        Surround Material
        Rubber
        Basket / Frame Material
        Steel
        Magnet Material
        Ferrite
        Overall Outside Diameter
        6" across flats: 5,25”
        Overall Depth
        1.07"
        Baffle Cutout Diameter
        4.68"
        # Mounting Holes
        6
        Sealed Volume
        0.14 ft.³
        Sealed F3
        94 Hz
        Vented Volume
        0.376 ft.³
        Vented F3
        46 Hz

        Show more

        Reviews

        3 reviews
        Review this product
        3 of 5
        Das Design ist nicht gerade Handwerker Tauglich aber Klang und Impulsverhalten idt Super.Ich hätte sie gerne Mit Komplettem Aussenring,da sie so auch für hobby Bauer ein Erreichbares Ziel ohne Profiwerkzeuge wären
        By Peter B. on 21 October 2020
        3 of 5
        Small, flat, much speaker for the money. One drawback: soldering terminals too large/badly placed, get's in the the way when you try to mount the speaker in a correctly dimensioned cutout. Will write to Peerles/Tymphany about this.
        By Lennart J. on 12 October 2020
