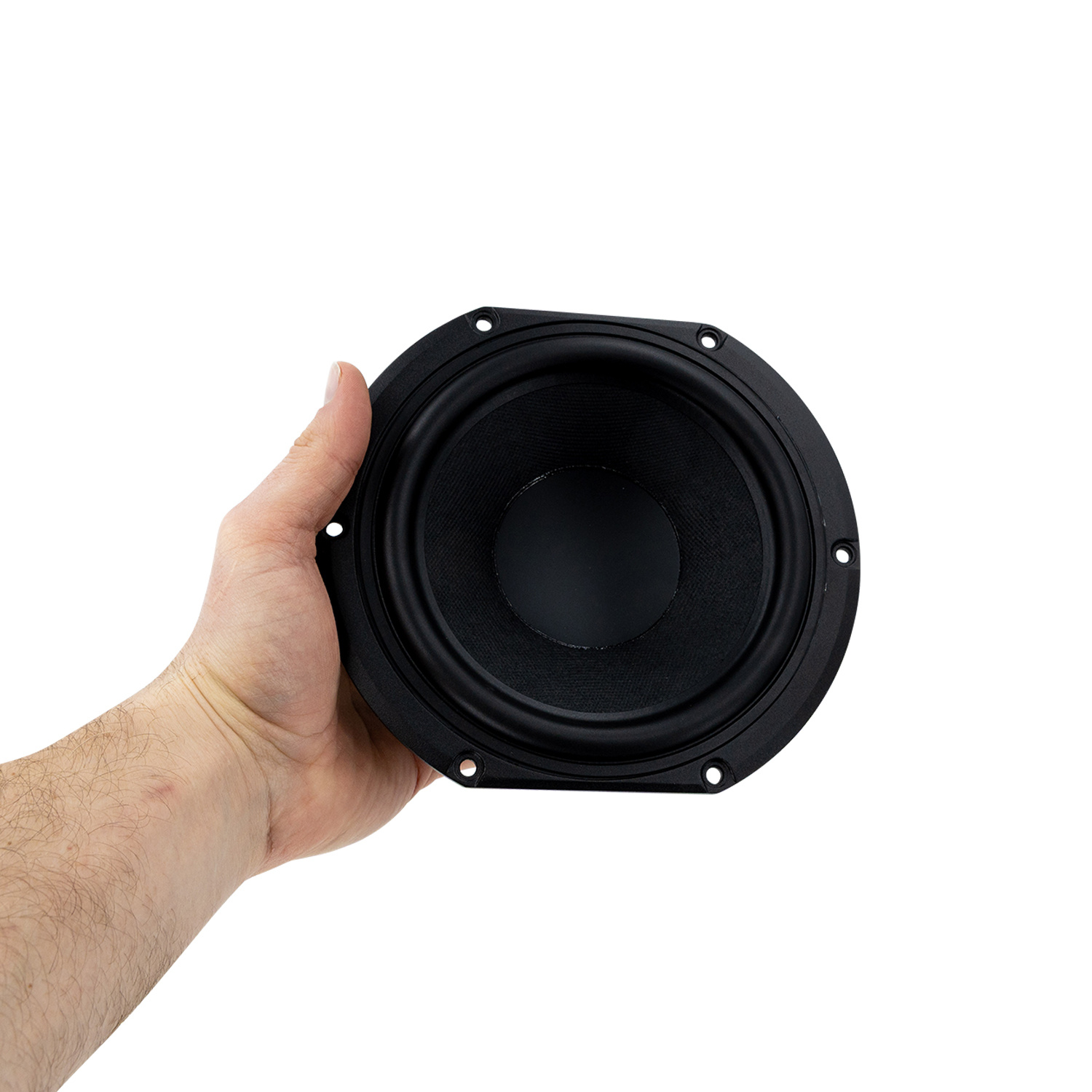

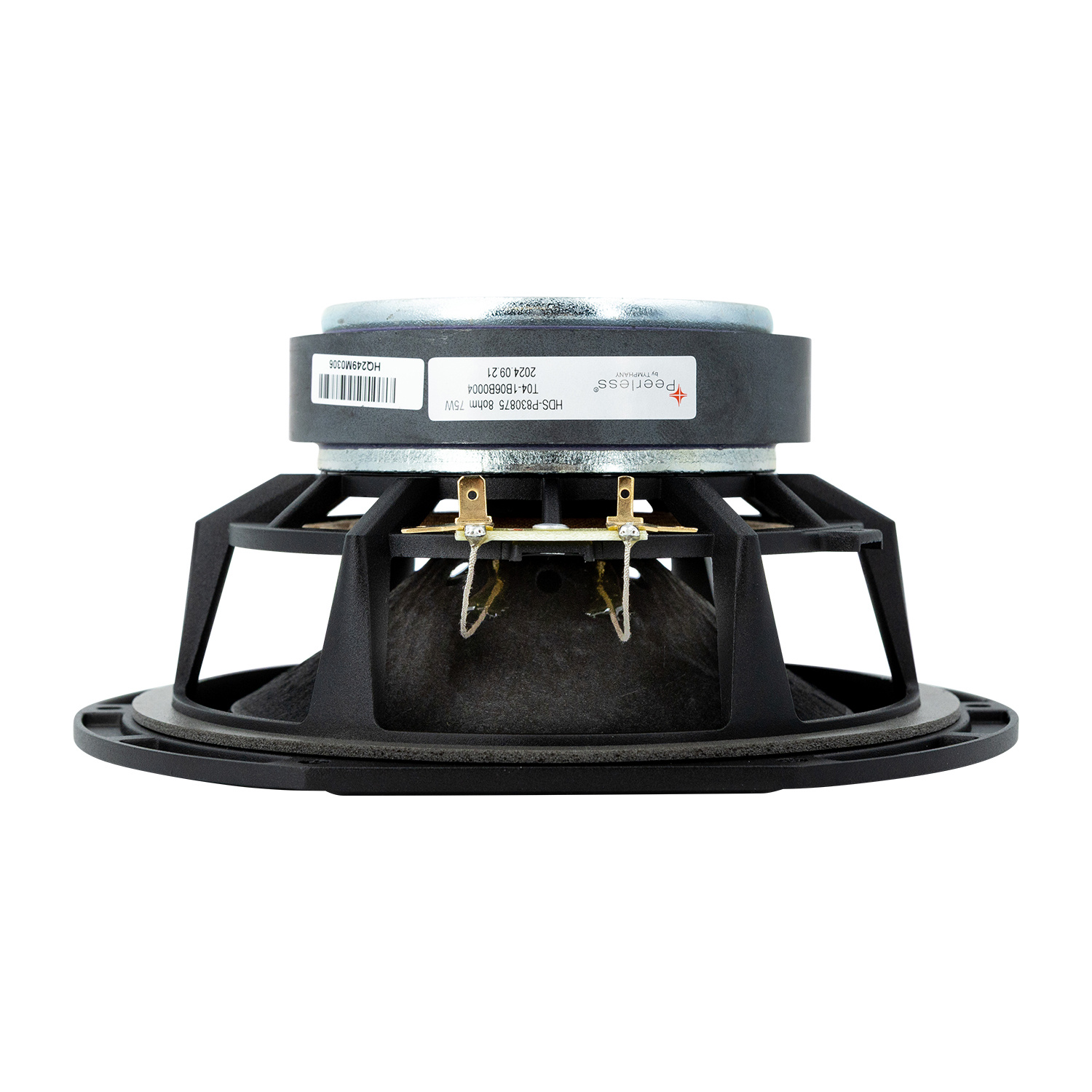

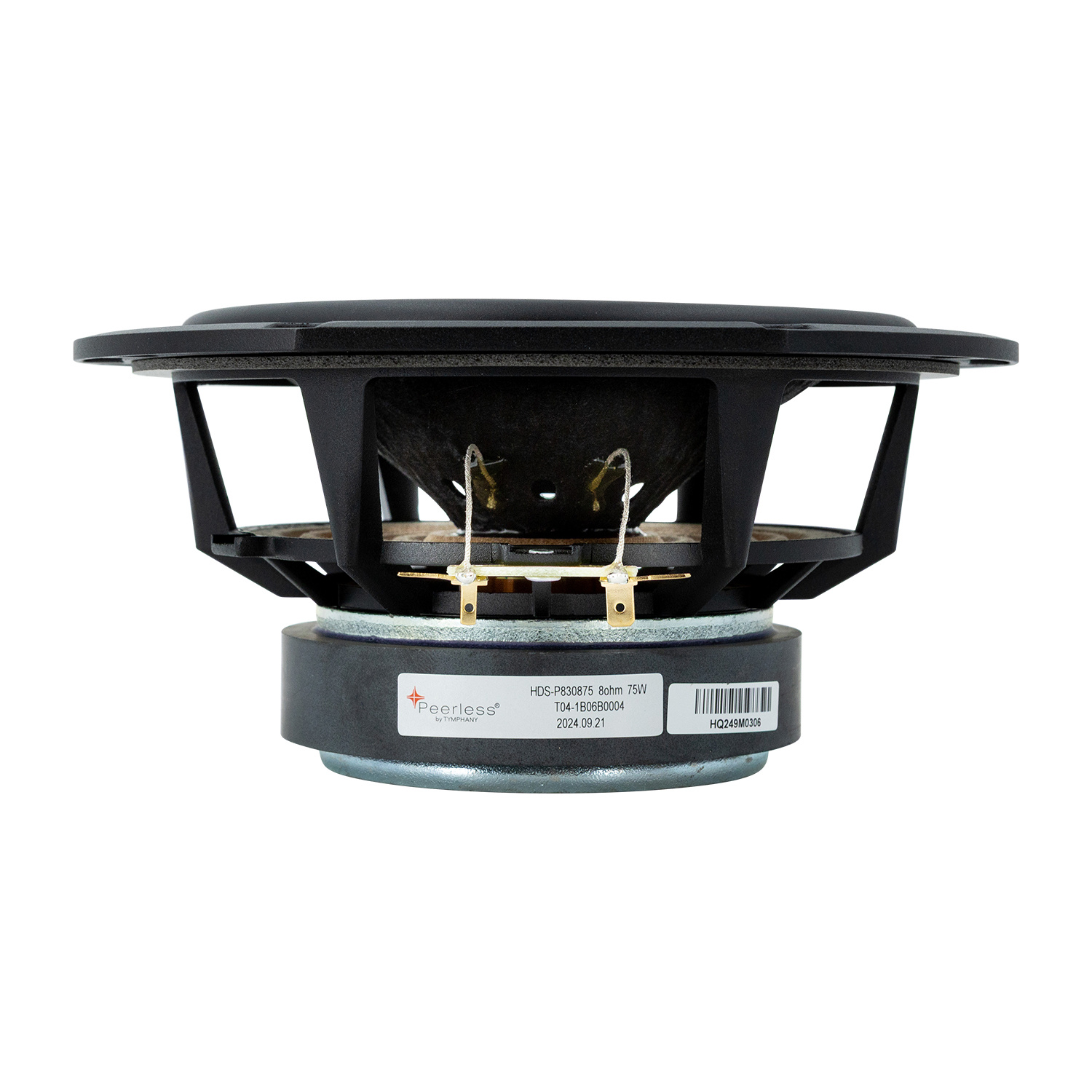

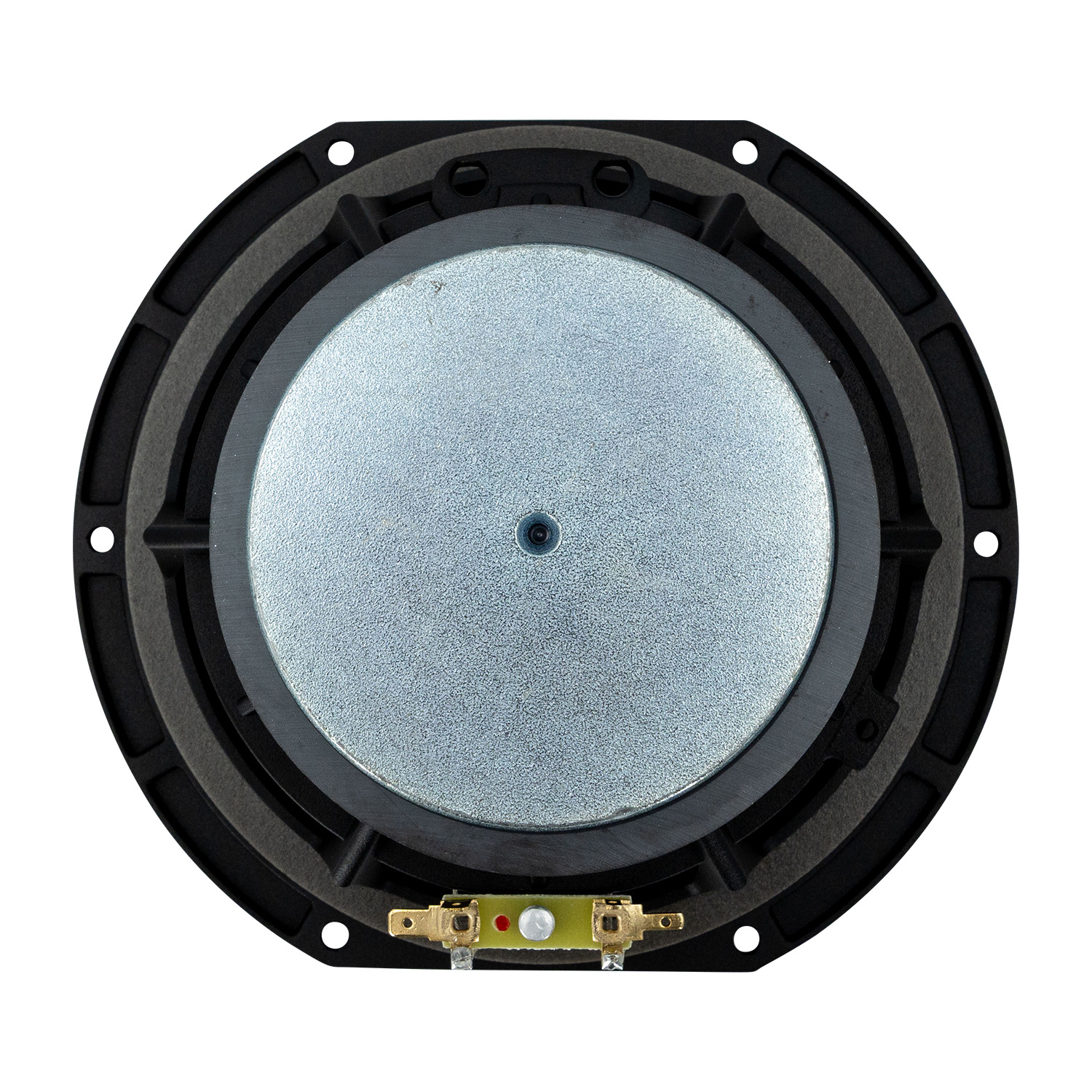

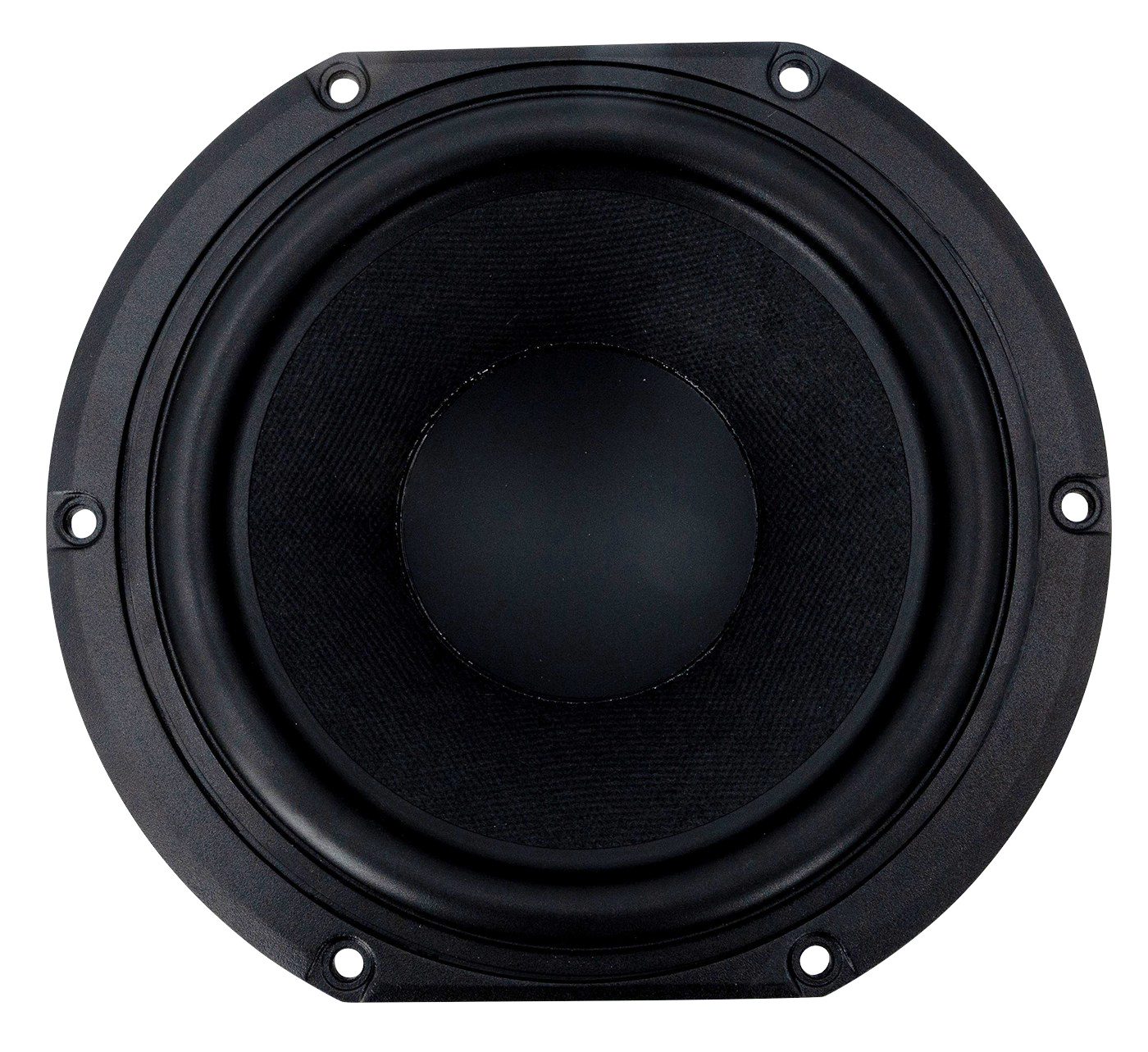

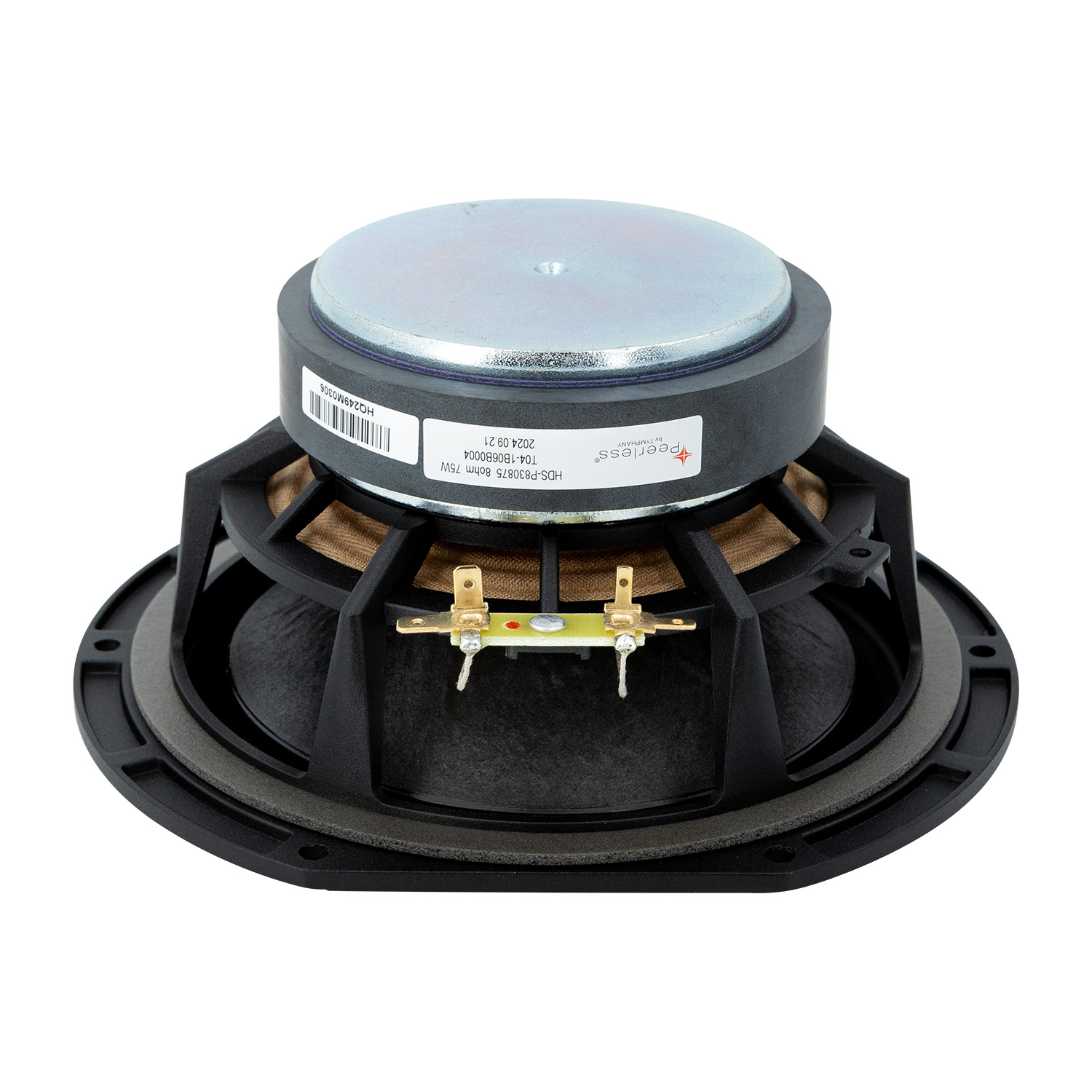

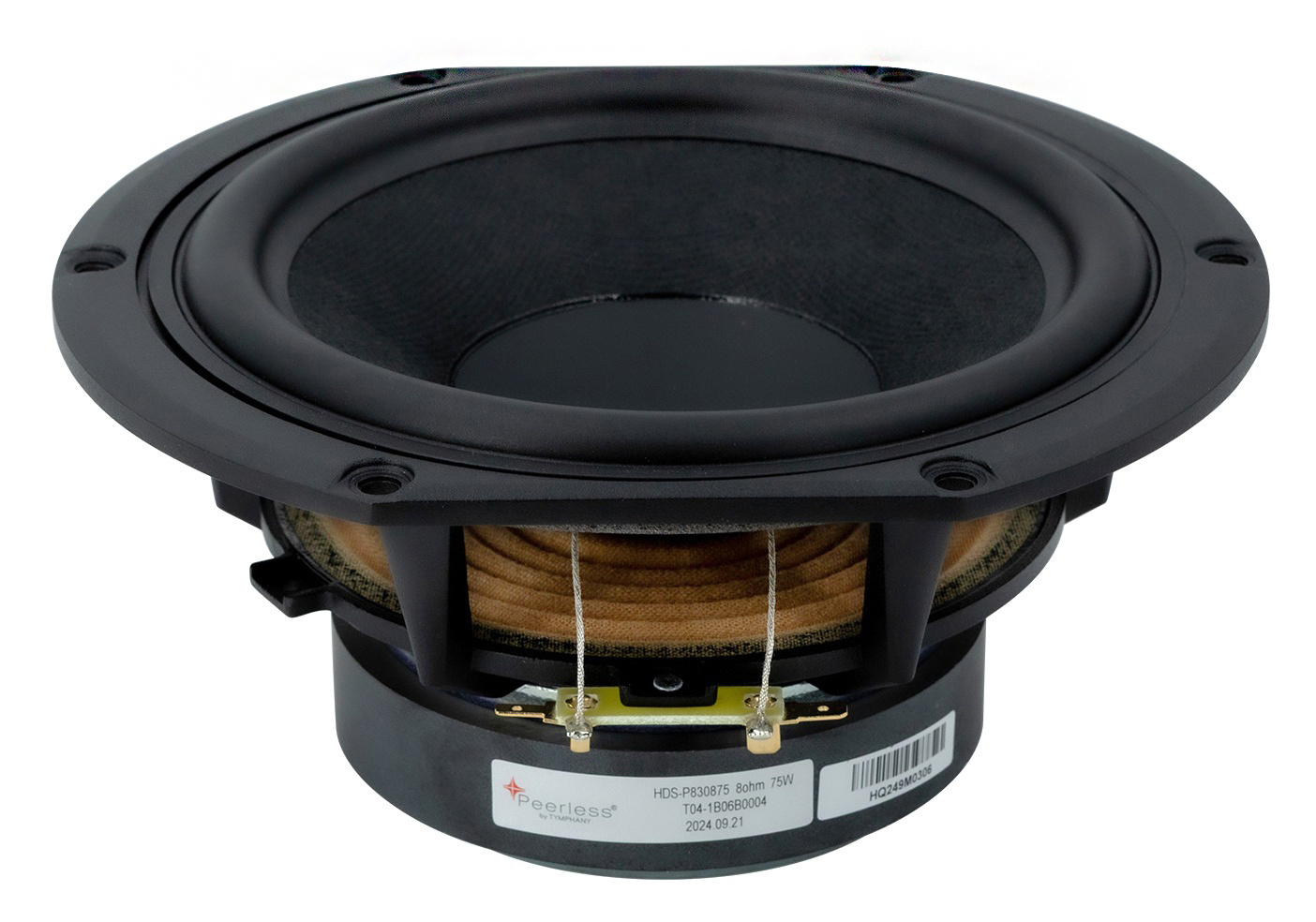

      Peerless by Tymphany HDS-P830875 6-1/2" Nomex Cone HDS Woofer

      € 61,94€ 74,95 4 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only € 71,20 per piece
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      The Peerless High Definition Sound (HDS) Series offers high-quality solutions for multi-way speaker systems employing vented box alignments



      Highlights

      • Truncated cast aluminum frame
      • Nomex cone with half-roll rubber surround
      • Long-throw voice coil
      • Shorting rings for reduced distortion
      • Under-spider and voice coil ventilation



      Product details

      Peerless by Tymphany HDS-P830875 6-1/2" Nomex Cone HDS Woofer



      This 6.5 inch 8 ohm driver is a member of the high performance HDS family. A powerful ferrite magnet system is coupled to a finite element analysis designed suspension system, containing both a linear spider design and a rubber surround. The motor contains an aluminium shorting ring, which reduces coil inductance, thus providing both extended frequency response performance and reduced distortion. The long-throw voice coil ensures linear high excursion performance, needed for signal clarity. The cone necks are vented so as to reduce air compression effects under high excursion conditions. The cast aluminium basket offers structural rigidity, heat sinking capacity for the motor, and additional air venting under the spider so as to again reduce air compression effects. The cone in this model is nomex based, offering a unique visual and acoustic experience.

      Specifications

      Article number
      HDS-P830875
      Woofer Series
      HDS Series
      Woofer Type
      Midwoofer
      Nominal Diameter
      6-1/2"
      Power Handling (RMS)
      75 Watts
      Power Handling (max)
      150 Watts
      Impedance (Z)
      8 Ohms
      Sensitivity
      89.5 dB 2.83V/1m
      Frequency Response
      40 to 3,000Hz
      Voice Coil Diameter
      1.25"
      DC Resistance (Re)
      7.18 ohms
      Voice Coil Inductance (Le)
      0.41 mH
      Resonant Frequency (Fs)
      46 Hz
      Mechanical Q (Qms)
      3.2
      Electromagnetic Q (Qes)
      0.41
      Total Q (Qts)
      0.36
      Diaphragm Mass Inc. Airload (Mms)
      15.9g
      Mechanical Compliance of Suspension (Cms)
      0.76 mm/N
      Surface Area of Cone (Sd)
      143.1 cm²
      BL Product (BL)
      8.95 Tm
      Compliance Equivalent Volume (Vas)
      0.77 ft.³
      Maximum Linear Excursion (Xmax)
      5.3 mm
      Cone / Diaphragm Material
      Nomex
      Surround Material
      Rubber
      Basket / Frame Material
      Cast Aluminum
      Magnet Material
      Ferrite
      Overall Outside Diameter
      7.17"
      Overall Depth
      3.27"
      Baffle Cutout Diameter
      5.75"
      # Mounting Holes
      6
      Sealed Volume
      0.15 ft.³
      Sealed F3
      105 Hz
      Vented Volume
      0.44 ft.³
      Vented F3
      59 Hz

      Show more

      Reviews

      5 from 5Based on 3 reviews
      Review this product
      5 of 5
      Very clear and natural sound, I really like it with ScanSpeak D2608/913000 tweeter. Bass is not enough for me in 2 way, but it is ideal for midwoofer in a powerful 3-way system. I will use it with 10" woofers.
      By Benedek B. on 1 May 2021
      5 of 5
      performe very well in 2,5 ways construction
      By Hans jørn Andreasen on 26 May 2020
