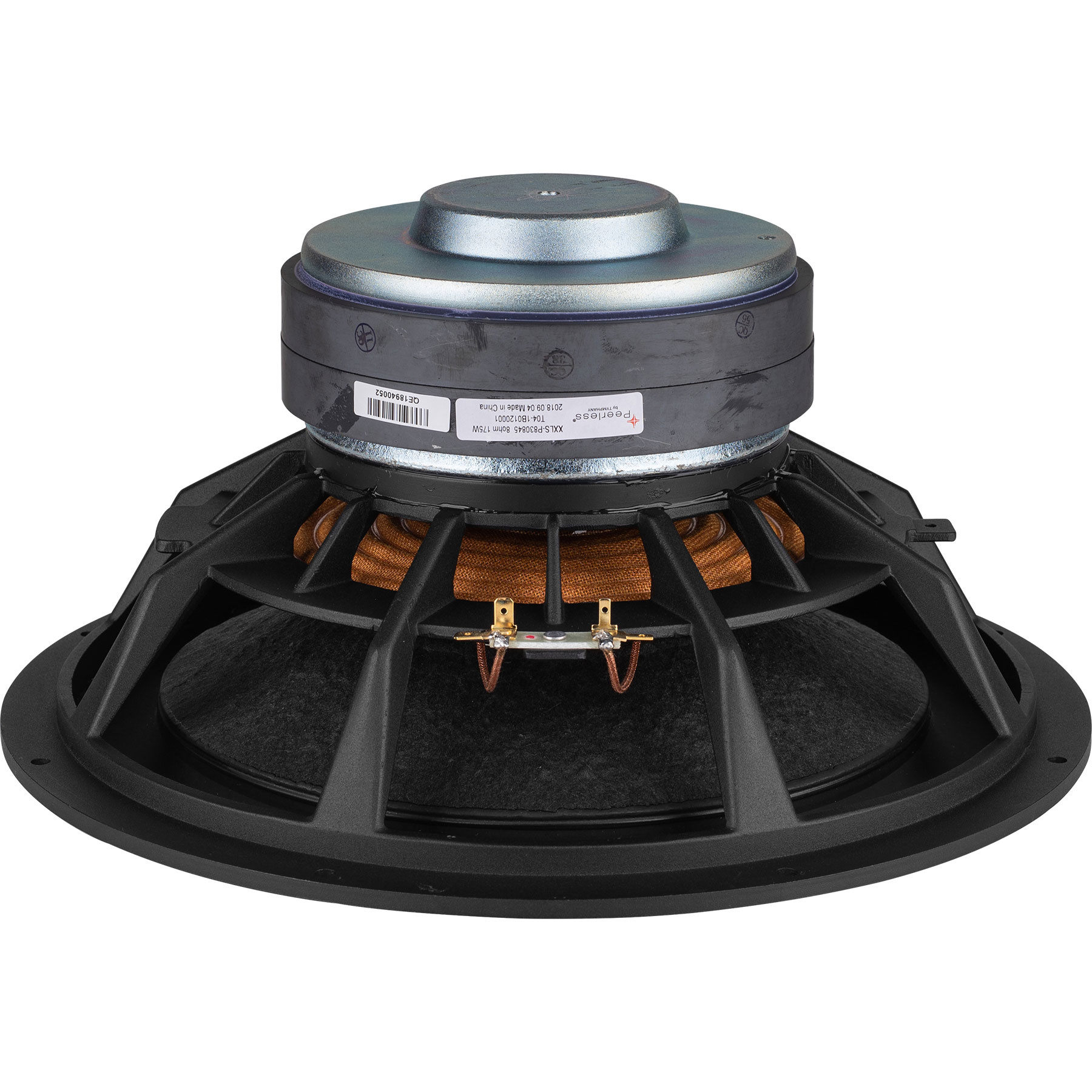

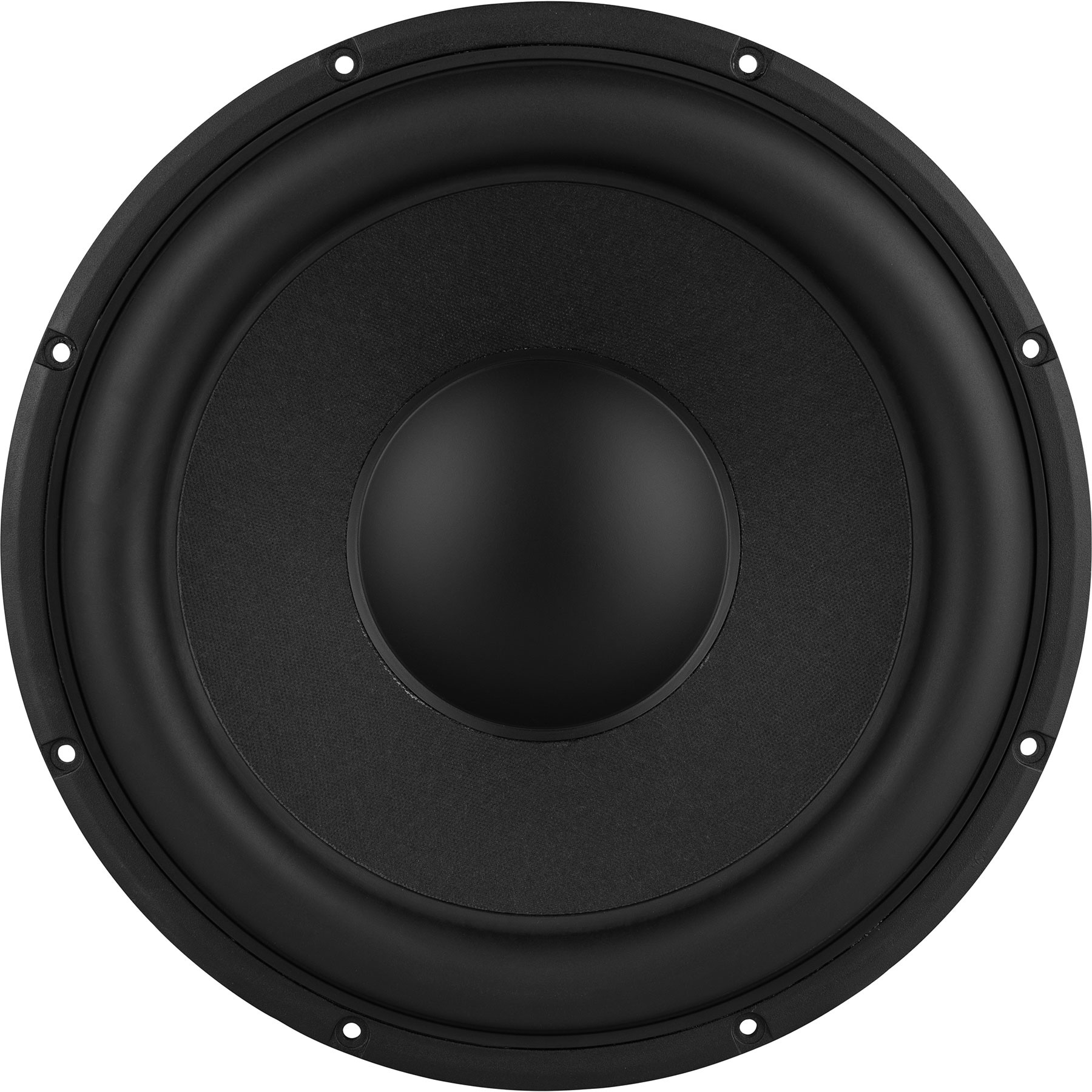

Peerless by Tymphany XXLS-P830845 Subwoofer

Brand: Peerless by Tymphany

Show all Subwoofer

Compare

12" | 8 Ω

XXLS-P830845 Subwoofer

XXLS-P830845 Subwoofer

XXLS-P830845 Subwoofer

XXLS-P830845 Subwoofer

XXLS-P830845 Subwoofer

XXLS-P830845 Subwoofer

€ 181,78€ 219,95 Out of stock

Backorder

24h express shipping available
Ordered now, shipped today
In-house technical support
45 days worry-free returns

Request quotation

Do you have a question about this product?

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

This series of state-of-the-art subwoofers continues to enhance Peerless's reputation for delivering the highest quality components for bass.

Highlights

12.5 mm of linear excursion
Extremely durable paper cone
Cast aluminum frame
Flat spider and HD rubber half roll surround
Massive stacked magnet

Product details

Peerless by Tymphany XXLS-P830845 12" XXLS Subwoofer

The 12 inch 8 ohm member XXLS product family has all the design features suitable for a high performance, high excursion subwoofer driver. The motor features a double ferrite magnet motor, supporting high excursion, and aluminium shorting rings and pole extenders, lowering and linearizing the inductance of the overhung voice coil. The light stiff composite paper cone is vented under the dust cap, to reduce air compression. The suspension system features a low-creep rubber surround, and a nomex spider, ensuring long-term reliability under high power conditions. The product also features a rigid cast aluminium basket.

Show more

Specifications

Article number: XXLS-P830845
Woofer Series: XXLS Series
Woofer Type: Subwoofer
Nominal Diameter: 12"
Power Handling (RMS): 175 Watts
Power Handling (max): 350 Watts
Impedance (Z): 8 ohms
Sensitivity: 87.45 dB 2.83V/1m
Frequency Response: 19 to 700Hz
Voice Coil Diameter: 2"
DC Resistance (Re): 5.66 ohms
Voice Coil Inductance (Le): 0.79 mH
Resonant Frequency (Fs): 27.04 Hz
Mechanical Q (Qms): 8.55
Electromagnetic Q (Qes): 0.55
Total Q (Qts): 0.52
Diaphragm Mass Inc. Airload (Mms): 98.1g
Mechanical Compliance of Suspension (Cms): 0.353 mm/N
Surface Area of Cone (Sd): 490.9 cm²
BL Product (BL): 13.06 Tm
Compliance Equivalent Volume (Vas): 4.22 ft.³
Maximum Linear Excursion (Xmax): 12.5 mm
Cone / Diaphragm Material: Paper
Surround Material: Rubber
Basket / Frame Material: Cast Aluminum
Magnet Material: Ferrite
Overall Outside Diameter: 12.12"
Overall Depth: 6.38"
Baffle Cutout Diameter: 10.91"
# Mounting Holes: 6
Sealed Volume: 2.225 ft.³
Sealed F3: 44.79 Hz
Vented Volume: 6.963 ft.³
Vented F3: 21.54 Hz
