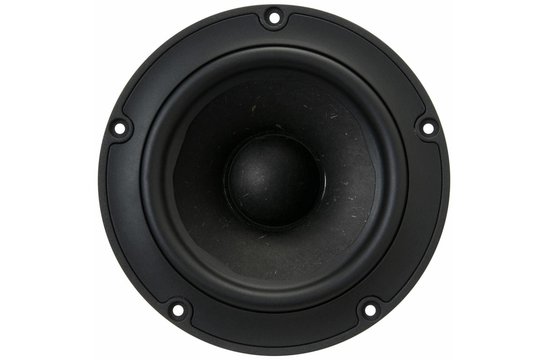

Peerless by Tymphany NE149W-08 5-1/4" Woofer

€ 99,95 3 Auf Lager: Lieferzeit 1-3 Werktage
The advanced design and superior construction of Tymphany's NE149W-08 5-1/4" neodymium speaker make it a preferred component for sophisticated audio designs.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €94,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The advanced design and superior construction of Tymphany's NE149W-08 5-1/4" neodymium speaker make it a preferred component for sophisticated audio designs.



Highlights

  • Cast aluminum frame promotes motor cooling
  • Sculpted design improves airflow and reduces reflections
  • High-strength compact neodymium magnet system
  • Proprietary coated natural wood fiber cone with half-roll rubber surround
  • Long-throw 1-1/2" voice coil on titanium former
  • Copper pole piece cap for extended HF response
  • 8 ohm nominal impedance



Product details

Peerless by Tymphany NE149W-08 5-1/4" Woofer

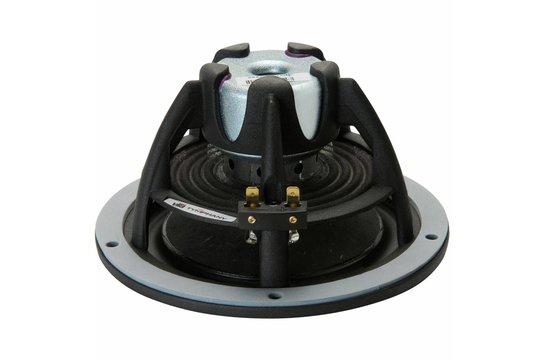

This 5.25 inch 8 ohm member of the NE family has leading-edge transducer technology packaged in a cutting edge, stylistic design. The woofers in this family feature an innovative cast aluminium basket design which minimizes acoustic reflections inside the driver, through large basket windows and sculpted basket spokes. The basket also is designed to act as a highly coupled heat sink to the Neodymium-Iron-Boron magnet (NdFeB) motor, so as to improve power handling capacity. The cone and dust cap are constructed of natural wood fiber material with proprietary coating formulas and processes, so as to yield high clarity products. The cone designs also utilize pentacone technology for improved frequency response. The voice coil bobbin is titanium, for improved performance. The FEA-designed motor features copper caps to minimize inductance and extend performance to high frequencies. Rounding out the design is a 4-way terminal block connector, for ease of electrical connection.

Eigenschaften

Artikelnummer:
NE149W-08
Woofer Type
Woofer
Nominal Diameter
5-1/4"
Power Handling (RMS)
60 Watts
Power Handling (max)
120 Watts
Impedance
8 ohms
Sensitivity
86 dB 1W/1m
Frequency Response
50 to 5,000 Hz
Voice Coil Diameter
1.5"
DC Resistance (Re)
6.3 ohms
Voice Coil Inductance (Le)
0.08 mH
Resonant Frequency (Fs)
54 Hz
Mechanical Q (Qms)
8.19
Electromagnetic Q (Qes)
0.4
Total Q (Qts)
0.38
Diaphragm Mass Inc. Airload (Mms)
10.3g
Mechanical Compliance of Suspension (Cms)
0.84 mm/N
Surface Area of Cone (Sd)
85 cm²
BL Product (BL)
7.42 Tm
Compliance Equivalent Volume (Vas)
0.3 ft.³
Maximum Linear Excursion (Xmax)
5 mm
Cone / Diaphragm Material
Wood Fiber
Surround Material
Rubber
Magnet Material
Neodymium
Overall Outside Diameter
5.39"
Overall Depth
3.18"
Baffle Cutout Diameter
4.92"
# Mounting Holes
5
Sealed Volume
0.09 ft.³
Sealed F3
113 Hz
Vented Volume
0.2 ft.³
Vented F3
63 Hz
