Dayton Audio DTA-2 Class T Digital Audio Amplifier Module

€ 27,45 8 Auf Lager: Lieferzeit 1-3 Werktage
Dayton Audio's DTA-2 amp module utilizes a Class-T Tripath audio chip to produce incredible fidelity and efficiency. Add a 12 VDC 2A power supply to this complete PCB, and install smooth, clean audiophile sound almost anywhere.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €26,08 pro stück
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Bezahlung mit PayPal, Kreditkarte und mehr
  • Hausinterner technischer Support

Produktbeschreibung

Dayton Audio's DTA-2 amp module utilizes a Class-T Tripath audio chip to produce incredible fidelity and efficiency. Add a 12 VDC 2A power supply to this complete PCB, and install smooth, clean audiophile sound almost anywhere.



Highlights

  • Features Tripath TA-2024 IC
  • 15W/ch continuous power
  • Limitless application possibilities
  • Measures 2-11/16" x 1-5/16"
  • Ideal for audio projects and educational applications



Product details

Dayton Audio DTA-2 Class T Digital Audio Amplifier Module

Tip: Take a look at the table in this blogpost to see which power supply to choose for this product.



The Dayton Audio DTA-2 Class-T Digital Audio Amplifier is designed around the Tripath TA-2024 IC developed by Sonic Impact. The TA2024 is a 15W/channel continuous average two-channel Class-T Digital Audio Power Amplifier IC using Tripath's proprietary Digital Power Processing™ technology. Class-T amplifiers offer both the audio fidelity of a Class-AB amplifier and the power efficiency of a Class-D amplifier.



This DTA-2 amplifier is ideal for any audio enthusiast who enjoys building and modifying speaker systems. The applications are virtually limitless, since this tiny PCB measures a mere 2-11/16" x 1-5/16". Build your own speakers or incorporate the amplifier into an existing speaker cabinet. Recommended power supply: 12 VDC, 2000mA, regulated.



Package Contents:

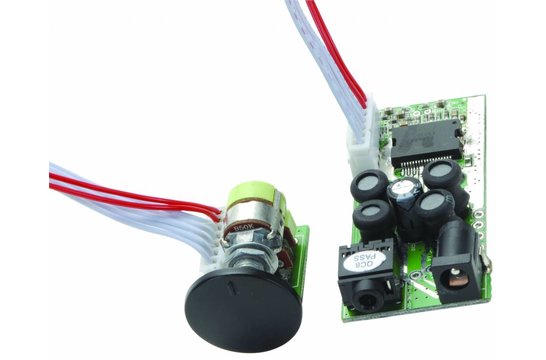

(1) Class T digital audio amplifier PCB

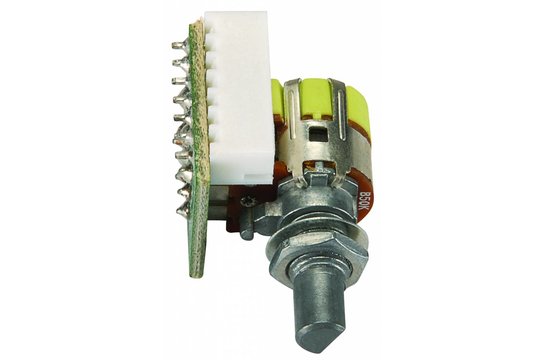

(1) Volume control PCB with 12" ribbon cable
(1) LED power indicator with ribbon cable
(2) 12" speaker wires (red & black)
(2) 12" power wires (1 red & 1 black)
(2) 12" LED wires (1 red & 1 black)

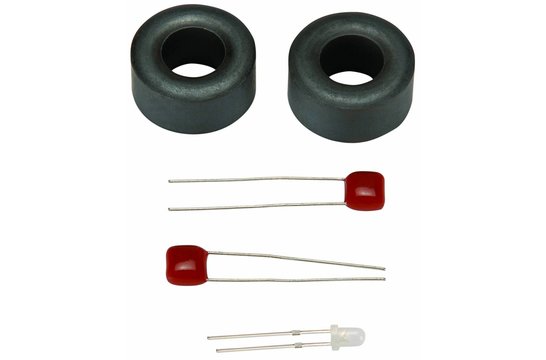

(2) Ferrite cores
(2) Output capacitors

Eigenschaften

Artikelnummer:
DTA-2
Rated power output
<p>2 x 15 watts at 4 ohms</br>2 x 10 watts at 8 ohms </p>
Minimum load
4 ohms
Efficiency
81 % at rated output
Signal-to-noise ratio (SNR)
-
Distortion
0.1 % THD+N (at 11 watts)
Frequency Response
-
Gain
-
Input sensitivity
-
Input impedance
-
Amplifier Classification
Class T
Circuit Topology
Tripath TA-2024
Speaker output channels
2
Input connection type
3.5 mm jack
Speaker output connection type
PCB connector
DSP function
-
Bluetooth
-
EQ Adjustment
-
Power Requirements
12 VDC 2 A
Power inlet connector
DC jack 2.1 x 5.5 mm
Current limit
-
Under/over voltage protection
-
Dimensions (L x W x H)
68 x 33 x H mm
Mounting hole spacing
-
Mounting hole diameter
-
