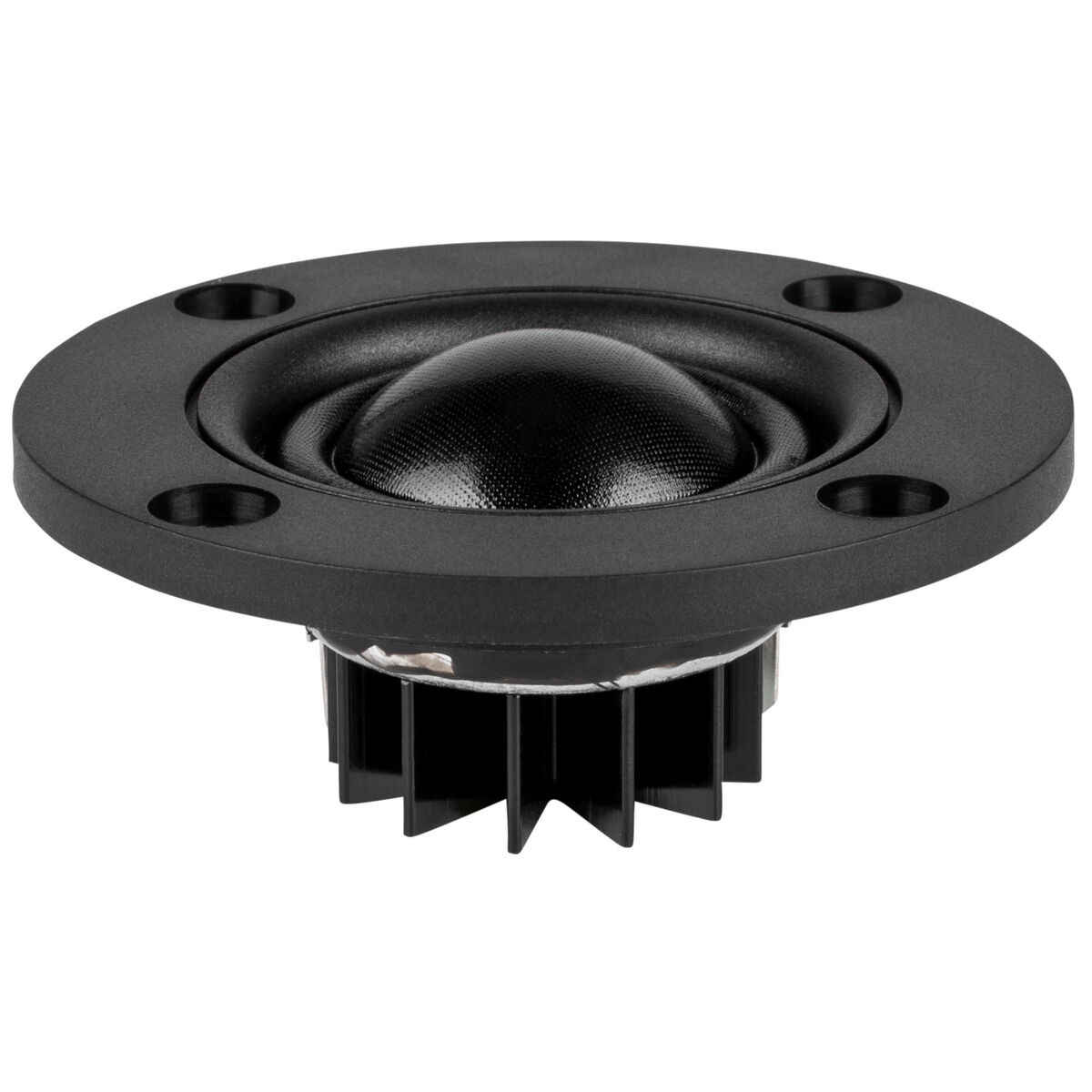

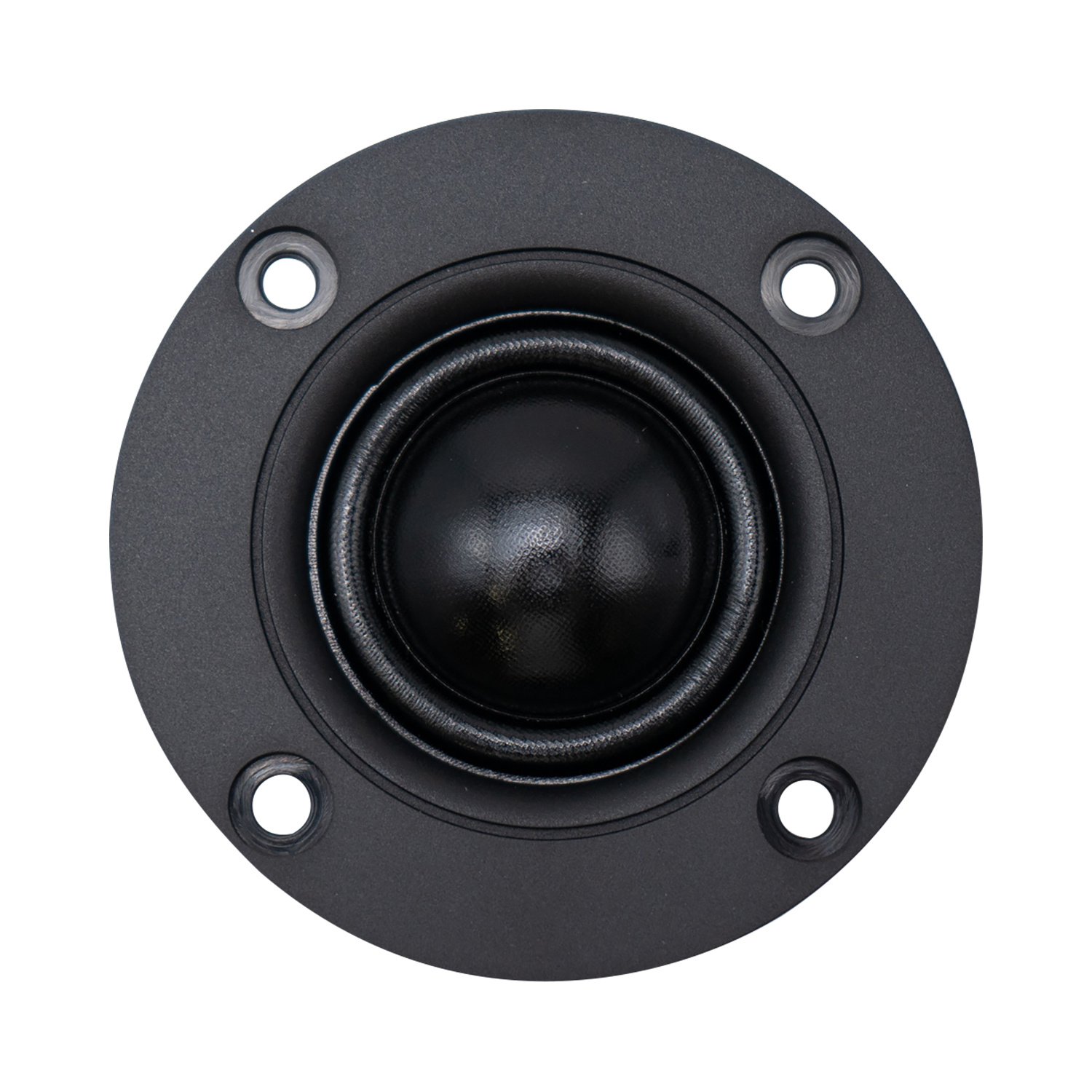

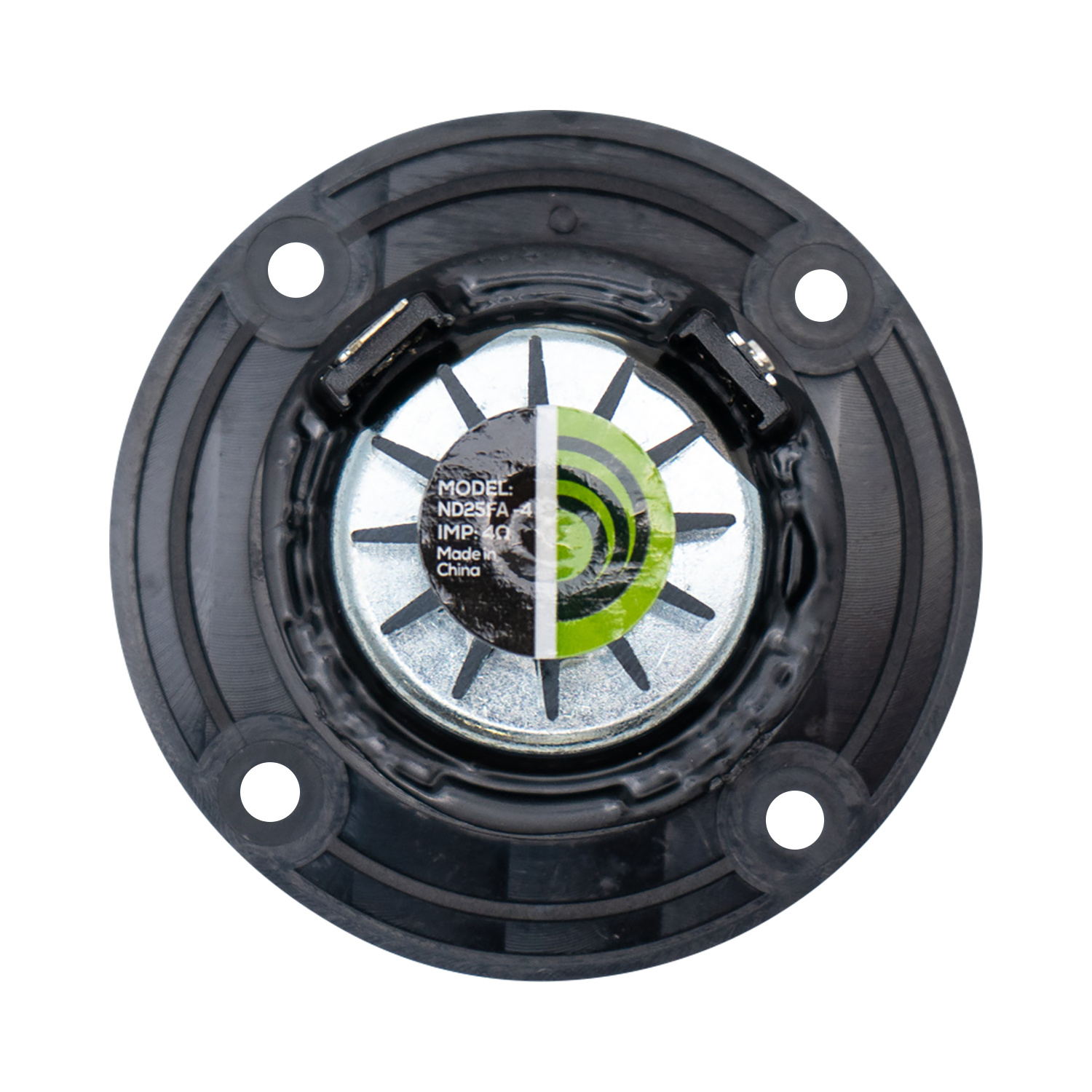

      Dayton Audio ND25FA-4 1" Soft Dome Neodymium Tweeter

      € 12,93€ 15,65 10+ In stock10+ expected on 30-12-2022
      • -5% Order 4 for only € 14,87 per piece

      Buy now, pay later

      • 24h express shipping available
      • Ordered now, shipped today
      • In-house techniscal support
      • 45 days worry-free returns
      Request quotation
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Dayton Audio's compact, ultra-smooth ND25FA-4 soft dome tweeter features excellent detail and high power handling. The small faceplate and neodymium motor make it easy to keep center-to-center distance to a minimum for improved off-axis response, and the exceptionally flat response above 3 kHz.



      Highlights

      • Exceptionally flat treble response with low distortion
      • Compact round faceplate design is simple to install
      • High-strength neodymium motor with heatsink and ferrofluid cooling
      • 1" diameter voice coil for good off-axis dispersion
      • Clean, modern styling and appearance



      Product details

      Dayton Audio ND25FA-4 1" Soft Dome Neodymium Tweeter



      This tweeter is smooth! The Dayton Audio ND25FA-4 is a 1" soft-dome tweeter that combines an exceptionally flat response above 3 kHz with a compact round faceplate for a clean, modern appearance that integrates easily into any design. The tiny yet powerful neodymium motor structure features an aluminum heatsink and ferrofluid cooling for low power compression and improved long-term power handling. A copper pole cap within the motor further reduces distortion and inductance effects.



      Choose the ND25FA-4 when you need detail that won't become fatiguing or shrill at high volumes, for a highly refined presentation. The compact faceplate allows for close center-to-center spacing of drivers, making these tweeters perfect for line array use or D'Appolito (MTM) configurations with wide dispersion.

      Show more

      Specifications

      Article number
      ND25FA-4
      Tweeter Type
      Soft Dome
      Tweeter Series
      ND Series
      Cone / Dome Diameter
      25 mm | 1"
      Power Handling (RMS)
      20 Watts
      Impedance (Z)
      4 Ω
      Sensitivity
      90 dB 2.83V/1m
      Frequency Response
      2,500 to 20,000 Hz
      Resonant Frequency (Fs)
      1,350 Hz
      DC Resistance (Re)
      3.20 ohms
      Voice Coil Inductance (Le)
      0.48 mH
      Mechanical Q (Qms)
      3.87
      Electromagnetic Q (Qes)
      2.61
      Total Q (Qts)
      1.56
      Overall Outside Diameter
      2.60"
      Cutout Diameter
      1.77"
      Depth
      1.00"

      Show more

      Reviews

      4 from 5Based on 7 reviews
      Review this product
      5 of 5
      Sehr günstig und trotzdem gute klangchatakteristik
      By Martin on 12 May 2022
      5 of 5
      ausgewogener Frequenzgang, guter Wirkungsgrad, gutes Preis-/Leistungsverhältnis... was will man mehr?
      By Peter K. on 10 April 2021
