    SMSL SA-36A PRO 2×20W class D Amplifier

    Productomschrijving

    The SMSL SA-36A Pro is the perfect amplifier to power small to medium sized speakers in a near-field listening environment. Centered on the STMicroelectronics TDA7492, this Class-D amplifier is highly efficient while delivering deep bass and an expanded sound stage to the listener.



    Highlights

    • Highly efficient operation with realistic soundstage
    • Small size lets you use this amp almost anywhere
    • Simple operation with handsome, minimalist appearance
    • Gold-plated RCA jacks and binding posts ensure maximum signal transfer



    Product details

    SMSL SA-36A PRO 2×20W class D Amplifier

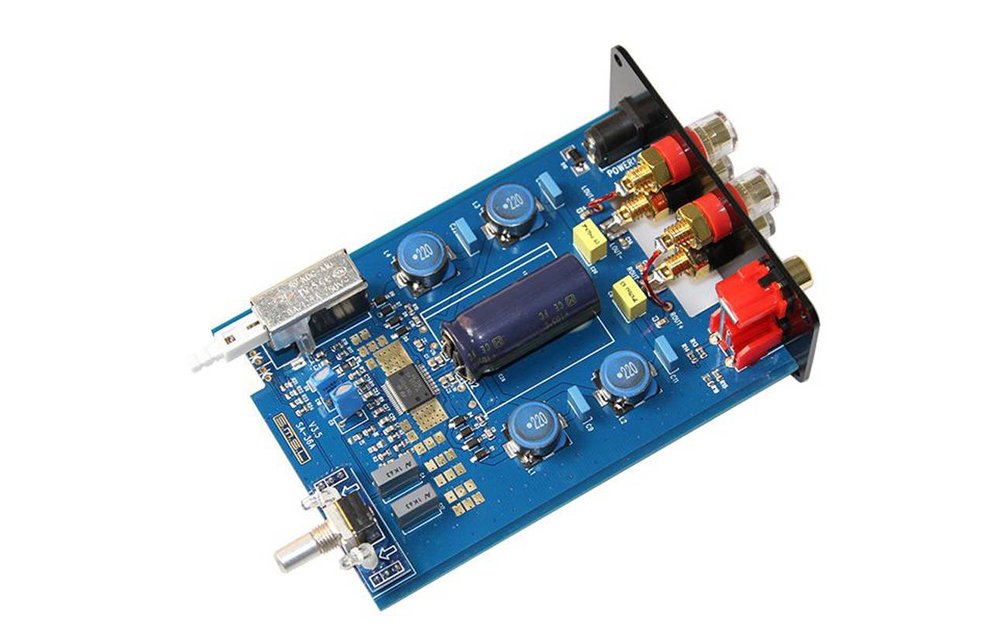

    Once you have held the SA-36A Pro in your hand, you will know quality craftsmanship and high-end components go into the making of this amp. At its heart lies the TDA7492 amp chip. The high efficiency of this component provides smooth detail in the mids and highs and solid, powerful bass. It is fully protected against faults with short-circuit and thermal protection as well as over-voltage, under-voltage, and DC protection.

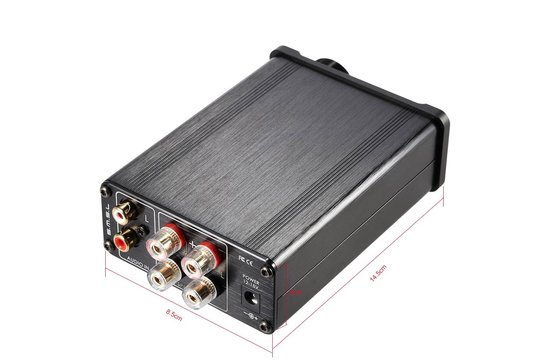

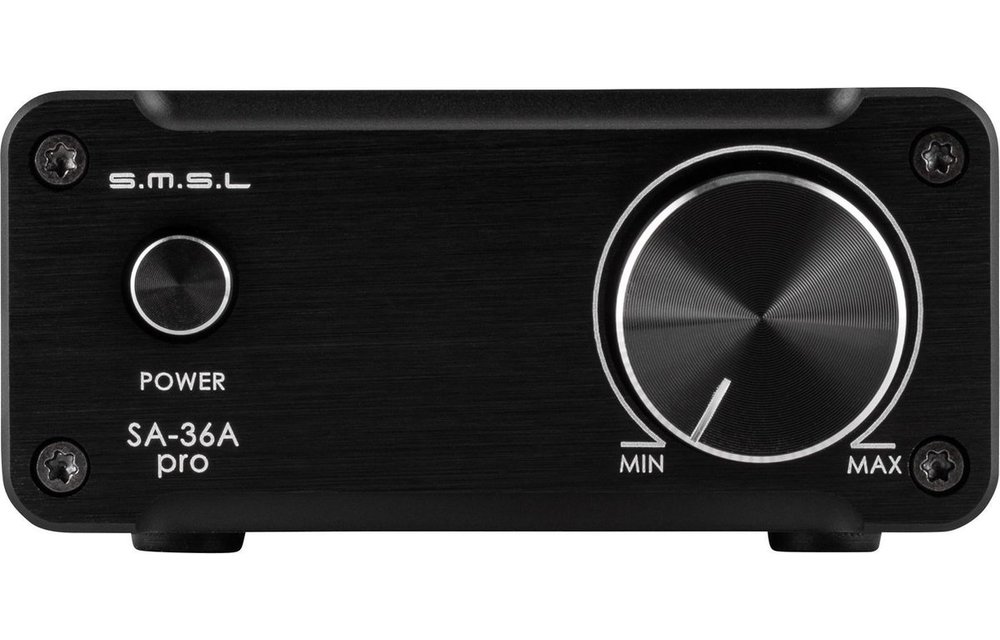

    Use the SMSL SA-36A Pro where space is limited and great quality music is desired. At 3-1/2" x 5" this amp will fit nearly any setting. Operation is quite straight forward with a small power button and large analog volume knob on the front panel. Located on the rear panel are a single set of gold-plated stereo RCA connectors and mini 5-way binding posts. A 15V 4A DC power supply is included and provides ample current so this amplifier functions at peak performance.

    Specificaties

    Artikelnummer
    SA-36A PRO
    Vermogen (RMS)

    2 x 20 watts at 4 ohms
    2 x 12 watts at 8 ohms

    Vermogen gebrugd (RMS)
    -
    Minimale belasting
    4 ohms
    Signaal-ruisverhouding (SNR)
    102 dB
    Vervorming
    0.02% THD at 1 watt
    Vervorming gebrugd
    -
    Efficiëntie

    81% at 20 watts, 4 ohms
    88% at 12 watts, 8 ohms

    Frequentierespons
    20Hz - 22,000 Hz, +/- 3dB
    Input impedance
    -
    Ingangsgevoeligheid
    -
    Inschakelgevoeligheid
    -
    DSP
    -
    DAC
    -
    Maximale sample rate
    -
    Versterkertopologie
    STMicroelectronics TDA7492
    Versterkerklasse
    D
    Uitgangskanalen
    2
    Subwoofer uitgangskanaal
    -
    Analoog in / uit
    -/-
    S/PDIF in / uit
    -/-
    Coaxial in / uit
    -/-
    RCA in / uit
    1/-
    AUX in / uit
    -/-
    Bus in / uit
    -/-
    XLR in / uit
    -/-
    USB
    -
    Geheugenkaartslot
    -
    Netwerkverbinding
    -
    Koptelefoonaansluiting
    -
    Subwoofer pre-out
    -
    Bluetooth
    -
    NFC
    -
    Wi-Fi
    -
    Banaanstekker
    check
    Afstandsbediening
    -
    App-bediening
    -
    Auto aan / uit
    -
    Ondersteunde bestandsformaten
    -
    EQ-correctie
    -
    EQ-profielen
    -
    Multi zone / kamer
    -
    Instelbare kantelfrequentie
    -
    Brugbaar
    -
    Voedingsvereisten
    12 - 15 VDC
    Voedingsaansluiting
    DC jack
    Stroomverbruik
    -
    Standby stroomverbruik
    -
    Afmetingen (D x B x H)
    124 x 92 x 41 mm
    Behuizingsmateriaal
    Aluminum

    Reviews

    5 from 5Based on 8 reviews
    Schrijf een review
    4 van 5
    The quality/price ratio is very good. Delivers 13 W in 4 Ohm and 8 W in 8 Ohm with a 12V power supply and with a volume settings for an harmonic distortion of <1%. Distortion increases dramatically as max volume is reached.
    Door Lieven Fransen on 10 Juni 2021
    5 van 5
    It is a decent product, finished on high level, sound is just great for a desk top device.
    Happy to buy it!
    Door Radnai L. on 4 Mei 2021
