SU-9 | MQA | 32 bit/768 kHz | Bluetooth | Audio DAC

€524,95

Add to cart

SMSL SU-9 | MQA | 32 bit/768 kHz | Bluetooth | Audio DAC

1 reviews

Brand: SMSL

Show all DAC converters

SU-9 | MQA | 32 bit/768 kHz | Bluetooth | Audio DAC

€ 433,84€ 524,95 5 In stock

We ship to
Ordered now, shipped on Monday
At least two years warranty
45-day cooling-off period to return

Customer rating:

Compare

Request quotation

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

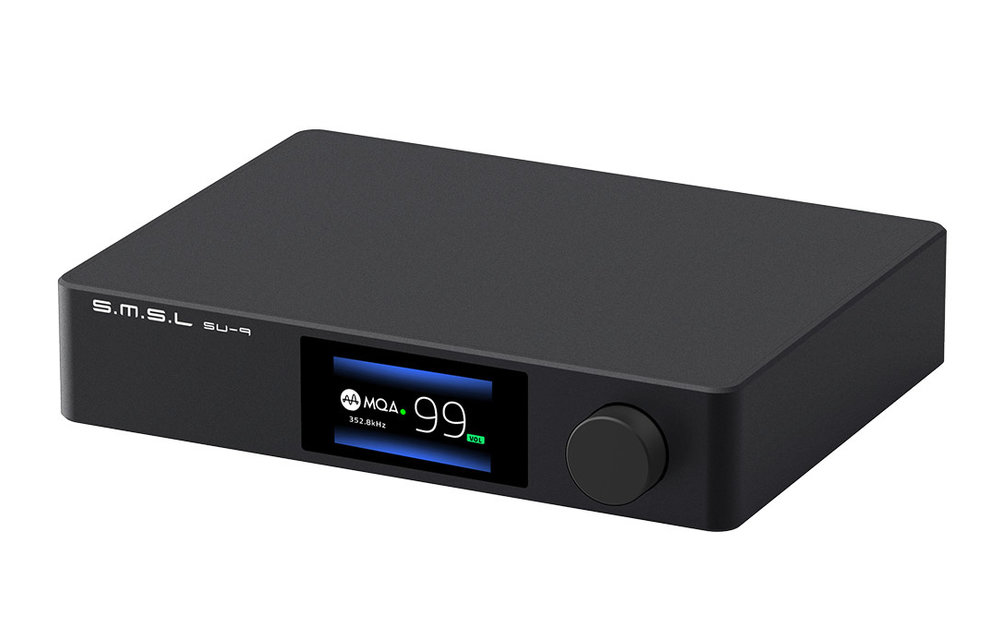

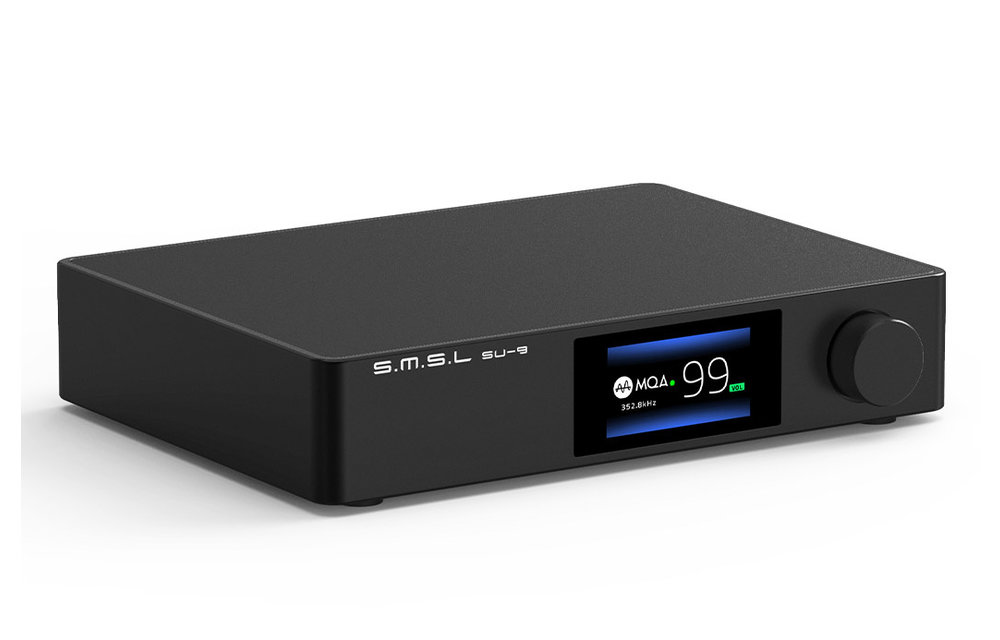

The SMSL SU-9 is a new desktop pure DAC featuring an ESS SABRE9038Pro chipset, with BT5.0 UAT and MQA capability.

Highlights

Latest Bluetooth Codecs including LDAC, AptX, AptXHD, AAC, SBC, it also interestingly includes an even higher codec, UAT
Single TOTL ES9038PRO DAC chipset version
True balanced DAC around the ES9038PRO chipset
Equipped with ES9311 regulator power supply
MQA rendering capabilities
Ultra-low phase noise and optimized clock processing circuits to achieve ultra-low clock jitter

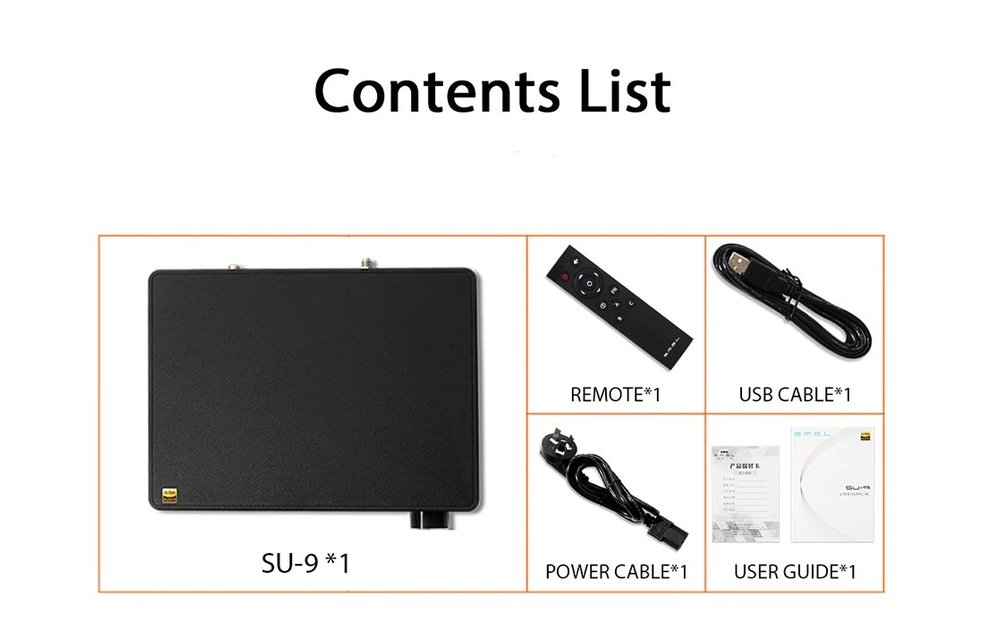

Package includes: a SU-9, remote, USB cable, a power cable, Bluetooth antenna, manual.

Product details

SMSL SU-9 DAC ES9038Pro USB XMOS Bluetooth 5.0 MQA 32bit 768kHz DSD512

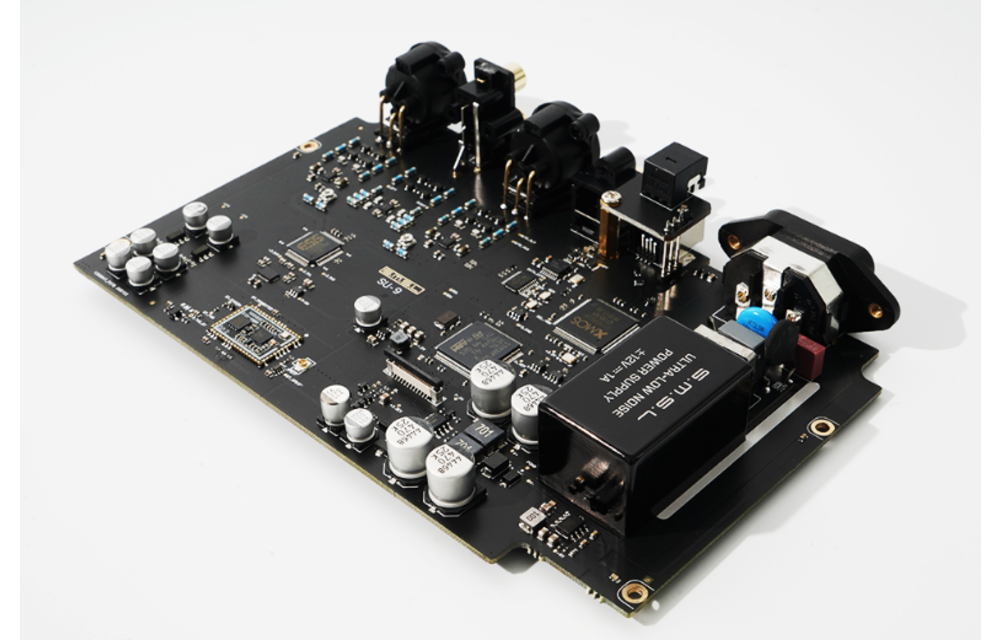

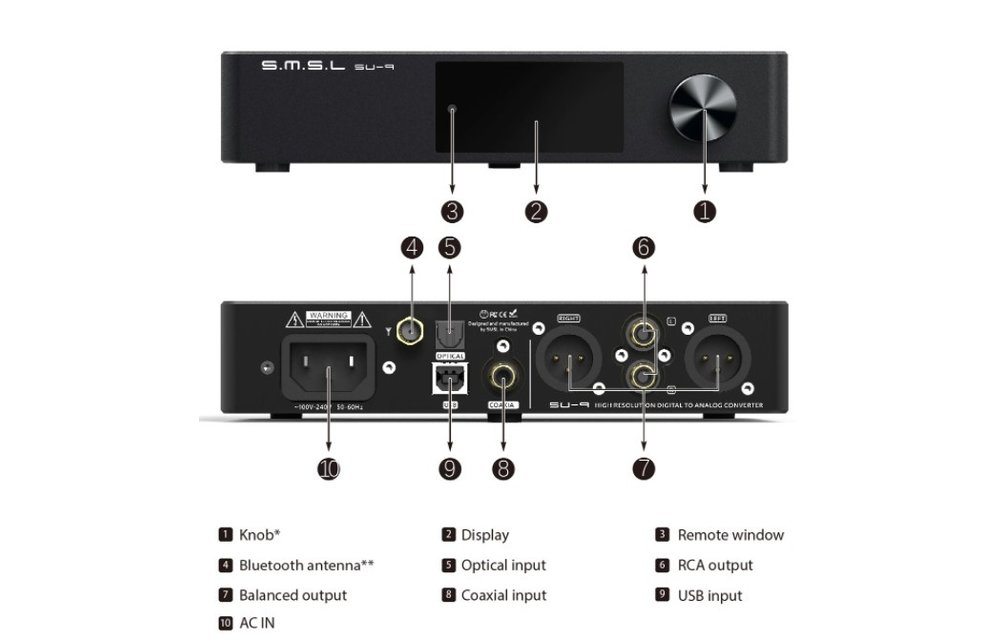

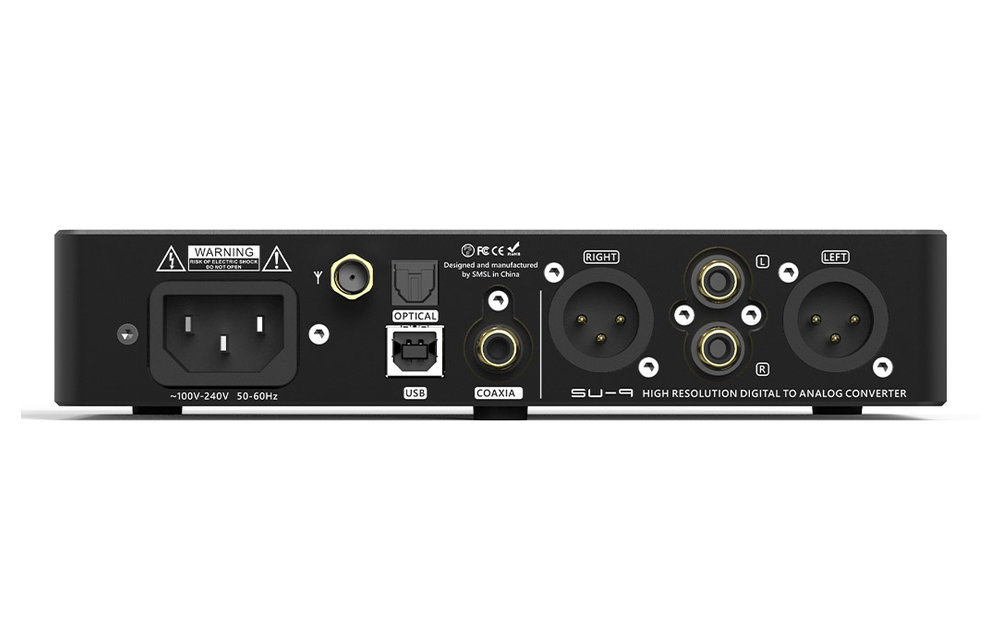

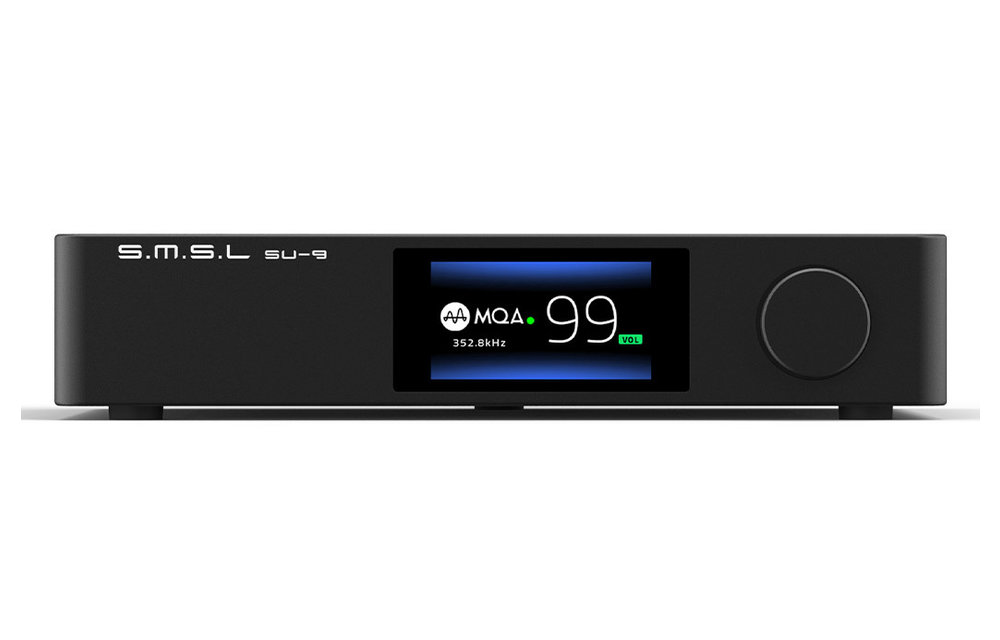

Successor of the SU-8, the SMSL SU-9 takes up the excellent base of the SU-8 while bringing significant improvements to improve its sound performance. This new version of the DAC also offers support for MQA (Master Quality Authenticated) files, guaranteeing faithful reproduction, as close as possible to studio recording. On the conversion chip side is the excellent and proven DAC ESS ES9038Pro, which supports high-resolution files up to 32bit 768kHz PCM and up to DSD512. The ergonomics of the device have also been reviewed. The front panel now features a rotary knob that allows you to navigate through the menus, adjust the volume level, select a source or turn the device on and off. The color screen has been greatly enlarged for improved navigation and readability. The connections remain unchanged and therefore as complete as ever. We find Toslink Optics, Coaxial and USB (XMOS) in input and unbalanced RCA as well as balanced XLR in output. However, a novelty appears here as well, with the support of Bluetooth 5.0 transmission. Particularly convenient, it is possible to broadcast your music remotely, directly from a smartphone. The SU-9's careful and well-thought-out internal design allows it to unveil a precise, rich and dynamic sound reproduction.

MQA Support

Master Quality Authenticated (MQA) files offer the same quality as when the song is recorded in the studio, resulting in much lower distortion, a wider sound stage, and richer, more accurate playback.

The MQA uses a treatment called "musical origami". This makes this high-resolution file easy to manage in order to make it compatible with all audio playback services and devices. This process consists of 3 steps.

Bluetooth UAT Reception

The SMSL SU-9 allows a Bluetooth reception, particularly practical to broadcast music from your phone. It also supports all available transmission codecs, including high-resolution protocols such as LDAC, aptX, aptX-HD, XBC and AAC. It is also compatible with the UAT (Ultra Audio Transmission) format, allowing high-quality reception at 24bit 192kHz.

Specifications: Product type: DAC • DAC Chip: ESS ES9038Pro • USB Interface: XMOS • Digital reception: cgip ESS ES9311 • Input: USB/Optical/Coaxial/Bluetooth • Output:RCA/XLR • THD+N:0.00009%(-121dB) • Dynamic range:XLR 130dB • RCA 123dB • SNR:130dB • Output impedance:XLR 207Ω • RCA 142Ω • USB transmission:Asynchronization • USB compatibility:Windows 7+,Mac OSX,Linux • Bit depth: USB 1bit,16-32bit • Optical/Coaxial 1bit,16-24bit • Sampling rate: USB PCM 44.1-768kHz • DSD 2.8224-22.5792MHZ • Optical/Coaxial PCM 44.1-192kHZ • DSD dsd64(DoP).

What’s In The Box

1x SMSL SU-9
1x Remote control
1x USB cable
1x Power cable

Specifications

Article number: SU-9
Product type: Audio DAC
Wireless Connectivity: Bluetooth 5.0 (LDAC, AptX, AptXHD, AAC, SBC, UAT)
DAC Chipset: TOTL ES9038PRO
Codec support: MQA
DSD512
PCM
Inputs: 1 x USB
1 x Optical
1 x Coaxial
1 x Bluetooth
Outputs: 1 x RCA
1 x XLR
THD(+N): 0.00009% (-121dB)
Dynamic Range: XLR : 130dB
RCA : 123dB
SNR: 130dB
USB Compatibility: Windows 7+
Mac OSX
Linux
Processing resolution & sample rate: > 32-bit / 768 kHz (USB)
> 24-bit / 192 kHz (TOSLINK, COAX)
DSD64
Power requirements: 100 - 240 VAC
Power consumption: 5 watts
Standby power consumption: < 0.5 watts
Remote control: Yes

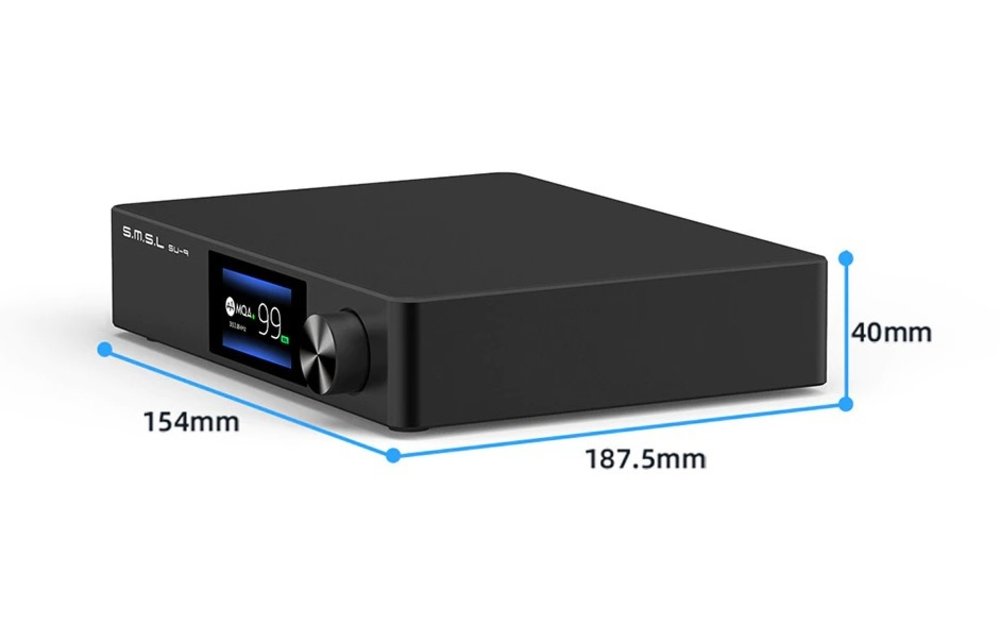

Dimensions: 187,5 x 154 x 40 mm
Weight: 790 gr.

Reviews

1 reviews

Review this product

4 of 5

Scheint technisch einwandfrei zusein, aber die Dokumentation ist nicht ausreichend + Top Leistungswerte - Fehlende Information in der Dokumentation ...

By AudioChiemgau on 9 March 2022
