      SMSL DO200 DAC 2x ES9068AS XMOS Bluetooth 5.0 LDAC 32bit 768kHz DSD512 MQA

      € 437,98€ 529,95 8 In stock: delivery time 1-4 business days
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      S.M.S.L presents you its advanced Desktop DAC, the DO200 with full MQA decoding support. The device is loaded with a top-quality ES9068AS*2 Dual DAC chipset that delivers astounding performance with ultra-low distortion ratings. DO200 is designed with ultimate components to ensure high-quality performance. It is among the only few DAC’s in the market that supports MQA decoding in all input interfaces.



      Highlights

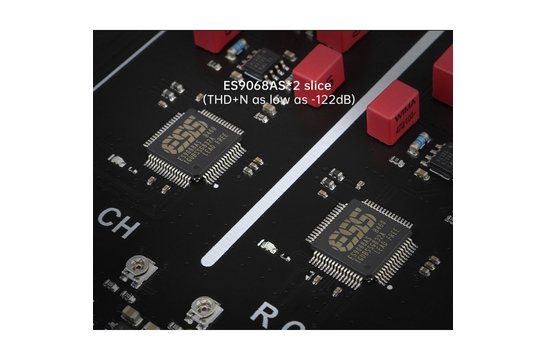

      • High-Quality ES9068AS ESS Sabre DAC chip
      • Full MQA decoding support
      • Premium audio components including high-end OPA1612 OPAMPs
      • Latest XMOS XU216 16-core USB Processor
      • High-resolution audio signal decoding including PCM 32-Bit/768kHz and native DSD512
      • Qualcomm’s latest Bluetooth chip
      • High-quality gold-plated input and output ports
      • 1.9” TFT LCD display
      • Ultra-low clock jitter
      • MQA support across all input interfaces
      • DSD decoding across all inputs, coaxial and optical supports DoP64

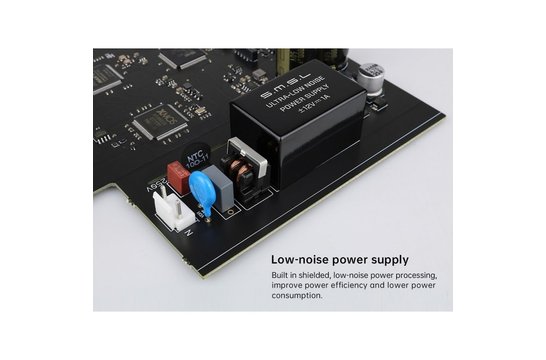

      • Improved power efficiency with built-in shielded low-noise power supply
      • Specially designed discrete component linear regulated power supply
      • Fully-functional remote control
      • JAS Hi-Res certification.



      Product details

      SMSL DO200 DAC 2x ES9068AS XMOS Bluetooth 5.0 LDAC 32bit 768kHz DSD512 MQA

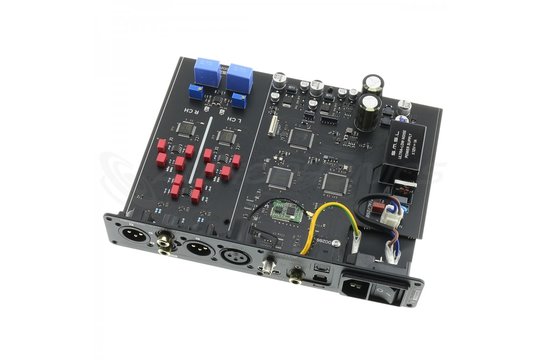

      SMSL offers with its DO200 a small, powerful and complete DAC. Its digital/analog conversion stage is equipped with a 2x ESS9068AS DAC chip, able to offer a transparent, rich, and precise sound reproduction. Added to this DAC is an excellent XMOS XU216 USB interface. The association of these two components allows the support of high sampling rates, up to PCM 32bit 768kHz, DSD512 as well as the decoding of MQA files.



      MQA Decoding

      MQA (Master Quality Authenticated) is an award-winning British technology that restores the sound of the original recording. The MQA Master file is authenticated by the artists, producers, or rights holders. These files are light enough to stream or download. The DO200 incorporates an MQA decoder to read these files in order to provide the best possible audio quality.

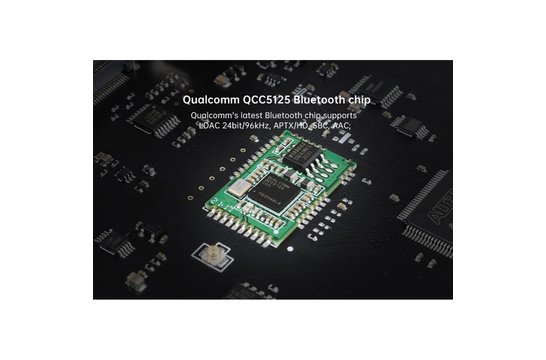

      Bluetooth 5.0 - QCC5125

      Particularly practical, the DO200, in addition to its connectivity, is equipped with a Bluetooth 5.0 receiver from Qualcomm. This one supports the classic codecs SBC and AAC, as well as the high-quality codecs aptX, aptX-HD, and LDAC, allowing to reach restitution close to that of the CD, in wireless.

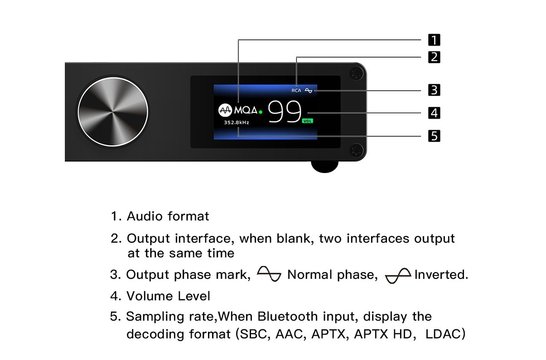

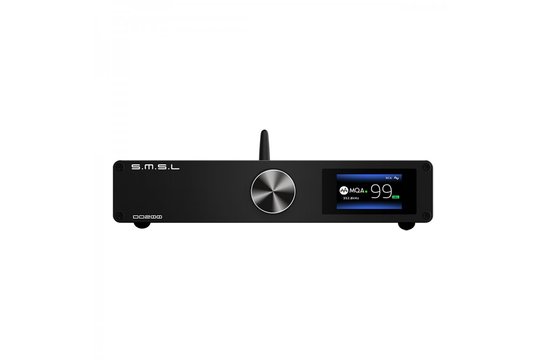

      A readable and practical screen

      The DO200 is equipped with a beautiful, bright, and readable display, protected by a tempered glass window. It clearly displays all the essential information for the comfortable use of the device.



      Flexible connectivity

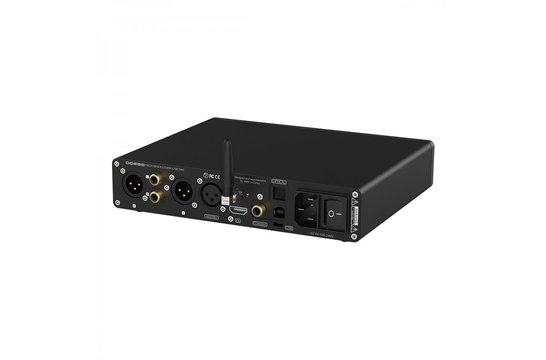

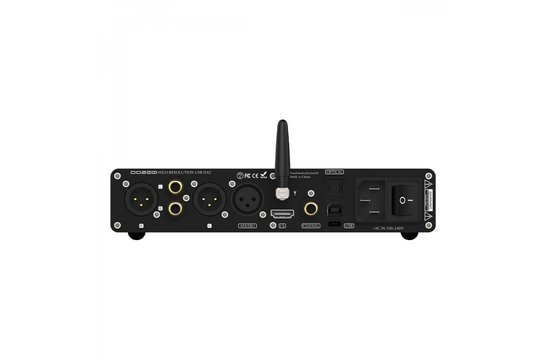

      The back of DO200 reveals a particularly complete connection, allowing the DAC to adapt to the great majority of audio systems. On the input side, we find USB-B, I2S via HDMI, AES/EBU, Optical, Coaxial, and of course Bluetooth. On the output side, the DO200 provides single-ended stereo RCA and balanced stereo XLR.



      Specifications: Product type: DAC • DAC Chip: 2x ES9068AS • Inputs: Bluetooth 5.0, 1x AES/EBU, 1x I2S via HDMI,1x Coaxial,1x USB-B, 1x Optical Toslink • Outputs: 1x Single-ended stereo RCA, 1x Balanced stereo XLR • THD+N: 0.00008% (-122dB) • Dynamic range: XLR : 129dB, RCA : 125dB • SNR: 129dB • Output impedance: < 10Ω • USB transmission mode: Asynchronous • Supported sampling rates: USB, I2S : PCM up to 32bit 768kHz, DSD up to DSD512; Optical, Coaxial, AES/EBU : PCM up to 24bit 192kHz, DSD DoP up to DSD64 • Supply voltage: 100-240VAC (Power cable included) • Consumption: 5W • Standby consumption: < 0.5W • Dimensions / Weight: 210x40x170mm / 1,2kg • Remote: Yes • Housing material: Aluminum • Color: Black



      Whats In The Box

      • 1x SMSL DO200
      • 1x Remote control
      • 1x Antenna
      • 1x USB Cable
      • 1x Power cable

      Specifications

      Article number
      DO200
      Product type
      Audio DAC
      Wireless Connectivity
      Bluetooth 5.0 (APTX/HD, SBC, AAC)
      DAC Chipset
      2x ES9068AS
      Codec support
      MQA
      DSD512
      PCM
      Inputs
      1x AES/EBU
      1x I2S via HDMI
      1x Coaxial
      1x USB-B
      1x Optical Toslink
      Outputs
      1x Single-ended stereo RCA
      1x Balanced stereo XLR
      THD(+N)
      0.00008% (-122dB)
      Dynamic Range
      XLR : 129dB
      RCA : 125dB
      SNR
      129dB
      USB Compatibility
      Windows 7+
      Mac OSX
      Linux
      Processing resolution & sample rate
      > 32-bit / 768 kHz (USB, I2S)
      > 24-bit / 192 kHz (TOSLINK, COAX, AES/EBU)
      DSD64
      Power requirements
      100 - 240 VAC
      Power consumption
      5 watts
      Standby power consumption
      < 0.5 watts
      Remote control
      Yes
      Dimensions
      210 x 40 x 170 mm
      Weight
      1200 gr.

      Show more

      Reviews

      5 from 5Based on 1 reviews
      Review this product
      5 of 5
      Nice and very good DAC for the price range.
      By JK on 7 April 2022
