    SMSL AO200 Class D Amplifier 2x MA12070 Balanced Bluetooth 5.0 Subwoofer

    € 247,89€ 299,95 2 In stock: delivery time 1-4 business days
    • 24h express shipping available
    • Low international shipping rates
    • Same day shipping
    • In-house technical support
    Do you have a question about this product?

    Do you have a question about this product?

    Our employee is happy to help you find the right product

    Product description

    The SMSL AO200 is a compact power amplifier with a Bluetooth Wireless receiver and up to 90W of output power into a 4Ω load.



    Highlights

    • 2xGerman Infineon's new technology class D power amplifier chip, higher quality, efficiency up to 92%, further reducing power consumption;
    • Using NJRC's electronic volume control chip NJW1194 from Japan, precise volume control and low distortion;
    • The balanced design, from input to speaker output, greatly reduces distortion caused by signal transmission;
    • Built-in SMSL SDB patented sound and treble/bass adjustment for easy matching of a variety of speakers and music;
    • Subwoofer pre-out for 2.1 system application.
    • New Bluetooth 5.0 reception, better sound quality, longer transmission distance!
    • Low power standby function to meet the latest European ErP2 standard;
    • High-quality gold-plated input and output terminals;
    • Perfect protection circuit for overheating, overcurrent, etc.
    • Built-in high-quality power supply, specially designed for audio



    Product details

    SMSL AO200 Class D Amplifier 2x MA12070 Balanced Bluetooth 5.0 Subwoofer



    The SMSL AO200 is a compact and powerful Class D digital amplifier, capable of developing a power of 2x90W under 4Ω thanks to its two Infineon MA12070 amplifier chips. A power totally mastered in order to reveal a sound restitution of great purity and dynamics. Versatile, it benefits from both a balanced input, but also Bluetooth 5.0 reception and a Subwoofer output.

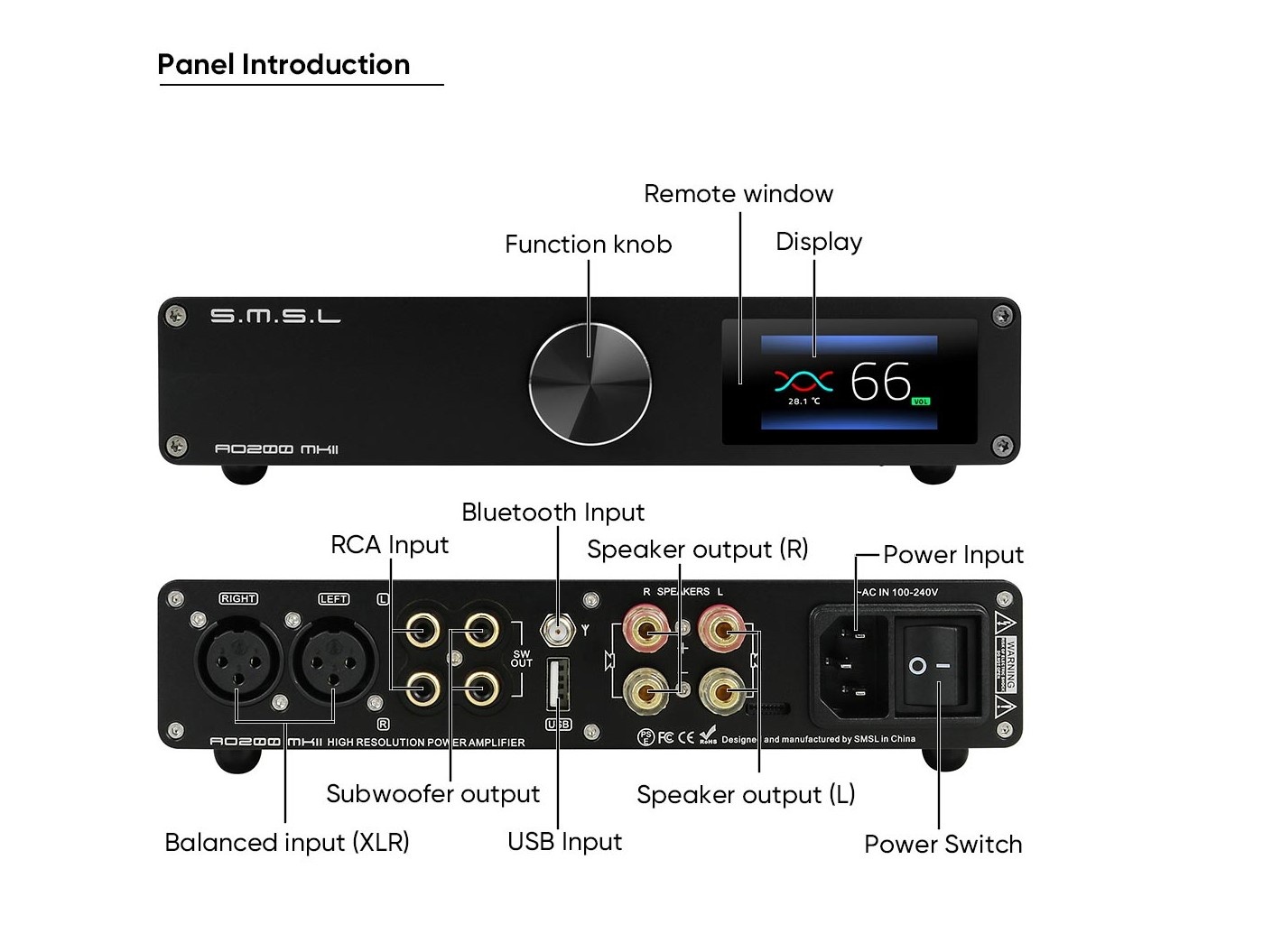

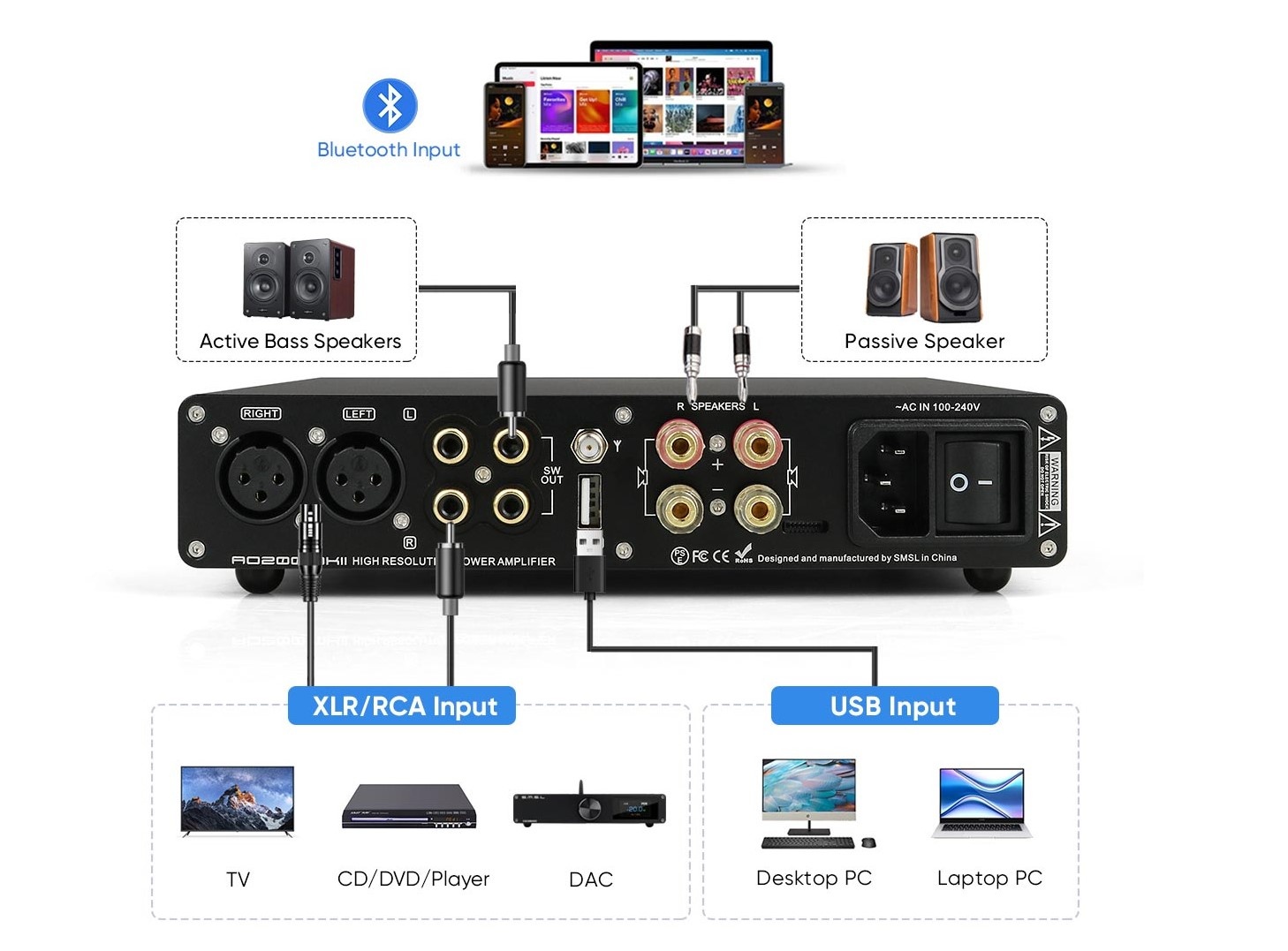

    Balanced & Single-Ended

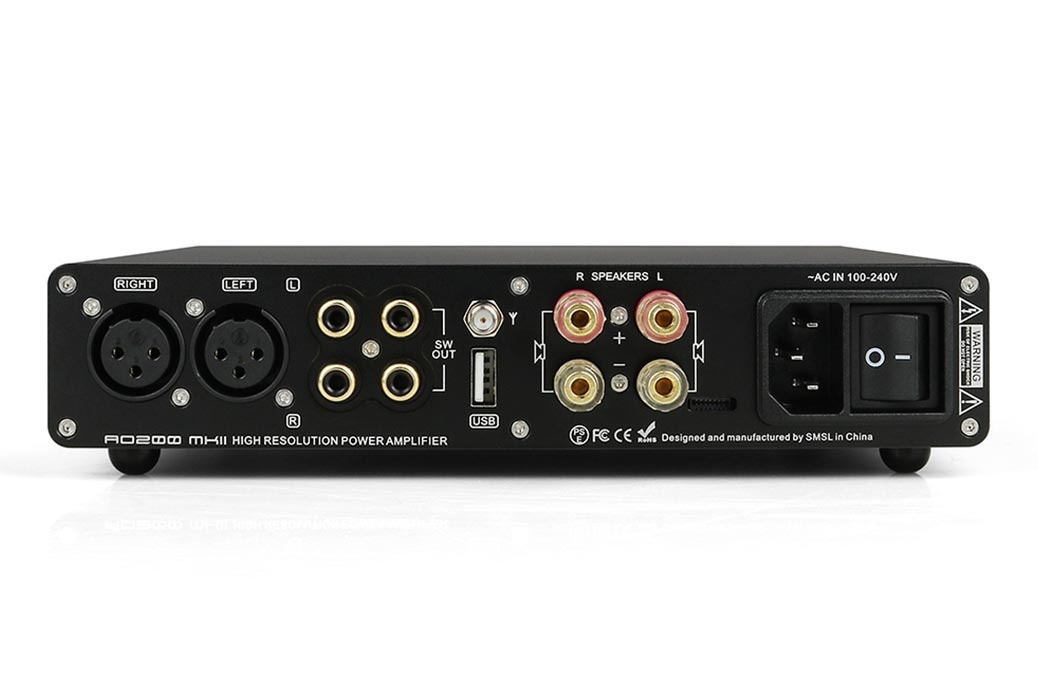

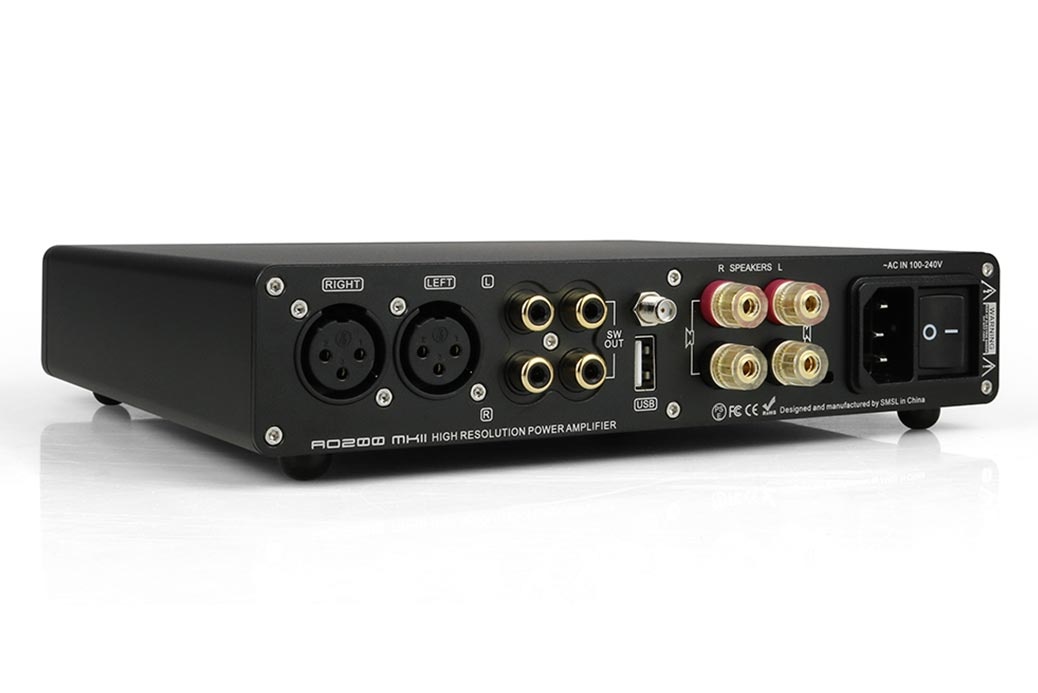

    In order to integrate with all audio systems and to adapt to all needs, the SMSL AO200 is equipped with two inputs. There is an unbalanced input on RCA and a balanced input on XLR. Each connector is gold plated to ensure a very good conductivity and durability.



    Subwoofer output

    With the AO200 it is possible to set up a 2.1 audio system, thanks to an output on the RCA connector. Ideal to reach deep and punchy bass.



    Infineon MA12070

    At the heart of the AO200's amplifier stage are two Infineon MA12070 Class D amplifier chips. These offer a consequent power, associated with high efficiency of 92%, reduced consumption, and then of course a sound of great richness. These chips adopt the new MERUS architecture, totally different from classic Class D architecture. Each half-bridge uses four MOSFETS (M1-M4) and a capacitor between them as an additional power rail to generate a three-level output signal at the output node.



    Bluetooth 5.0

    With its Bluetooth 5.0 receiver, the AO200 allows you to broadcast your music from a distance, directly from a smartphone for example. The 5.0 standard ensures a fast and stable transmission over a distance of 10m.



    EQ Settings

    The AO200 has 8 preset equalizers to suit your listening and your audio system. You can also manually adjust the bass and treble levels for fine-tuning.



    High-end components

    The AO200's circuitry uses high-quality components to provide the best possible performance. We can find a particularly precise and low distortion NJW1194 volume controller, EOP1678 AOPs, ERO capacitors or low noise MELF resistors.



    An optimized power supply stage

    The power supply stage is not to be outdone since it is based on a power supply module custom designed to provide an instantaneous power of 300W. It thus allows to favour a beautiful dynamic while limiting efficiently the impact of the interferences. For that, it uses in particular a large transformer with low leakage and filtering of the input at two levels.



    Specifications: Product type: Class D Amplifier • Inputs: 1x Balanced stereo XLR, 1x Single-ended stereo RCA, Bluetooth 5.0, 1x USB-A • Outputs: Speaker terminals, 1x Subwoofer (RCA) • THD+N: 0.003% • SNR: 110dB • Channel separation: 98dB • Input sensitivity: 280mV • Input impedance: 47kΩ • Output power: 2x 150W @ 2Ω / 2x 90W @ 4Ω / 2x 50W @ 8Ω • Supply voltage: 110-240VAC • Consumption at normal volume level: 40W • Standby: 0.5W • Dimensions: 187.5 x 154 x 40mm • Weight: 960g • Color: Black.



    Whats In The Box:

    • 1 x AO200
    • 1 x AC cable
    • 1 x Paper manual
    • 1 x Infrared remote control

    Specifications

    Article number
    AO200
    Rated power output (RMS)
    90 WPC RMS @ 4 ohms
    Minimum load
    2 ohms
    Signal-to-noise ratio (SNR)
    110dB
    Distortion
    0.003% THD+N
    Efficiency
    92%
    Input impedance
    47kΩ
    Input sensitivity
    280mV
    Circuit Topology
    Infineon MA12070
    Amplifier classification
    Class D
    Speaker output channels
    2
    XLR in/out
    Balanced stereo XLR
    USB
    1x USB-A
    Subwoofer pre-out
    2
    Bluetooth
    Bluetooth 5.0
    Power requirements
    110-240 VAC
    Power consumption
    40w (Normal Volume)
    Stand-by power consumption
    0.5W
    Dimensions (D x W x H)
    187.5 x 154 x 40mm
    Case material
    Aluminum
