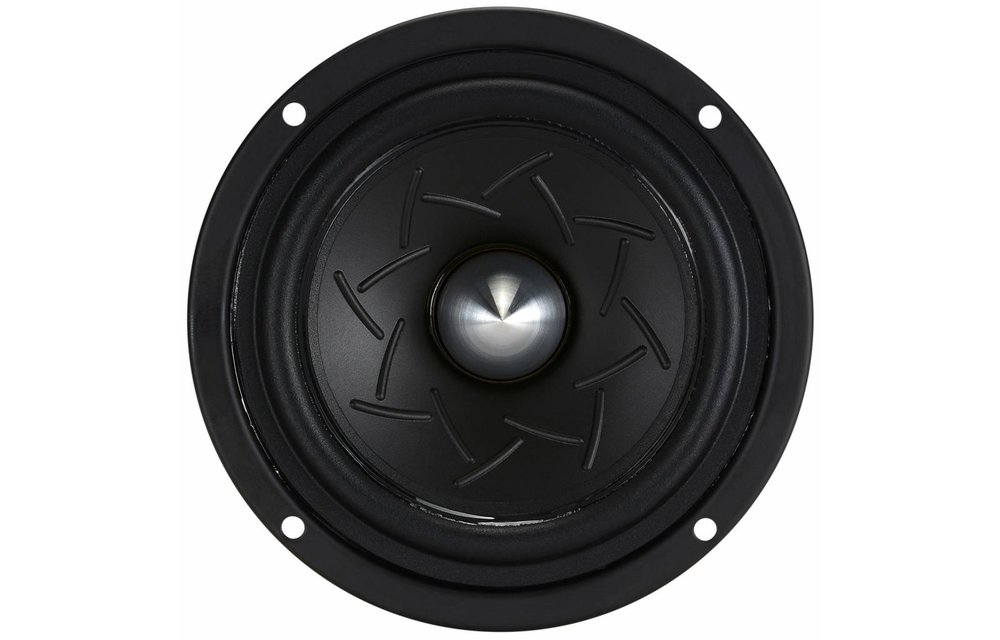

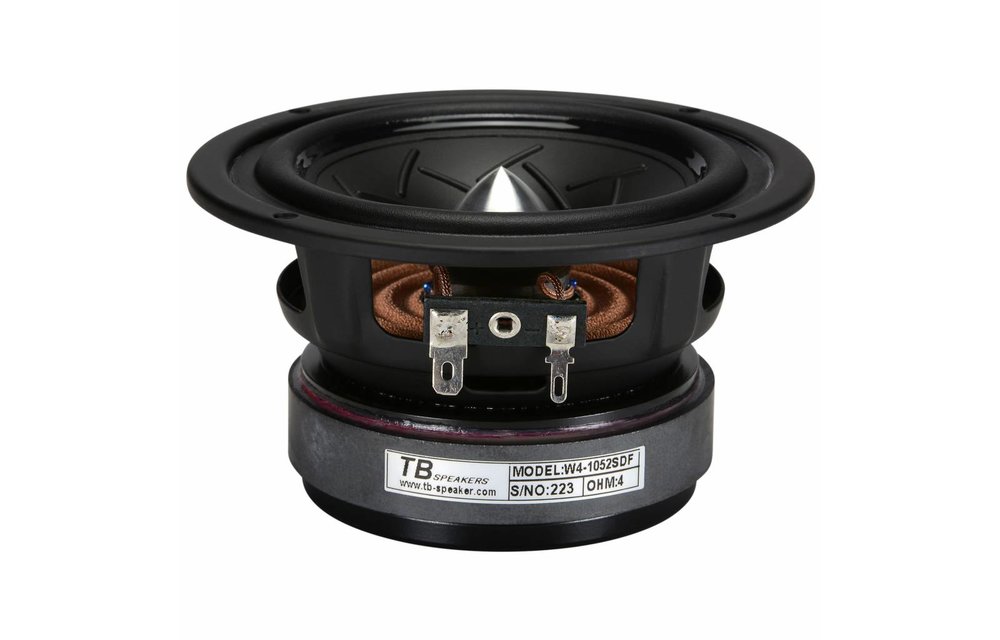

Tang Band W4-1052SDF 4" Full Range Speaker

€ 38,22€ 46,25 >10 Auf Lager: Lieferzeit 1-3 Werktage
Capable of extremely detailed sound reproduction, the Tang Band W4-1052SDF 4" speaker also offers surprisingly solid bass response.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €43,94 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Capable of extremely detailed sound reproduction, the Tang Band W4-1052SDF 4" speaker also offers surprisingly solid bass response.



Highlights

  • Offers great bass extension and smooth frequency response
  • Ultra-thin polypropylene cone maintains strength via special ridges on its surface, while still having very low moving mass
  • 4 ohm impedance is great for automotive use or high-sensitivity designs



Product details

Tang Band W4-1052SDF 4" Full Range Speaker



A highly efficient 4" speaker, the Tang Band W4-1052SDF offers great bass extension and smooth frequency response. The unique ultra-thin polypropylene cone maintains strength via special ridges on its surface, while still having very low moving mass. A long 1" diameter voice coil, rubber surround, high-energy ceramic ferrite motor, and phase plug allow good use of this driver's 4 mm of Xmax. The W4-1052SDF's 4 ohm impedance is great for automotive use or high-sensitivity designs.

Eigenschaften

Artikelnummer:
W4-1052SDF
Woofer Type
Full-range
Nominal Diameter
4"
Power Handling (RMS)
20 Watts
Power Handling (max)
40 Watts
Impedance
4 ohms
Sensitivity
88 dB 1W/1m
Frequency Response
70 to 17,000 Hz
Voice Coil Diameter
1"
Magnet Weight
10.8 oz.
DC Resistance (Re)
3.8 ohms
Voice Coil Inductance (Le)
0.08 mH
Resonant Frequency (Fs)
70 Hz
Mechanical Q (Qms)
4.8
Electromagnetic Q (Qes)
0.46
Total Q (Qts)
0.42
Diaphragm Mass Inc. Airload (Mms)
4.61g
Mechanical Compliance of Suspension (Cms)
1.12 mm/N
Surface Area of Cone (Sd)
57 cm²
BL Product (BL)
4.1 Tm
Compliance Equivalent Volume (Vas)
0.18 ft.³
Maximum Linear Excursion (Xmax)
2.6 mm
Cone / Diaphragm Material
Poly
Surround Material
Rubber
Basket / Frame Material
Steel
Magnet Material
Ferrite
Overall Outside Diameter
4.57"
Overall Depth
2.52"
Baffle Cutout Diameter
3.66"
# Mounting Holes
4
Sealed Volume
0.07 ft.³
Sealed F3
133 Hz
Vented Volume
0.17 ft.³
Vented F3
70 Hz
