        Excel T35C002 - E0055 Dome Tweeter

        Excel T35C002 - E0055 Dome Tweeter

        €369,95

        SEAS Excel T35C002 - E0055 Dome Tweeter

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SEAS
        € 305,74€ 369,95 9 In stock
        • -5% Purchase 4 for only € 351,45 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Highlights

        • The top plate and T-yoke are CNC machined for excellent precision
        • 100 Watts RMS Power Handling
        • 95 dB 2.83V/1m Sensitivity



        Product details

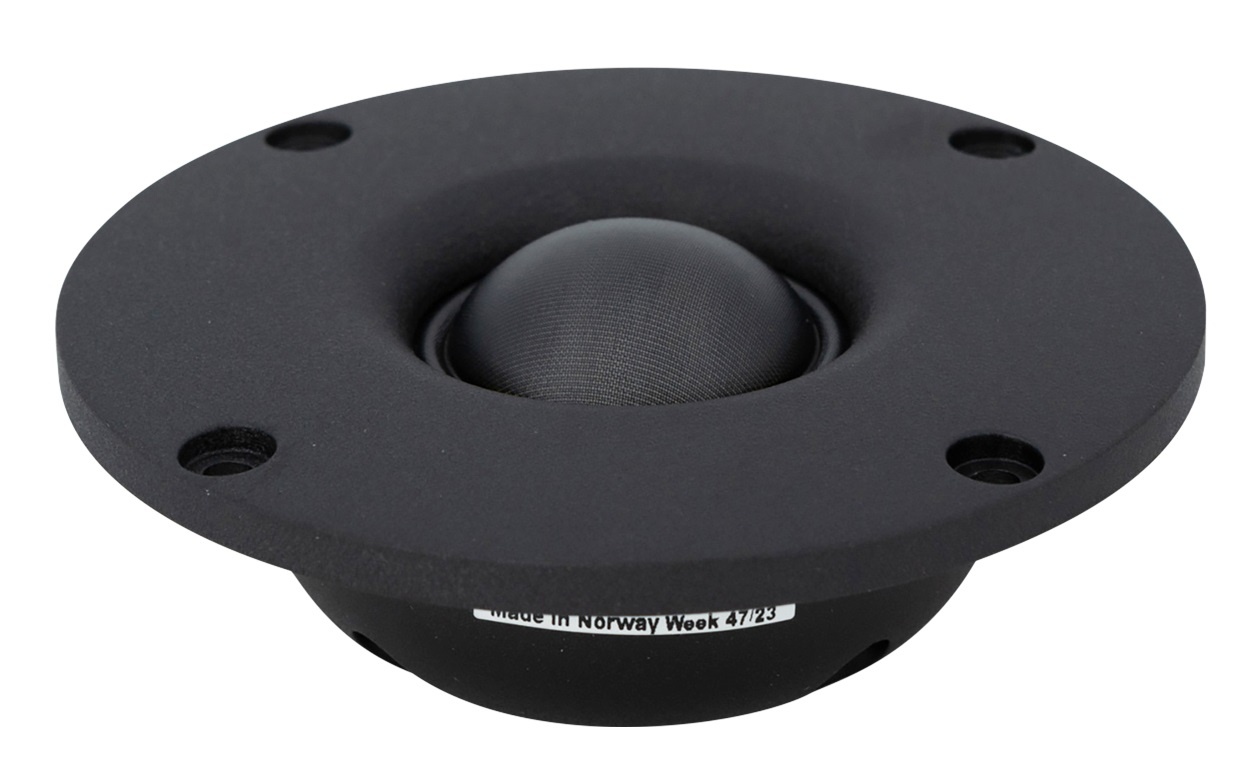

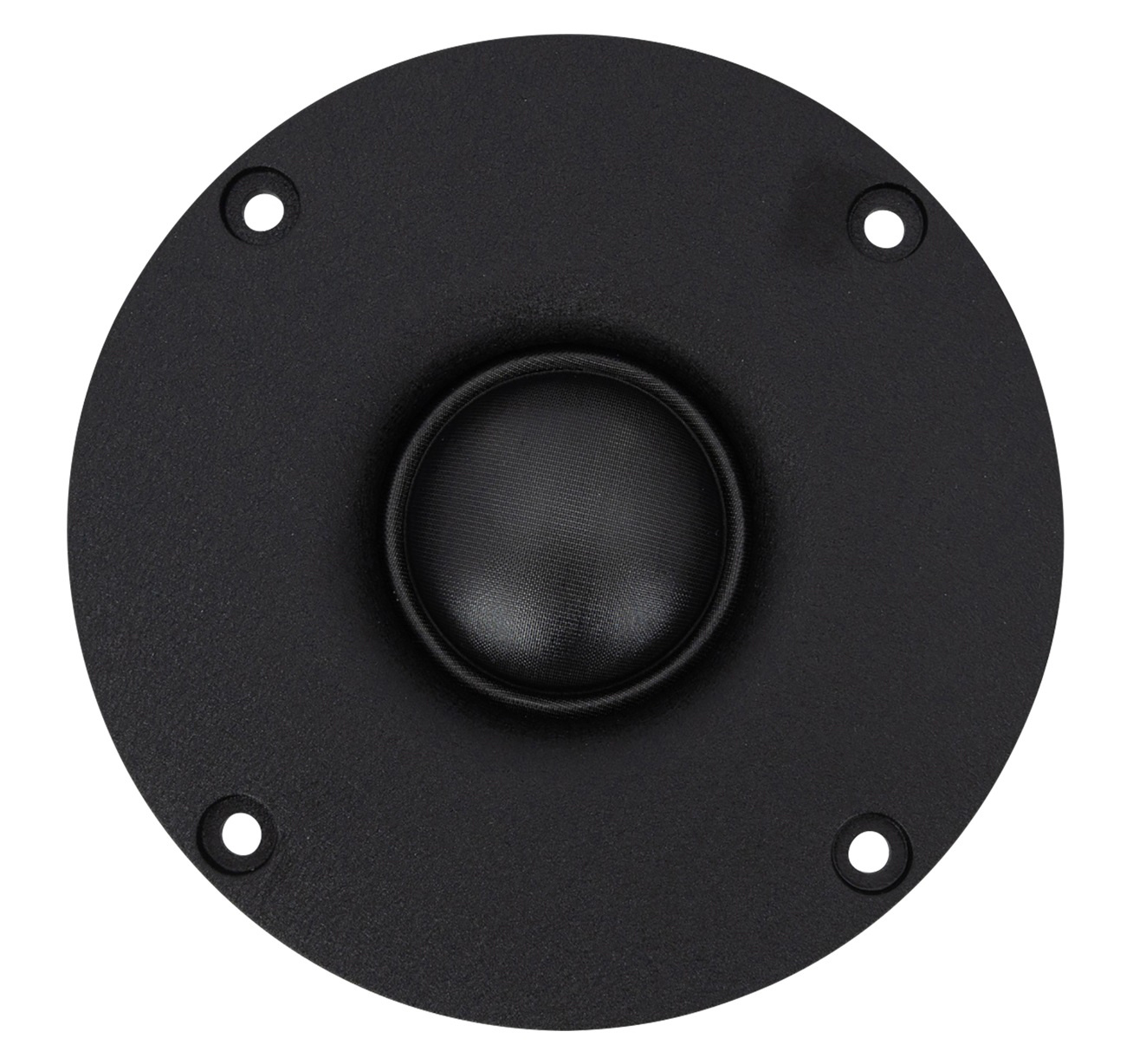

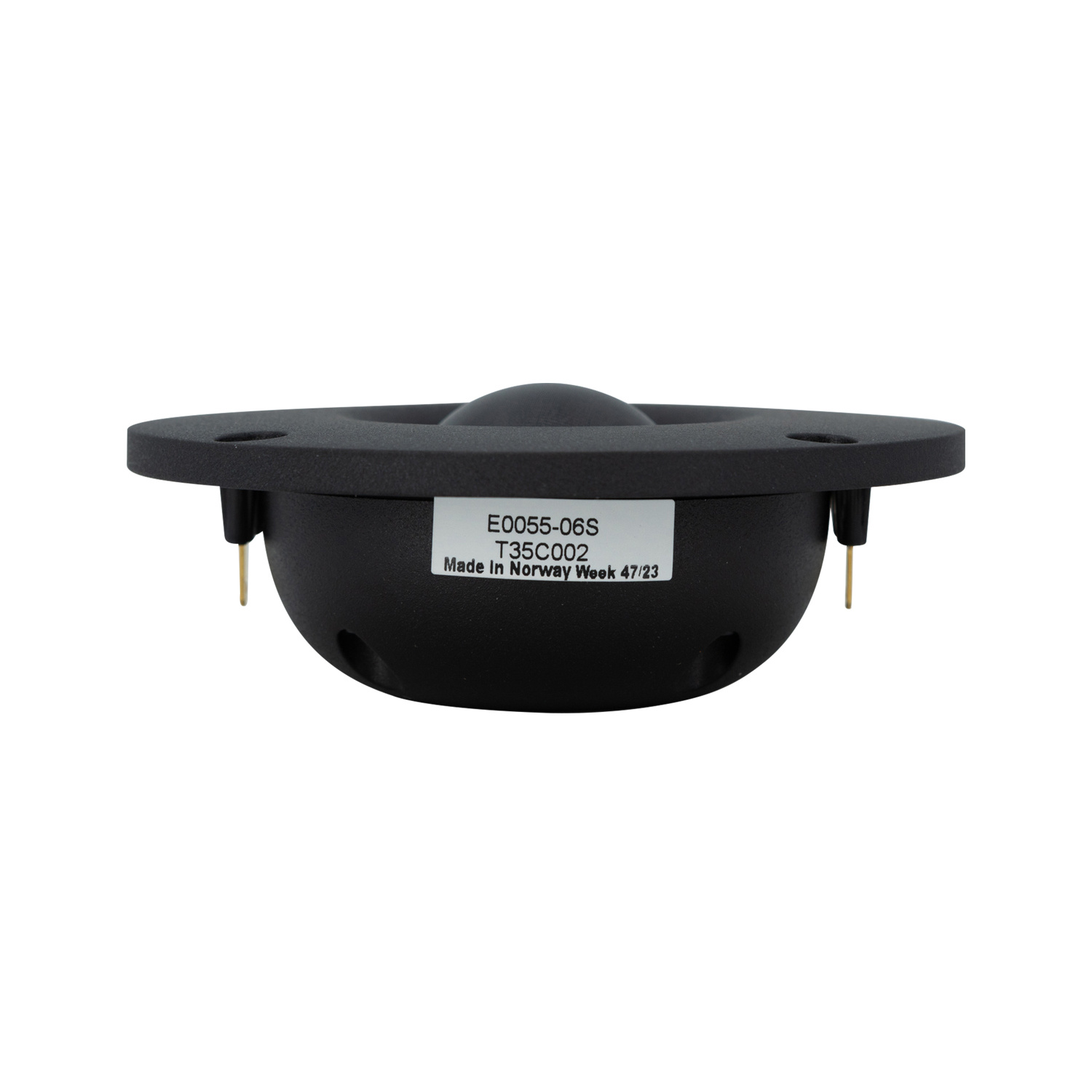

        Seas Excel T35C002 - E0055 1-1/2" Coated Fabric Dome Tweeter



        The T35C002 is a classic dome midrange tweeter with high sensitivity and a smooth, extended frequency response. A coated fabric dome with integral surround manufactured by Dr. K. Müller in Germany ensures excellent performance and consistency. This supplier was among the first in the world to offer fabric dome diaphragms, and did produce the diaphragm for the famous 1.5” Dome Tweeter H087, developed by Seas in 1968.

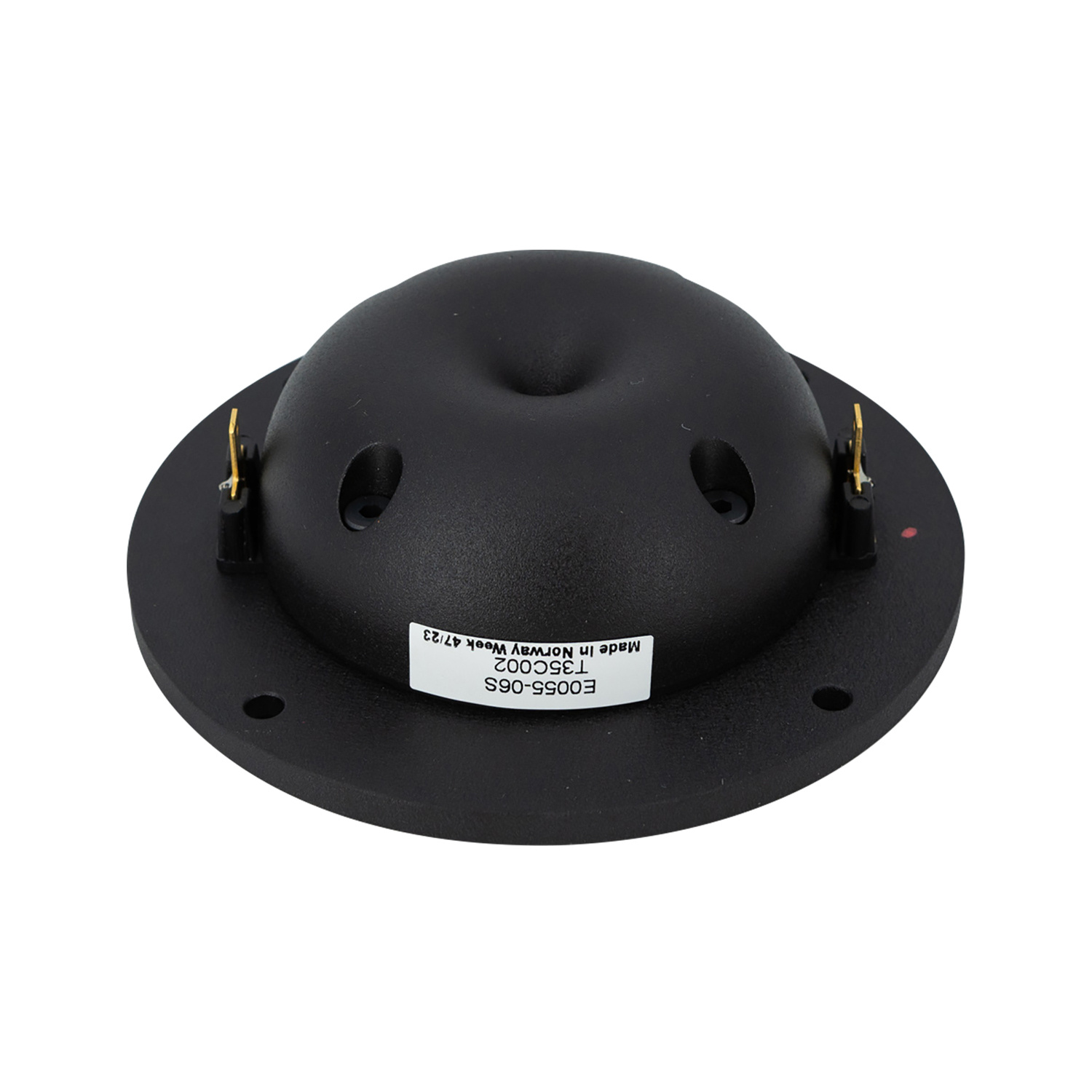

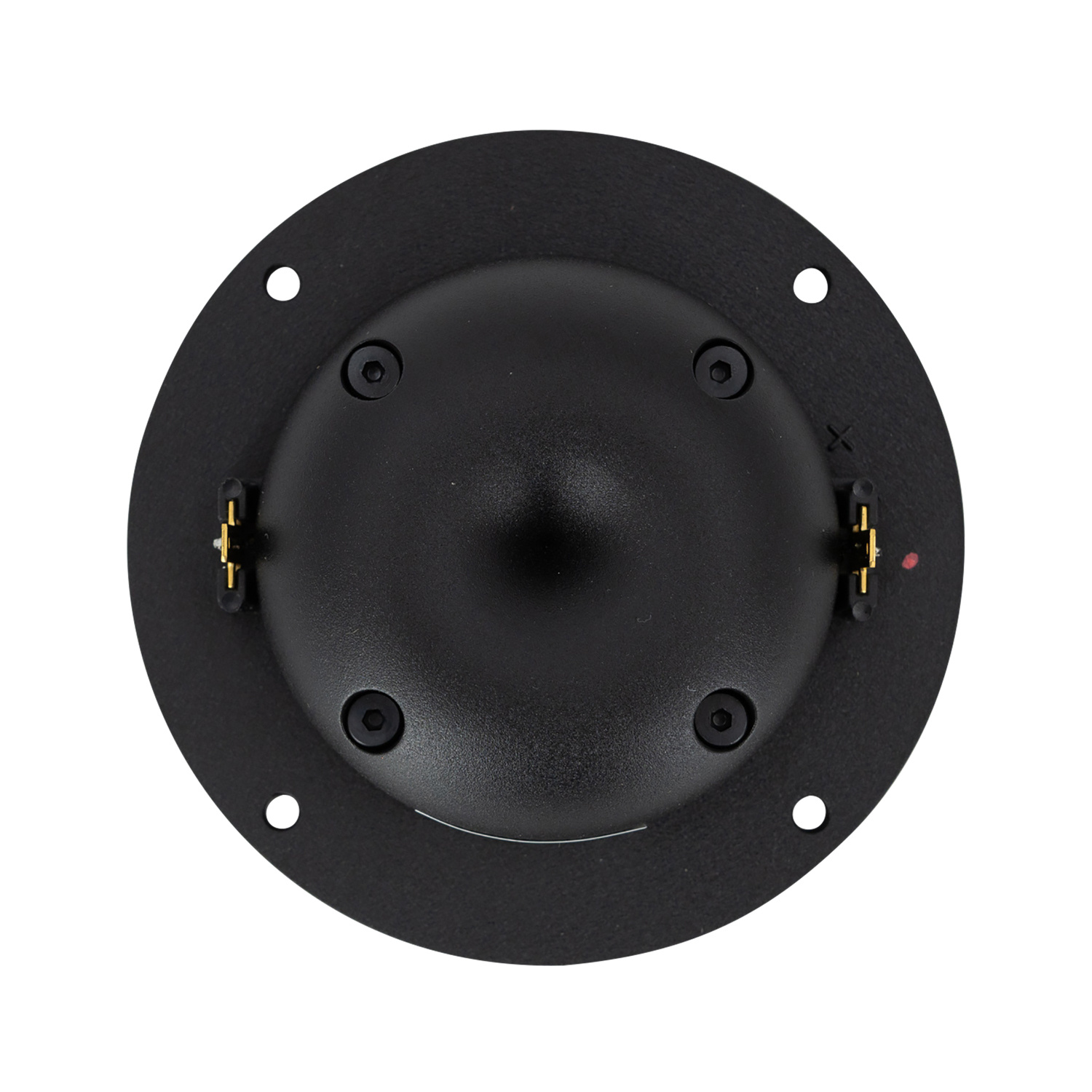

        A small, high efficiency Neodymium ring magnet in a carefully designed system contributes to high sensitivity and low distortion. The top plate and T-yoke are CNC machined for excellent precision. A well damped vented pole and a rigid rear chamber ensure a low resonance frequency and smooth response. A generously underhung 35mm voice coil wound from copper-clad aluminum wire further enhances the sensitivity.



        Flexible lead-out wires and venting holes in the aluminum coil former help reduce noise to a minimum. A 7 mm thick precision die-cast aluminum front plate with moderate horn loading ensures linear frequency response and represents an extremely stable platform for the magnet system and the moving parts.

        A great application example would be the SEAS application De A26. To learn more, please check out our blog article "SEAS Application Notes".

        Show more

        Specifications

        Article number
        T35C002
        Tweeter Type
        Dome
        Tweeter Series
        Excel Series
        Cone / Dome Diameter
        13 mm | 1/2"
        Power Handling (RMS)
        100 Watts
        Impedance (Z)
        6 Ω
        Sensitivity (SPL at 1m / 2.83V)
        95 dB
        Frequency Response
        1,500 to 25,000 Hz
        Resonant Frequency (Fs)
        620 Hz
        DC Resistance (Re)
        4.6 ohms
        Voice Coil Inductance (Le)
        0.06 mH
        Overall Outside Diameter
        4.33"
        Cutout Diameter
        2.93"
        Depth
        1.4"

        Show more

        5 of 5
        Der Hochtöner hält was der Preis verspricht. Über 300€ für eine Kalotte ist schon nicht gerade wenig. Mit 1,5 Zoll ist er groß und verträgt eine Trennung erster Ordnung (6db) sehr gut. Mir war wichtig das er deutlich aber immer soft bleibt. Ich brauche keine Frequenzen jenseits des Hörbaren. Da zischelt nix und es ist luftig leicht. Die Verarbeitung ist sehr gut. Rundherum cnc verarbeitet Aluminium.
        By Oliver on 6 March 2024
